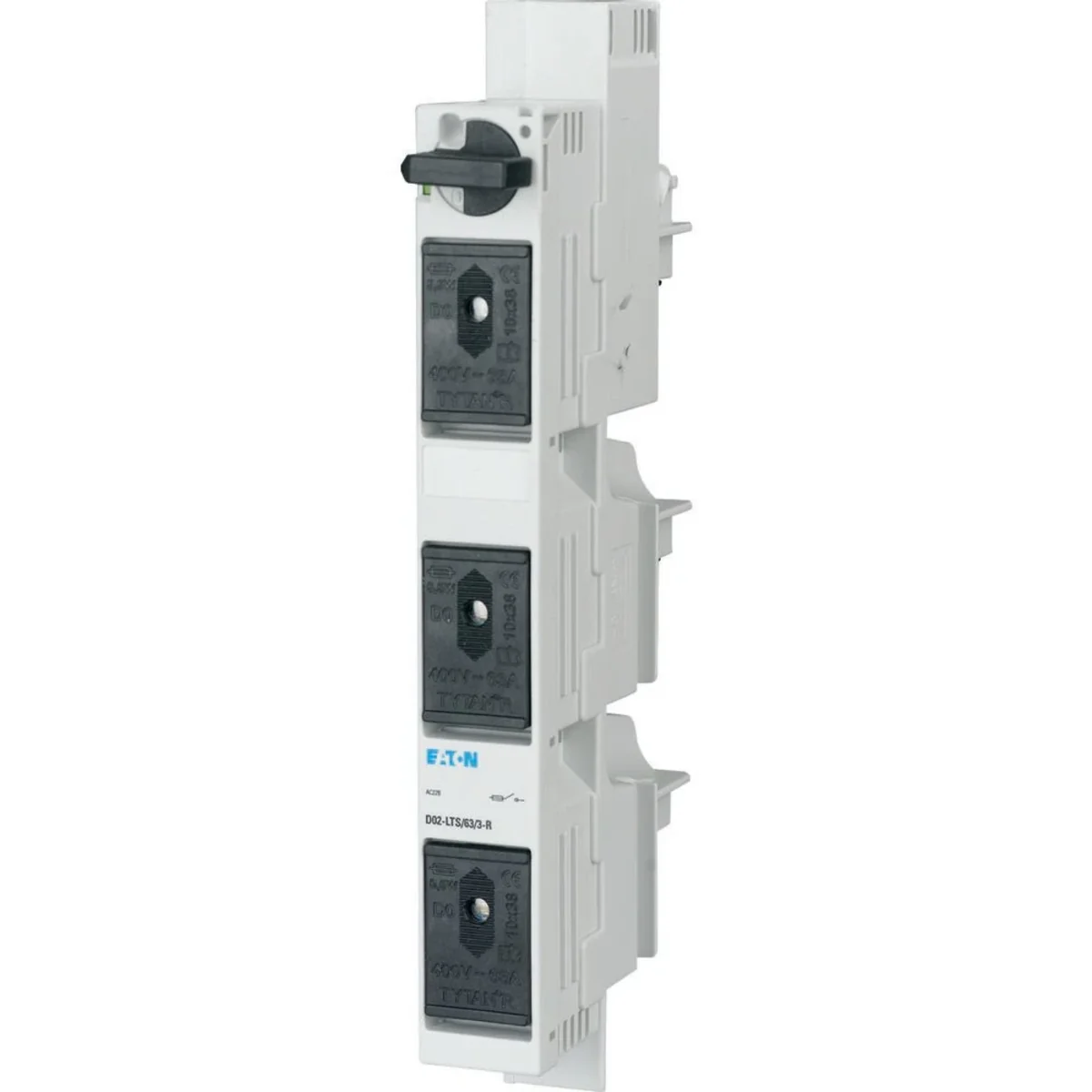

Fuse switch disconnector 63A, 400 V, 3-pole, D02, HK 114318

local index:
ALB041MOEL
Catalog No:
114318
EAN code:
4015081137183
Manufacturer: EATON
Packing Quantity/Minimum Order Quantity: 3
Number of poles: 3
Rated voltage [V]: 400
Price:
151,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
3
)
Add to clipboard
Print

Product description

Flashing indicates fuse link tripping, delivery empty, without sleeves and fuse links, adapters for D01 fuse links or 10x38 barrel-type fuse links included in the scope of delivery, contact position indicator, safety plugs without screw plugs, load connections on all poles and independently of the hand, version D02-LTS/63/3-R-HK with mounted limit switch, sealable and lockable.

Technical data

  • Packing Quantity/Minimum Order Quantity
    3
  • Rated voltage [V]
    400
  • Rated operational current [A]
    63
  • Number of poles
    3
  • Size
    D02
  • PKWIU
    25.11.23.0

Other technical data

  • Number of poles
    3
  • Rated voltage
    400 V
  • Construction size
    D02
  • Rated current
    63 A

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 3 pcs. 27 pcs.
Weight (kg) 0,384 1,152 13,000
Volume (m3) 0,001 0,003 0,052
Width (m) 0,029 0,090 0,400
Length (m) 0,228 0,245 0,590
Depth (m) 0,104 0,135 0,220
