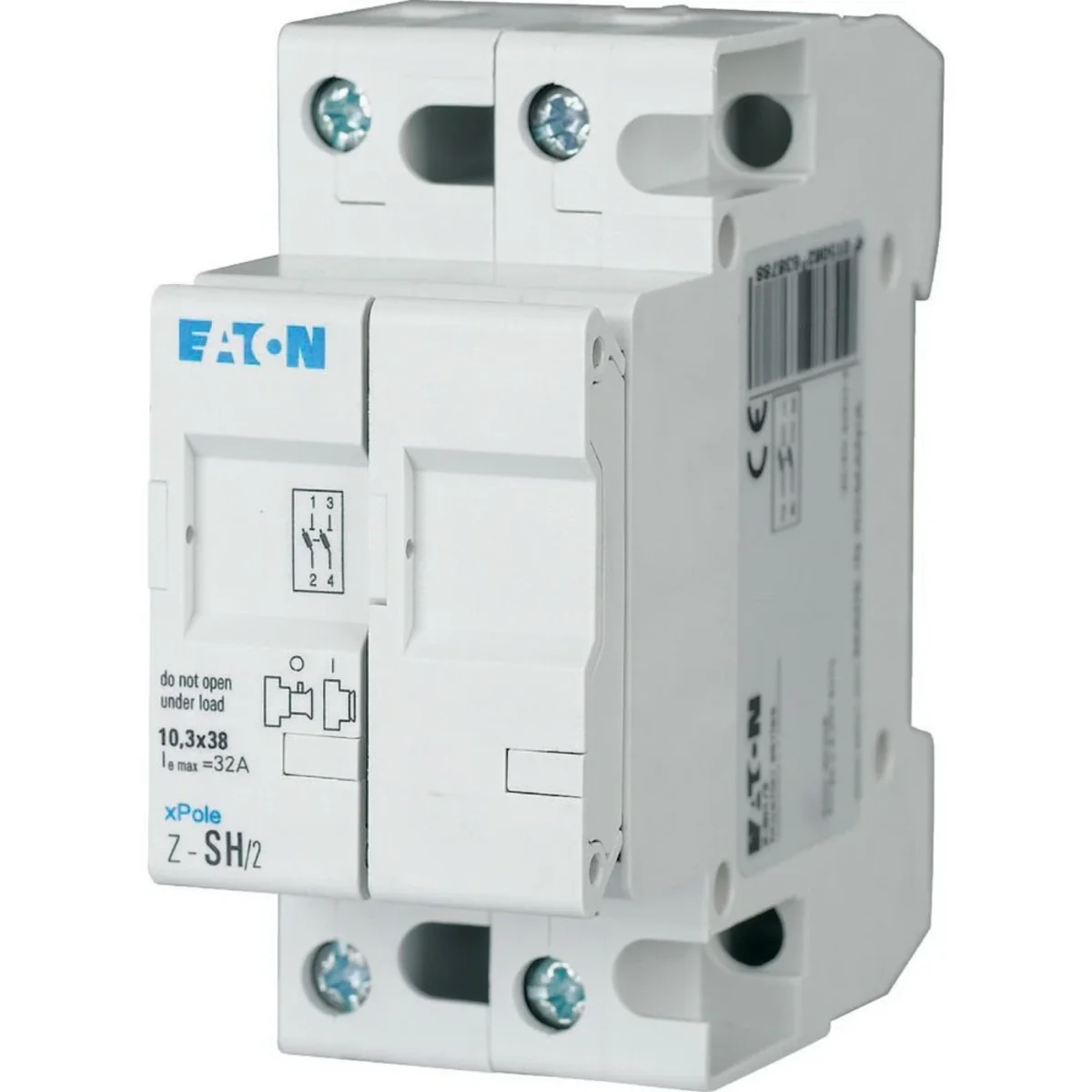

Fuse base for cylindrical fuse-links, 10.3 x 38 / 2A, Z-SH/2 263878
local index:
ALB040MOEL
Catalog No:
263878
EAN code:
4015082638788
Manufacturer:
EATON
Insert dimensions/Number of poles: 10.3×38/2
Price:
15,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
6
)
Add to clipboard
Print
Ask about the product
Product description
Fuse bases for fuses for Z-SH industrial installations. Without optical indication of Z-SH fuse burnout.
Technical data
-
Insert dimensions/Number of poles10.3×38/2
Other technical data
-
Version as main switchNo
-
Max. rated operation voltage Ue AC400 V
-
Rated operation power at AC-23, 400 V0 kW
-
Rated short-time withstand current lcw0 kA
-
Number of poles2
-
Type of electrical connection of main circuitScrew connection
-
Equipped with connectorsNo
-
Suitable for front mountingNo
-
Type of control elementOther
-
Motor drive optionalNo
-
Version as emergency stop installationNo
-
Version as safety switchNo
-
Rated permanent current Iu32 A
-
Conditioned rated short-circuit current Iq10 kA
-
Suitable for fusesShape C1-C3
-
With error protectionNo
-
Cable entryOther
-
Suitable for floor mountingNo
-
Suitable for busbar mountingNo
-
Position control elementFront side
-
Motor drive integratedNo
-
Degree of protection (IP), front sideIP20
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 6 pcs. | 60 pcs. |
| Weight (kg) | 0,170 | 0,179 | 1,075 | 10,850 |
| Volume (m3) | 0,000 | 0,000 | 0,001 | 0,016 |
| Width (m) | 0,035 | 0,037 | 0,086 | 0,180 |
| Length (m) | 0,080 | 0,082 | 0,218 | 0,385 |
| Depth (m) | 0,074 | 0,076 | 0,074 | 0,230 |
