EBH2O3TM1 Horizontal fuse switch, 400 A, AC 690 V, NH2, AC23B, 3P, IEC, panel mount, screw mount (M10) EBH2O3TM1

Name: EBH2O3TM1 Horizontal fuse switch, 400 A, AC 690 V, NH2, AC23B, 3P, IEC, panel mount, screw mount (M10)
Brand: EATON
SKU: ALB037MOEL
Price: 993.54 PLN
Availability: BackOrder

local index:

ALB037MOEL

Catalog number:

EBH2O3TM1

EAN code:

5906739005062

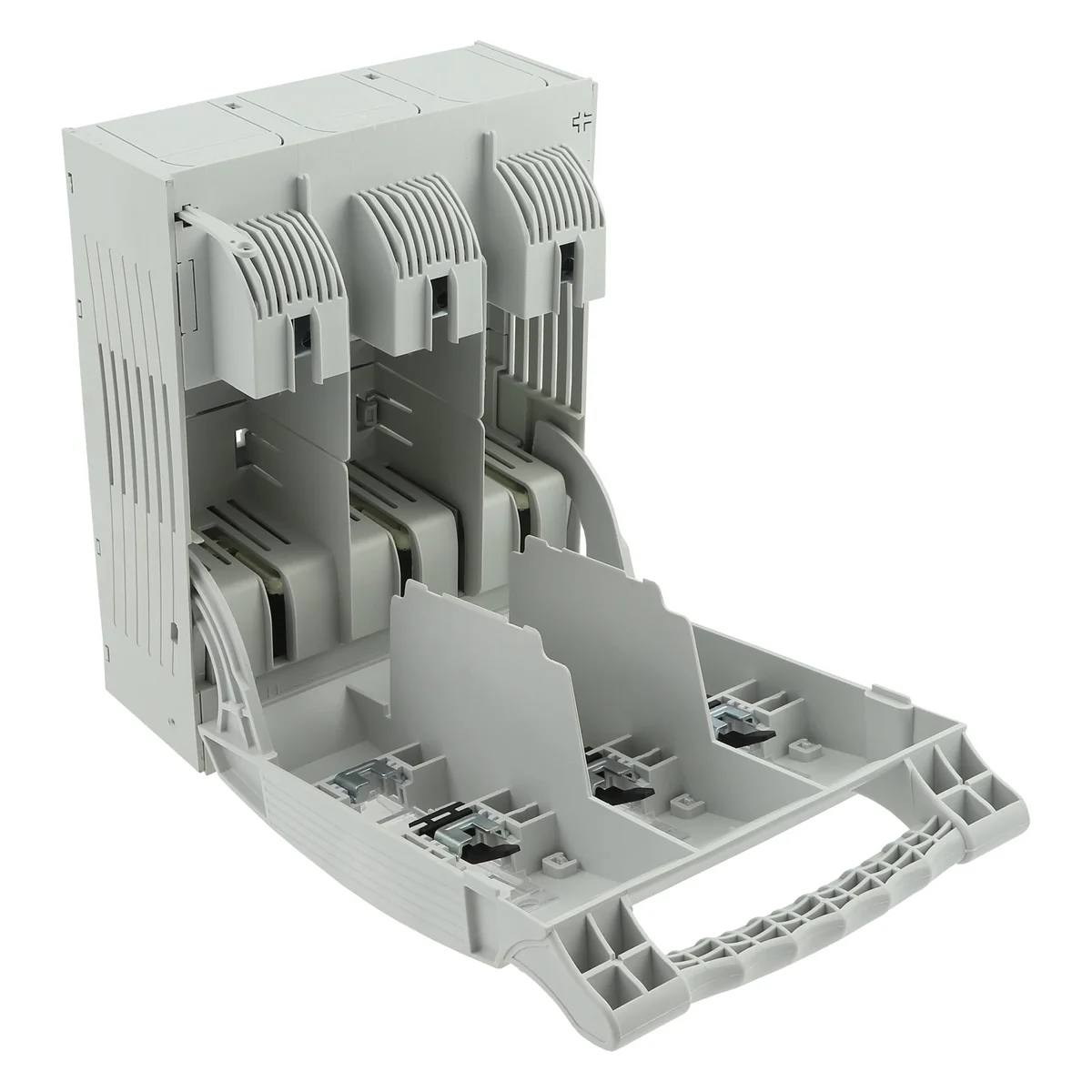

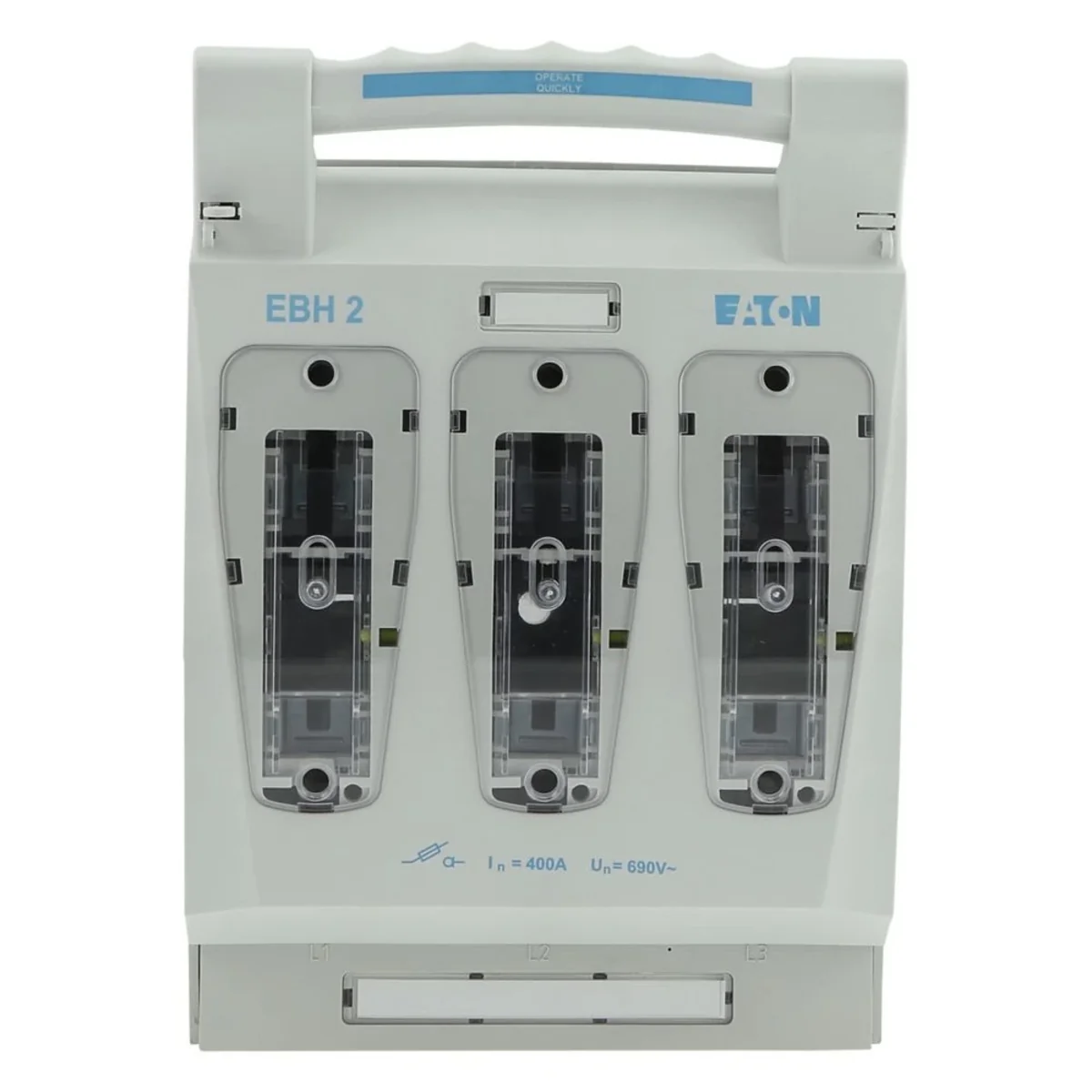

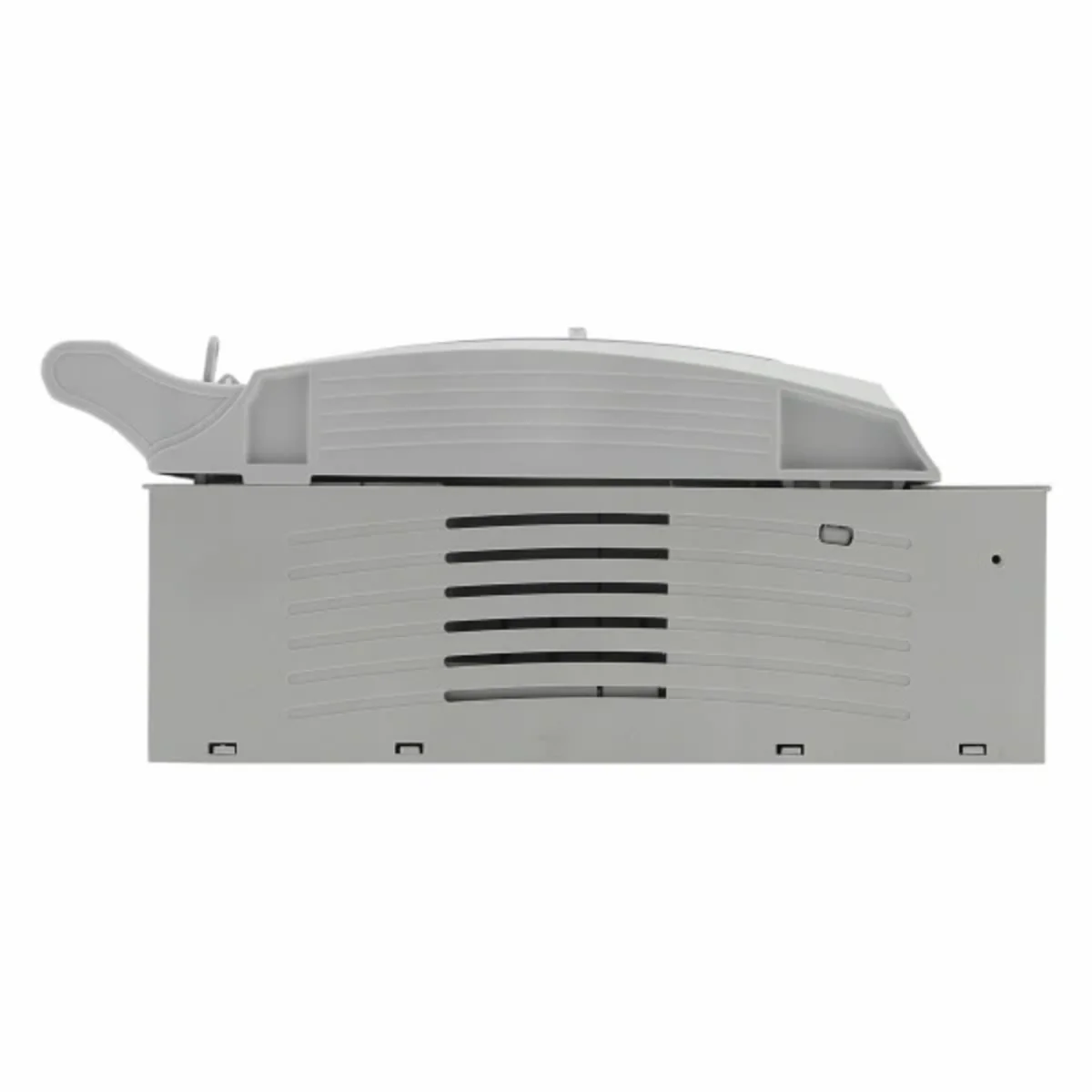

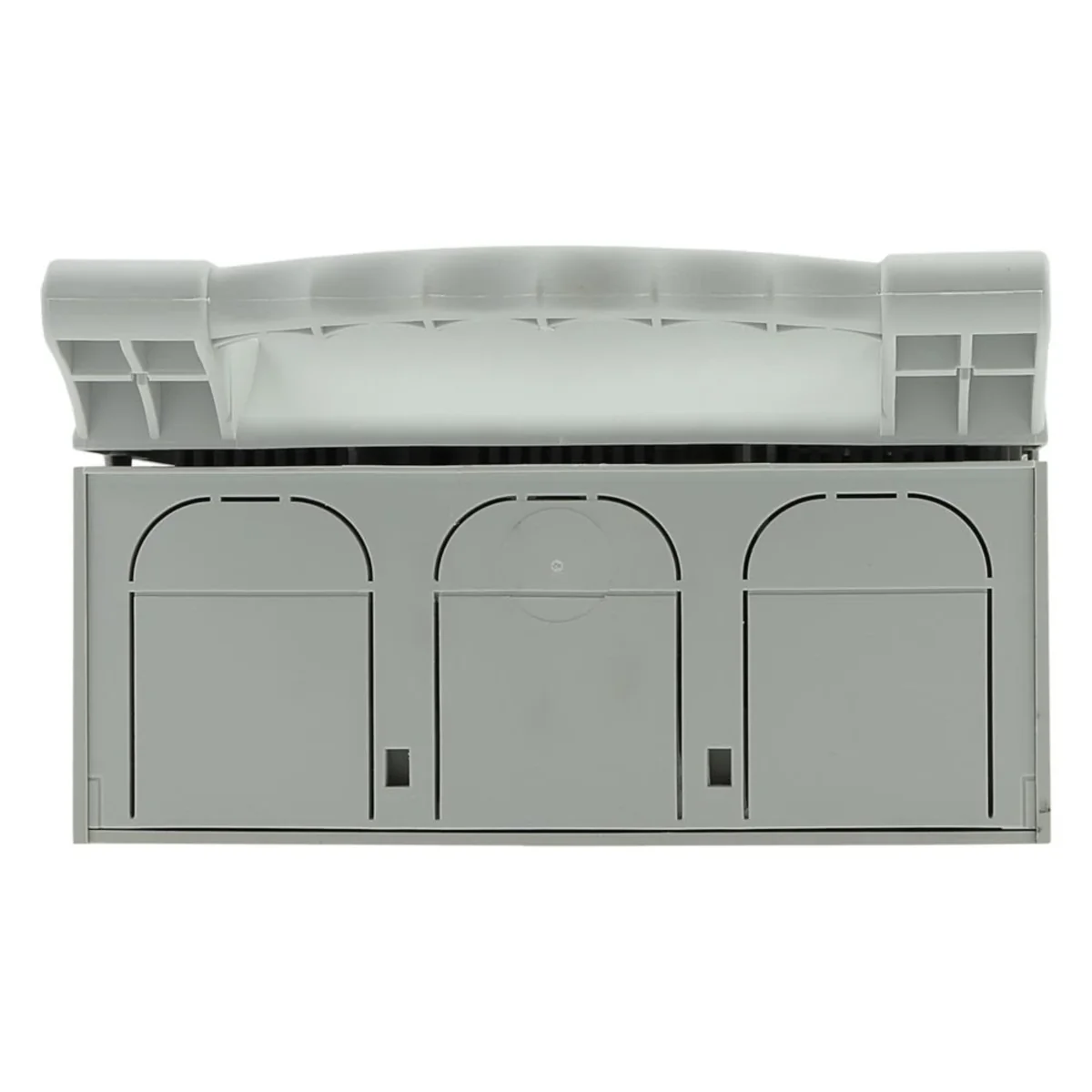

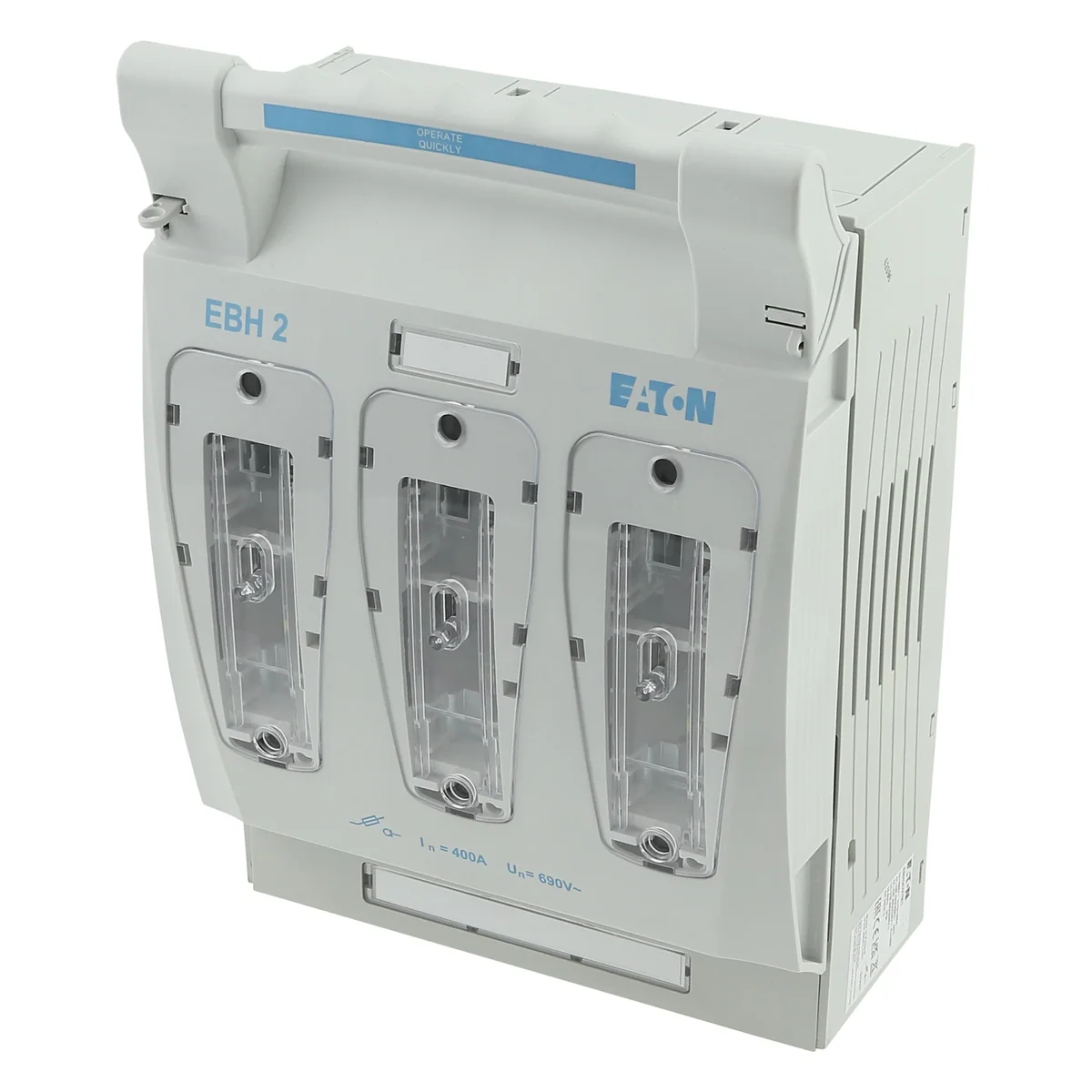

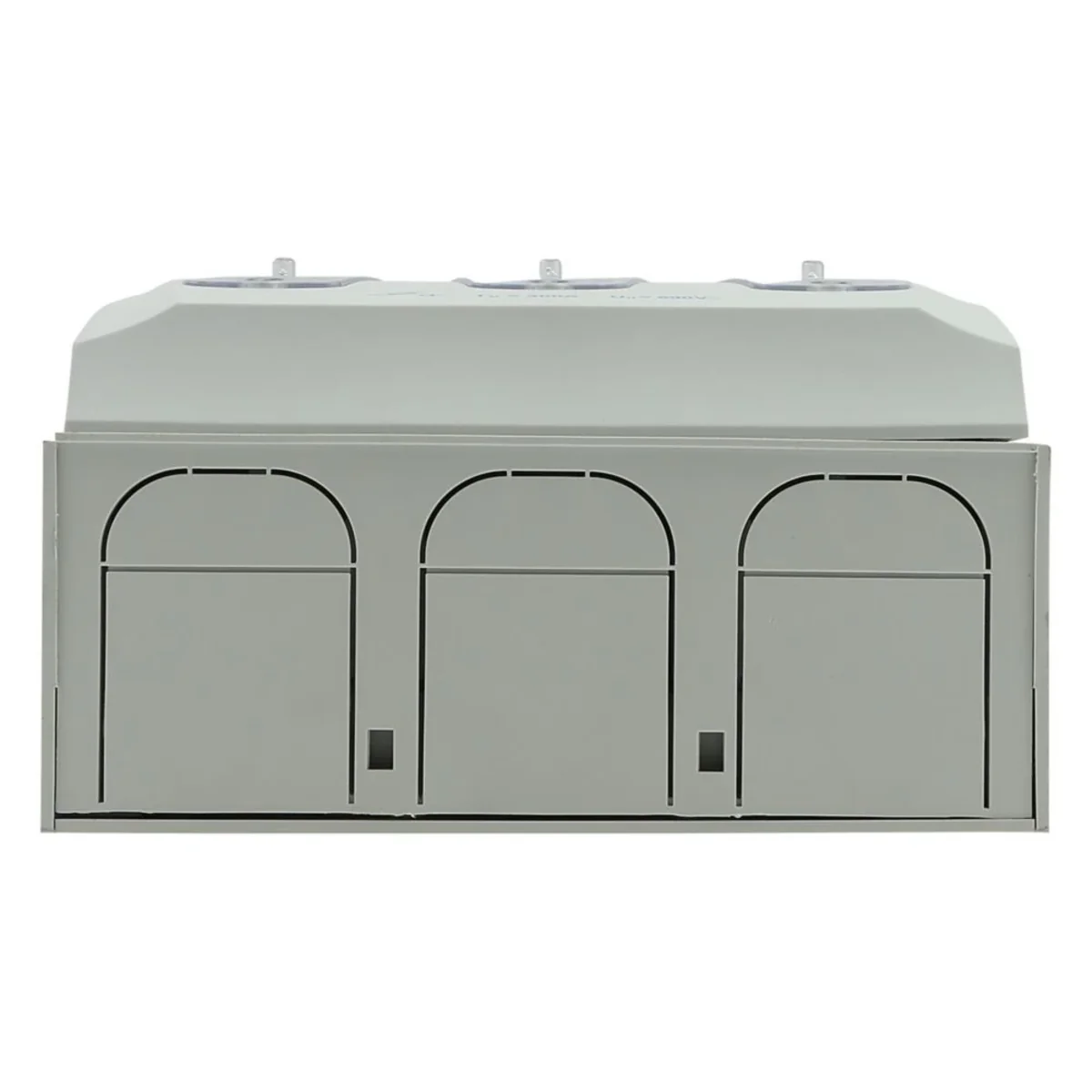

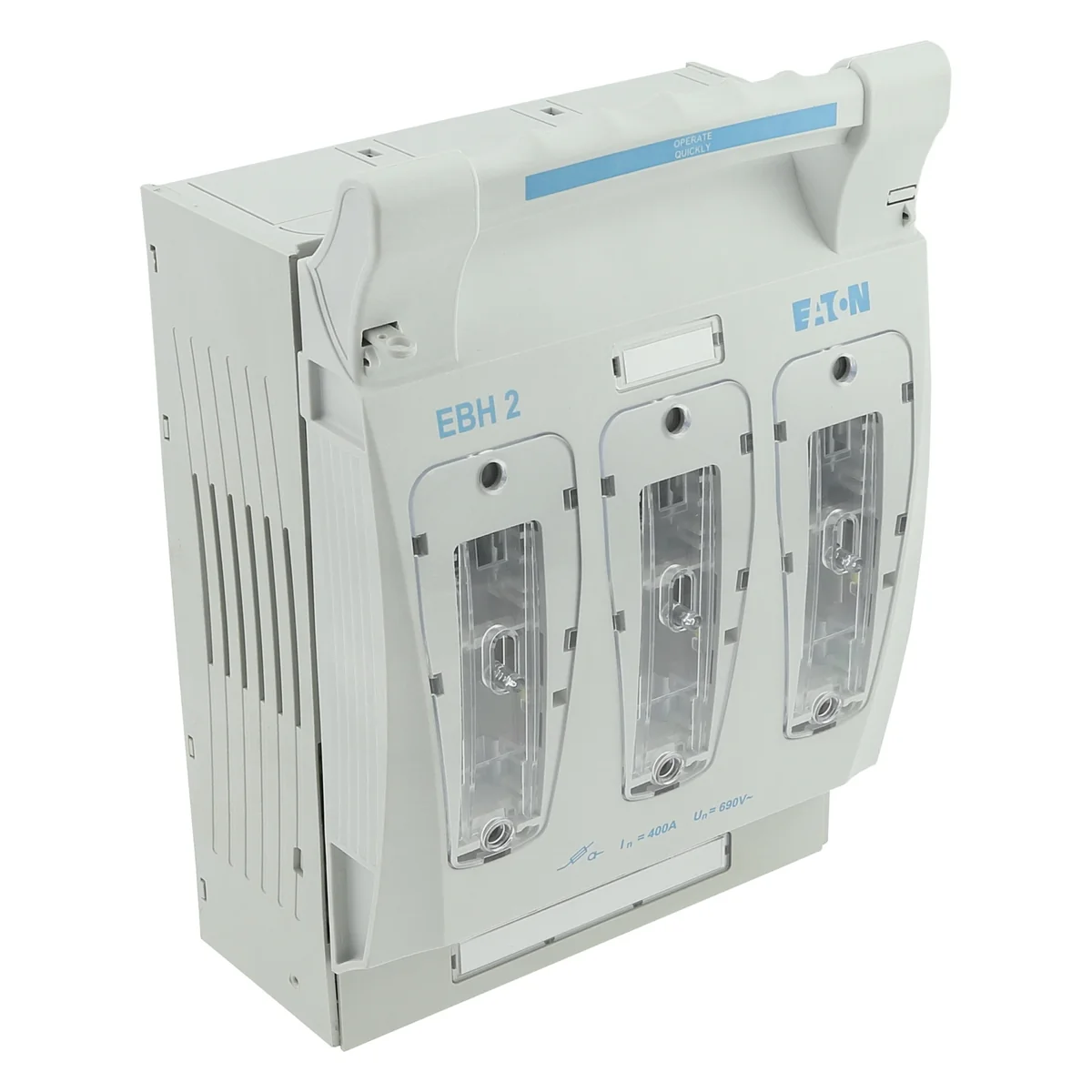

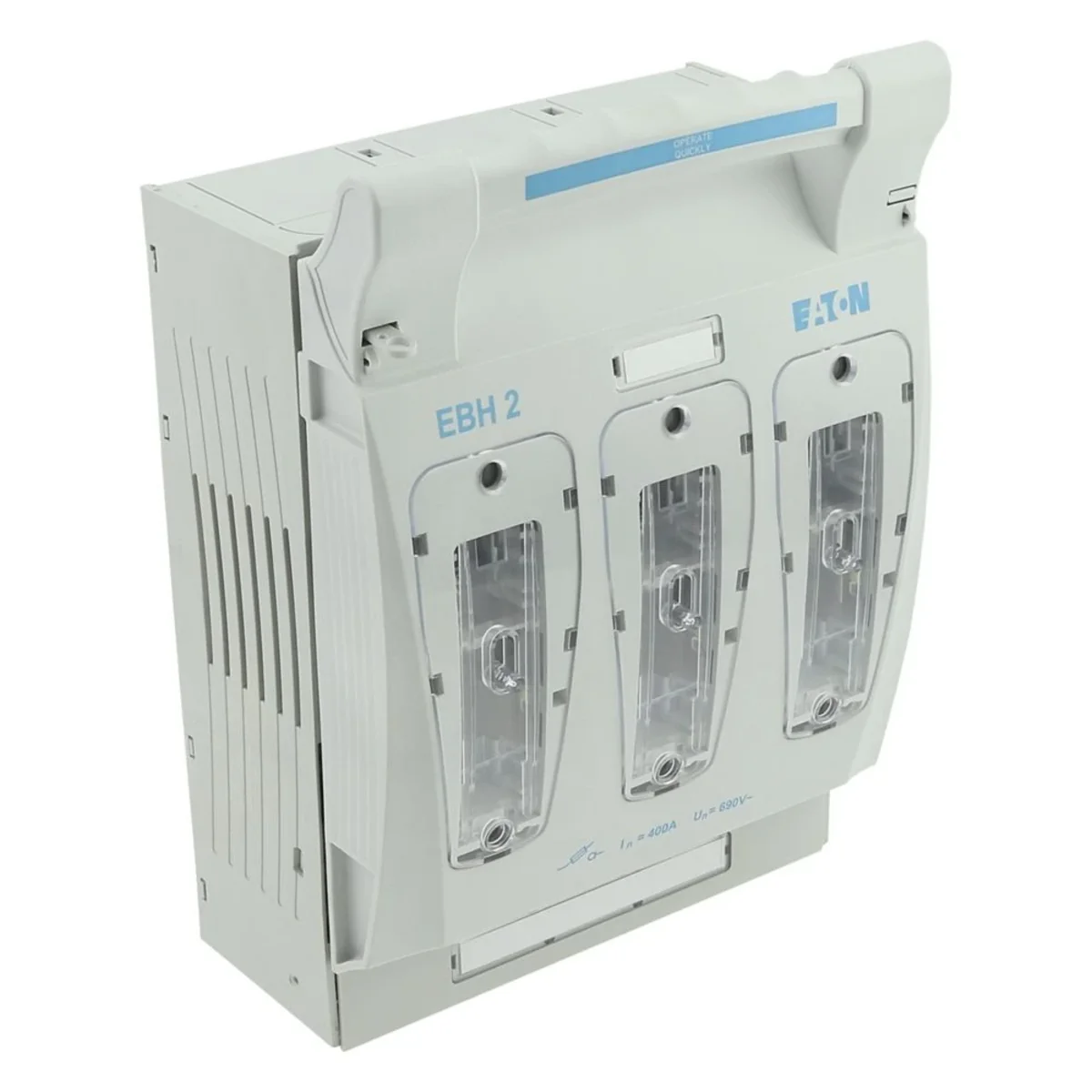

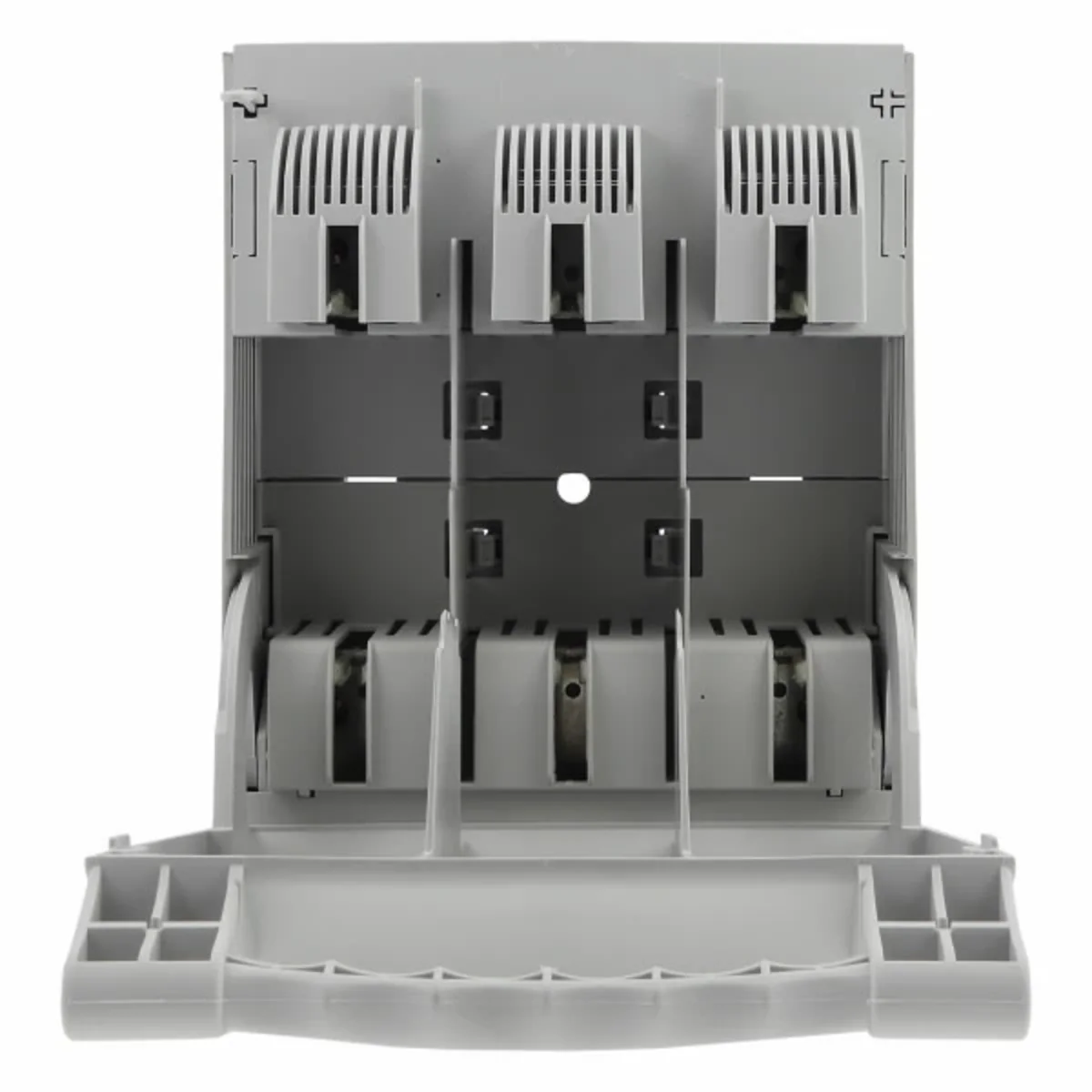

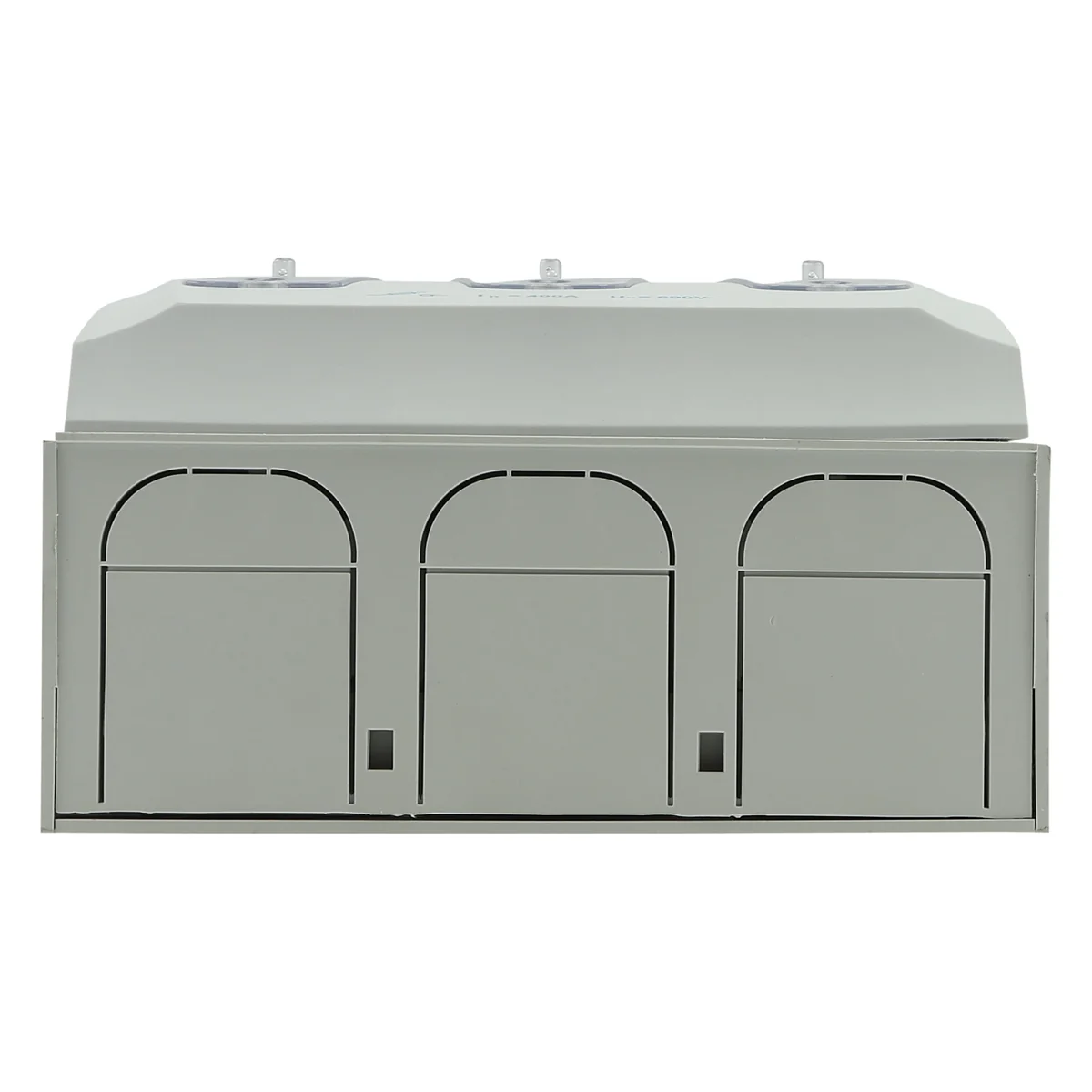

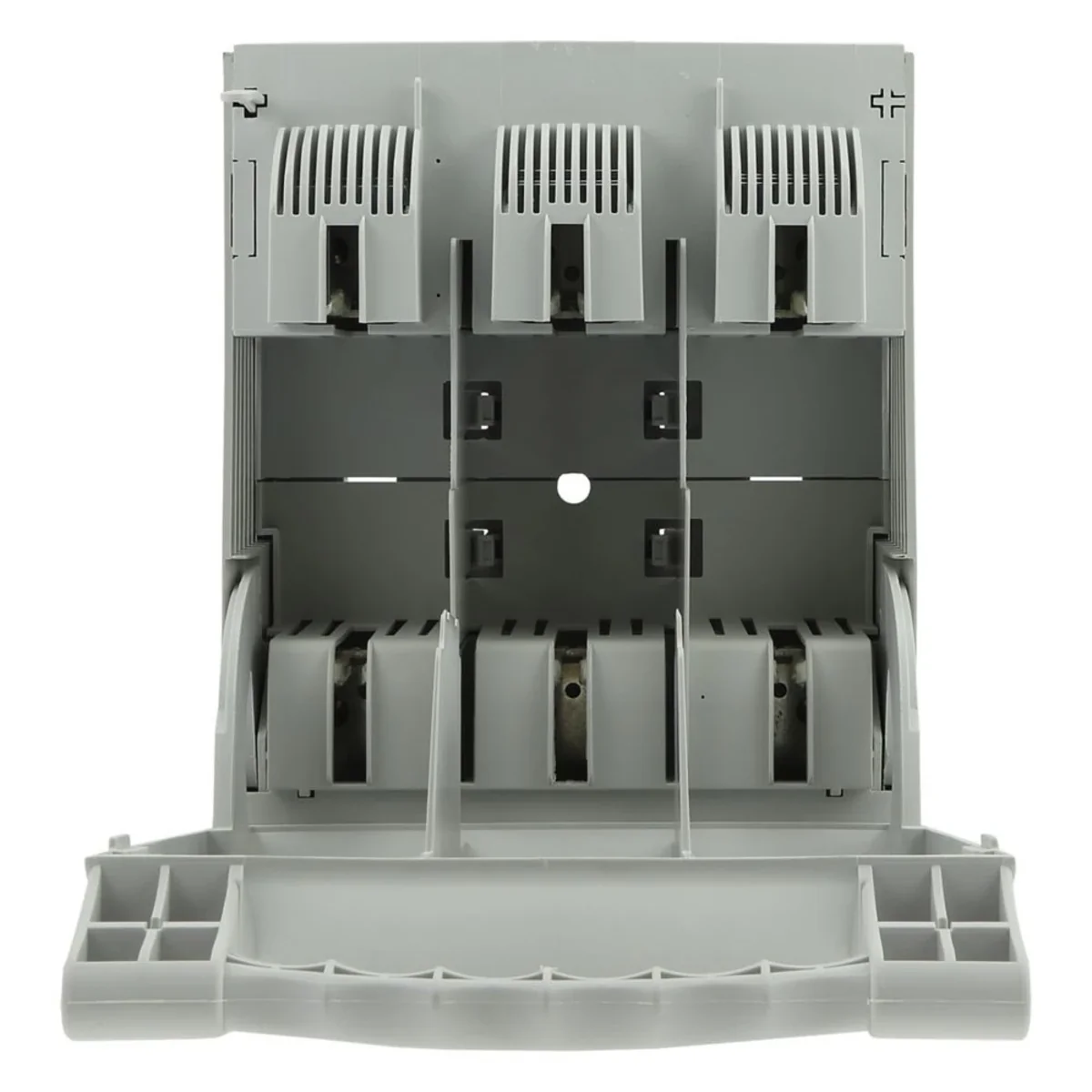

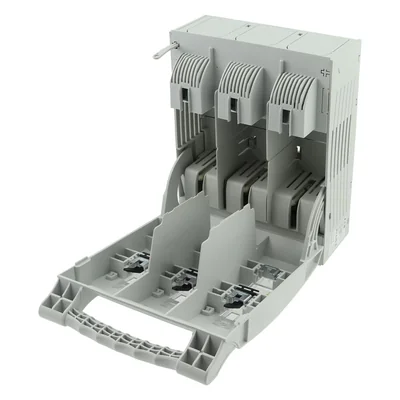

EBH2O3TM1 Horizontal fuse switch, 400 A, AC 690 V, NH2, AC23B, 3P, IEC, panel mount, screw mount (M10)

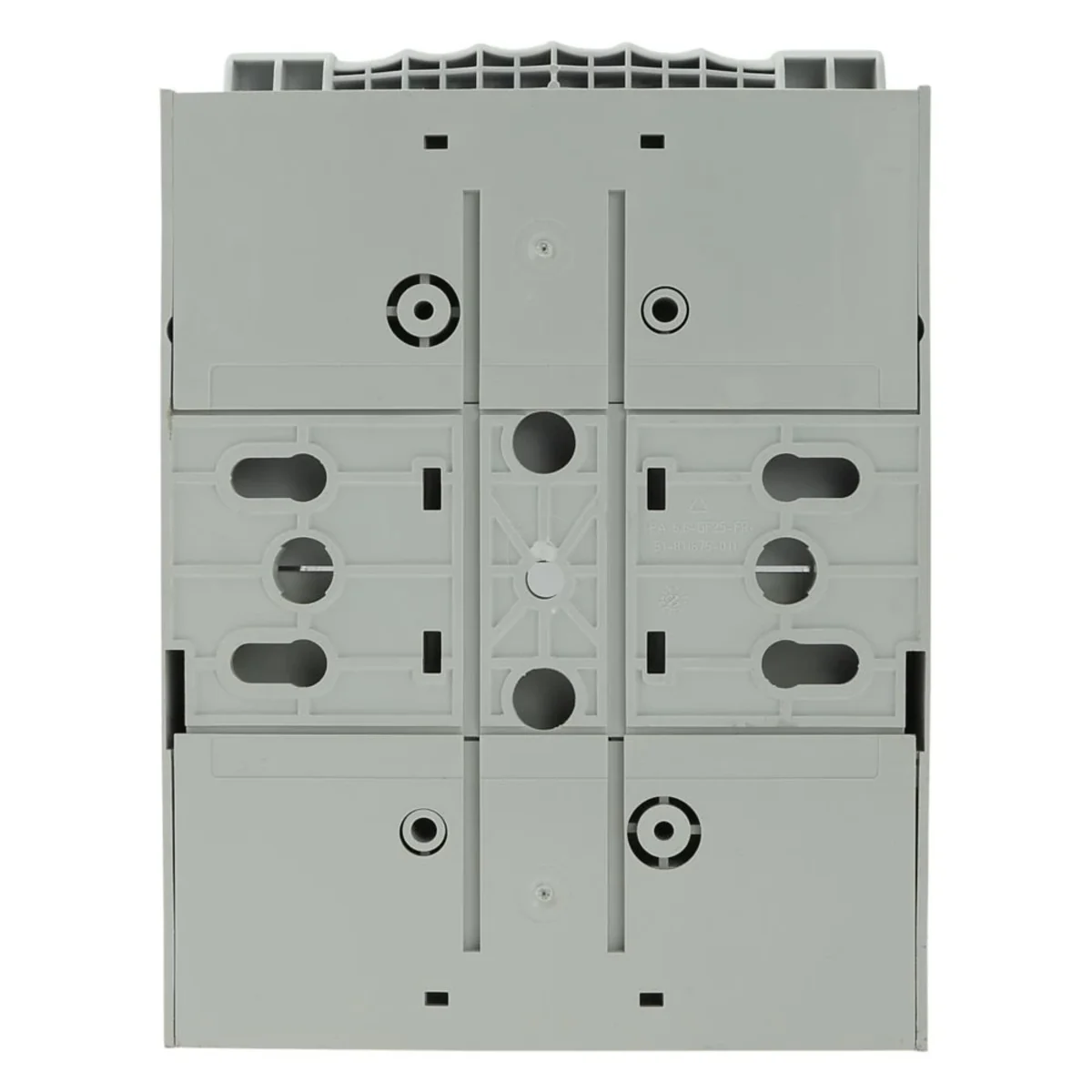

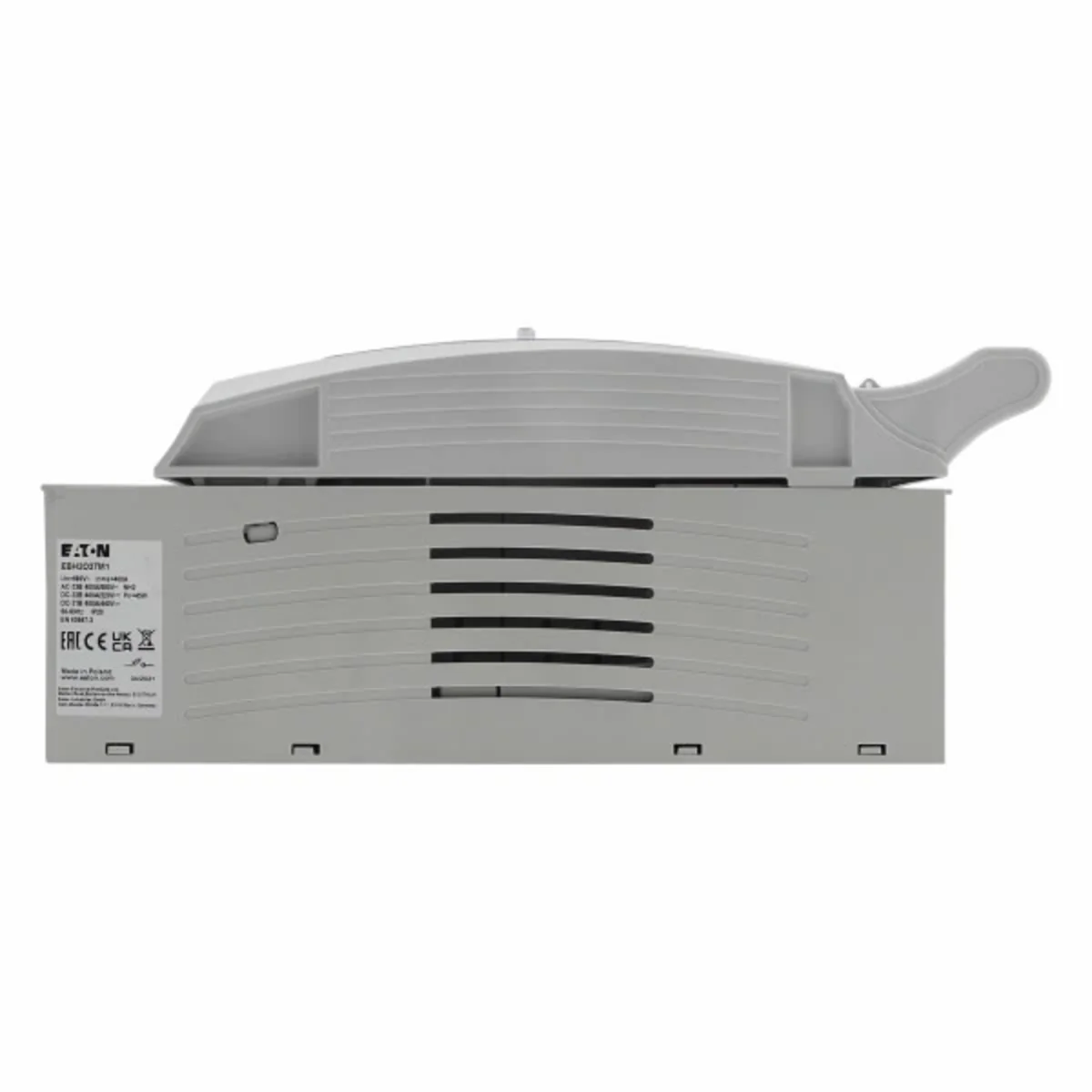

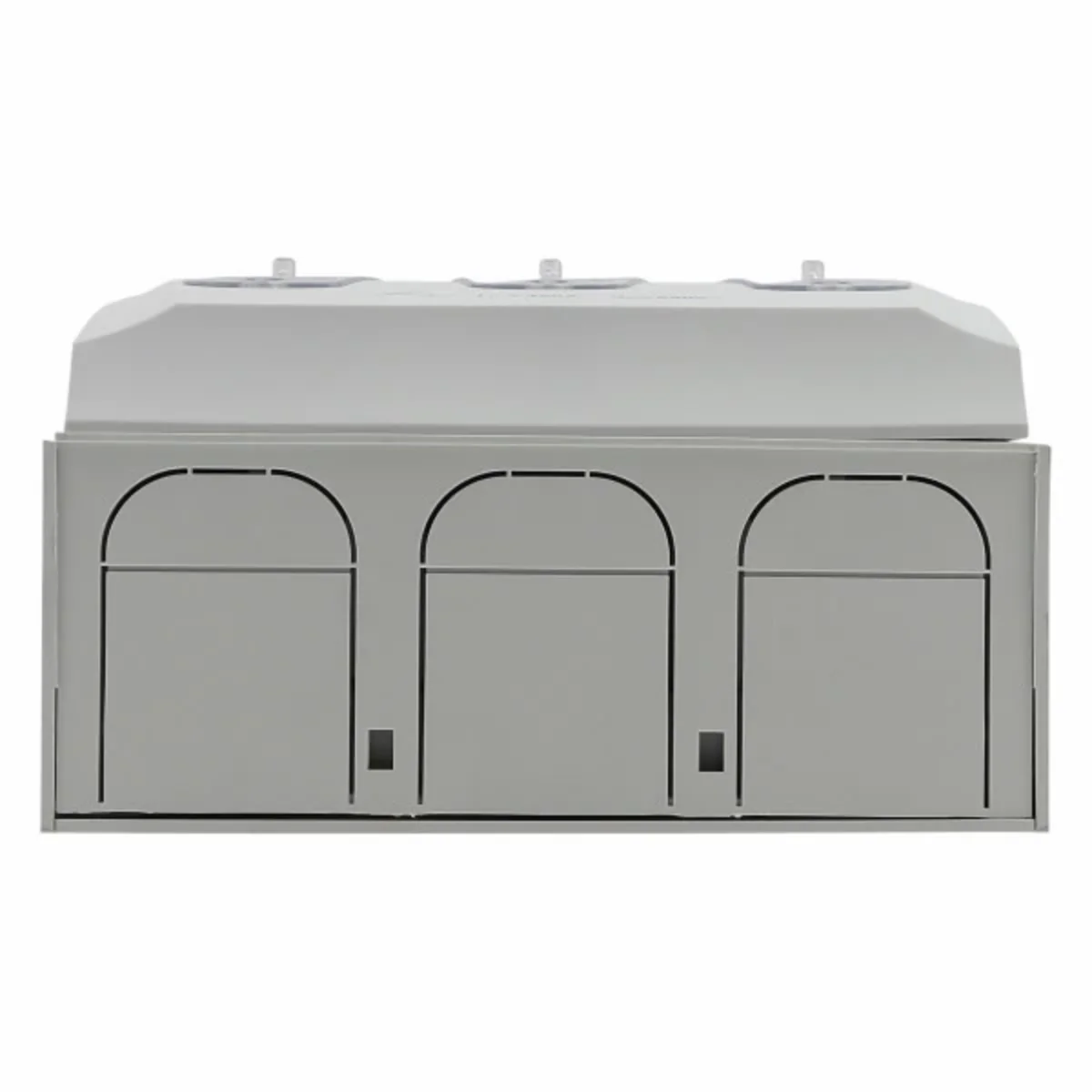

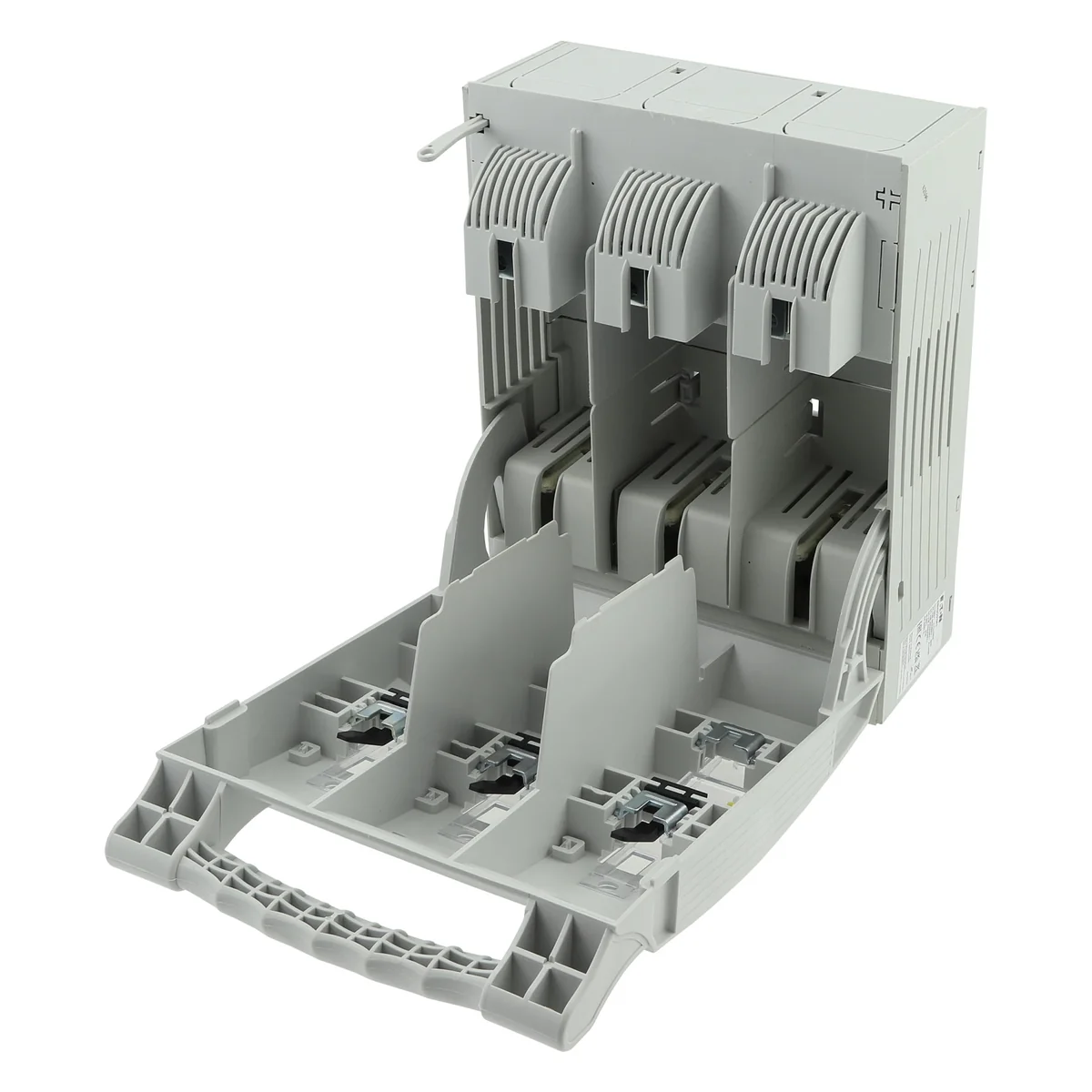

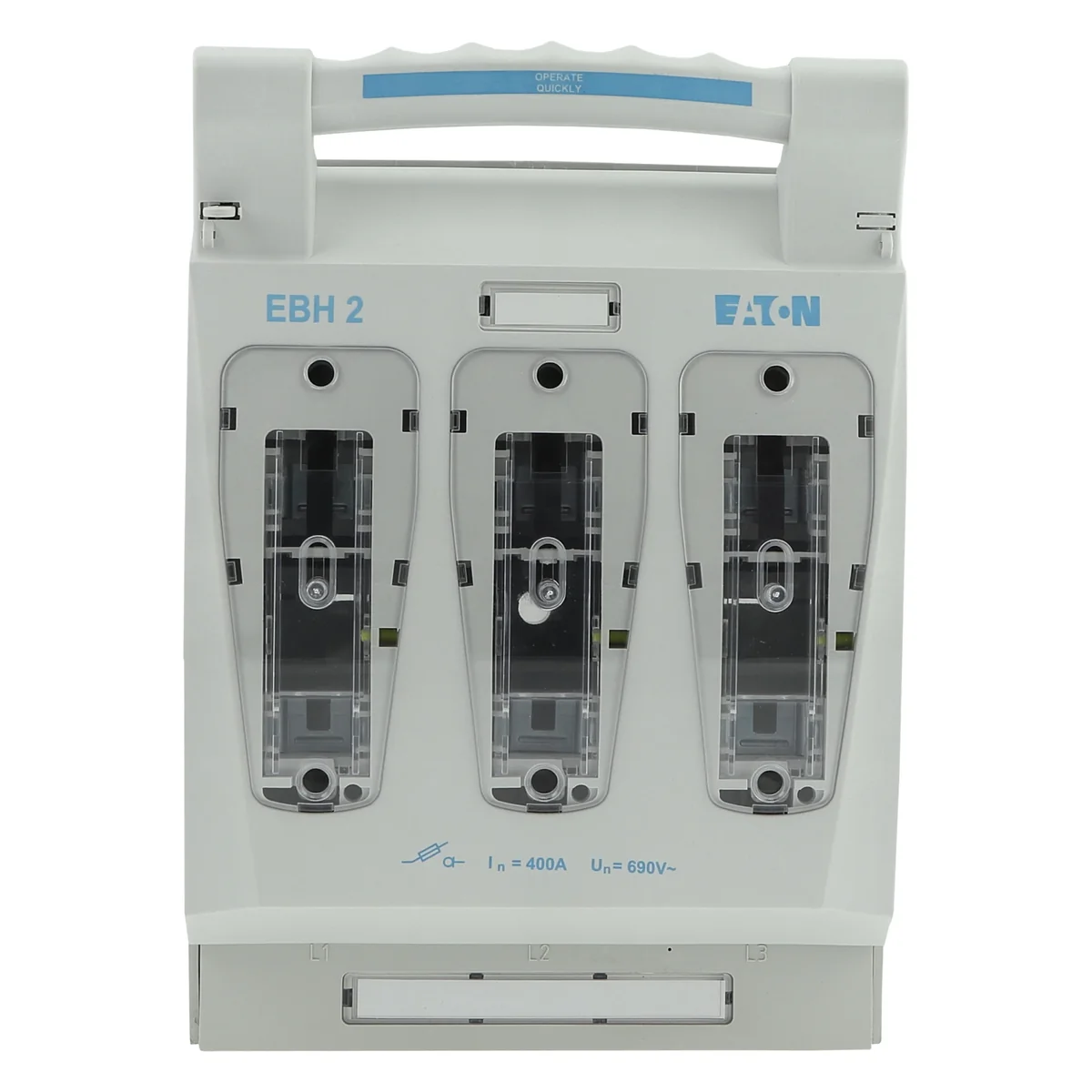

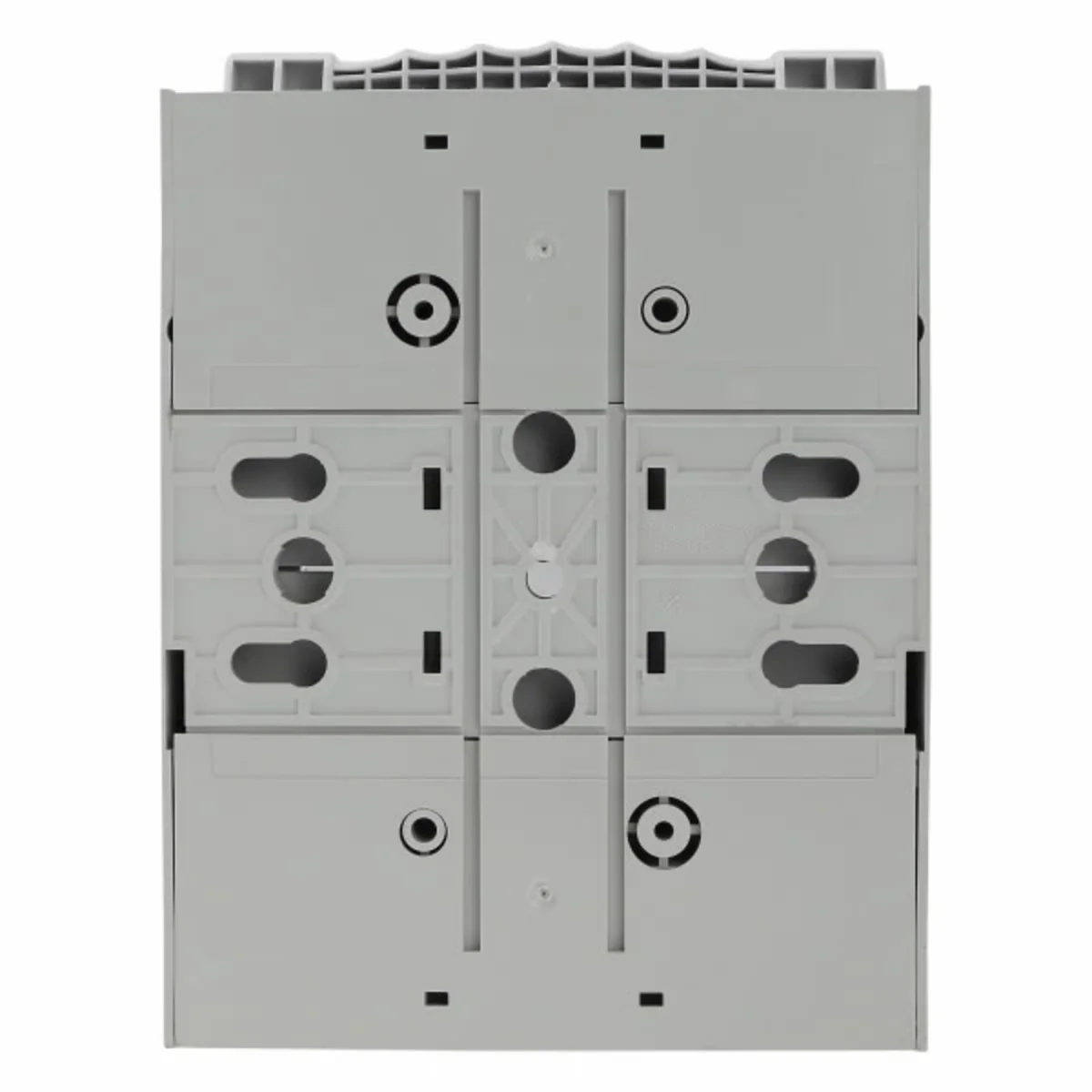

Click on the photo to enlarge

Manufacturer: EATON

Price:

993,54 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Version as main switch

No
Max. rated operation voltage Ue AC

690 V
Rated operation power at AC-23, 400 V

0.16 kW
Suitable for fuses

NH2
With error protection

No
Cable entry

Other
Suitable for floor mounting

No
Suitable for busbar mounting

No
Position control element

Front side
Motor drive integrated

No
Degree of protection (IP), front side

IP30

Version as safety switch

No
Rated permanent current Iu

400 A
Conditioned rated short-circuit current Iq

0.08 kA
Number of poles

3
Type of electrical connection of main circuit

Screw connection
Equipped with connectors

No
Suitable for front mounting

Yes
Type of control element

Cover grip
Motor drive optional

No
Version as emergency stop installation

No

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

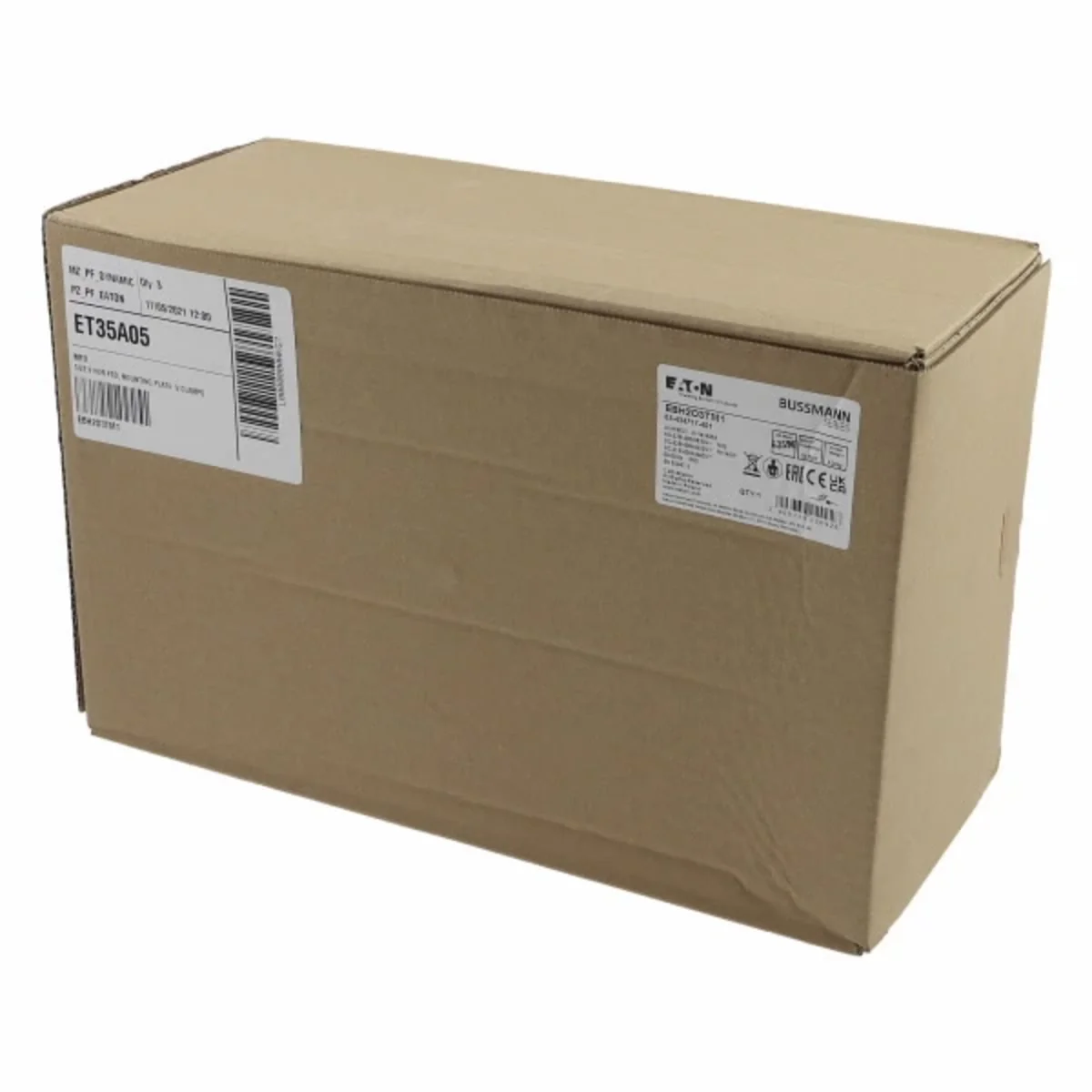

Bulk packaging

A kind of package	Skrzynia	Karton	Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	1 pcs.	1 pcs.
Weight (kg)	2,997	3,199	2,997	3,199
Volume (m3)	0,013	0,013	0,013	0,013
Width (m)	0,192	0,190	0,192	0,190
Length (m)	0,217	0,215	0,217	0,215
Depth (m)	0,332	0,330	0,332	0,330
