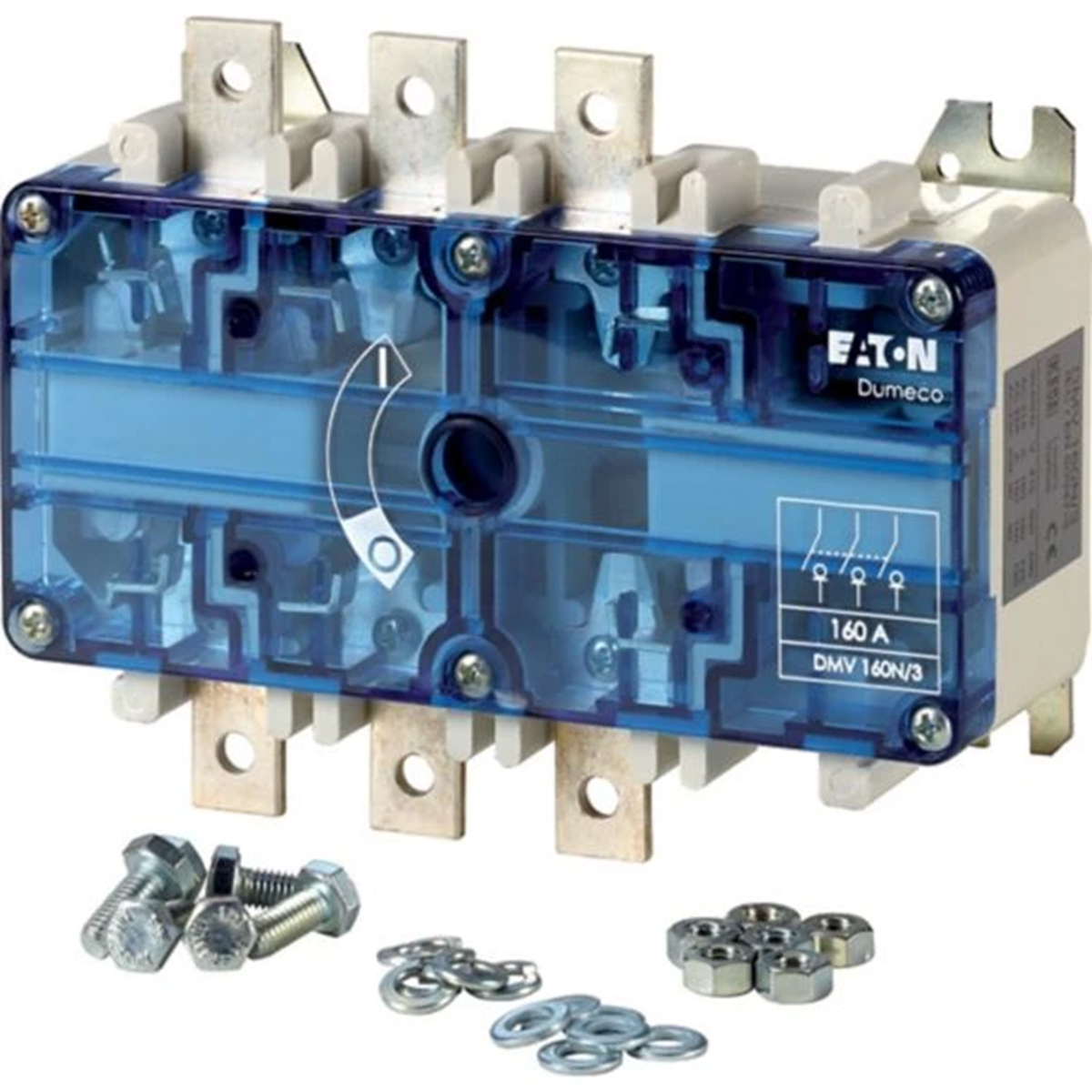

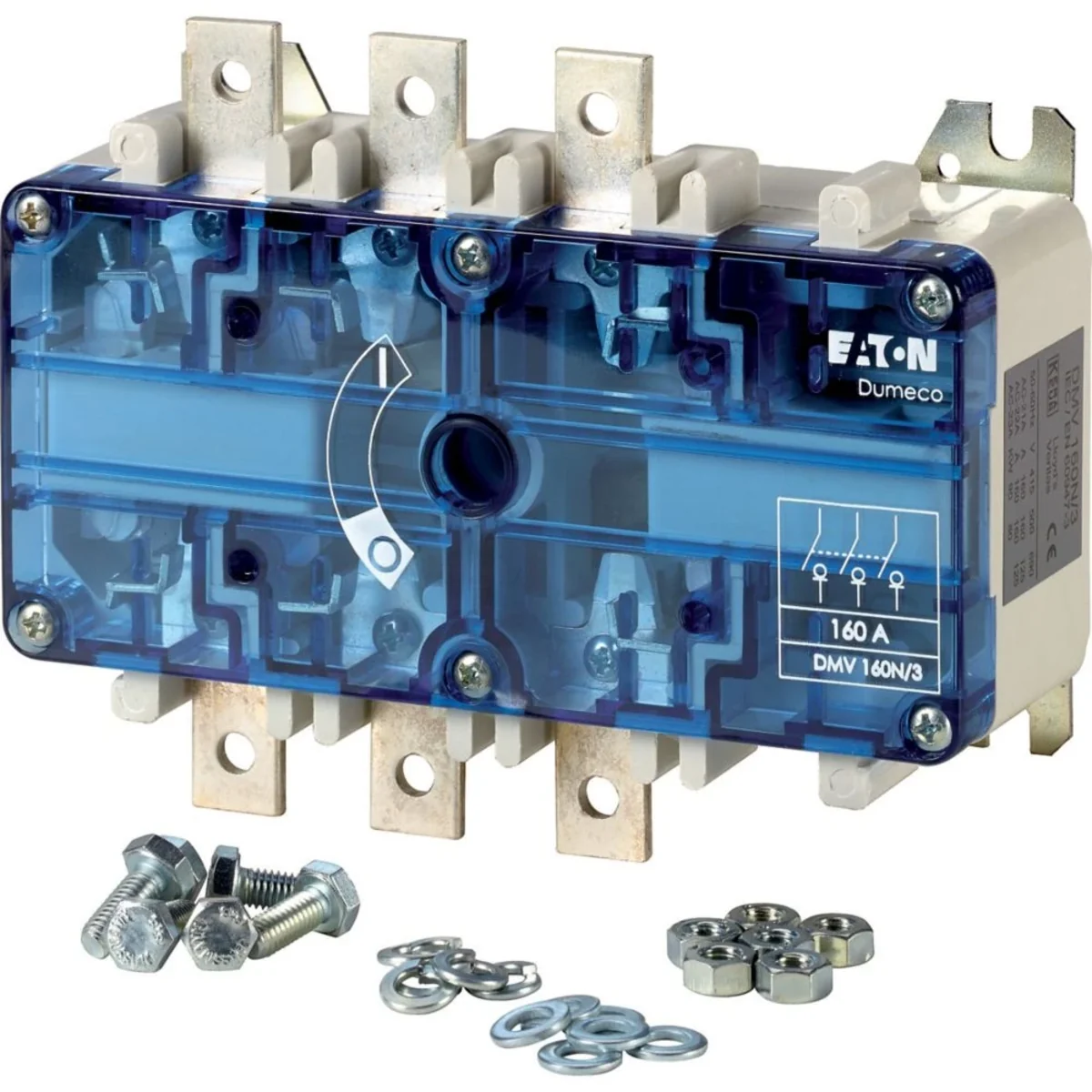

Dumeco 3P, 160A, DMV160N/3 switch disconnector 1814178
local index:
ALI078MOEL
Catalog No:
1814178
EAN code:
8711426106437
Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
3
Rated current [A]:
160
See full description
Price:
222,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
DMV switch disconnectors with visible gap, without drive lever and shaft extension. Complete with a set of mounting screws
Technical data
Number of poles
3
Rated current [A]
160
Other technical data
Version as main switch
Yes
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
160 A
Rated permanent current at AC-21, 400 V
160 A
Rated short-time withstand current lcw
8 kA
Switching power at 400 V
90 kW
Number of poles
3
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
Yes
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Other
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
Other
Version as maintenance-/service switch
Yes
Version as emergency stop installation
Yes
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
154 A
Rated operation power at AC-3, 400 V
0 kW
Rated operation power at AC-23, 400 V
90 kW
Conditioned rated short-circuit current Iq
100 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Colour control element
Other
Interlockable
No
Degree of protection (IP), front side
IP20
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
1,160
Volume (m3)
0,006
Width (m)
0,150
Length (m)
0,250
Depth (m)
0,150
