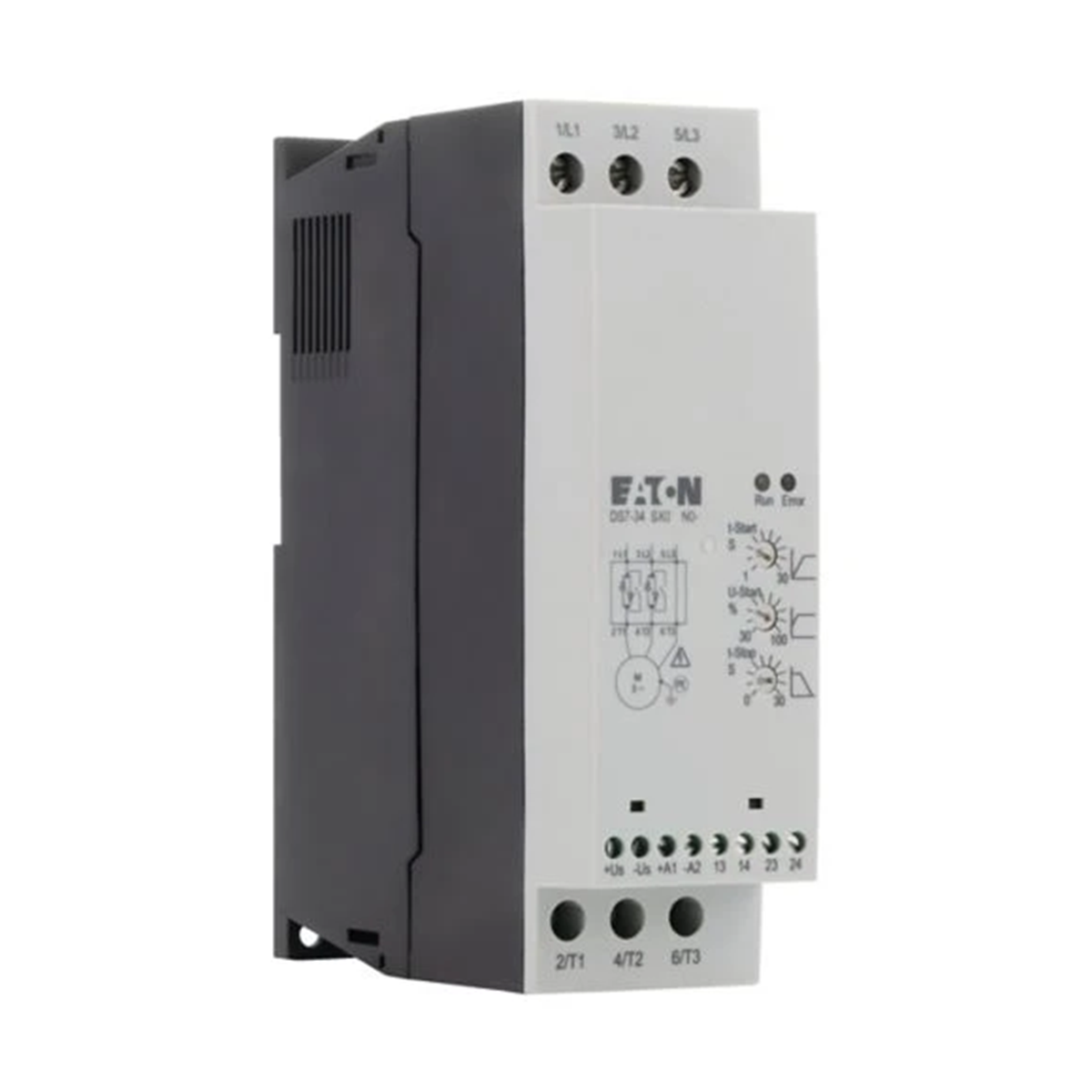

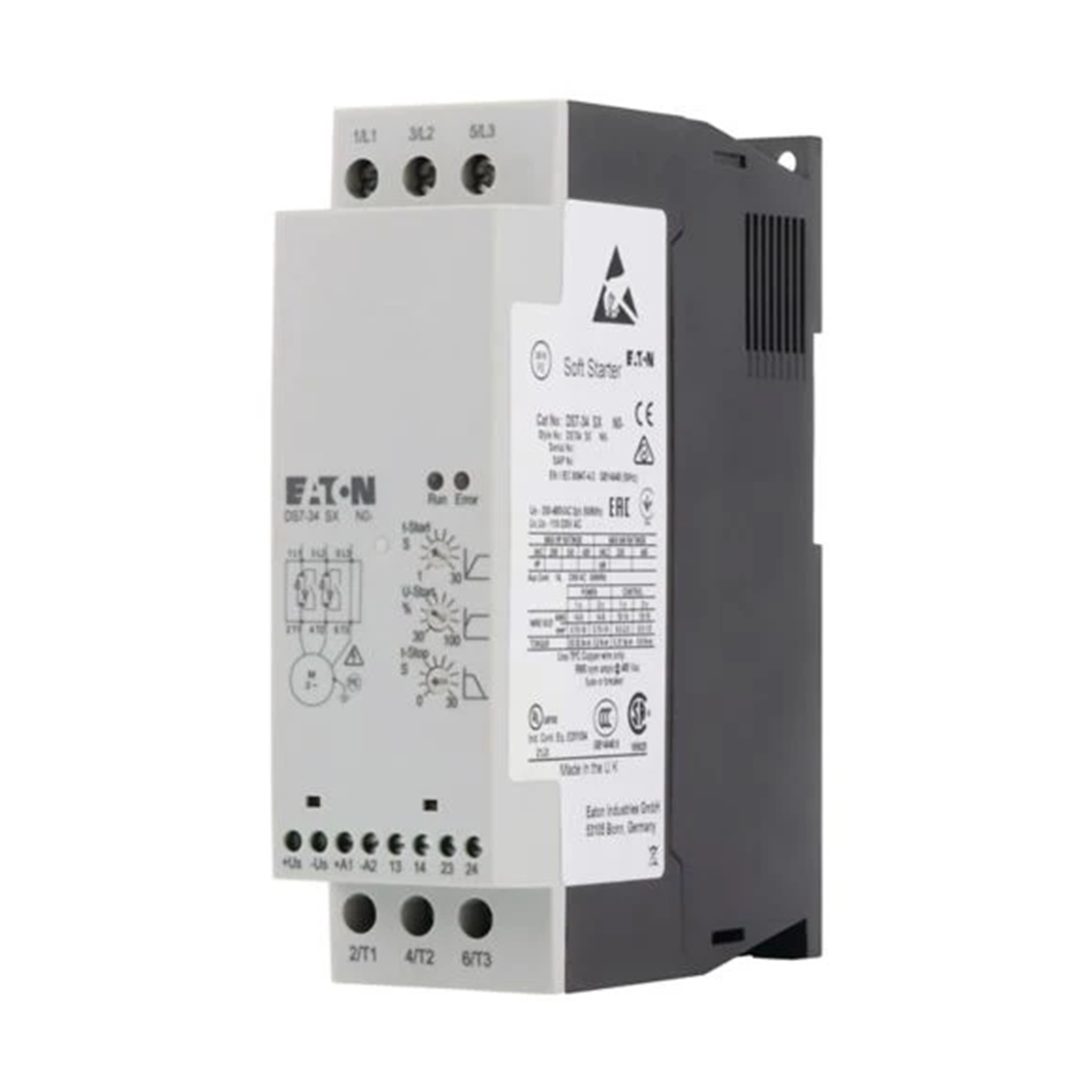

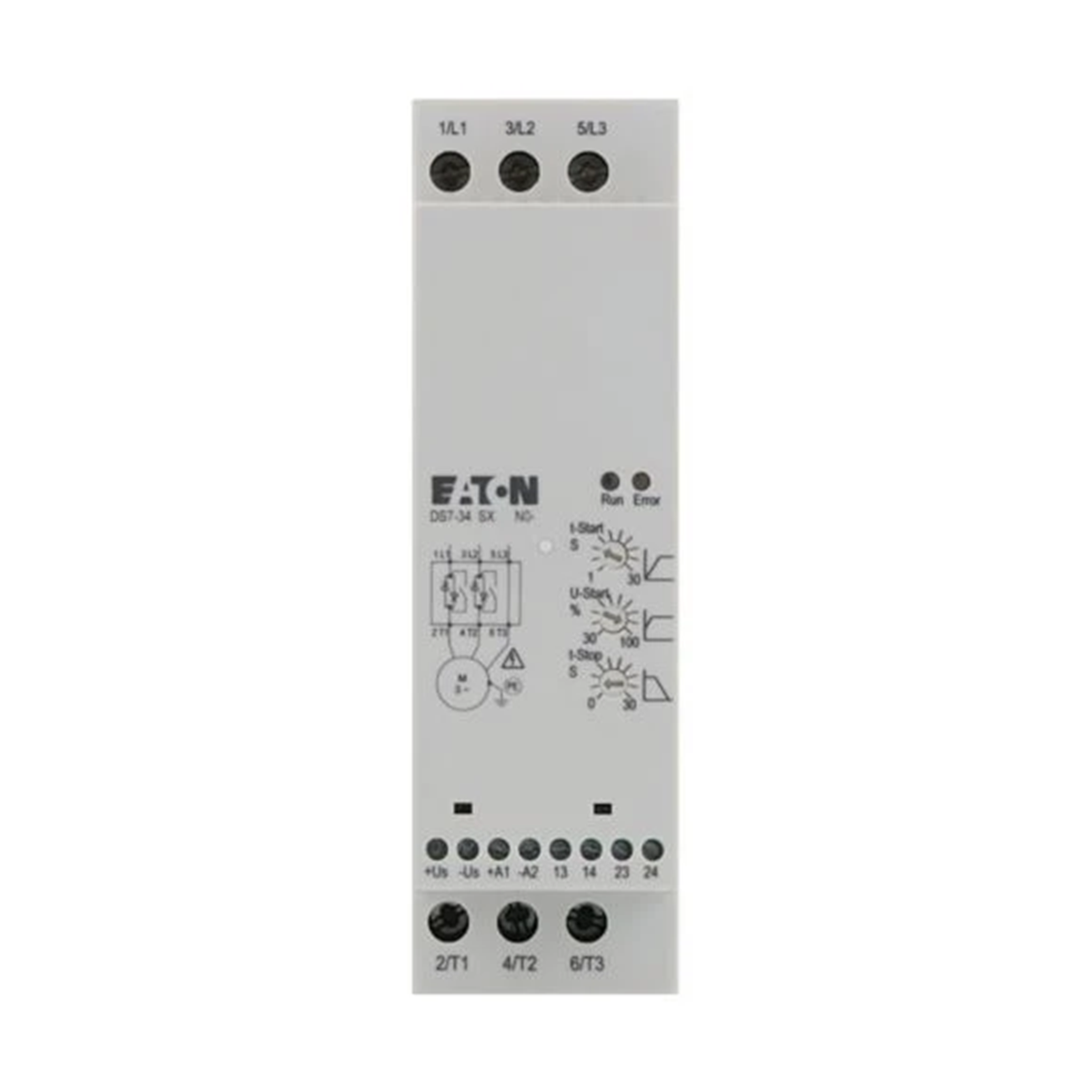

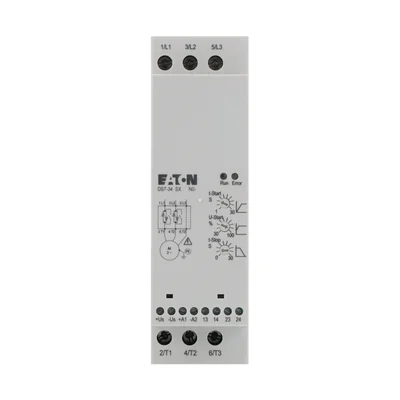

DS7 soft starter, DS7-340SX032N0-N 134914

local index:
API239MOEL
Catalog No:
134914
EAN code:
4015081316991
Manufacturer: EATON
Assigned motor power at 400 V / 480 V: 15 [kW] / 20 [HP]
Rated operational current [A]: 32
Price:
304,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DS7 soft starter, DS7-340SX032N0-N

Technical data

  • Assigned motor power at 400 V / 480 V
    15 [kW] / 20 [HP]
  • Rated operational current [A]
    32

Other technical data

  • Rated operation current Ie at 40 °C Tu
    32 A
  • Rated power three-phase motor, inline, at 230 V
    7.5 kW
  • Rated power three-phase motor, inside delta, at 230 V
    0 kW
  • Function
    Single direction
  • With display
    No
  • Rated surrounding temperature without derating
    40 °C
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC/DC
  • Release class
    Other
  • Degree of protection (NEMA)
    1
  • Rated operating voltage Ue
    230 ... 480 V
  • Rated power three-phase motor, inline, at 400 V
    15 kW
  • Rated power three-phase motor, inside delta, at 400 V
    0 kW
  • Internal bypass
    Yes
  • Torque control
    No
  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Integrated motor overload protection
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,550
Volume (m3) 0,001
Width (m) 0,050
Length (m) 0,123
Depth (m) 0,155
