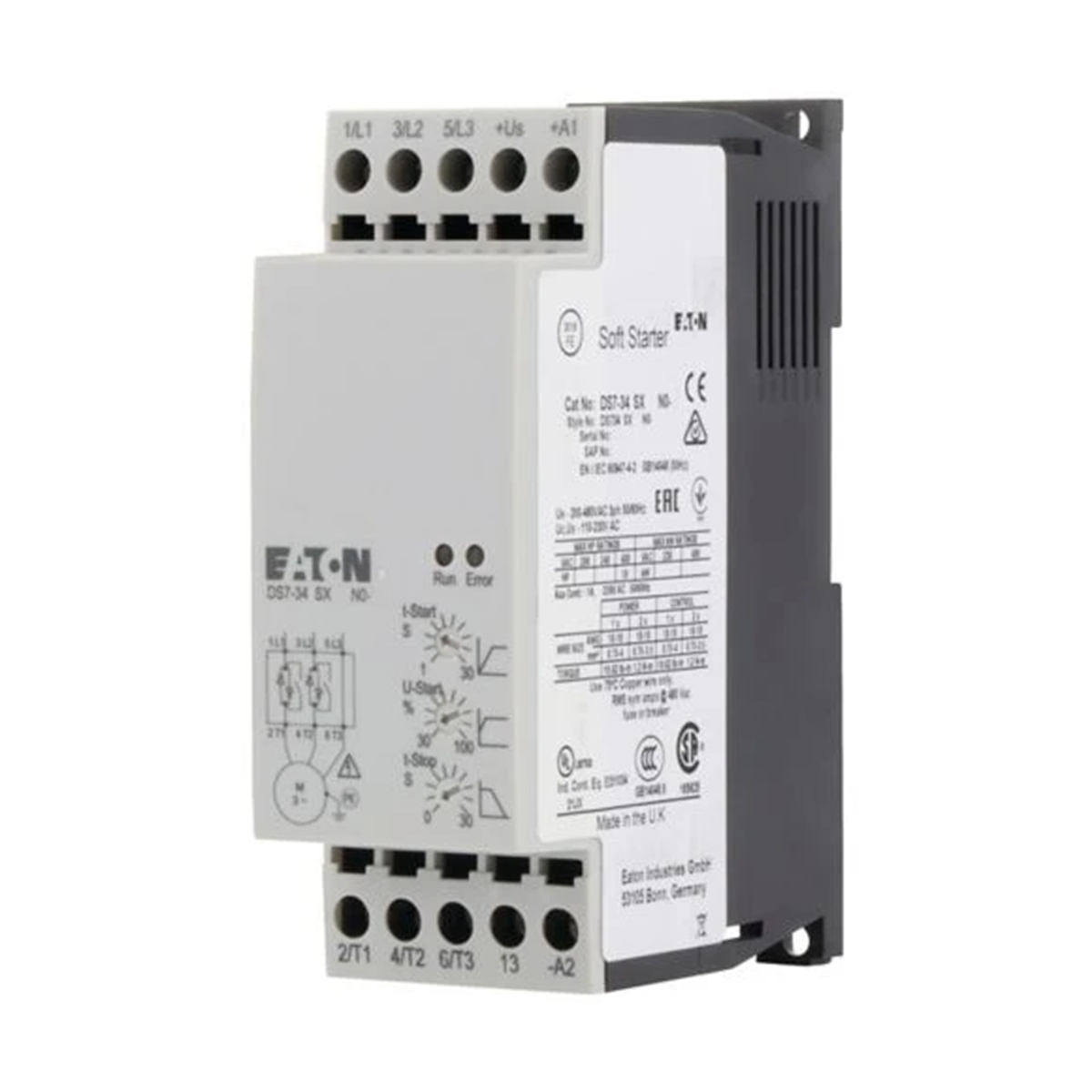

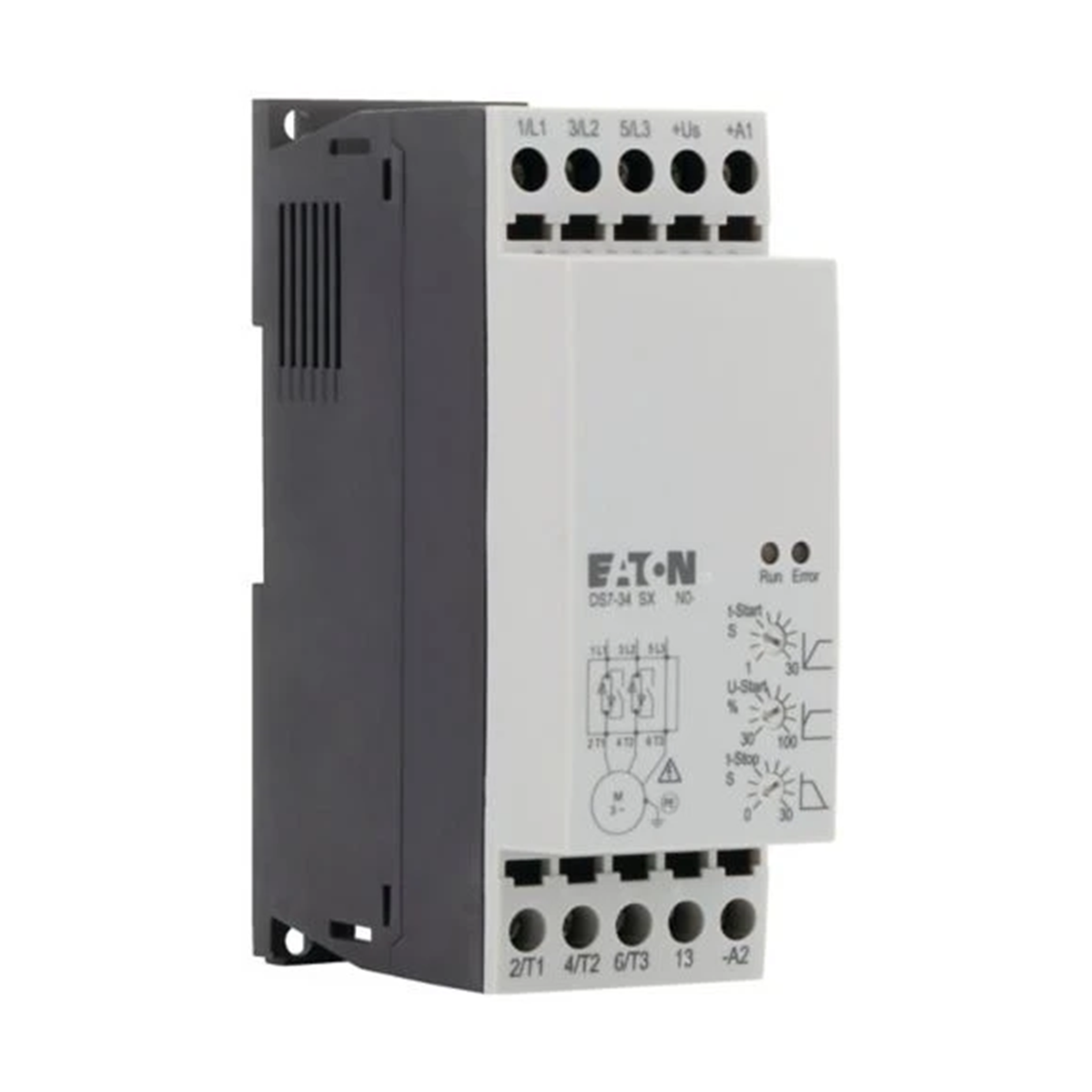

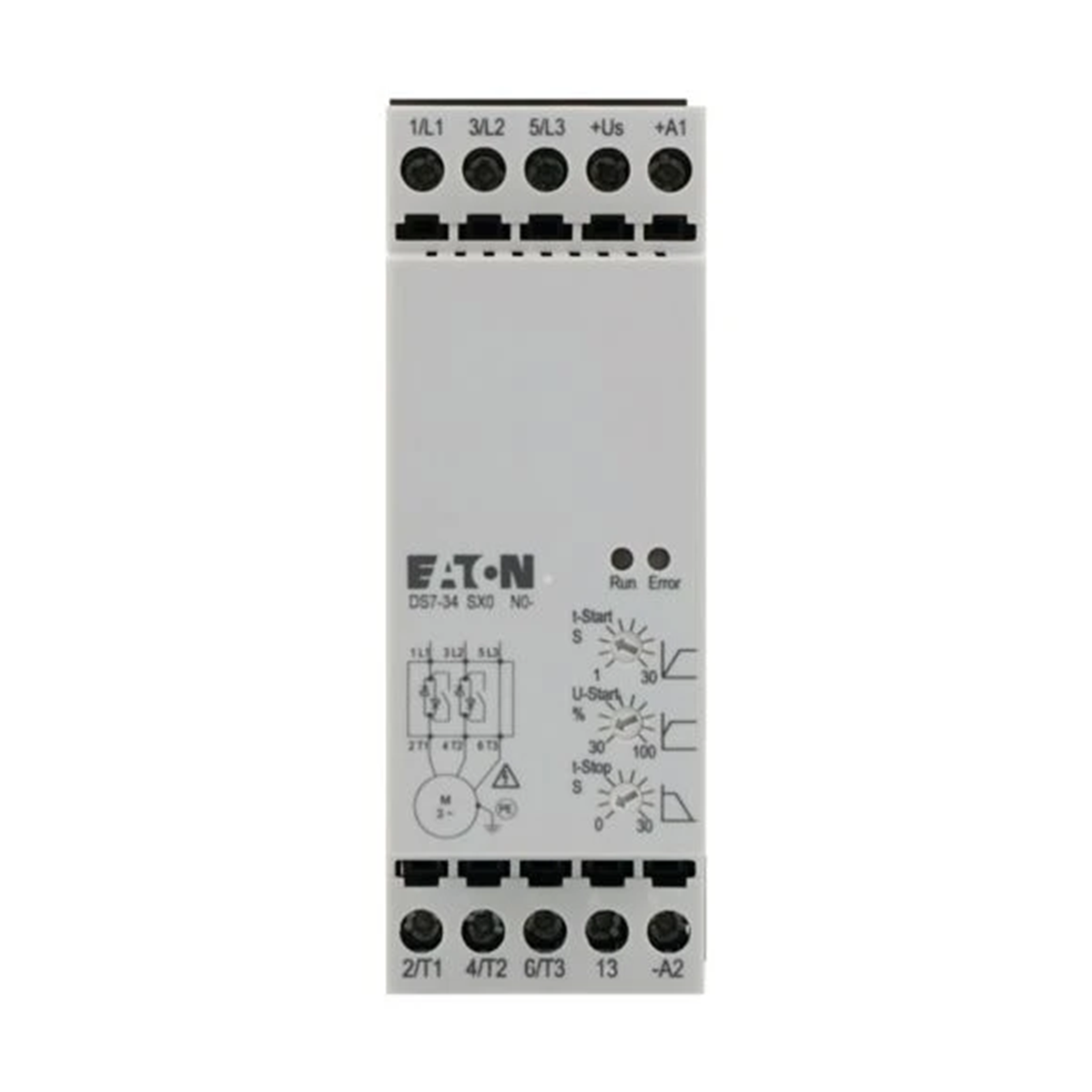

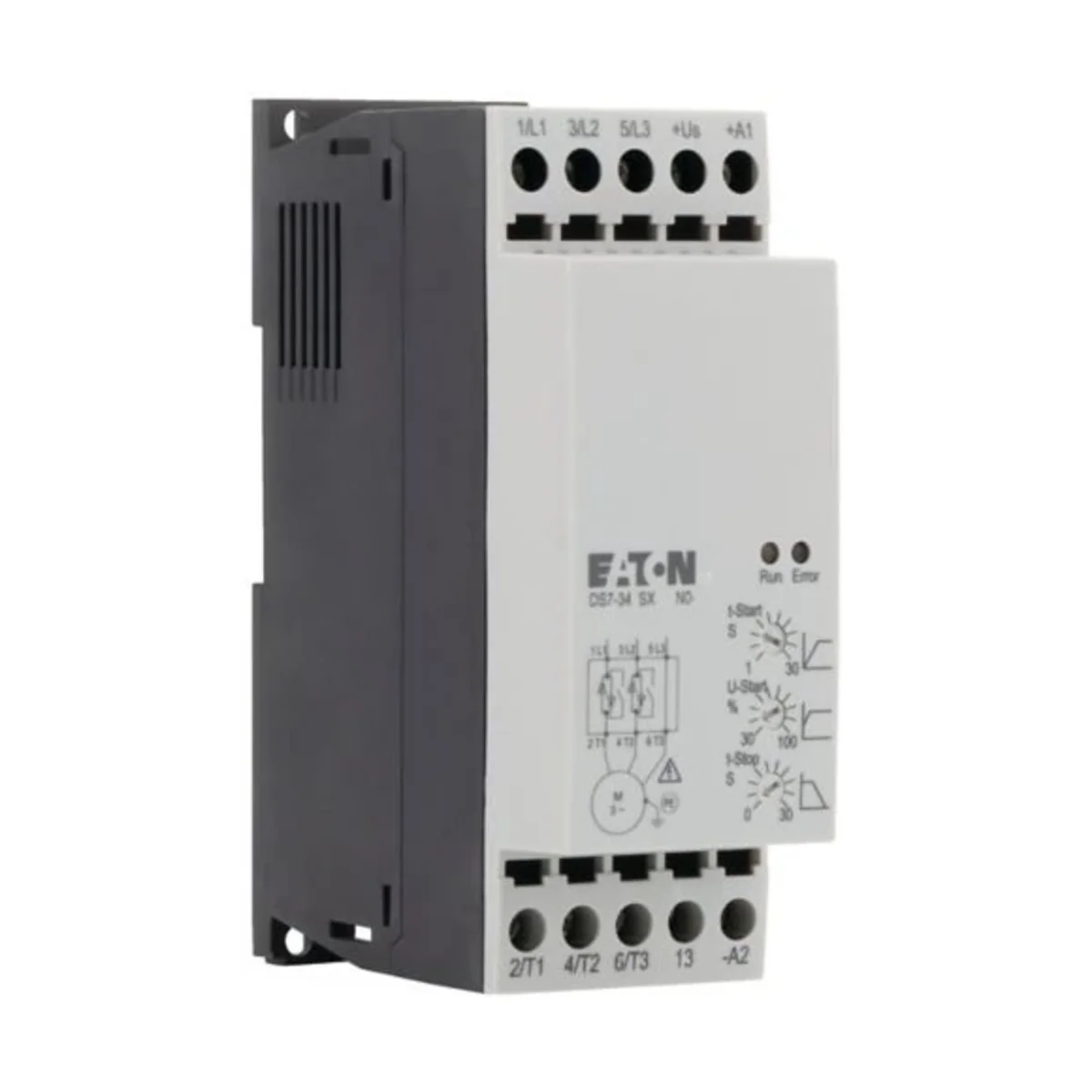

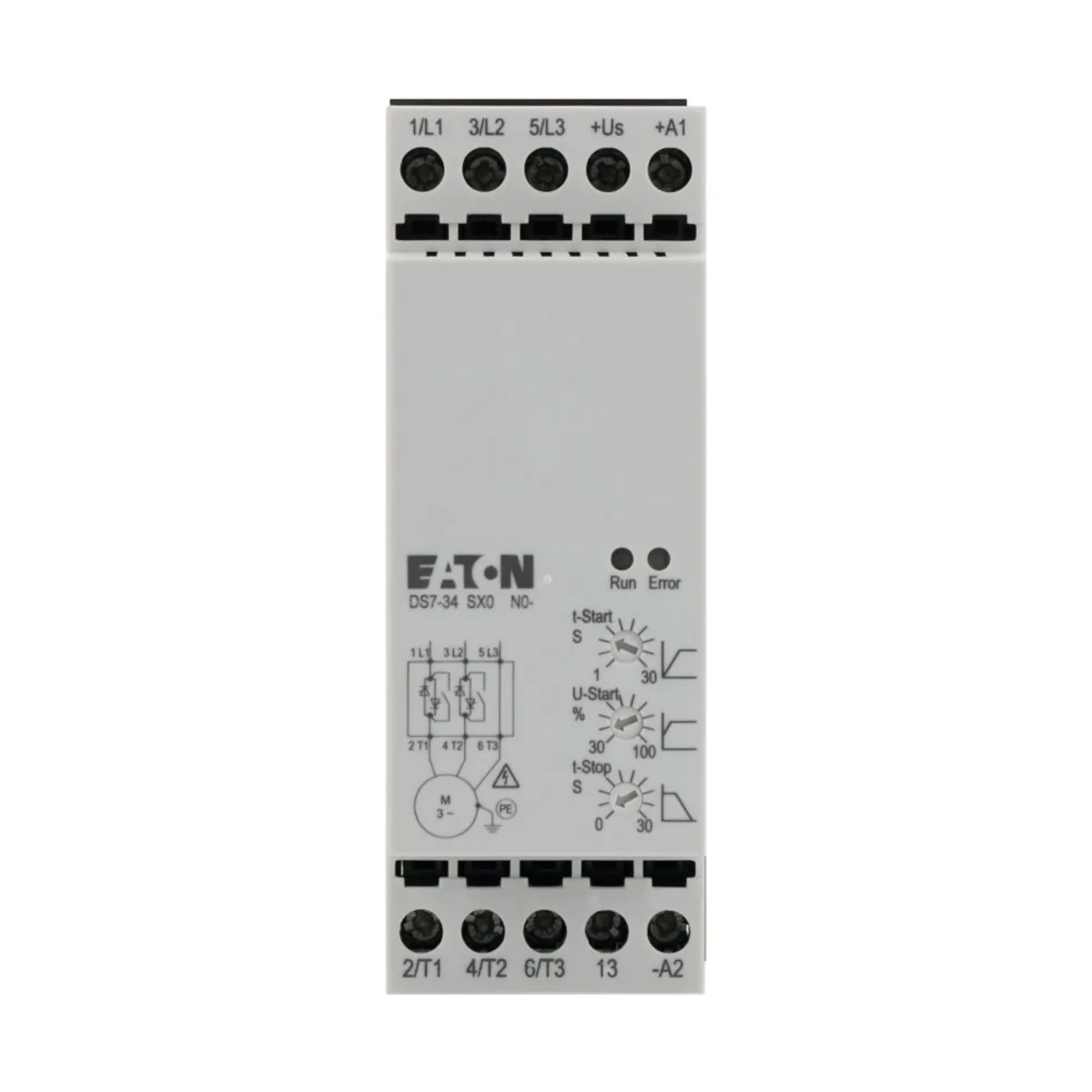

DS7 soft starter, DS7-340SX012N0-N 134911
local index:
API051MOEL
Catalog No:
134911
EAN code:
4015081316960
Manufacturer:
EATON
Assigned motor power at 400 V / 480 V: 5.5 [kW] / 7.5 [HP]
Rated operational current [A]: 12
Price:
227,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DS7 soft starter. Soft starter for three-phase loads, mains voltage 230-480 V AC (50/60 Hz). Rated voltage of the control circuit Uc: 24 V AC/DC.
Technical data
-
Assigned motor power at 400 V / 480 V5.5 [kW] / 7.5 [HP]
-
Rated operational current [A]12
Other technical data
-
Rated operation current Ie at 40 °C Tu12 A
-
Rated power three-phase motor, inline, at 230 V3 kW
-
Rated power three-phase motor, inside delta, at 230 V0 kW
-
FunctionSingle direction
-
With displayNo
-
Rated surrounding temperature without derating40 °C
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Voltage type for actuatingAC/DC
-
Release classOther
-
Degree of protection (NEMA)1
-
Rated operating voltage Ue230 ... 480 V
-
Rated power three-phase motor, inline, at 400 V5.5 kW
-
Rated power three-phase motor, inside delta, at 400 V0 kW
-
Internal bypassYes
-
Torque controlNo
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Rated control supply voltage DC24 ... 24 V
-
Integrated motor overload protectionNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,350 | 0,400 |
| Volume (m3) | 0,001 | 0,001 |
| Width (m) | 0,045 | 0,050 |
| Length (m) | 0,094 | 0,099 |
| Depth (m) | 0,130 | 0,135 |
