el12 Automation Circuit breakers, disconnectors Limit switches

Dome pusher, LSM-11 266144

local index:
ALC020MOEL
Catalog No:
266144
EAN code:
4015082661441

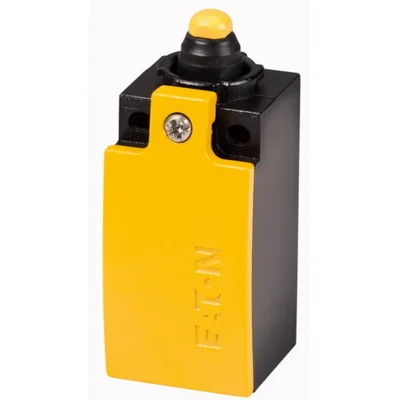

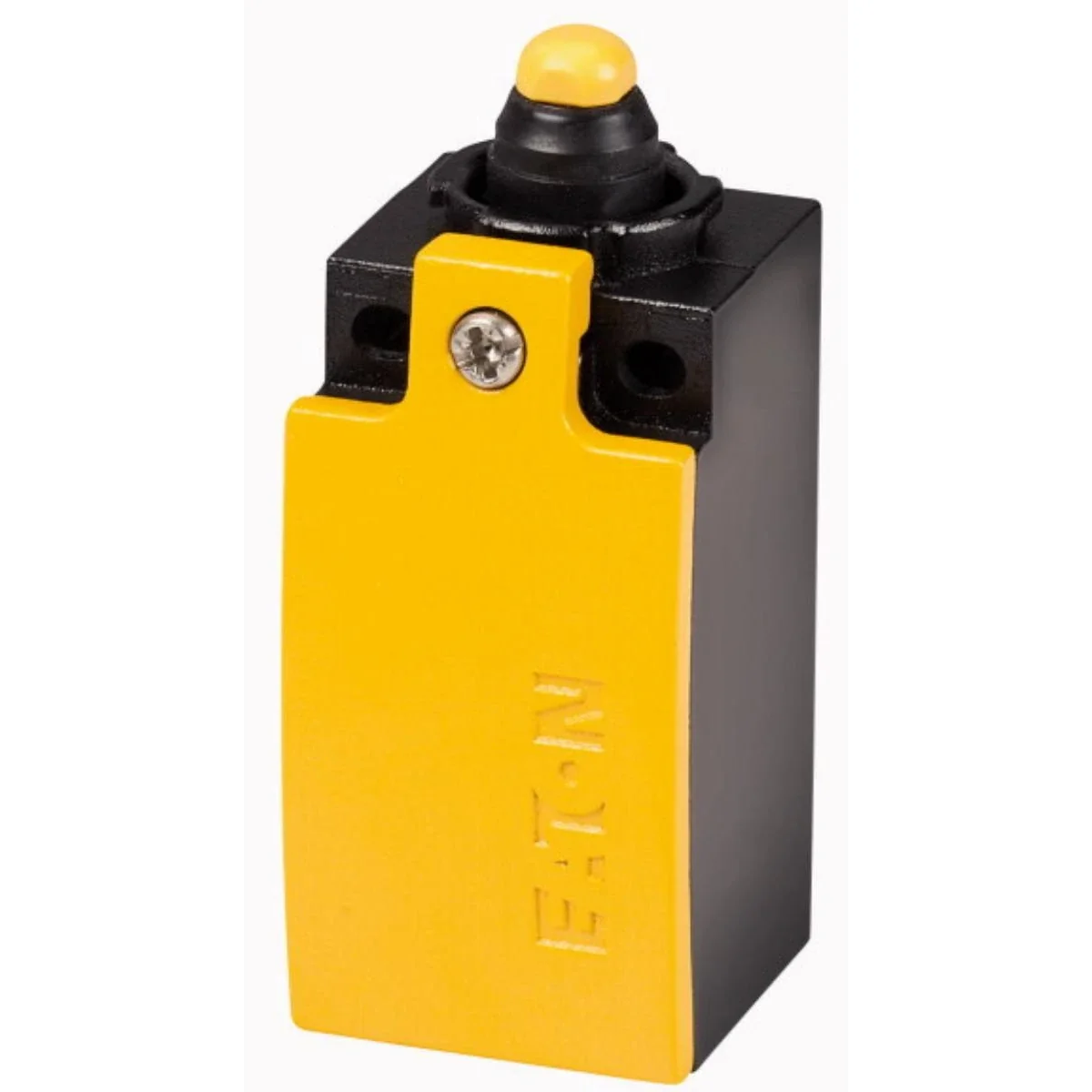

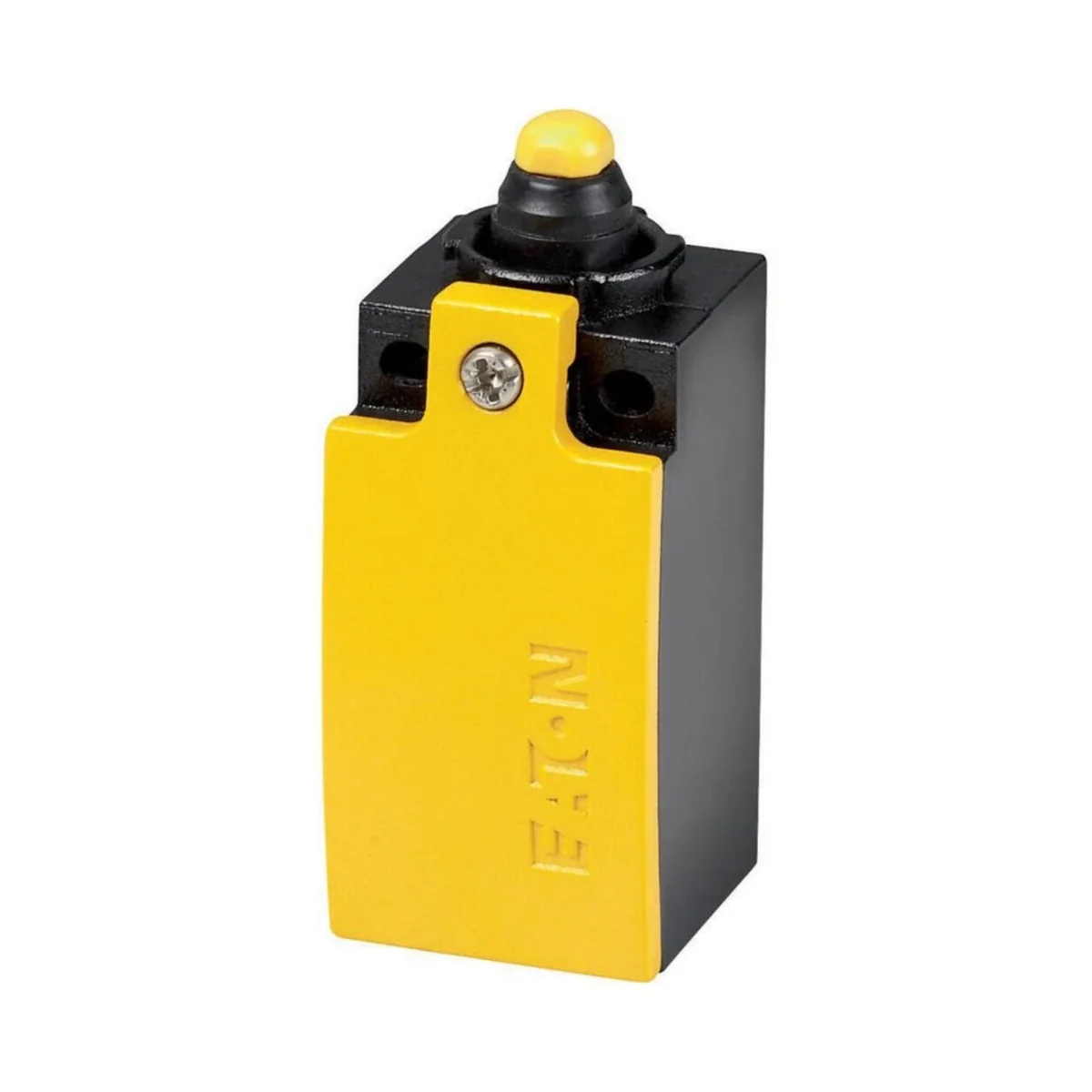

Dome pusher, LSM-11
Dome pusher, LSM-11

Click on the photo to enlarge

Manufacturer: EATON
Number of NO contacts: 1
See full description
Price:
51,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

Basic appliances (extended by the drive head). Dome pusher, IP66, IP67.

Technical data

  • Number of NO contacts
    1

Other technical data

  • Width sensor
    31 mm
  • Height of sensor
    61 mm
  • Rated operation current Ie at AC-15, 24 V
    6 A
  • Rated operation current Ie at AC-15, 230 V
    6 A
  • Rated operation current Ie at DC-13, 125 V
    0.8 A
  • Switching function
    Slow-action switch
  • Output electronic
    No
  • Number of safety auxiliary contacts
    0
  • Number of contacts as normally open contact
    1
  • Type of interface
    None
  • Construction type housing
    Cuboid
  • Coating housing
    Other
  • Alignment of the control element
    Roller cam straight
  • With status indication
    No
  • Explosion safety category for gas
    None
  • Ambient temperature during operating
    -25 ... 70 °C
  • Degree of protection (NEMA)
    Other
  • Diameter sensor
    0 mm
  • Length of sensor
    33.5 mm
  • Rated operation current Ie at AC-15, 125 V
    6 A
  • Rated operation current Ie at DC-13, 24 V
    3 A
  • Rated operation current Ie at DC-13, 230 V
    0.3 A
  • Switching function latching
    No
  • Forced opening
    Yes
  • Number of contacts as normally closed contact
    1
  • Number of contacts as change-over contact
    0
  • Type of interface for safety communication
    None
  • Housing material
    Metal
  • Type of control element
    Plunger
  • Type of electric connection
    Cable entry metrical
  • Suitable for safety functions
    Yes
  • Explosion safety category for dust
    None
  • Degree of protection (IP)
    IP66/IP67

Manufacturer details

  • Manufacturer
    EATON ELECTRIC SP. Z O.O.
  • Address
    80-299 UL. GALAKTYCZNA 30
  • E-mail
    pl-zamowienia@eaton.com
  • Tax identification number
    5841022327

Bulk packaging

A kind of package Skrzynia Karton Skrzynia Karton
Quantity 1 pcs. 2 pcs. 1 pcs. 2 pcs.
Weight (kg) 0,154 0,309 0,154 0,309
Volume (m3) 0,000 0,000 0,000 0,000
Width (m) 0,033 0,065 0,033 0,065
Length (m) 0,036 0,068 0,036 0,068
Depth (m) 0,079 0,075 0,079 0,075
