DMM-160/4/I5/P-R Emergency disconnector 4P 160A, padlockable 172797

Name: DMM-160/4/I5/P-R Emergency disconnector 4P 160A, padlockable
Brand: EATON
SKU: ALO008MOEL
Price: 2558.89 PLN
Availability: BackOrder

Index local:

ALO008MOEL

Numéro de catalogue:

172797

Code EAN:

4015081693818

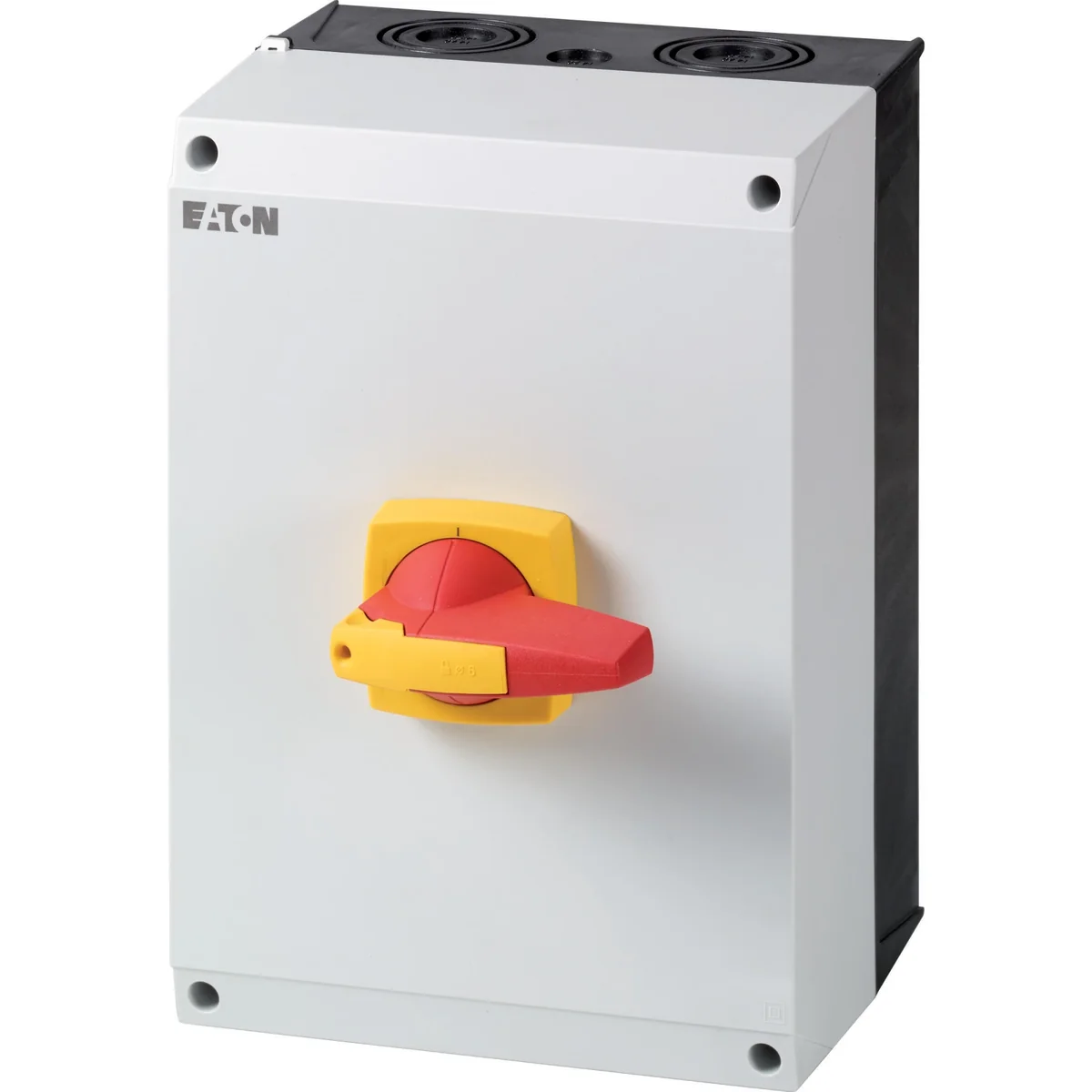

DMM-160/4/I5/P-R Emergency disconnector 4P 160A, padlockable

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Prix:

2 558,89 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Données techniques

Autres données techniques

Version as main switch

Yes
Version as safety switch

No
Version as reversing switch

No
Max. rated operation voltage Ue AC

690 V
Rated permanent current Iu

160 A
Rated permanent current at AC-21, 400 V

160 A
Rated short-time withstand current lcw

2.5 kA
Switching power at 400 V

0 kW
Number of poles

4
Number of auxiliary contacts as normally open contact

0
Motor drive optional

No
Voltage release optional

No
Suitable for floor mounting

Yes
Suitable for front mounting centre

No
Suitable for intermediate mounting

No
Type of control element

Short thumb-grip
Type of electrical connection of main circuit

Screw connection
Degree of protection (NEMA)

12

Version as maintenance-/service switch

Yes
Version as emergency stop installation

Yes
Number of switches

1
Rated operating voltage

690 ... 690 V
Rated permanent current at AC-23, 400 V

140 A
Rated operation power at AC-3, 400 V

0 kW
Rated operation power at AC-23, 400 V

80 kW
Conditioned rated short-circuit current Iq

50 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

No
Device construction

Complete device in housing
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

No
Colour control element

Red
Interlockable

Yes
Degree of protection (IP), front side

IP65

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia	Karton
Quantité	1 pcs.	1 pcs.
poids (kg)	2,470	2,730
Volume (m3)	0,011	0,015
Largeur (m)	0,202	0,200
Longueur (m)	0,282	0,320
Profondeur (m)	0,202	0,240
