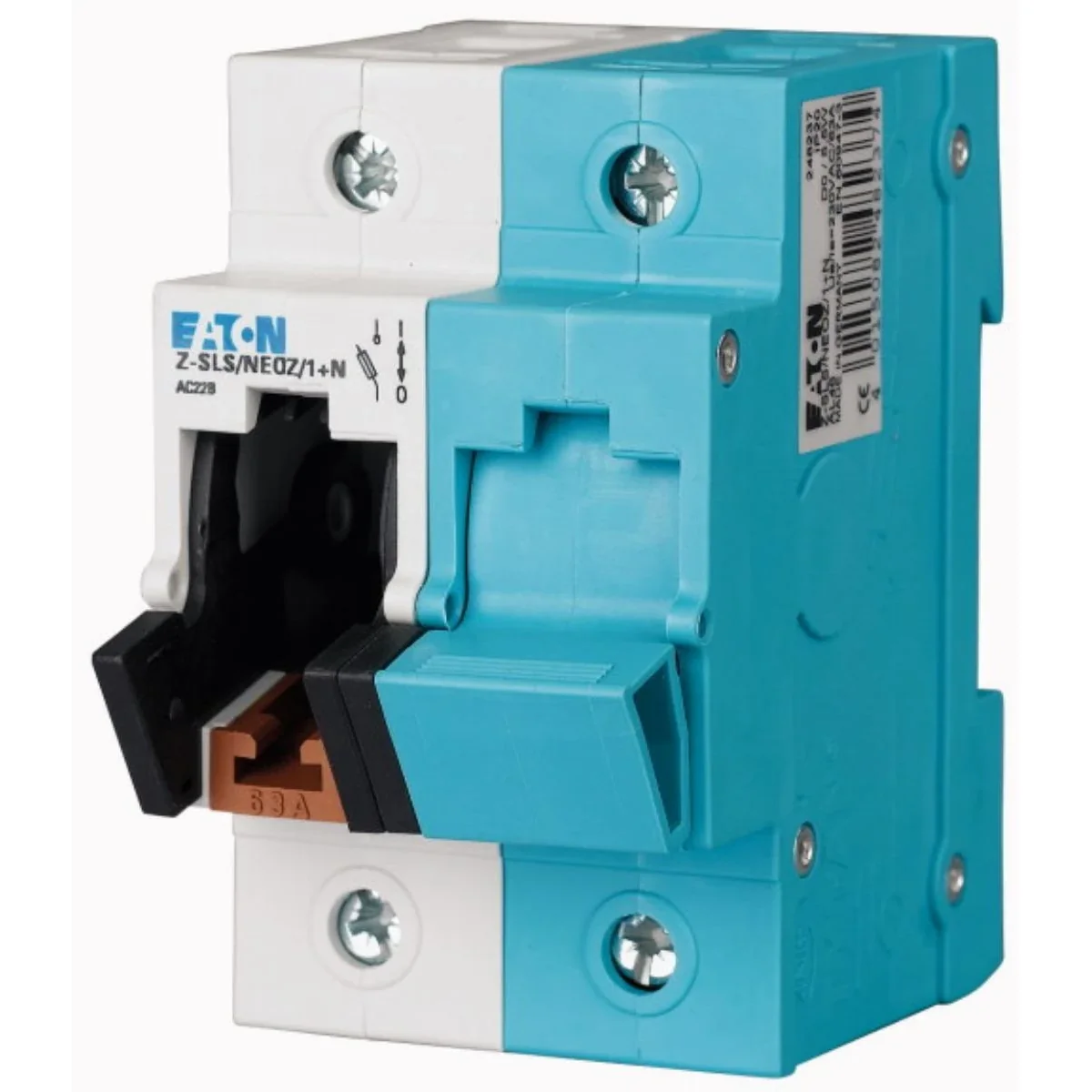

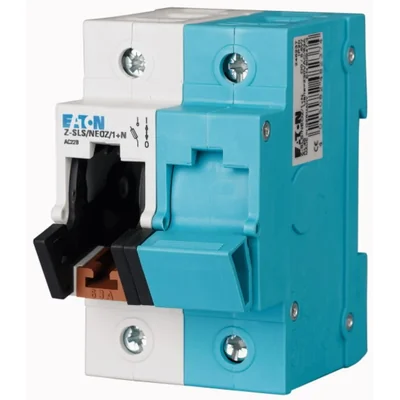

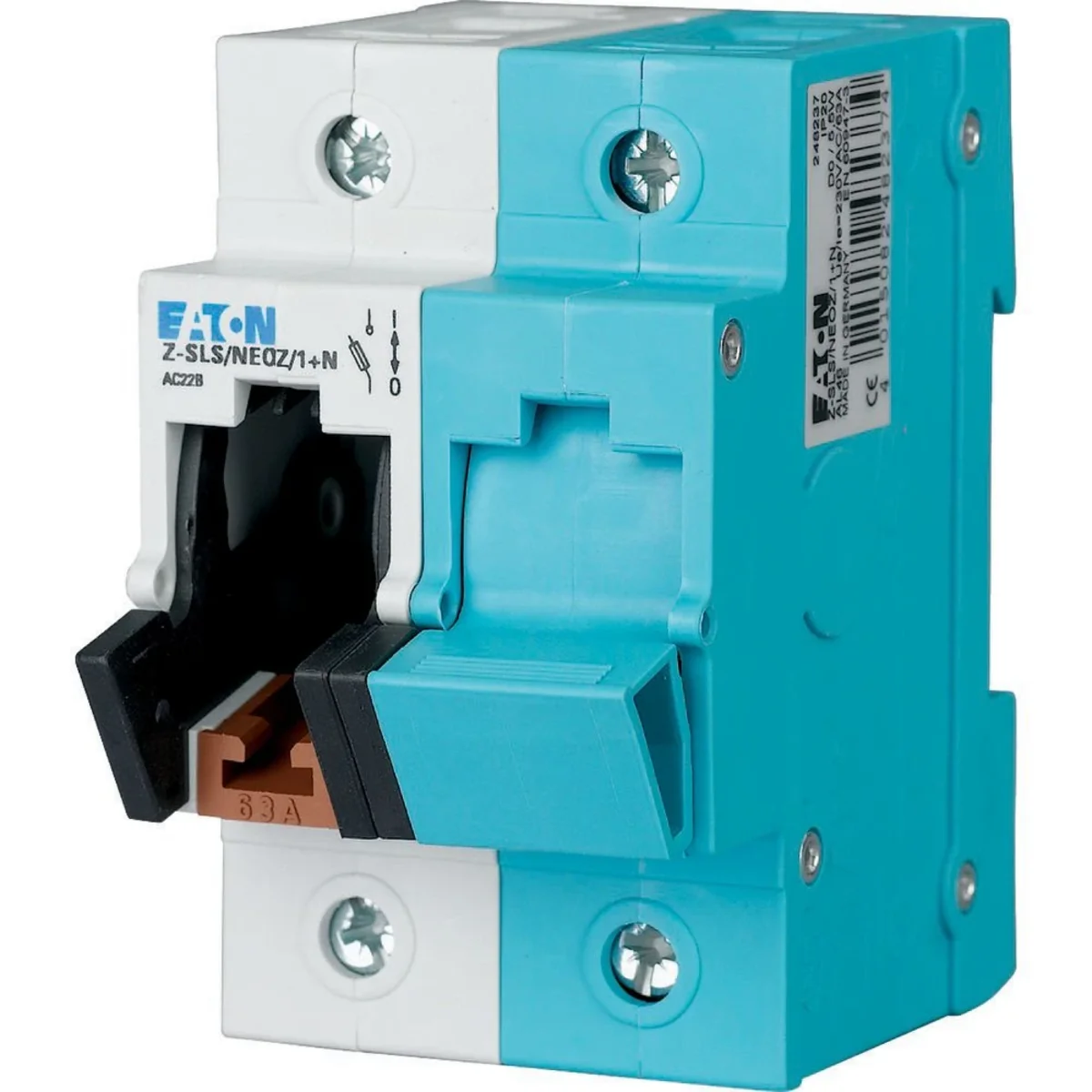

Disconnector base, 63A, Z-SLS/NEOZ/1+N 248237

local index:
ALB032MOEL
Catalog No:
248237
EAN code:
4015082482374
Manufacturer: EATON
Number of poles: 2
Rated current [A]: 63
Price:
59,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Switch disconnector base Z-SLS/NEOZ (TYTAN®)
• Rated operating voltage 230/400 VAC 1-pole 110 VDC, 2-pole 220VDC
• For use with safety inserts. class gG (gL), aM
• Sealable
• Top or bottom feed

Technical data

  • Number of poles
    2
  • Rated current [A]
    63

Other technical data

  • Number of poles
    2
  • Rated voltage
    400 V
  • Construction size
    Other
  • Rated current
    63 A

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 6 pcs. 60 pcs.
Weight (kg) 0,235 1,408 16,700
Volume (m3) 0,000 0,003 0,052
Width (m) 0,056 0,096 0,400
Length (m) 0,090 0,332 0,590
Depth (m) 0,079 0,087 0,220
