el12 Automation Circuit breakers, disconnectors Cam switches Connector, P5-125/EA/SVB

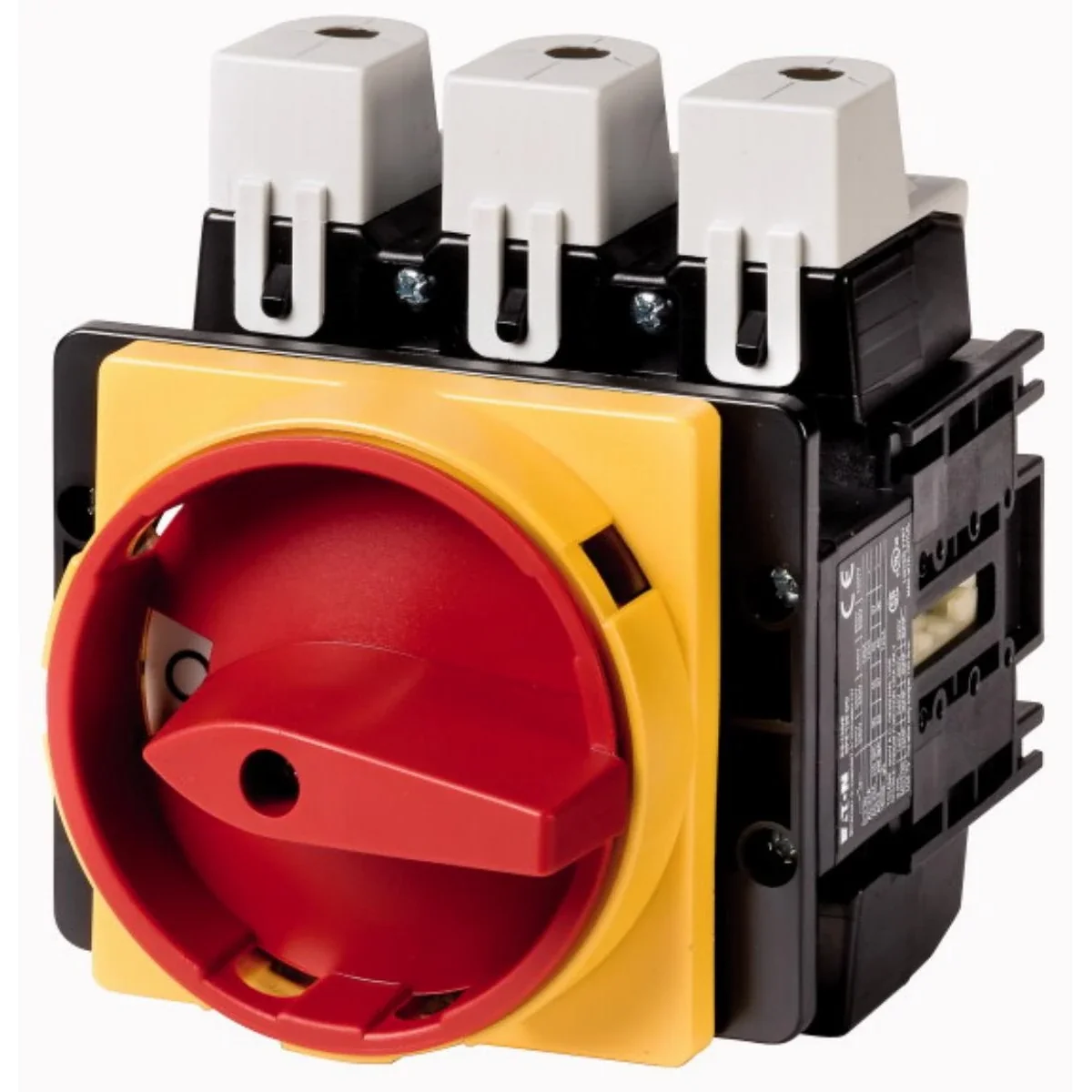

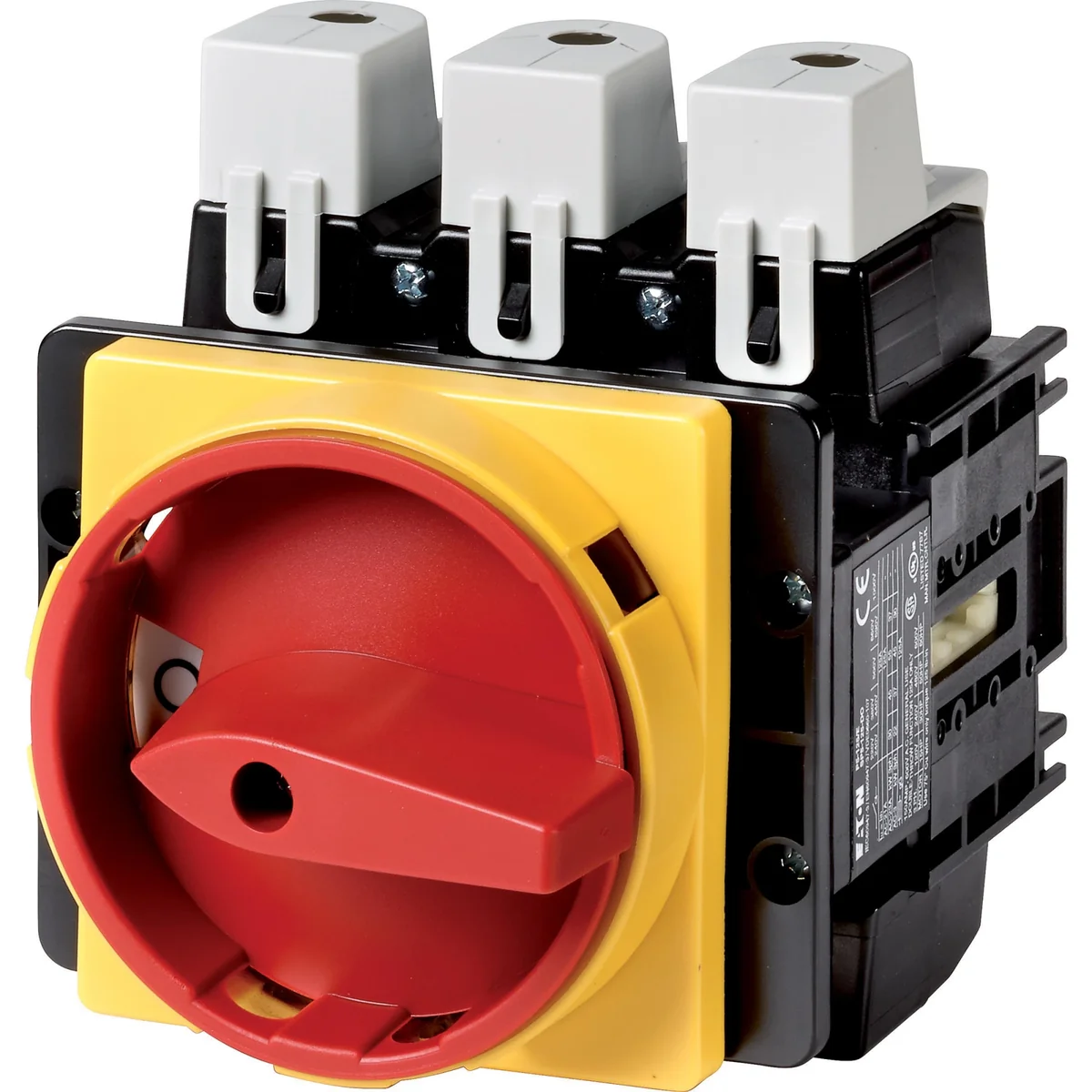

Connector, P5-125/EA/SVB

Click on the photo to enlarge

Connector, P5-125/EA/SVB
EATON

Connector, P5-125/EA/SVB 280898

local index:
ALK160MOEL
Catalog No:
280898
EAN code:
4015082808983
Price:
264,88 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

On/Off switch In=125A P=45kW. With red/yellow padlockable knob according to IEC/EN 60204-1, VDE 0113 Part 1. Lockable in 0 position

Print the product sheet Report an error

Technical data

  • Rated current [A]
    125

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    no
  • Version as reversing switch
    no
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    125 A
  • Rated permanent current at AC-21, 400 V
    125 A
  • Rated short-time withstand current lcw
    2.5 kA
  • Switching power at 400 V
    45 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    no
  • Voltage release optional
    no
  • Suitable for floor mounting
    no
  • Suitable for front mounting centre
    no
  • Suitable for intermediate mounting
    no
  • Type of control element
    Door coupling rotary drive
  • Type of electrical connection of main circuit
    Frame clamp
  • Degree of protection (NEMA)
    12
  • Version as maintenance-/service switch
    yes
  • Version as emergency stop installation
    yes
  • Number of switches
    1
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-23, 400 V
    125 A
  • Rated operation power at AC-3, 400 V
    37 kW
  • Rated operation power at AC-23, 400 V
    45 kW
  • Conditioned rated short-circuit current Iq
    30 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    no
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    yes
  • Suitable for distribution board installation
    no
  • Colour control element
    Red
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP65
