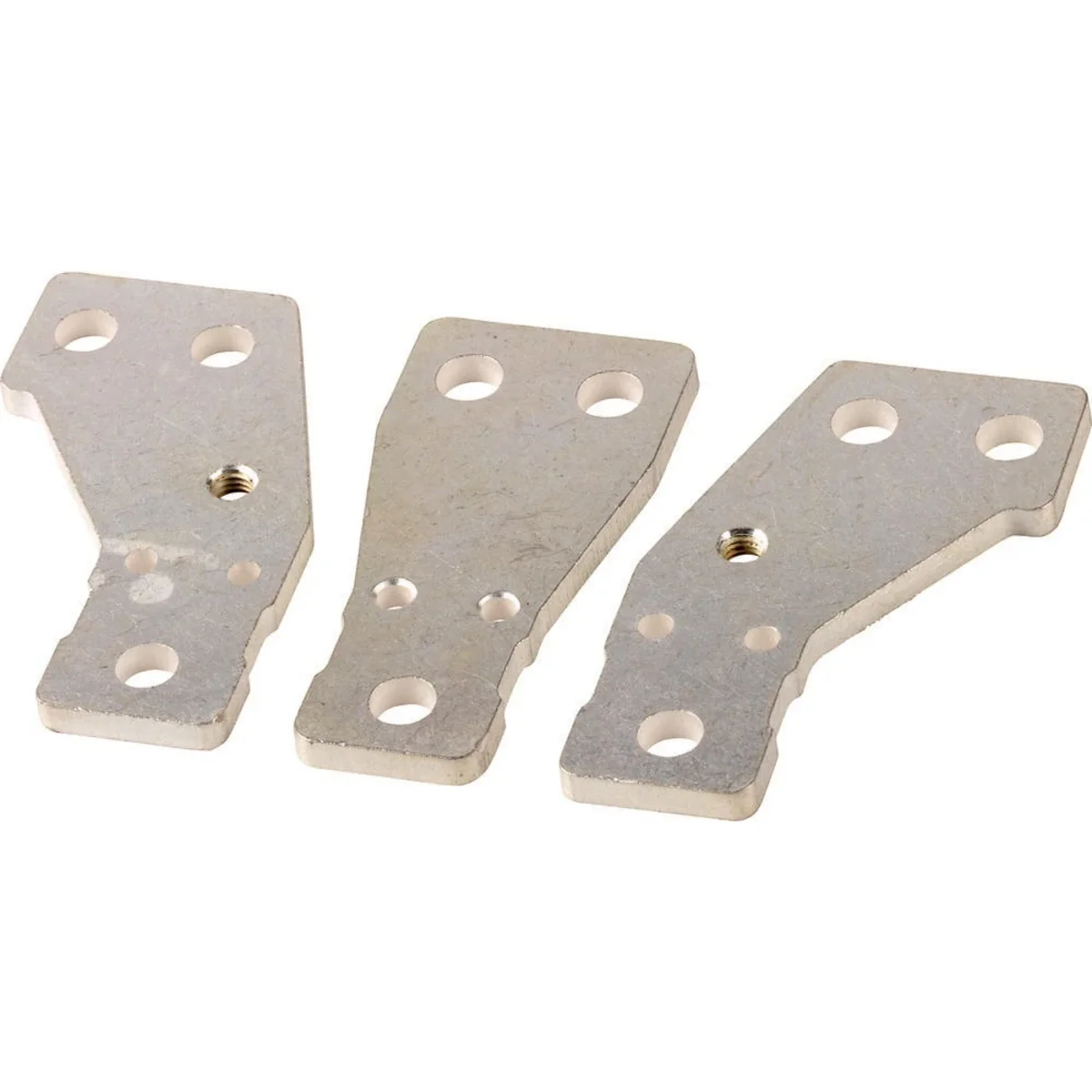

Connection extension 2-hole 3-pole 119860

local index:
ALA481MOEL
Catalog No:
119860
EAN code:
4015081177110
Manufacturer: EATON
Number of poles: 3
Used to: NZM3, PN3, N(S)3
Rated operational current [A]: 630
Price:
328,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Optional accessories for the NZM range of circuit breakers include a wide range of devices suitable for international use. Installation is flexible and easy thanks to the modular functional groups. Tips: Type contains parts for top or bottom side of 3-pole switches. Double perforation to connect up to 4 cable lugs 185mm², 50mm rail or large ribbon cable clamp NZM4-XKB or large tunnel clamp NZM4-XKA For mounting on switch with screw connection. Phase separation plate, insulation plate and 2 control circuit terminals included in delivery. Suitable for: NZM3, PN3, N(S)3

Technical data

  • Number of poles
    3
  • Rated operational current [A]
    630
  • Used to
    NZM3, PN3, N(S)3

Other technical data

  • Suitable for number of poles
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,610
Volume (m3) 0,000
Width (m) 0,105
Length (m) 0,065
Depth (m) 0,018
