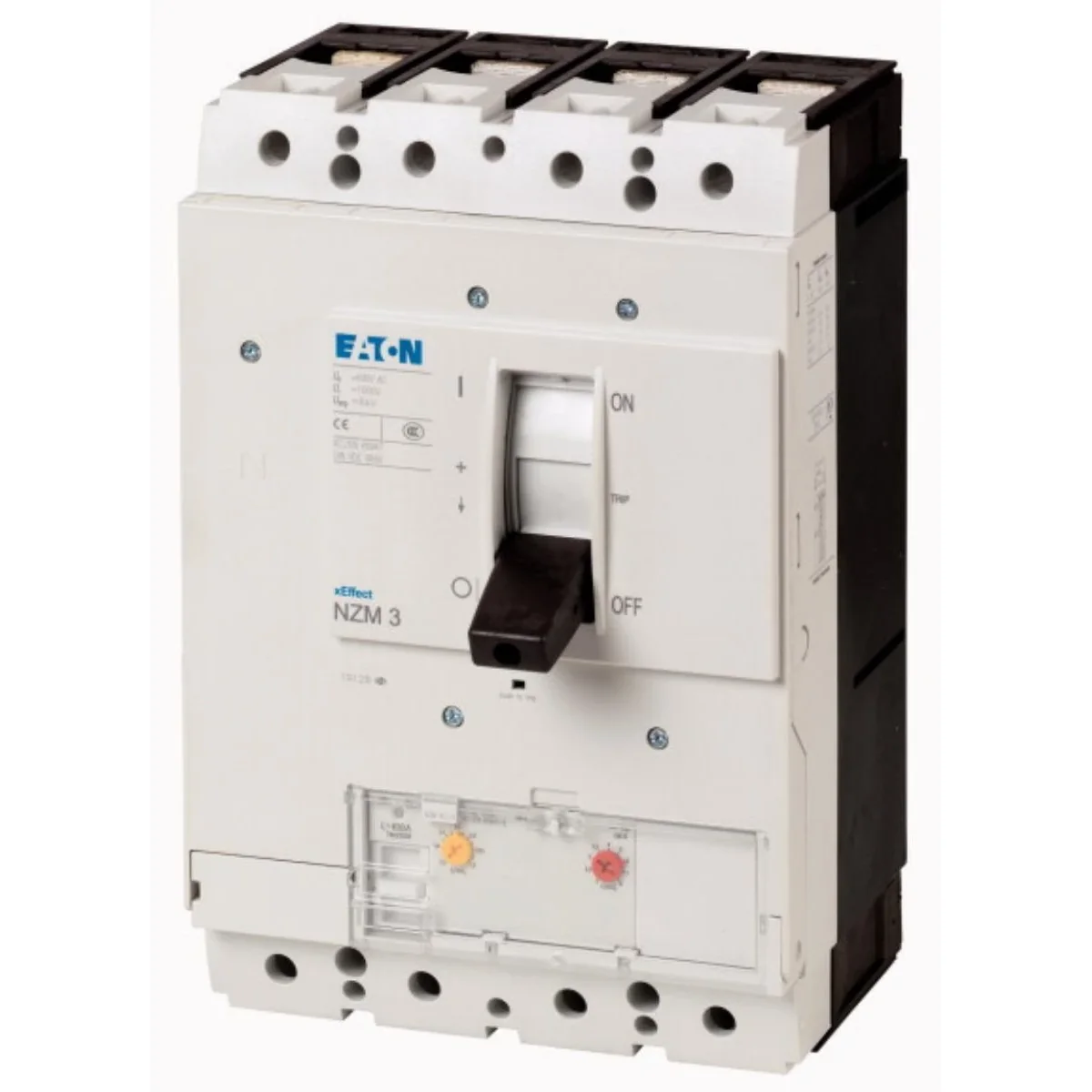

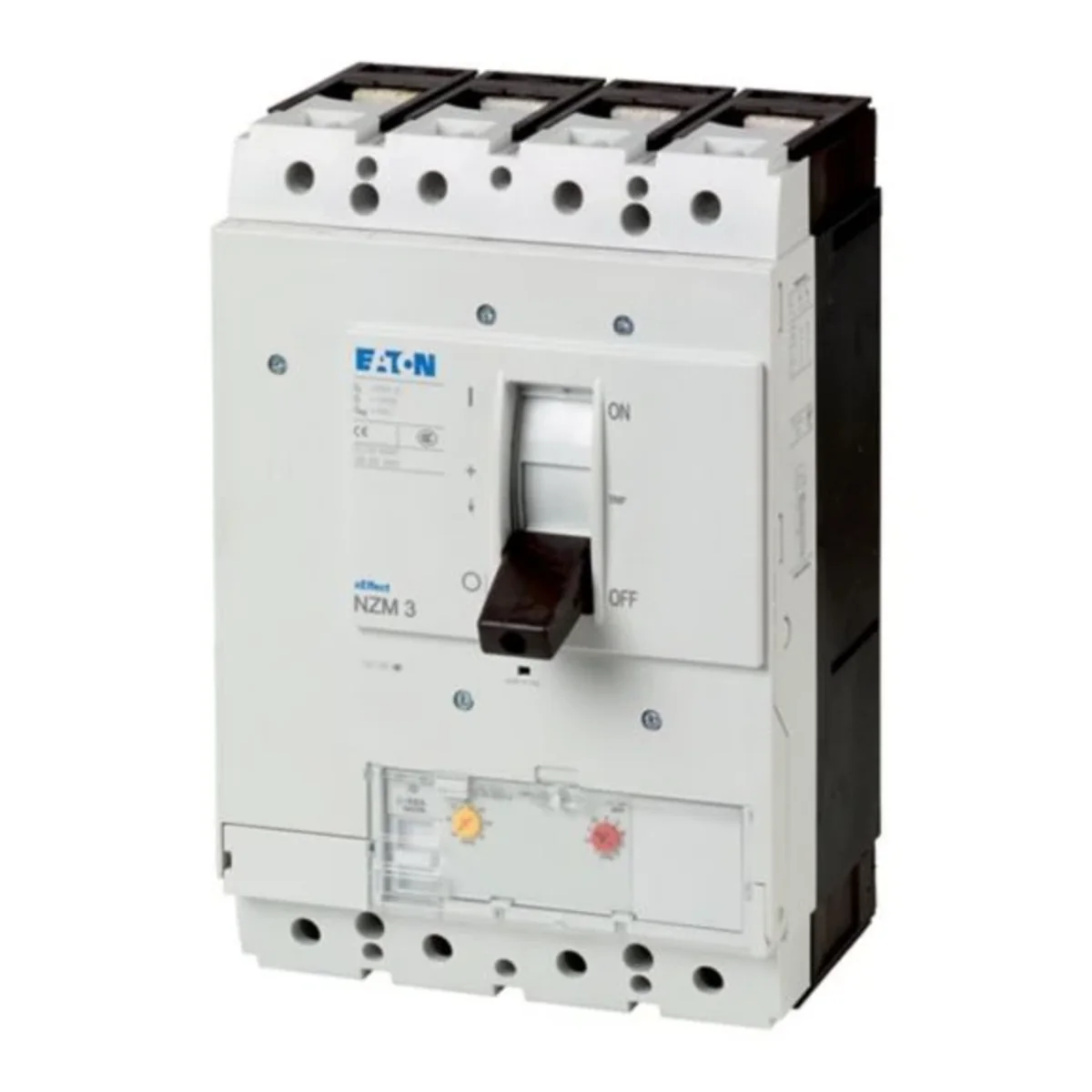

Circuit breaker, 400A, 4 pole, NZMN3-4-AE400 265891

local index:
ALM047MOEL
Catalog No:
265891
EAN code:
4015082658915
Manufacturer: EATON
Number of poles: 4
Rated current [A]: 400
Price:
2355,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breaker, 400A, 4 pole, NZMN3-4-AE400

Technical data

  • Number of poles
    4
  • Rated current [A]
    400

Other technical data

  • Rated permanent current Iu
    400 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    200 ... 400 A
  • Adjustment range undelayed short-circuit release
    800 ... 4400 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    4
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 9,214
Volume (m3) 0,008
Width (m) 0,185
Length (m) 0,166
Depth (m) 0,275
