Circuit breaker, 4-pole, 400A, 50kA, installation and cable protection, fixed installation 110902

Name: Circuit breaker, 4-pole, 400A, 50kA, installation and cable protection, fixed installation
Brand: EATON
SKU: ALM111MOEL
Price: 10471.94 PLN
Availability: BackOrder

Lokaler Index:

ALM111MOEL

Katalognummer:

110902

EAN-Code:

4015081104314

Circuit breaker, 4-pole, 400A, 50kA, installation and cable protection, fixed installation

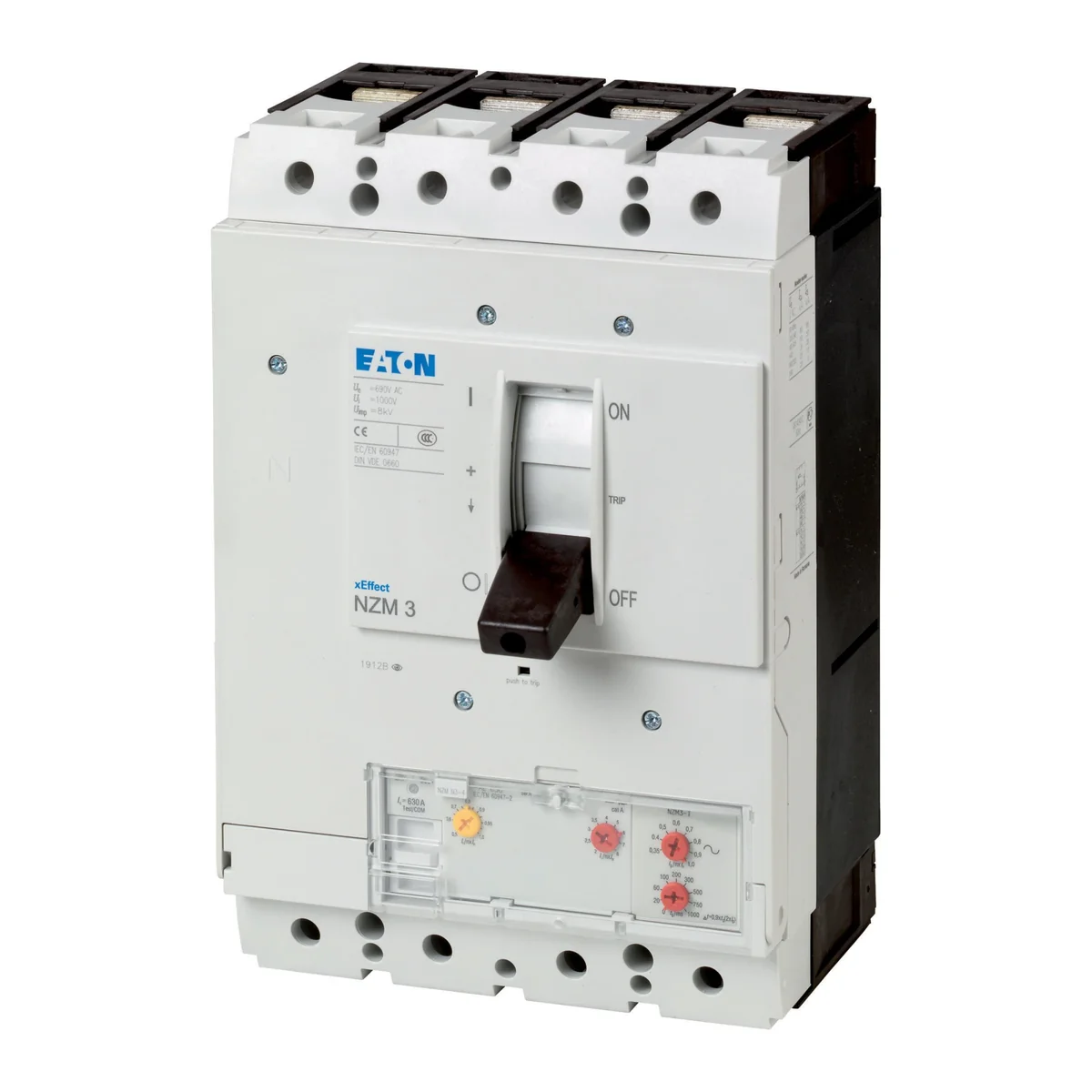

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Number of poles: 4

Installation: Constant

Rated current [A]: 400

Siehe vollständige Beschreibung

Preis:

10 471,94 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 4 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen

Produktbeschreibung

The circuit breakers of the NZM..-AE series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic release to protect installations and cables. Tips: The set value in the neutral conductor is synchronous to the set value of the outer conductor lr. RMS measurement and thermal memory

Technische Daten

Number of poles

4
Rated current [A]

400
Switching capacity [kA]

50

Installation

Constant
Series

Protection of installations and cables
PKWIU

31.20.24-50.22

Weitere technische Daten

Rated permanent current Iu

400 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

50 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

Yes
Device construction

Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

4
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

200 ... 400 A
Adjustment range undelayed short-circuit release

800 ... 4400 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton
Menge	1 stk.	1 stk.
Gewicht (kg)	8,963	9,239
Volumen (m3)	0,008	0,008
Breite (m)	0,187	0,185
Länge (m)	0,168	0,166
Tiefe (m)	0,277	0,275
