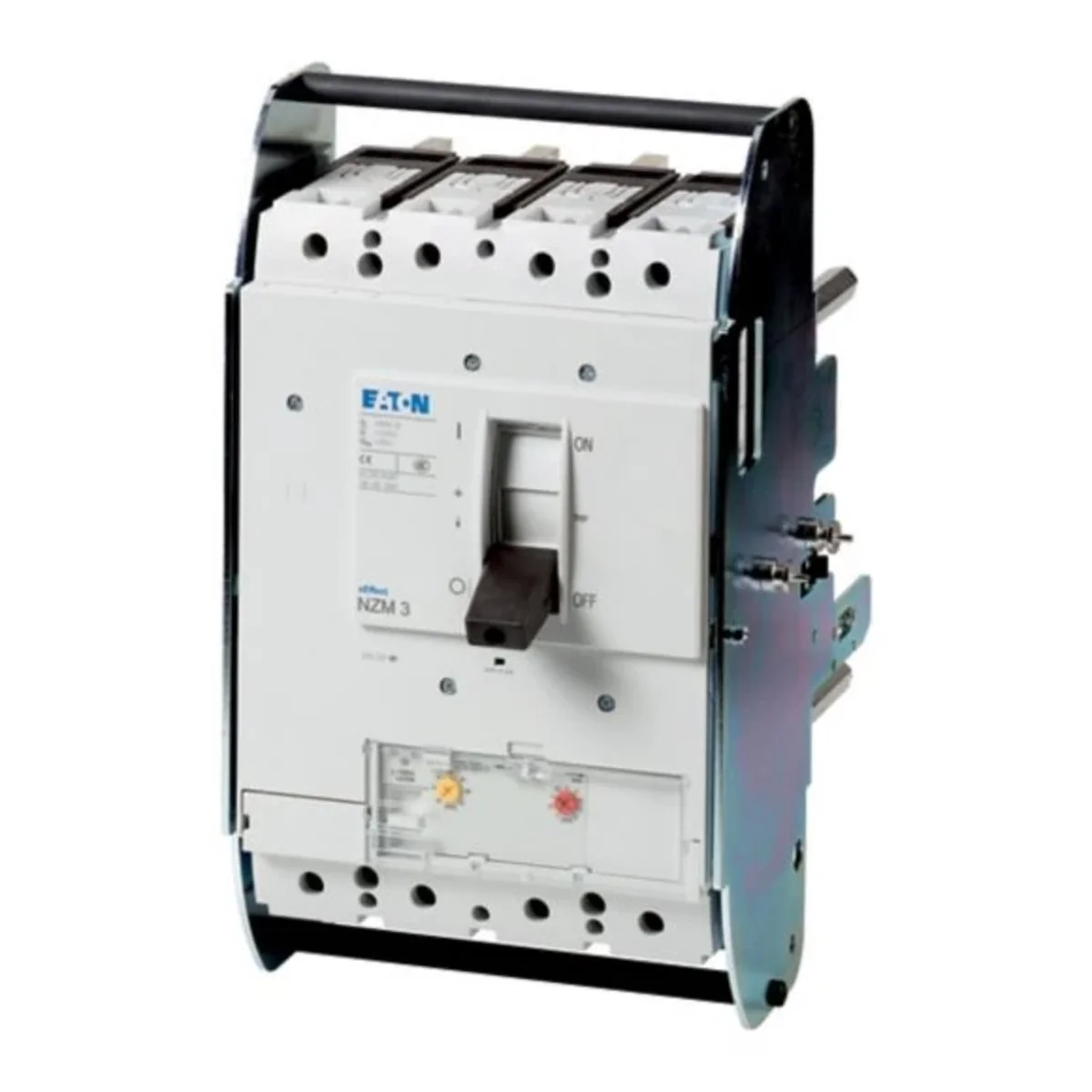

Circuit breaker, 4-pole, 400A, 150kA, installation and cable protection, plug-in 110878

Name: Circuit breaker, 4-pole, 400A, 150kA, installation and cable protection, plug-in
Brand: EATON
SKU: ALM095MOEL
Price: 12151.98 PLN
Availability: BackOrder

Indeks lokalny:

ALM095MOEL

Numer katalogowy:

110878

Kod EAN:

4015081104079

Circuit breaker, 4-pole, 400A, 150kA, installation and cable protection, plug-in

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Number of poles: 4

Installation: Eject technique

Rated current [A]: 400

Zobacz cały opis

Cena:

12 151,98 zł

gross / szt.

(w tym VAT 23%)

do 4 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze

Opis produktu

The circuit breakers of the NZM..-AE series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic release to protect installations and cables. Tips: The set value in the neutral conductor is synchronous to the set value of the outer conductor lr. RMS measurement and thermal memory

Dane techniczne

Number of poles

4
Rated current [A]

400
Switching capacity [kA]

150

Installation

Eject technique
Series

Protection of installations and cables

Pozostałe dane techniczne

Rated permanent current Iu

400 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

150 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

4
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

200 ... 400 A
Adjustment range undelayed short-circuit release

800 ... 4400 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Dane producenta

Producent

Eaton Electric Sp. z o.o.
Adres

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Opakowania zbiorcze

Rodzaj opakowania	Skrzynia	Karton
Ilość	1 szt.	1 szt.
Waga (kg)	22,400	22,400
Objętość (m3)	0,021	0,021
Szerokość (m)	0,232	0,230
Długość (m)	0,262	0,260
Głębokość (m)	0,348	0,346
