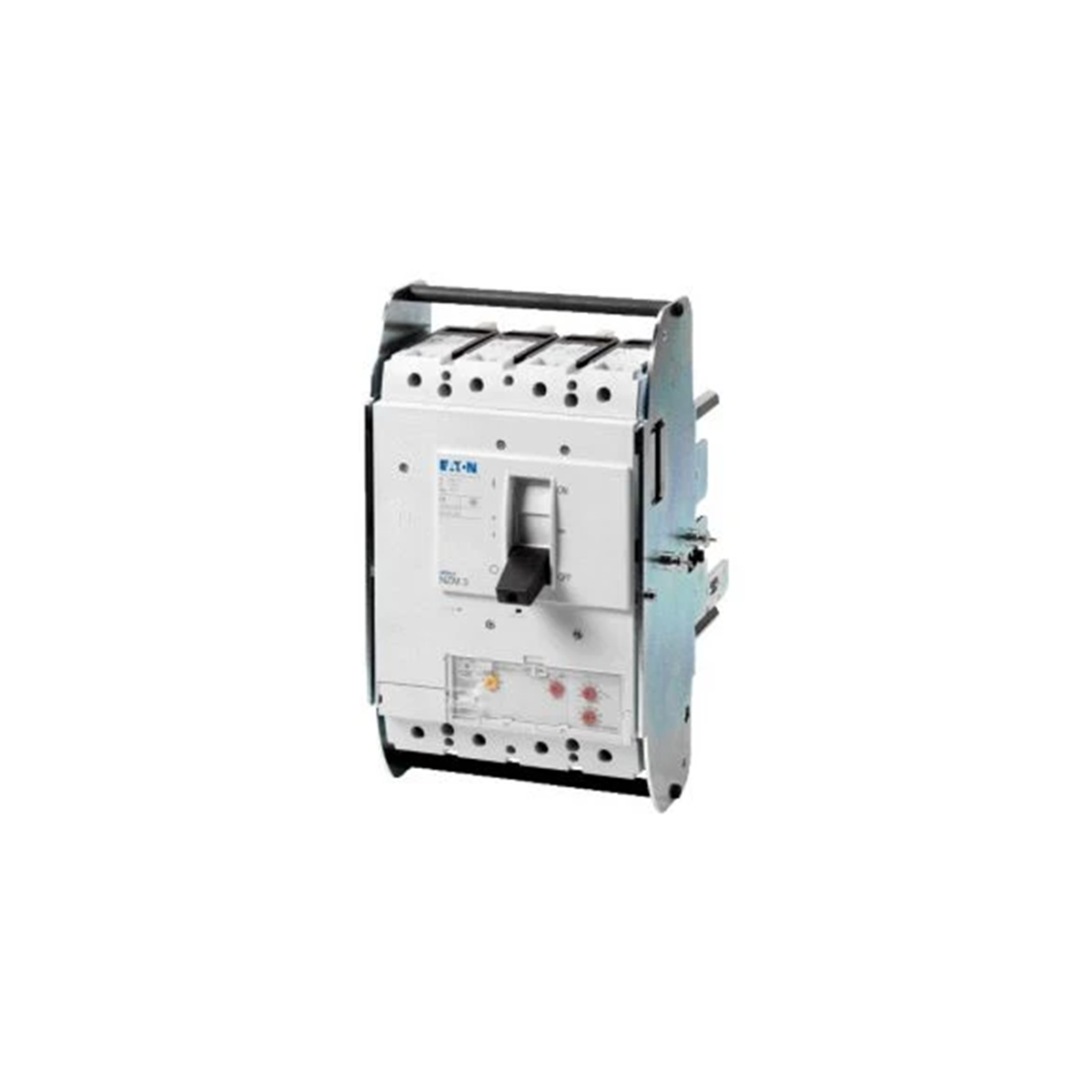

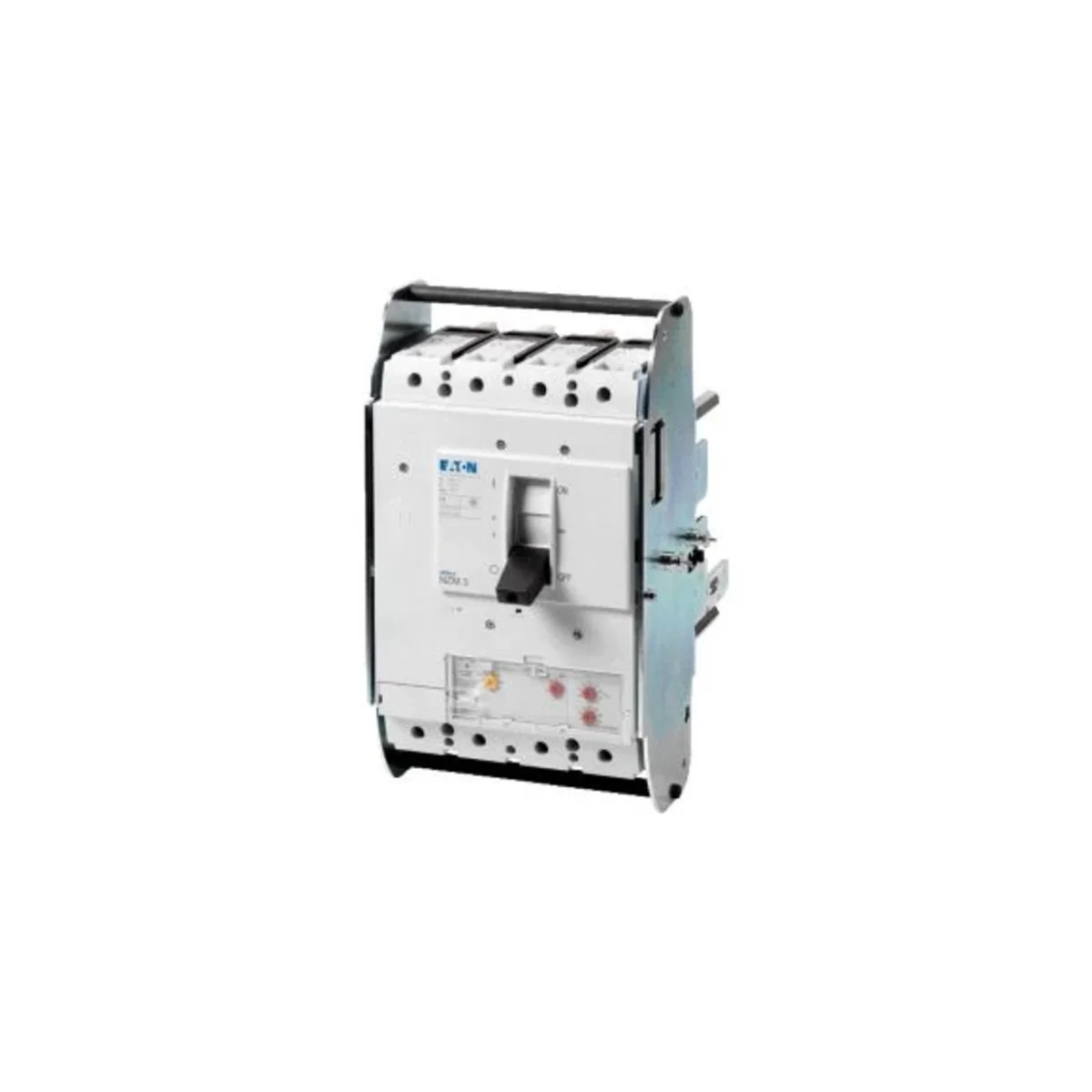

Circuit breaker, 4-pole, 400/250A, 50kA, installation and cable protection, plug-in 113539
local index:
ALM204MOEL
Catalog No:
113539
EAN code:
4015081130641
Manufacturer:
EATON
Number of poles: 4
Rated current [A]: 400
Series: Protection of installations and cables
Price:
3840,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The circuit breakers of the NZM..-AE series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic release to protect installations and cables. Tips: The set value in the neutral conductor is synchronous to the set value of the outer conductor lr. RMS measurement and thermal memory
Technical data
-
Number of poles4
-
SeriesProtection of installations and cables
-
Rated current [A]400
-
Switching capacity [kA]50
Other technical data
-
Rated permanent current Iu400 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionYes
-
Device constructionBuilt-in device slide-in technique (withdrawable)
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles4
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage690 ... 690 V
-
Overload release current setting200 ... 400 A
-
Adjustment range undelayed short-circuit release800 ... 4400 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
With integrated under voltage releaseNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 14,538 |
| Volume (m3) | 0,021 |
| Width (m) | 0,230 |
| Length (m) | 0,346 |
| Depth (m) | 0,260 |
