Circuit breaker, 4-pole, 320A, 50kA, installation and cable protection, plug-in 113532

Name: Circuit breaker, 4-pole, 320A, 50kA, installation and cable protection, plug-in
Brand: EATON
SKU: ALM244MOEL
Price: 2813.37 PLN

Indeks lokalny:

ALM244MOEL

Nr katalogowy:

113532

Kod EAN:

4015081130573

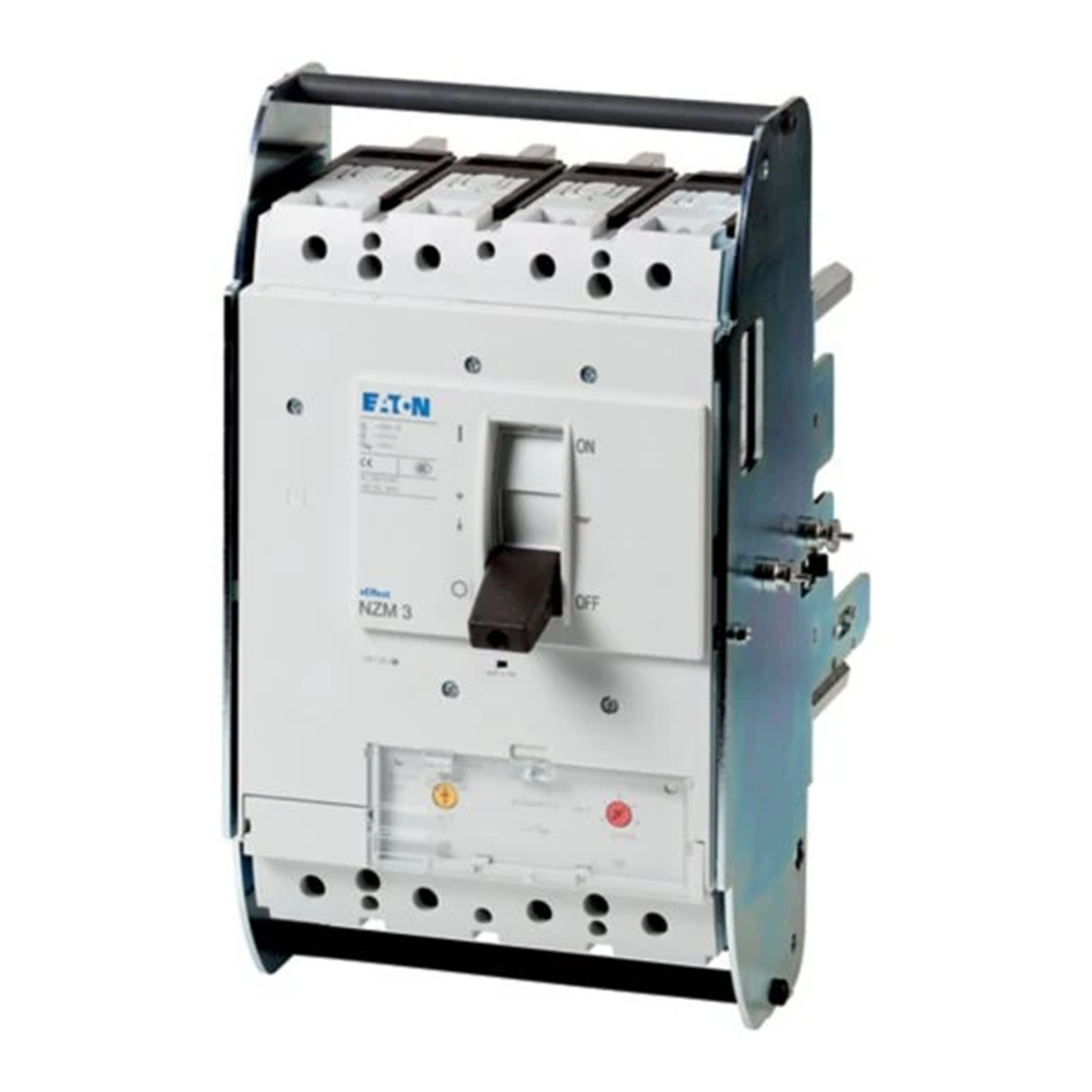

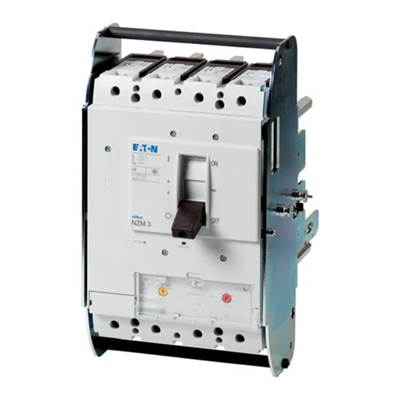

Circuit breaker, 4-pole, 320A, 50kA, installation and cable protection, plug-in

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Number of poles: 4

Installation: Eject technique

Rated current [A]: 320

Zobacz cały opis

Cena:

2813,37 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 4 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables. Tips: The setting value in the neutral conductor is set synchronously to the setting value of the external conductor lr.

Dane techniczne

Number of poles

4
Rated current [A]

320
Switching capacity [kA]

50

Installation

Eject technique
Series

Protection of installations and cables

Pozostałe dane techniczne

Rated permanent current Iu

320 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

50 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

4
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

250 ... 320 A
Adjustment range undelayed short-circuit release

1920 ... 19200 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Dane producenta

Producent

EATON Electric Sp. z o.o.
Adres

80-299 Gdańsk ul. Galaktyczna 30
NIP

5841022327

Opakowania zbiorcze

Rodzaj opakowania	Skrzynia
Ilość	1 szt.
Waga (kg)	12,900
Objętość (m3)	0,021
Szerokość (m)	0,230
Długość (m)	0,346
Głębokość (m)	0,260
