Circuit breaker, 4-pole, 320/200A, 50kA, installation and cable protection, plug-in 113533

Name: Circuit breaker, 4-pole, 320/200A, 50kA, installation and cable protection, plug-in
Brand: EATON
SKU: ALM245MOEL
Price: 11776.49 PLN
Availability: BackOrder

Indice locale:

ALM245MOEL

Numero di catalogo:

113533

Codice EAN:

4015081130580

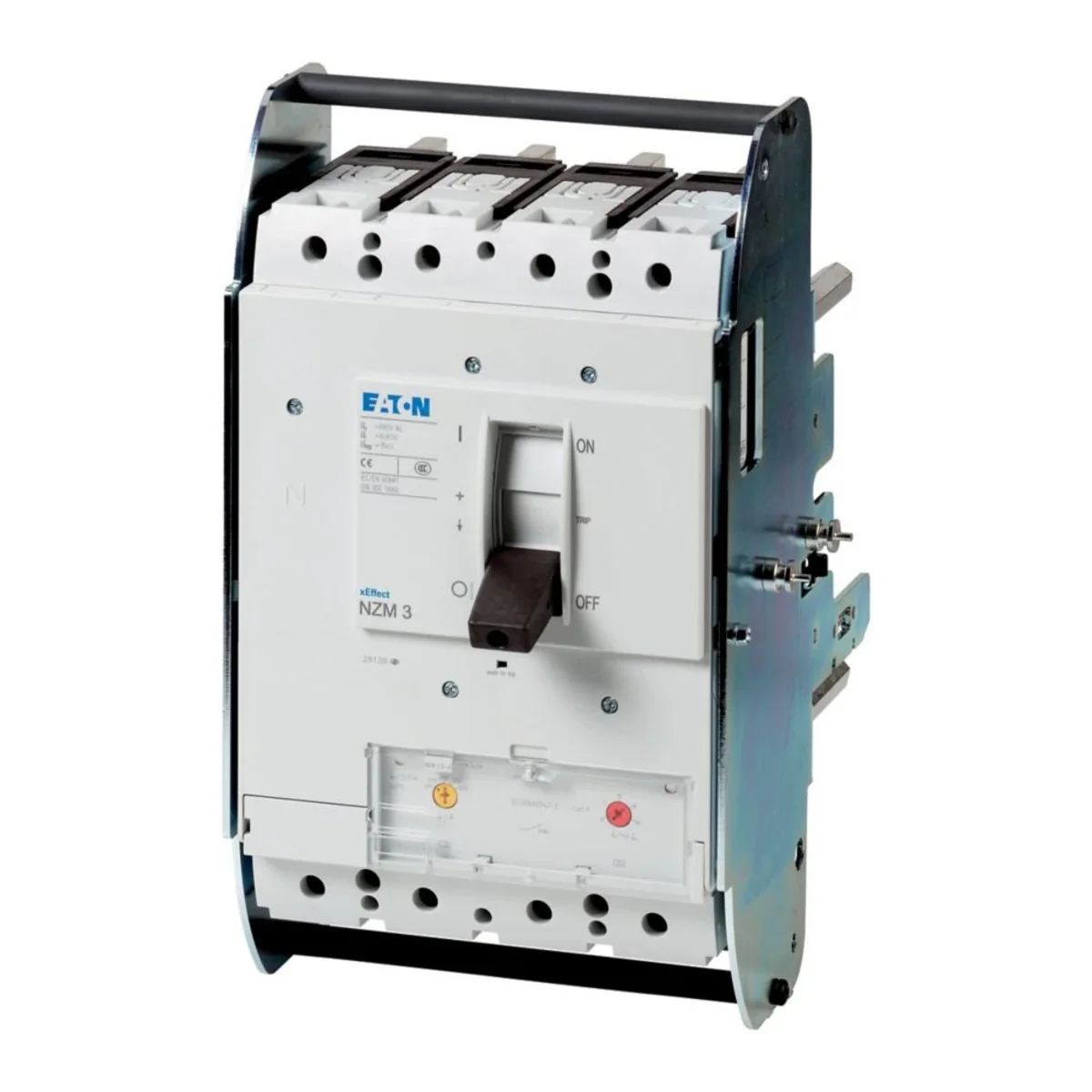

Circuit breaker, 4-pole, 320/200A, 50kA, installation and cable protection, plug-in

Clicca sulla foto per ingrandire

Produttore: EATON

Number of poles: 4

Rated current [A]: 320

Series: Protection of installations and cables

Vedi la descrizione completa

Prezzo:

11 776,49 zł

gross / pezzi

(inclusa IVA 23%)

fino a 4 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables. Tips: The setting value in the neutral conductor is set synchronously to the setting value of the external conductor lr.

Dati tecnici

Number of poles

4
Series

Protection of installations and cables

Rated current [A]

320
Switching capacity [kA]

50

Altri dati tecnici

Rated permanent current Iu

320 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

50 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

4
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

250 ... 320 A
Adjustment range undelayed short-circuit release

1920 ... 19200 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Dettagli del produttore

Produttore

Eaton Electric Sp. z o.o.
Indirizzo

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Imballaggio sfuso

Una specie di pacchetto	Skrzynia	Karton
Quantità	1 pezzi	1 pezzi
Peso (kg)	12,900	12,900
Volume (m3)	0,021	0,021
Larghezza (m)	0,232	0,230
Lunghezza (m)	0,348	0,346
Profondità (m)	0,262	0,260
