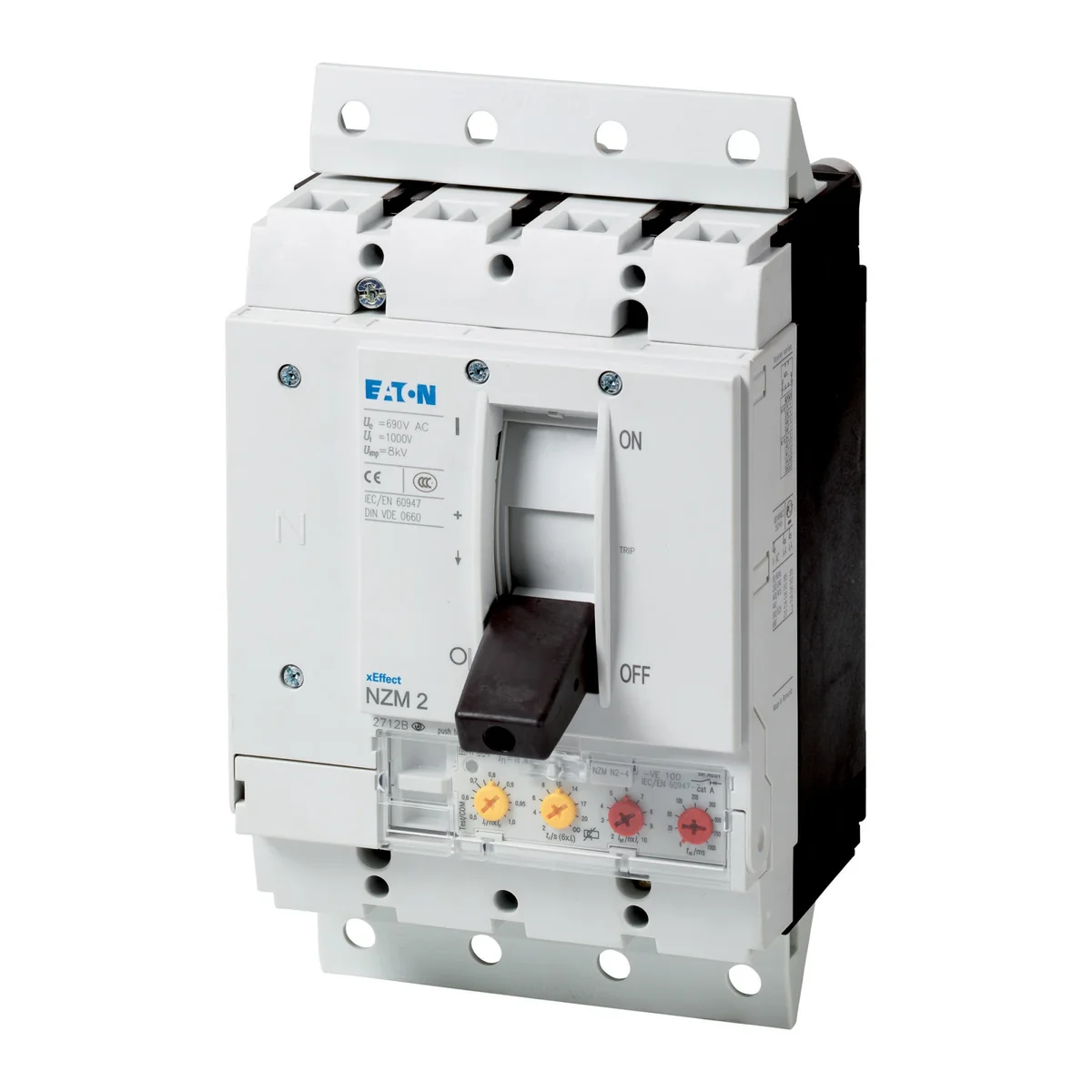

Circuit breaker, 4-pole, 160A, 50kA, system, cable, selective and generator protection, plug-in cartridge 113277

local index:
ALM163MOEL
Catalog No:
113277
EAN code:
4015081128129
Manufacturer: EATON
Number of poles: 4
Installation: Plug-in technology
Rated current [A]: 160
Price:
1638,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The circuit breakers of the NZM..-VE series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic trip unit for plant and cable protection, selective and generator protection, time-delayed overload and time protection and non-delayed short-circuit protection. Tips: RMS and thermal memory measurement, adjustable time delay setting tr: 2-20s at 6xIr and infinity (without overload release), adjustable delay time tsd: steps: 0, 20, 60, 100, 200, 300, 500, 750 , 1000ms, i2t-constant function: permanent OFF the setting value in the neutral conductor is synchronous to the setting value of the external conductor lr.

Technical data

  • Number of poles
    4
  • Rated current [A]
    160
  • Switching capacity [kA]
    50
  • Installation
    Plug-in technology
  • Series
    Installation, cable, selective and generator protection

Other technical data

  • Rated permanent current Iu
    160 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50 kA
  • Adjustment range short-term delayed short-circuit release
    160 ... 1600 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device plug-in technique
  • DIN rail (top hat rail) mounting optional
    Yes
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Number of poles
    4
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    80 ... 160 A
  • Adjustment range undelayed short-circuit release
    1920 ... 1920 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • With integrated under voltage release
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 3,742
Volume (m3) 0,006
Width (m) 0,140
Length (m) 0,180
Depth (m) 0,245
