EATON

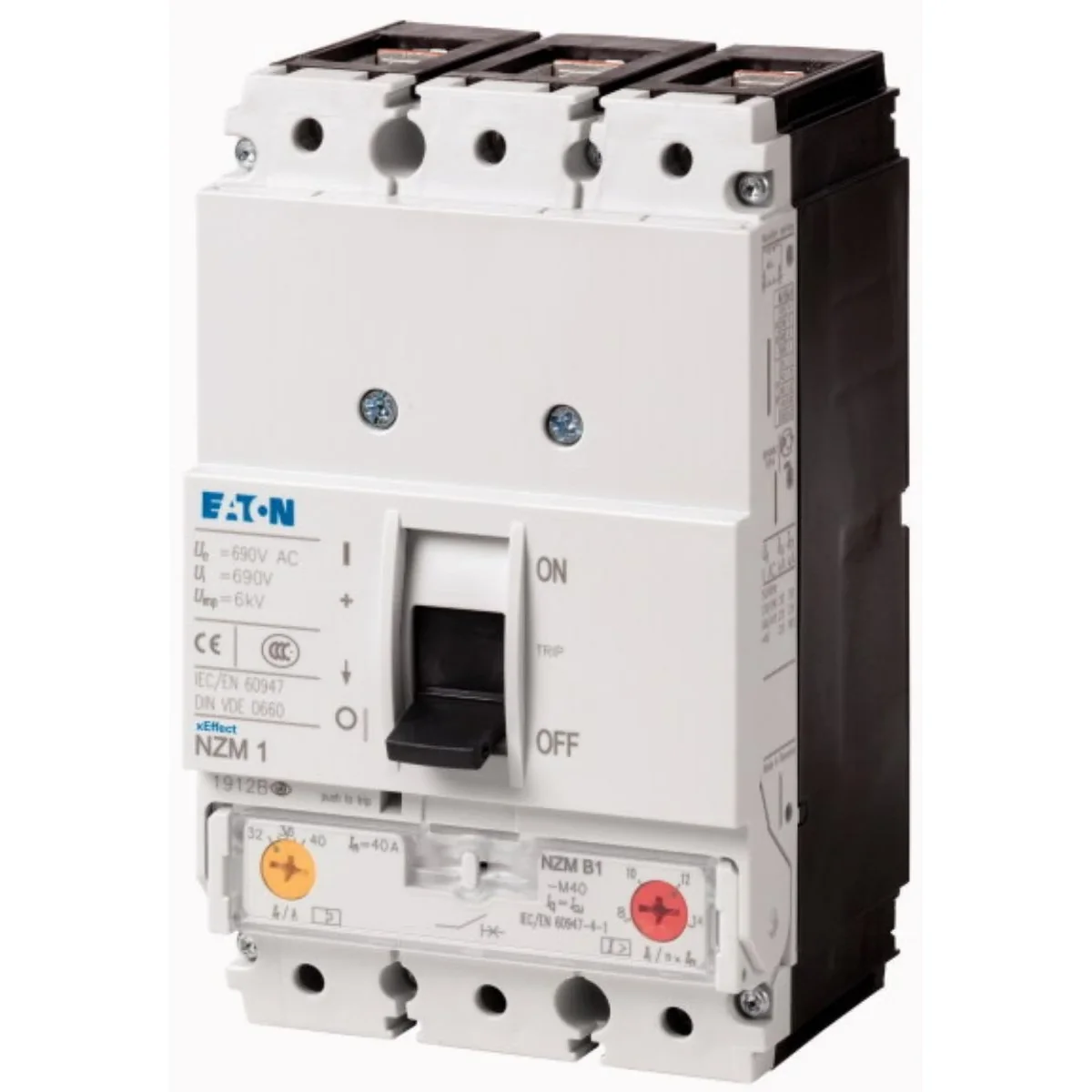

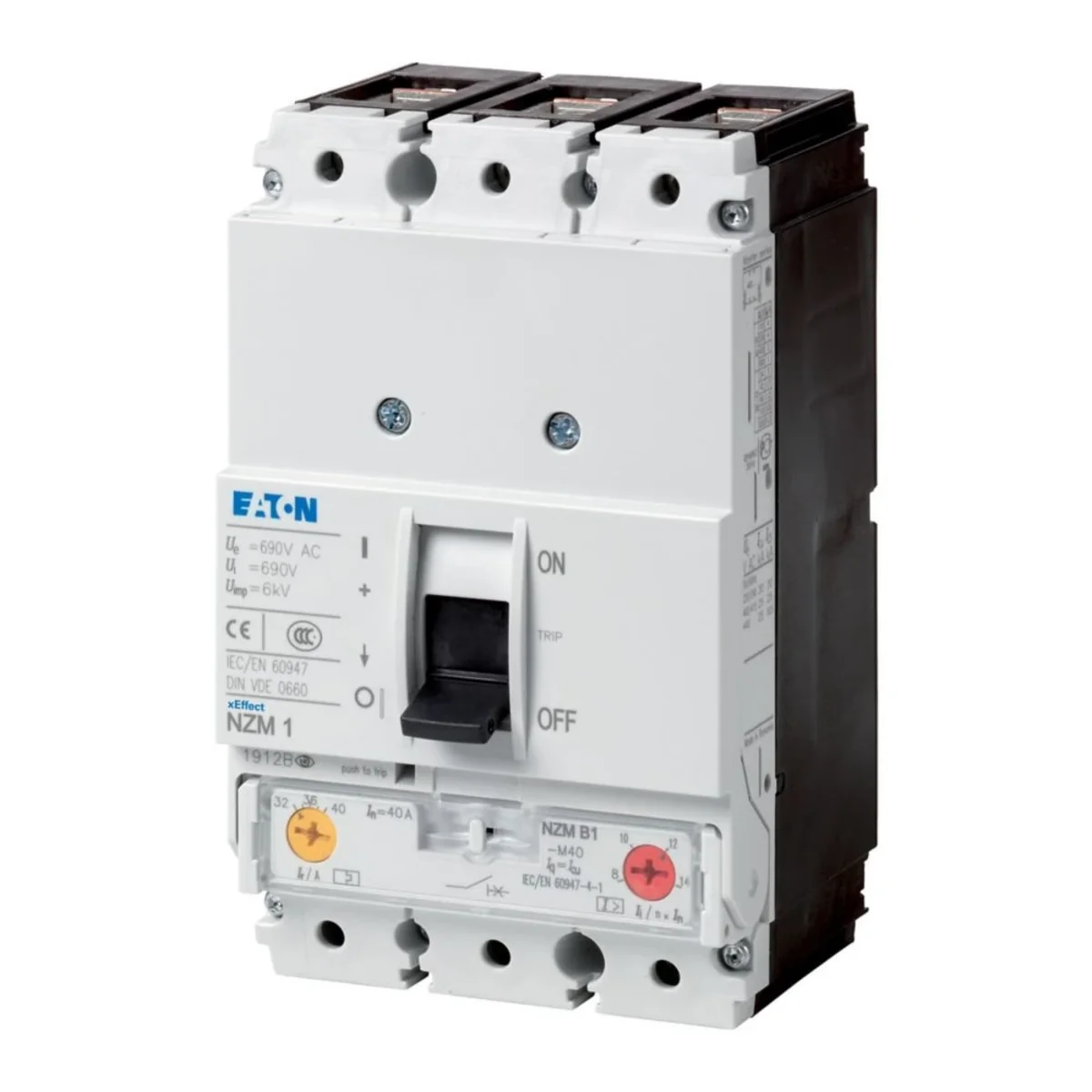

Circuit breaker 3-pole, 80A, NZMN1-M80 265721

local index:
ALI157MOEL
Catalog No:
265721
EAN code:
4015082657215
Price:
332,40 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

3-pole power switch.80A protection

Technical data

  • Number of poles
    3
  • Rated current [A]
    80

Other technical data

  • Overload release current setting
    63 ... 80 A
  • With thermal overload protection
    yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    80 A
  • Rated operation power at AC-3, 400 V
    45 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    no
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    90 mm
  • Adjustment range undelayed short-circuit release
    640 ... 1120 A
  • Phase failure sensitive
    yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    22 kW
  • Type of electrical connection of main circuit
    Other
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    no
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    35 kA
  • Height
    145 mm
  • Depth
    88 mm
