Circuit Breaker, 3 Pole, 80A, 100kA, Fixed Mount, Motor Protection 115453

Name: Circuit Breaker, 3 Pole, 80A, 100kA, Fixed Mount, Motor Protection
Brand: EATON
SKU: ALI310MOEL
Price: 1637.97 PLN
Availability: BackOrder

Index local:

ALI310MOEL

Numéro de catalogue:

115453

Code EAN:

4015081151936

Circuit Breaker, 3 Pole, 80A, 100kA, Fixed Mount, Motor Protection

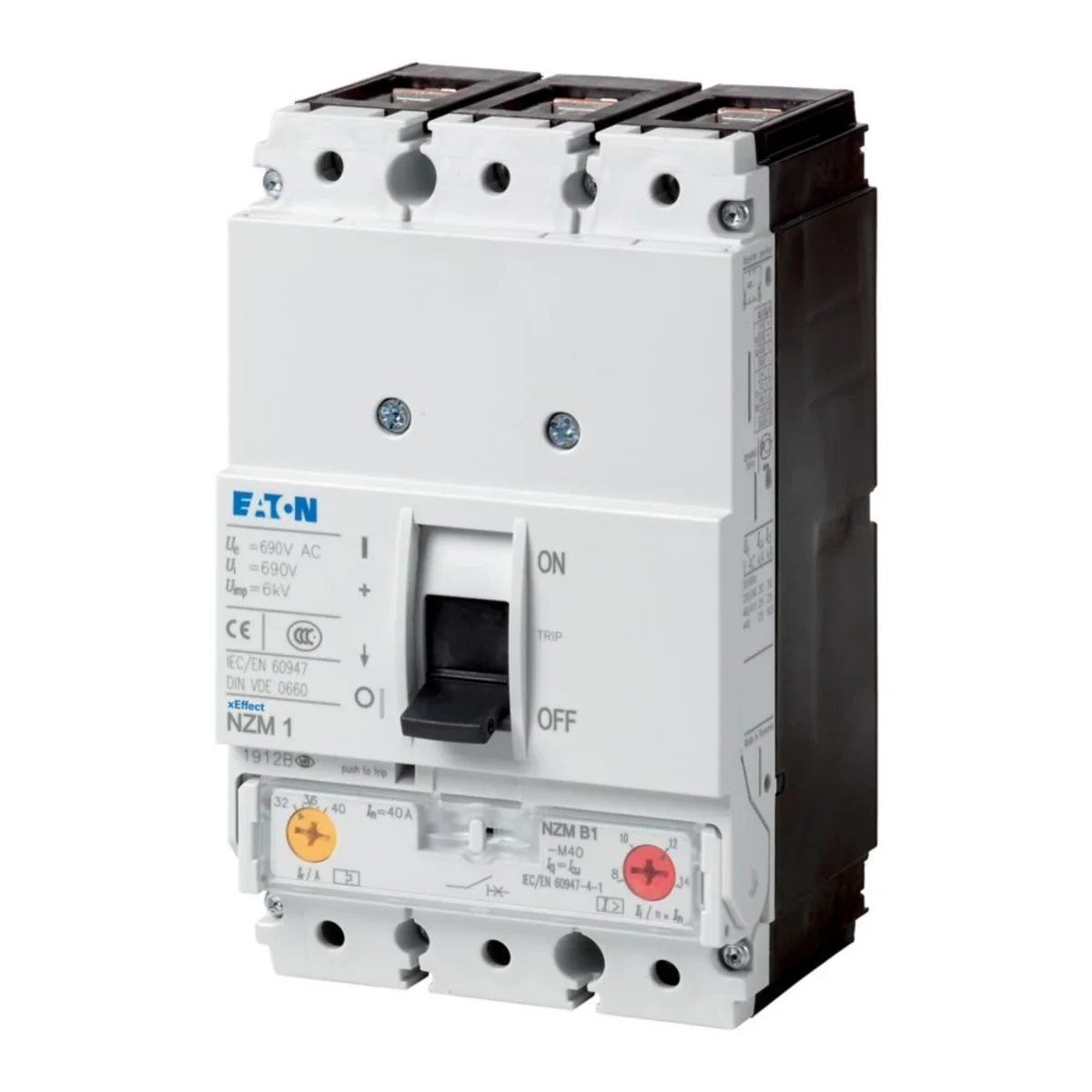

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Number of poles: 3

Installation: Constant

Rated current [A]: 80

Voir la description complète

Prix:

1 637,97 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

Circuit breakers of the NZM..-M series with only four compact sizes are suitable for all applications and are suitable for the IEC market. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect the motor. Notes: with phase loss sensitivity, trip class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2 MCBs meet all requirements of utilization category AC-3.

Données techniques

Number of poles

3
Rated current [A]

80
Switching capacity [kA]

100

Installation

Constant
Series

engine protection

Autres données techniques

Overload release current setting

63 ... 80 A
With thermal overload protection

Yes
Switch off technique

Thermomagnetic
Rated permanent current Iu

80 A
Rated operation power at AC-3, 400 V

45 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

90 mm

Adjustment range undelayed short-circuit release

640 ... 1120 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

22 kW
Type of electrical connection of main circuit

Other
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

35 kA
Height

145 mm
Depth

88 mm

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia	Karton
Quantité	1 pcs.	1 pcs.
poids (kg)	1,021	1,064
Volume (m3)	0,001	0,001
Largeur (m)	0,092	0,090
Longueur (m)	0,090	0,088
Profondeur (m)	0,147	0,145
