Circuit Breaker, 3 Pole, 50A, 100kA, Fixed Mount, Motor Protection 115451

Name: Circuit Breaker, 3 Pole, 50A, 100kA, Fixed Mount, Motor Protection
Brand: EATON
SKU: ALI308MOEL
Price: 388.13 PLN

local index:

ALI308MOEL

Catalog No:

115451

EAN code:

4015081151912

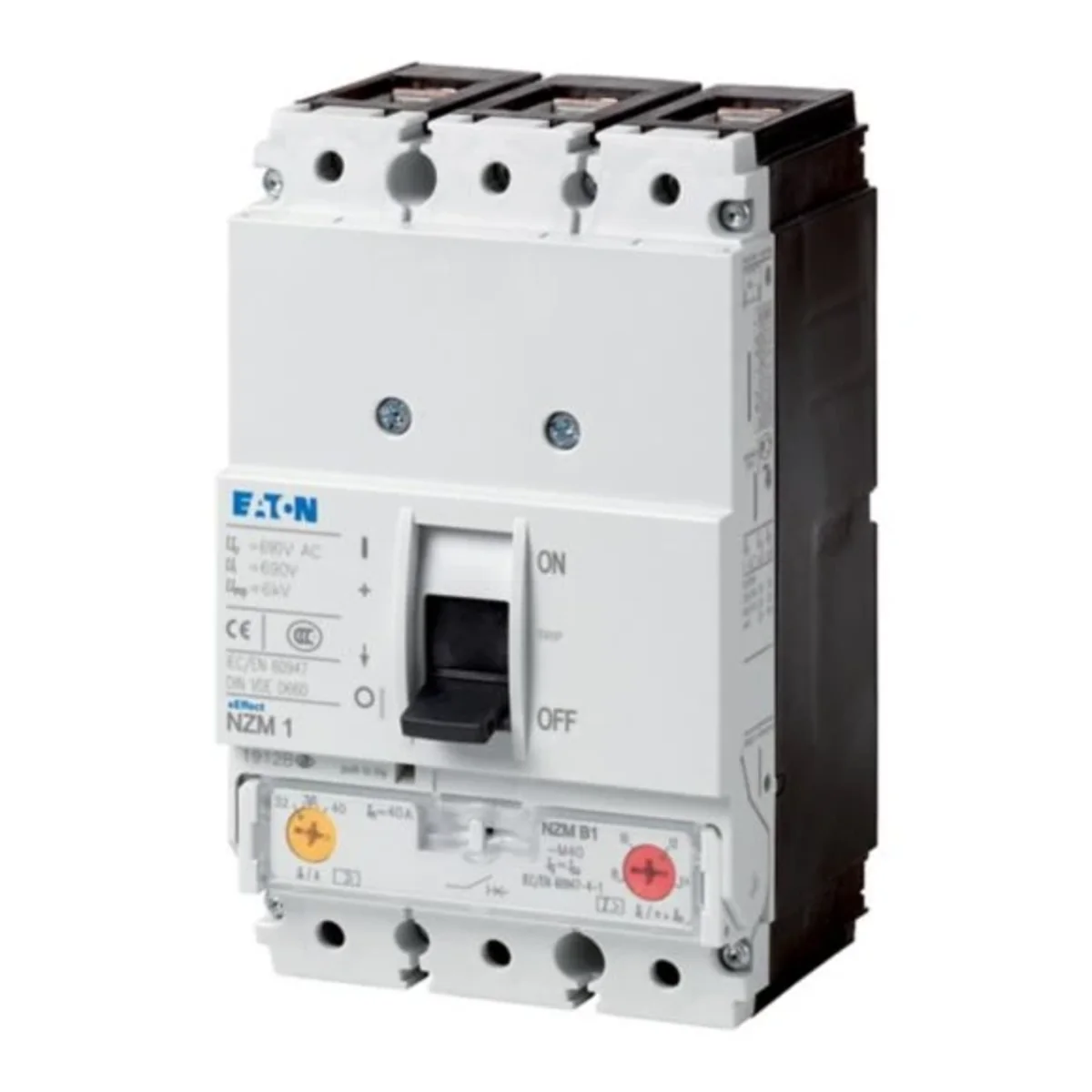

Circuit Breaker, 3 Pole, 50A, 100kA, Fixed Mount, Motor Protection

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Installation: Constant

Rated current [A]: 50

See full description

Price:

388,13 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Circuit breakers of the NZM..-M series with only four compact sizes are suitable for all applications and are suitable for the IEC market. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect the motor. Notes: with phase loss sensitivity, trip class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2 MCBs meet all requirements of utilization category AC-3.

Technical data

Number of poles

3
Rated current [A]

50
Switching capacity [kA]

100

Installation

Constant
Series

engine protection
PKWIU

27.40.2

Other technical data

Overload release current setting

40 ... 50 A
With thermal overload protection

Yes
Switch off technique

Thermomagnetic
Rated permanent current Iu

50 A
Rated operation power at AC-3, 400 V

22 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

90 mm

Adjustment range undelayed short-circuit release

400 ... 700 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

15 kW
Type of electrical connection of main circuit

Other
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

35 kA
Height

145 mm
Depth

88 mm
