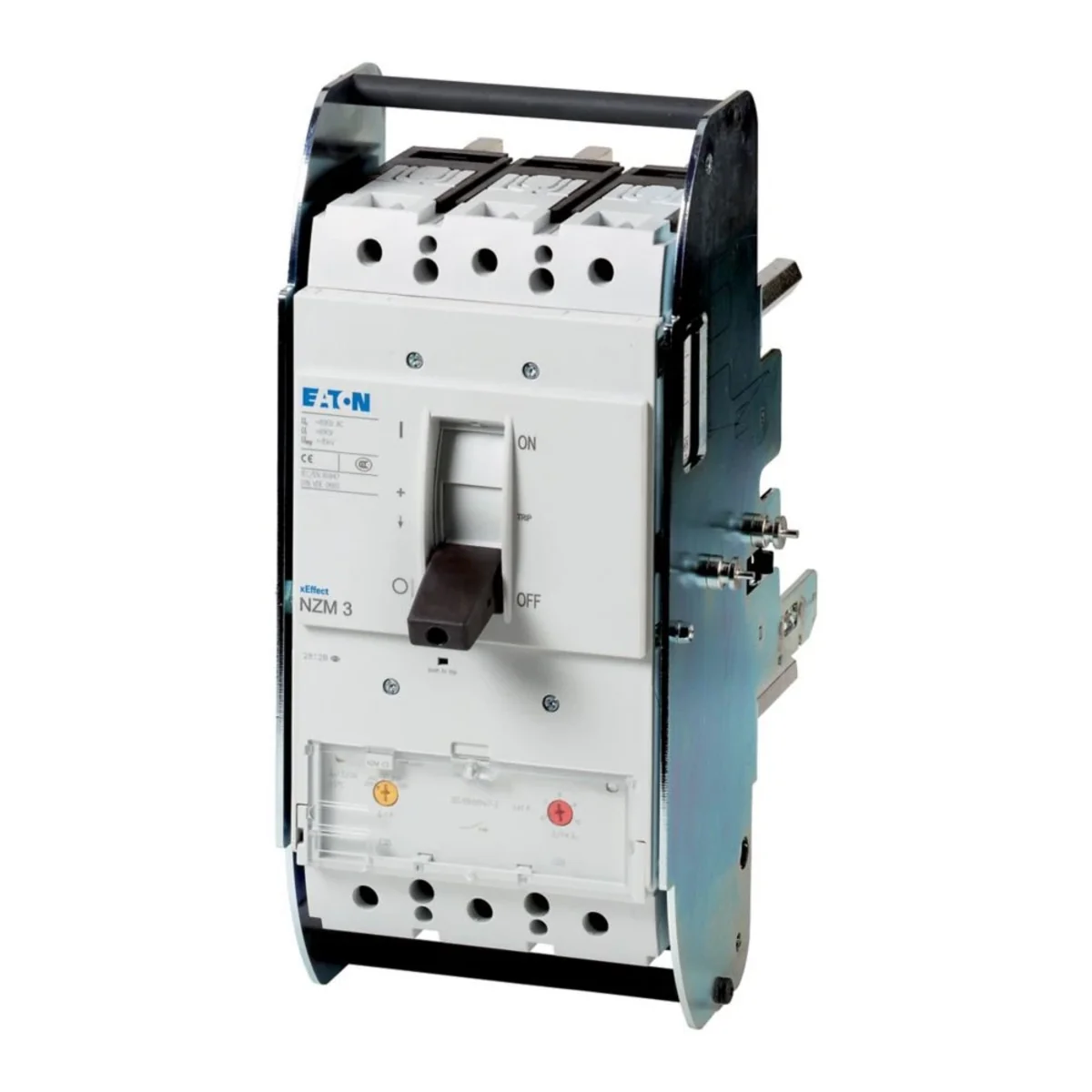

Circuit breaker, 3-pole, 500A, 50kA, installation and cable protection, plug-in 110860

Index local:
ALM086MOEL
Numéro de catalogue:
110860
Code EAN:
4015081103898
Producteur: EATON
Number of poles: 3
Installation: Eject technique
Rated current [A]: 500
Prix:
2153,96 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables.

Données techniques

  • Number of poles
    3
  • Rated current [A]
    500
  • Switching capacity [kA]
    50
  • Installation
    Eject technique
  • Series
    Protection of installations and cables
  • PKWIU
    25.11.23.0

Autres données techniques

  • Rated permanent current Iu
    500 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device slide-in technique (withdrawable)
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Number of poles
    3
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    400 ... 500 A
  • Adjustment range undelayed short-circuit release
    3000 ... 5000 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • With integrated under voltage release
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes

Détails du fabricant

  • Producteur
    EATON Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk ul. Galaktyczna 30
  • Numéro identifiant TVA
    5841022327

Emballage en vrac

Une sorte de paquet Skrzynia
Quantité 1 pcs. 1 pcs.
poids (kg) 16,800 16,800
Volume (m3) 0,017 0,017
Largeur (m) 0,185 0,185
Longueur (m) 0,260 0,260
Profondeur (m) 0,346 0,346
