Circuit breaker, 3-pole, 450A, 50kA, motor protection, plug-in 110848

Name: Circuit breaker, 3-pole, 450A, 50kA, motor protection, plug-in
Brand: EATON
SKU: ALM073MOEL
Price: 2322.06 PLN

Indice locale:

ALM073MOEL

Numero di catalogo:

110848

Codice EAN:

4015081103775

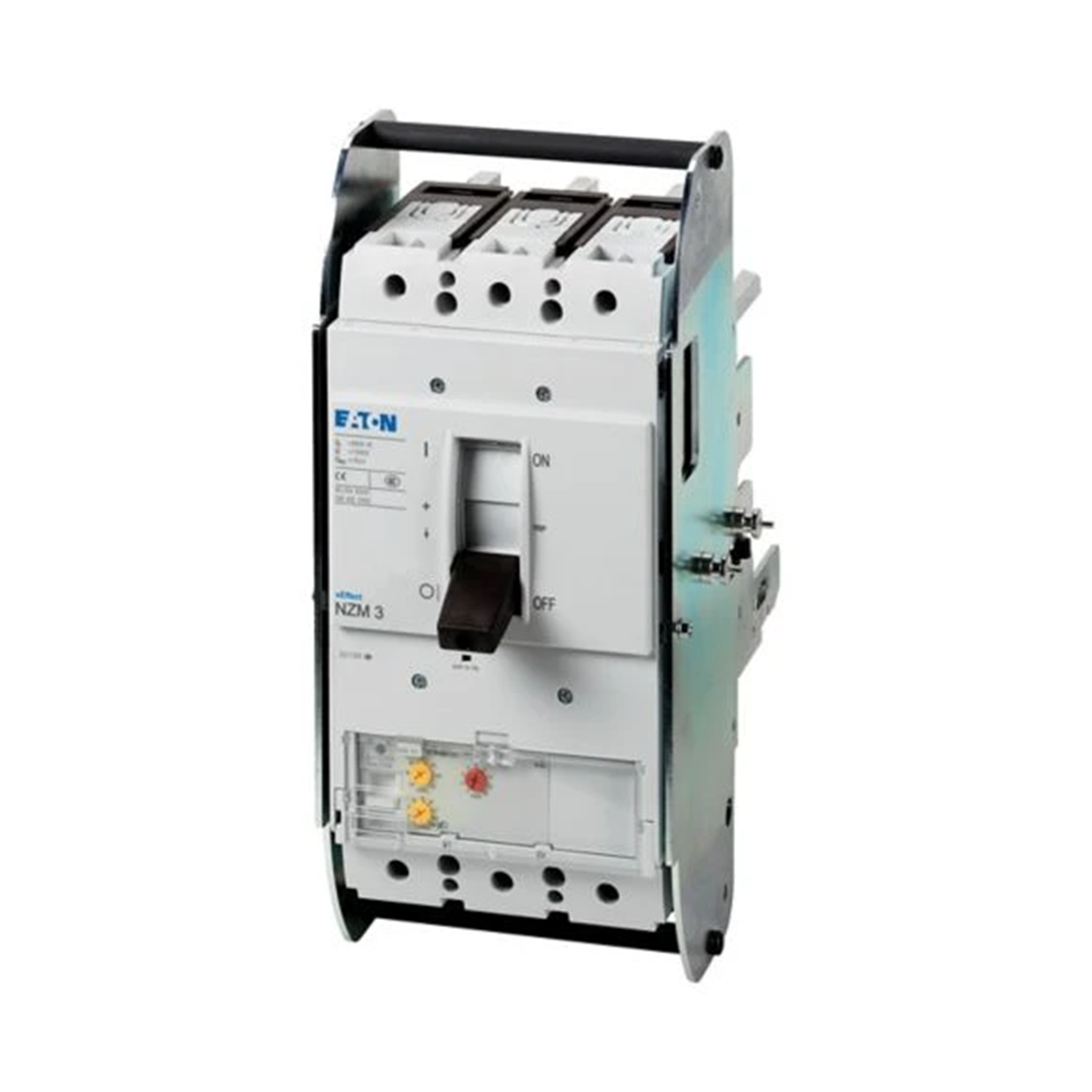

Circuit breaker, 3-pole, 450A, 50kA, motor protection, plug-in

Clicca sulla foto per ingrandire

Produttore: EATON

Number of poles: 3

Installation: Eject technique

Rated current [A]: 450

Vedi la descrizione completa

Prezzo:

2322,06 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 4 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

The circuit breakers of the NZM..-ME series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic trip unit to protect the motor with phase failure sensitivity. Guidance: IEC/EN 60947-4-1, IEC/EN 60947-2, rms and thermal memory measurement, adjustable time delay setting tr: 2-20s at 6xIr and infinity (without overload release)

Dati tecnici

Number of poles

3
Rated current [A]

450
Switching capacity [kA]

50

Installation

Eject technique
Series

engine protection

Altri dati tecnici

Overload release current setting

225 ... 450 A
With thermal overload protection

Yes
Switch off technique

Electronic
Rated permanent current Iu

450 A
Rated operation power at AC-3, 400 V

250 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

185 mm

Adjustment range undelayed short-circuit release

450 ... 6300 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

132 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device slide-in technique (withdrawable)
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

35 kA
Height

346 mm
Depth

260 mm

Dettagli del produttore

Produttore

EATON Electric Sp. z o.o.
Indirizzo

80-299 Gdańsk ul. Galaktyczna 30
NIP

5841022327

Imballaggio sfuso

Una specie di pacchetto	Skrzynia
Quantità	1 pezzi
Peso (kg)	18,289
Volume (m3)	0,017
Larghezza (m)	0,185
Lunghezza (m)	0,260
Profondità (m)	0,346
