Circuit breaker, 3-pole, 450A, 50kA, motor protection, plug-in 110848

Name: Circuit breaker, 3-pole, 450A, 50kA, motor protection, plug-in
Brand: EATON
SKU: ALM073MOEL
Price: 2066.74 PLN

Indeks lokalny:

ALM073MOEL

Nr katalogowy:

110848

Kod EAN:

4015081103775

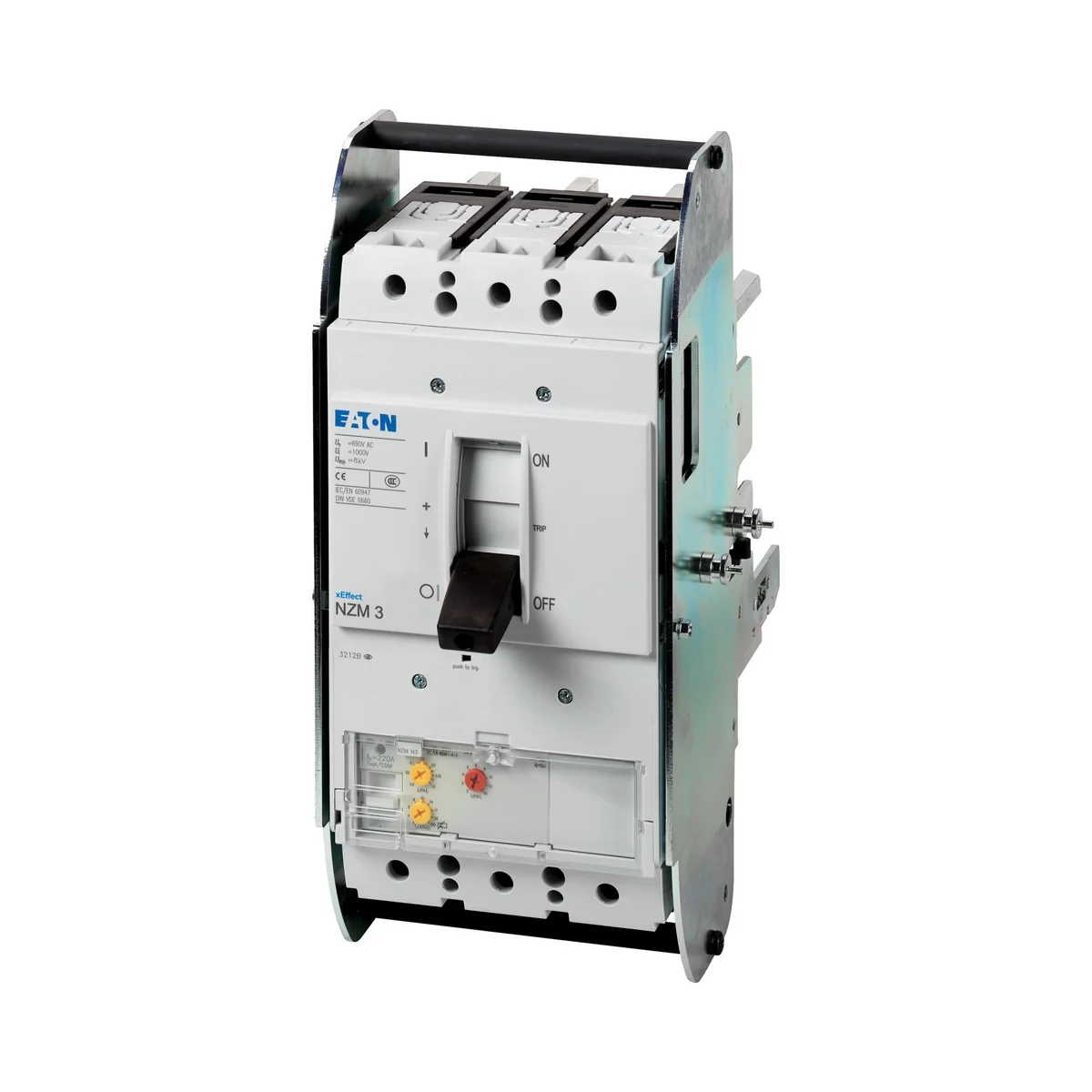

Circuit breaker, 3-pole, 450A, 50kA, motor protection, plug-in

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Number of poles: 3

Installation: Eject technique

Rated current [A]: 450

Zobacz cały opis

Cena:

2066,74 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 4 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

The circuit breakers of the NZM..-ME series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic trip unit to protect the motor with phase failure sensitivity. Guidance: IEC/EN 60947-4-1, IEC/EN 60947-2, rms and thermal memory measurement, adjustable time delay setting tr: 2-20s at 6xIr and infinity (without overload release)

Dane techniczne

Number of poles

3
Rated current [A]

450
Switching capacity [kA]

50

Installation

Eject technique
Series

engine protection

Pozostałe dane techniczne

Overload release current setting

225 ... 450 A
With thermal overload protection

Yes
Switch off technique

Electronic
Rated permanent current Iu

450 A
Rated operation power at AC-3, 400 V

250 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

185 mm

Adjustment range undelayed short-circuit release

450 ... 6300 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

132 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device slide-in technique (withdrawable)
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

35 kA
Height

346 mm
Depth

260 mm

Dane producenta

Producent

EATON Electric Sp. z o.o.
Adres

80-299 Gdańsk ul. Galaktyczna 30
NIP

5841022327

Opakowania zbiorcze

Rodzaj opakowania	Skrzynia
Ilość	1 szt.
Waga (kg)	18,289
Objętość (m3)	0,017
Szerokość (m)	0,185
Długość (m)	0,260
Głębokość (m)	0,346
