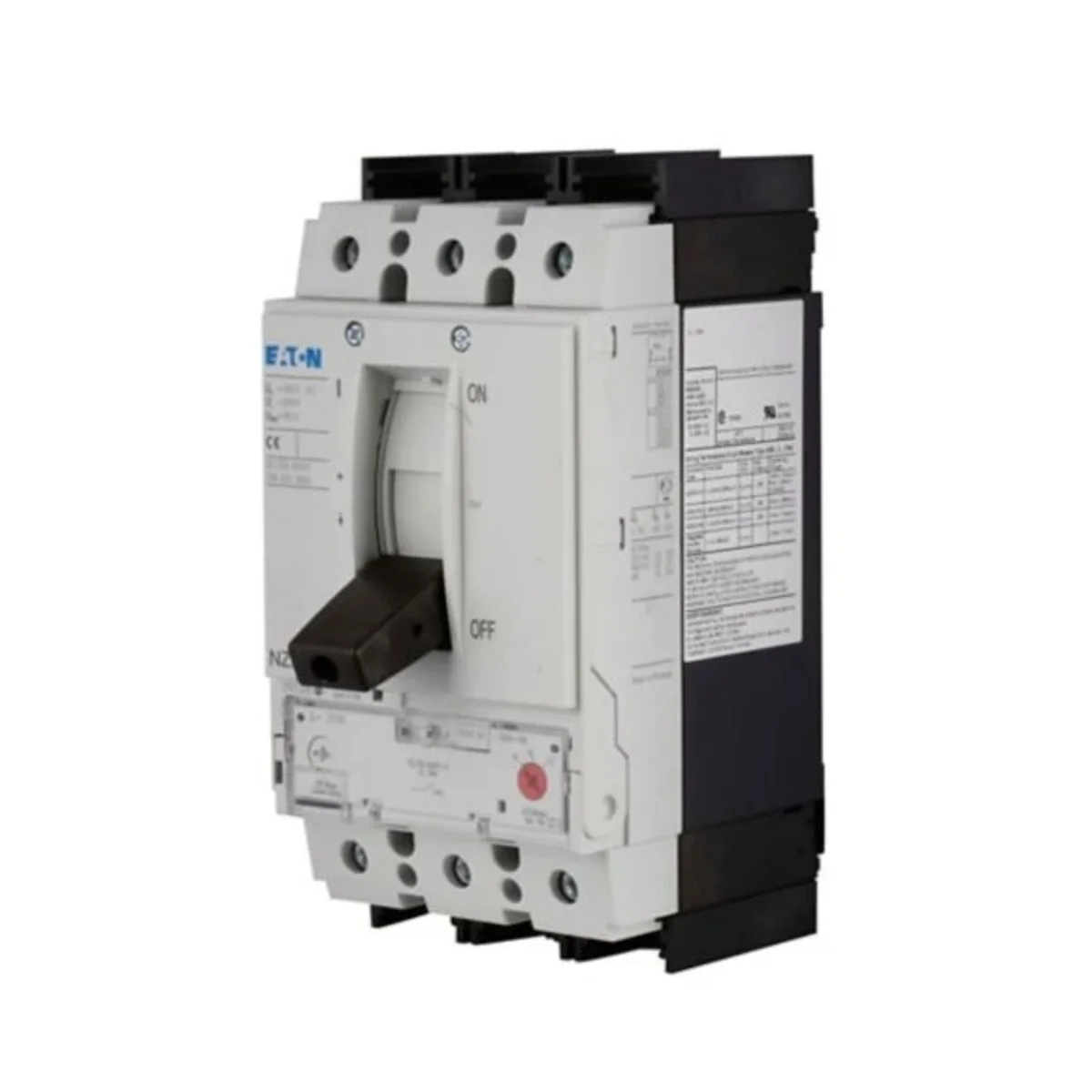

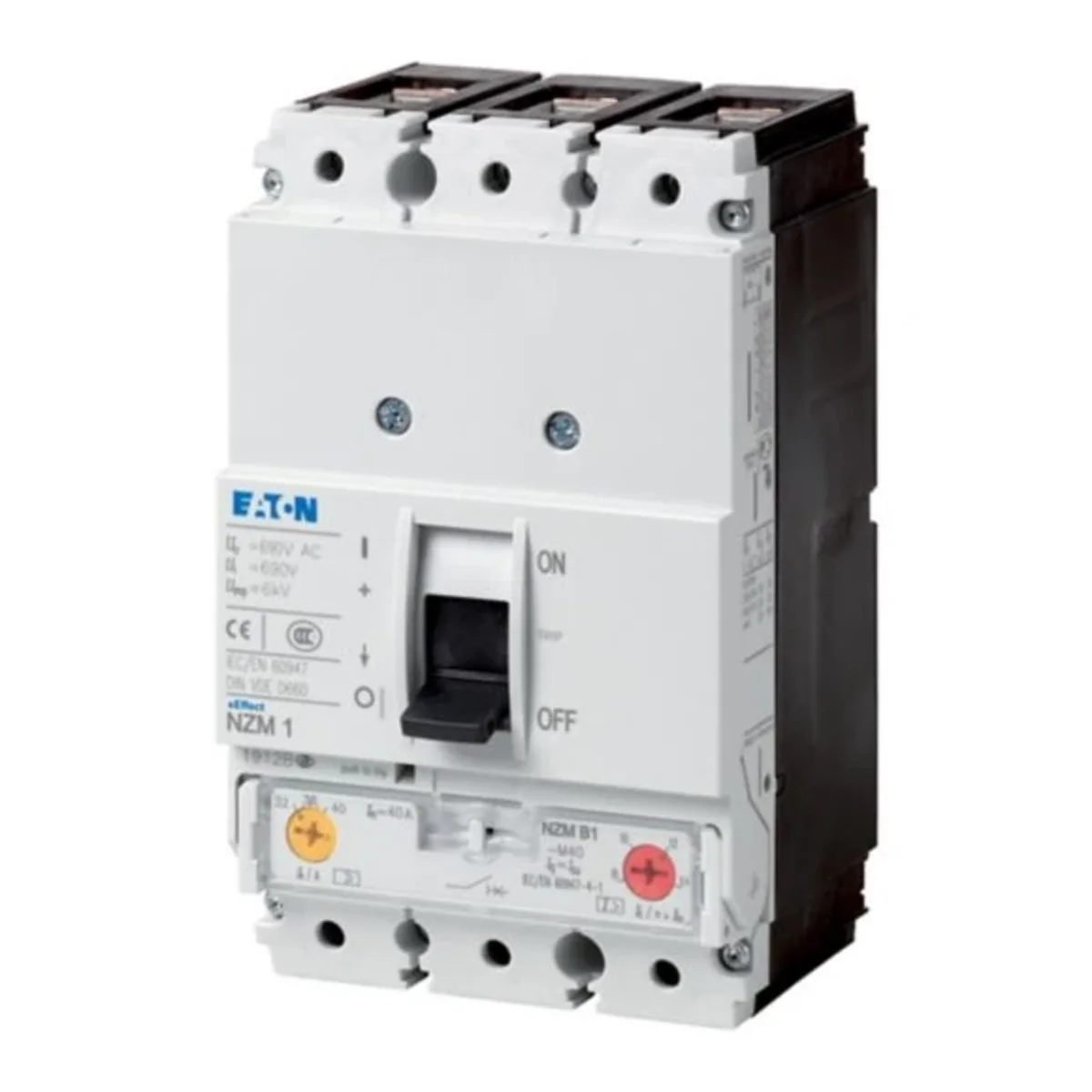

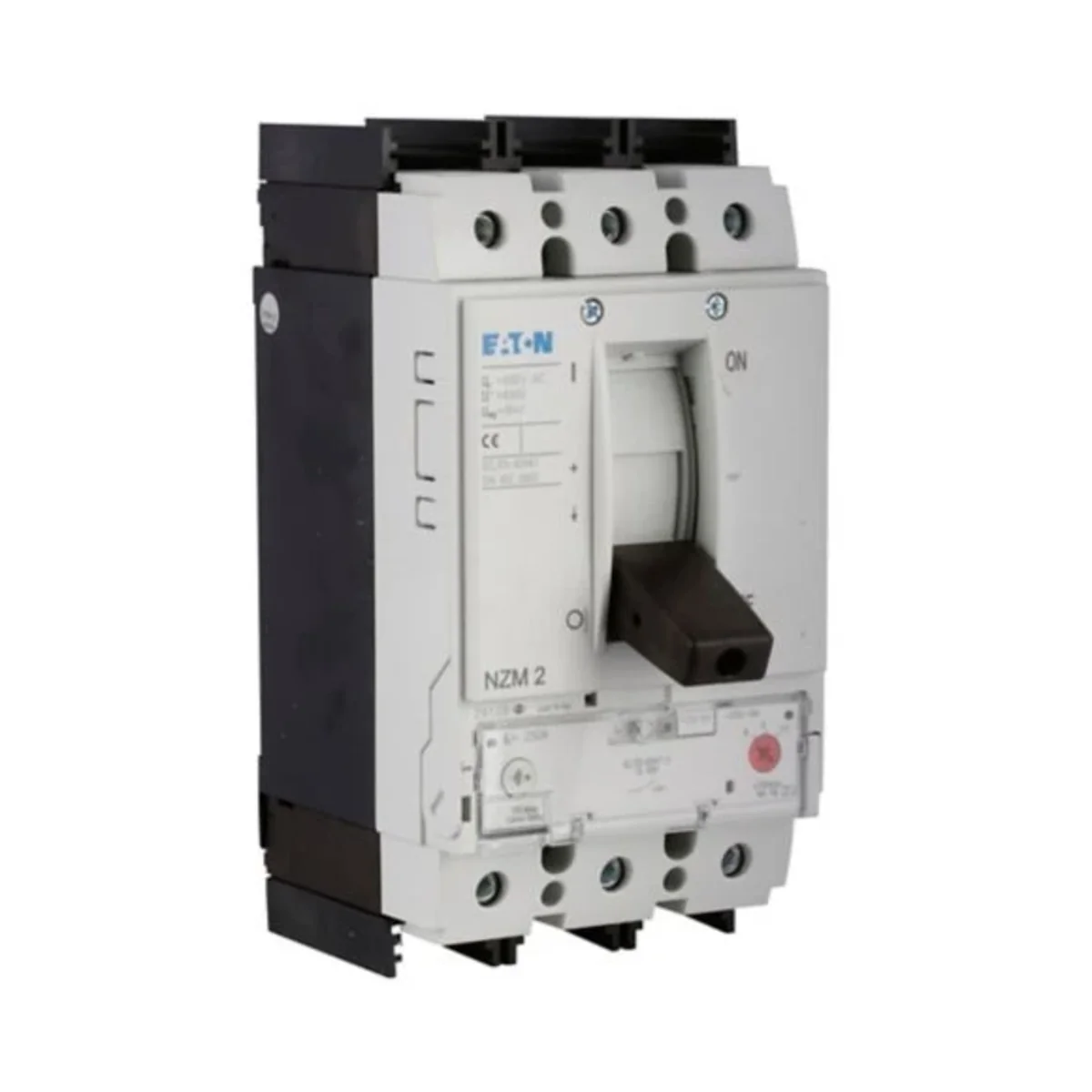

Circuit Breaker, 3 Pole, 40A, 100kA, Fixed Mount, Motor Protection 115450

local index:
ALI307MOEL
Catalog No:
115450
EAN code:
4015081151905
Manufacturer: EATON
Number of poles: 3
Installation: Constant
Rated current [A]: 40
Price:
412,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breakers of the NZM..-M series with only four compact sizes are suitable for all applications and are suitable for the IEC market. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect the motor. Notes: with phase loss sensitivity, trip class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2 MCBs meet all requirements of utilization category AC-3.

Technical data

  • Number of poles
    3
  • Rated current [A]
    40
  • Switching capacity [kA]
    100
  • Installation
    Constant
  • Series
    engine protection
  • PKWIU
    25.11.23.0

Other technical data

  • Overload release current setting
    32 ... 40 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    40 A
  • Rated operation power at AC-3, 400 V
    18.5 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    90 mm
  • Adjustment range undelayed short-circuit release
    320 ... 560 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    11 kW
  • Type of electrical connection of main circuit
    Other
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    35 kA
  • Height
    145 mm
  • Depth
    88 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,075
Volume (m3) 0,001
Width (m) 0,090
Length (m) 0,088
Depth (m) 0,145
