Circuit breaker, 3-pole, 400A, 50kA, installation and cable protection, plug-in 110859

Name: Circuit breaker, 3-pole, 400A, 50kA, installation and cable protection, plug-in
Brand: EATON
SKU: ALM085MOEL
Price: 7275.87 PLN
Availability: BackOrder

Índice local:

ALM085MOEL

Número de catálogo:

110859

Código EAN:

4015081103881

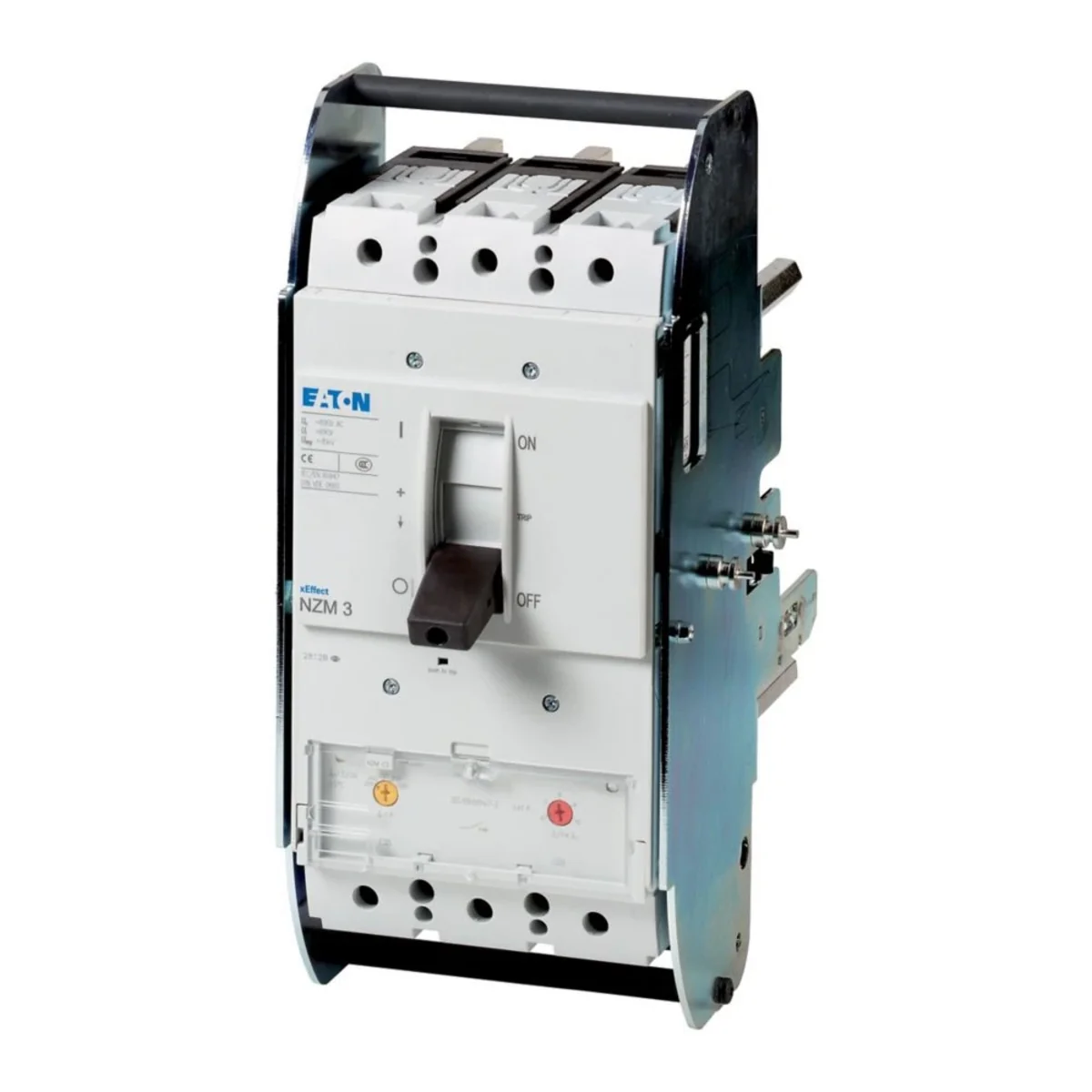

Circuit breaker, 3-pole, 400A, 50kA, installation and cable protection, plug-in

Haga clic en la foto para ampliar

Fabricante: EATON

Number of poles: 3

Installation: Eject technique

Rated current [A]: 400

Ver descripción completa

Precio:

7 275,87 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables.

Datos técnicos

Number of poles

3
Rated current [A]

400
Switching capacity [kA]

50

Installation

Eject technique
Series

Protection of installations and cables

Otros datos técnicos

Rated permanent current Iu

400 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

50 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

3
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

320 ... 400 A
Adjustment range undelayed short-circuit release

2400 ... 4000 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Detalles del fabricante

Fabricante

Eaton Electric Sp. z o.o.
Dirección

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete	Skrzynia	Karton
Cantidad	1 uds.	1 uds.
Peso (kg)	16,800	16,800
Volumen (m3)	0,017	0,017
Ancho (m)	0,187	0,185
Longitud (m)	0,262	0,260
Profundidad (m)	0,348	0,346
