Circuit breaker, 3-pole, 400A, 36kA, installation and cable protection, plug-in 113510

Name: Circuit breaker, 3-pole, 400A, 36kA, installation and cable protection, plug-in
Brand: EATON
SKU: ALM180MOEL
Price: 8455.25 PLN
Availability: BackOrder

Indice locale:

ALM180MOEL

Numero di catalogo:

113510

Codice EAN:

4015081130351

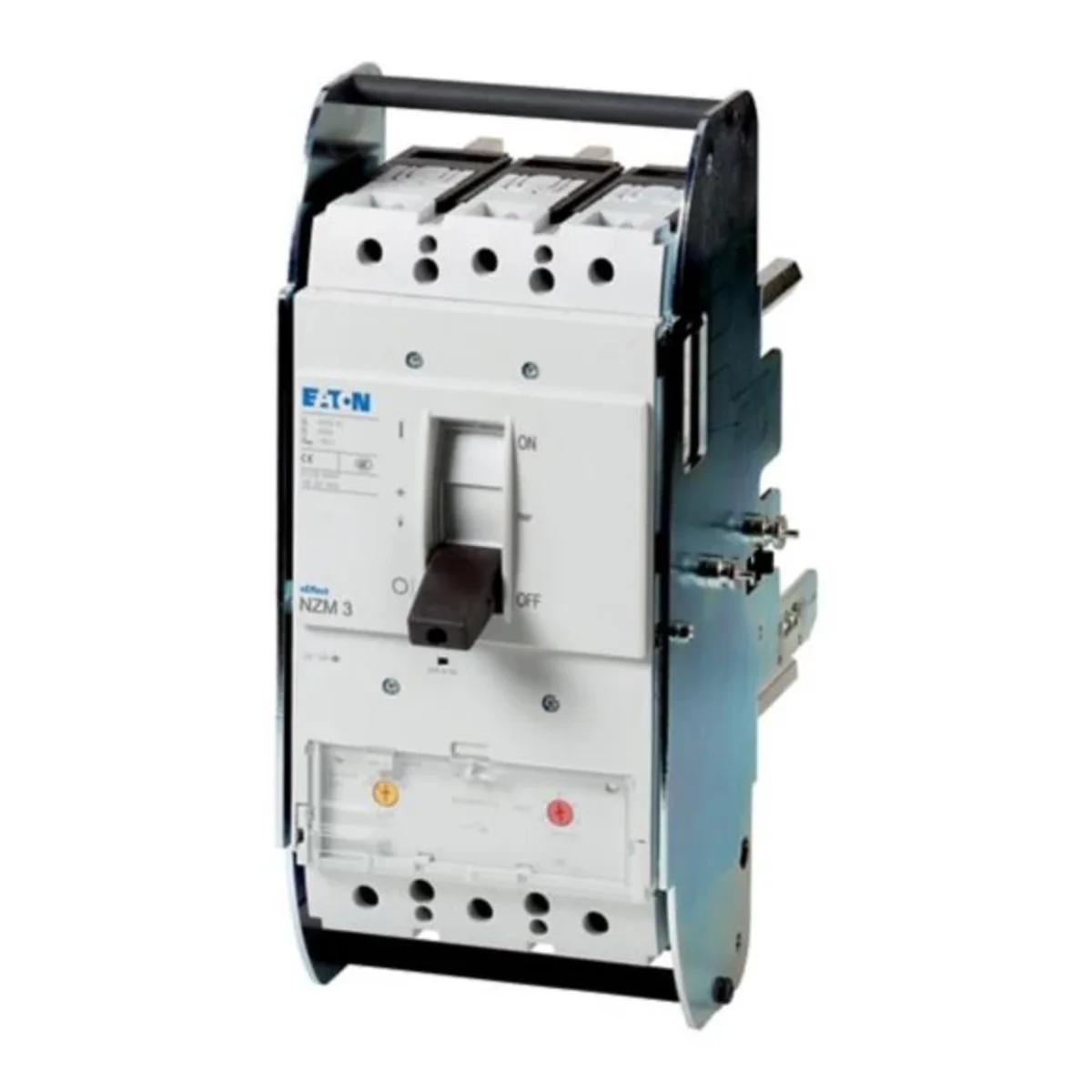

Circuit breaker, 3-pole, 400A, 36kA, installation and cable protection, plug-in

Clicca sulla foto per ingrandire

Produttore: EATON

Number of poles: 3

Installation: Eject technique

Rated current [A]: 400

Vedi la descrizione completa

Prezzo:

8 455,25 zł

gross / pezzi

(inclusa IVA 23%)

fino a 4 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso

Descrizione del prodotto

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables.

Dati tecnici

Number of poles

3
Rated current [A]

400
Switching capacity [kA]

36

Installation

Eject technique
Series

Protection of installations and cables
PKWIU

25.11.23.0

Altri dati tecnici

Rated permanent current Iu

400 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

36 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

3
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

320 ... 400 A
Adjustment range undelayed short-circuit release

2400 ... 4000 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Dettagli del produttore

Produttore

Eaton Electric Sp. z o.o.
Indirizzo

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Imballaggio sfuso

Una specie di pacchetto	Skrzynia	Karton
Quantità	1 pezzi	1 pezzi
Peso (kg)	10,000	10,000
Volume (m3)	0,017	0,017
Larghezza (m)	0,187	0,185
Lunghezza (m)	0,348	0,346
Profondità (m)	0,262	0,260
