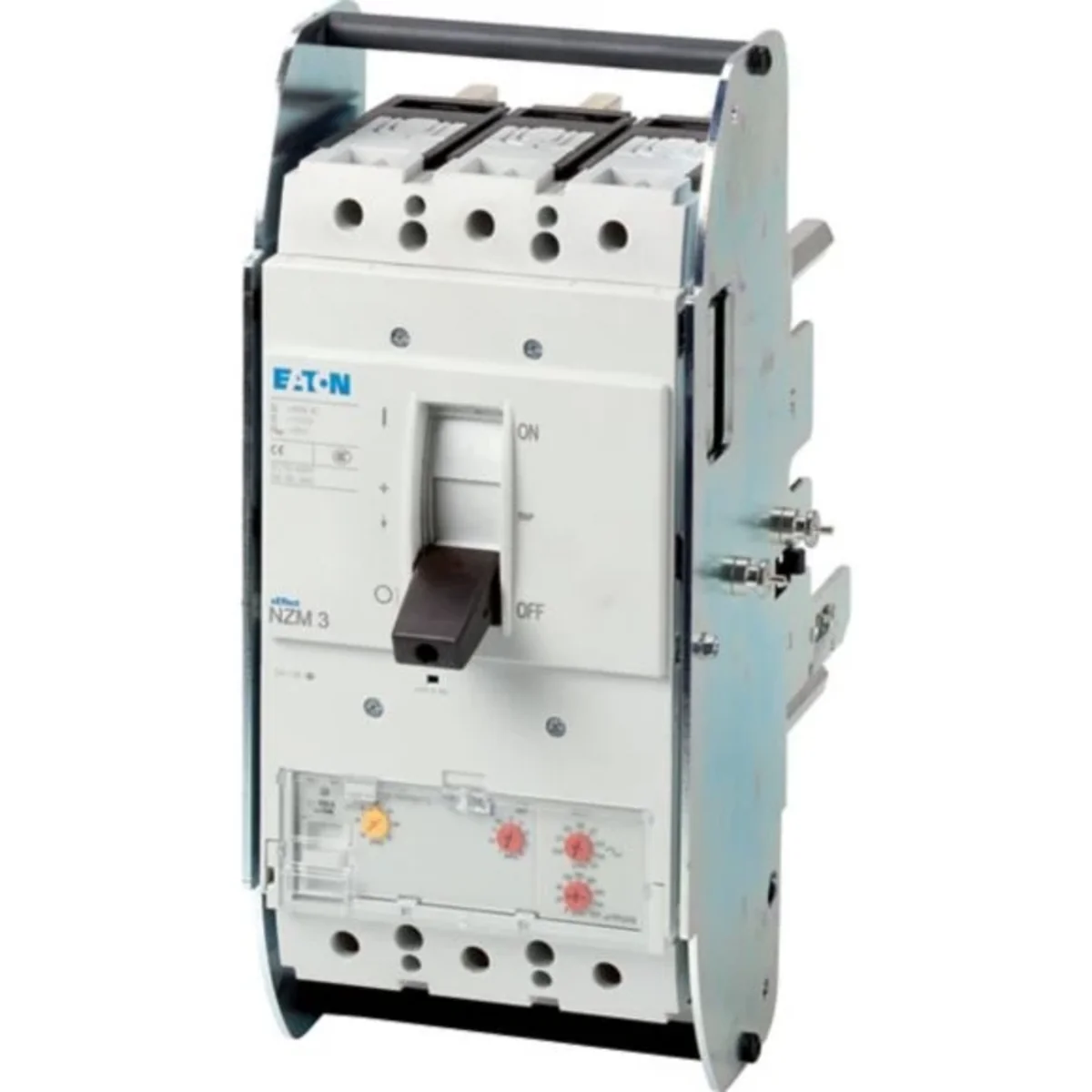

Circuit breaker, 3-pole, 400A, 150kA, installation and cable protection, plug-in 113571
local index:
ALM214MOEL
Catalog No:
113571
EAN code:
4015081130962
Price:
3410,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Circuit breakers of the NZM..-AE series with just four compact sizes are suitable for all applications and are suitable for all applications in the IEC market. Assembly is always flexible with modular functional groups. With electronic release to protect installations and cables. Tips: Measuring rms value and thermal memory
Technical data
-
Number of poles3
-
Rated current [A]400
-
Switching capacity [kA]150
-
InstallationEject technique
-
SeriesProtection of installations and cables
-
PKWIU27.40.12.0
Other technical data
-
Rated permanent current Iu400 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz150 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionYes
-
Device constructionBuilt-in device slide-in technique (withdrawable)
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage690 ... 690 V
-
Overload release current setting200 ... 400 A
-
Adjustment range undelayed short-circuit release800 ... 4400 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
With integrated under voltage releaseNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 11,191 |
| Volume (m3) | 0,017 |
| Width (m) | 0,185 |
| Length (m) | 0,346 |
| Depth (m) | 0,260 |
