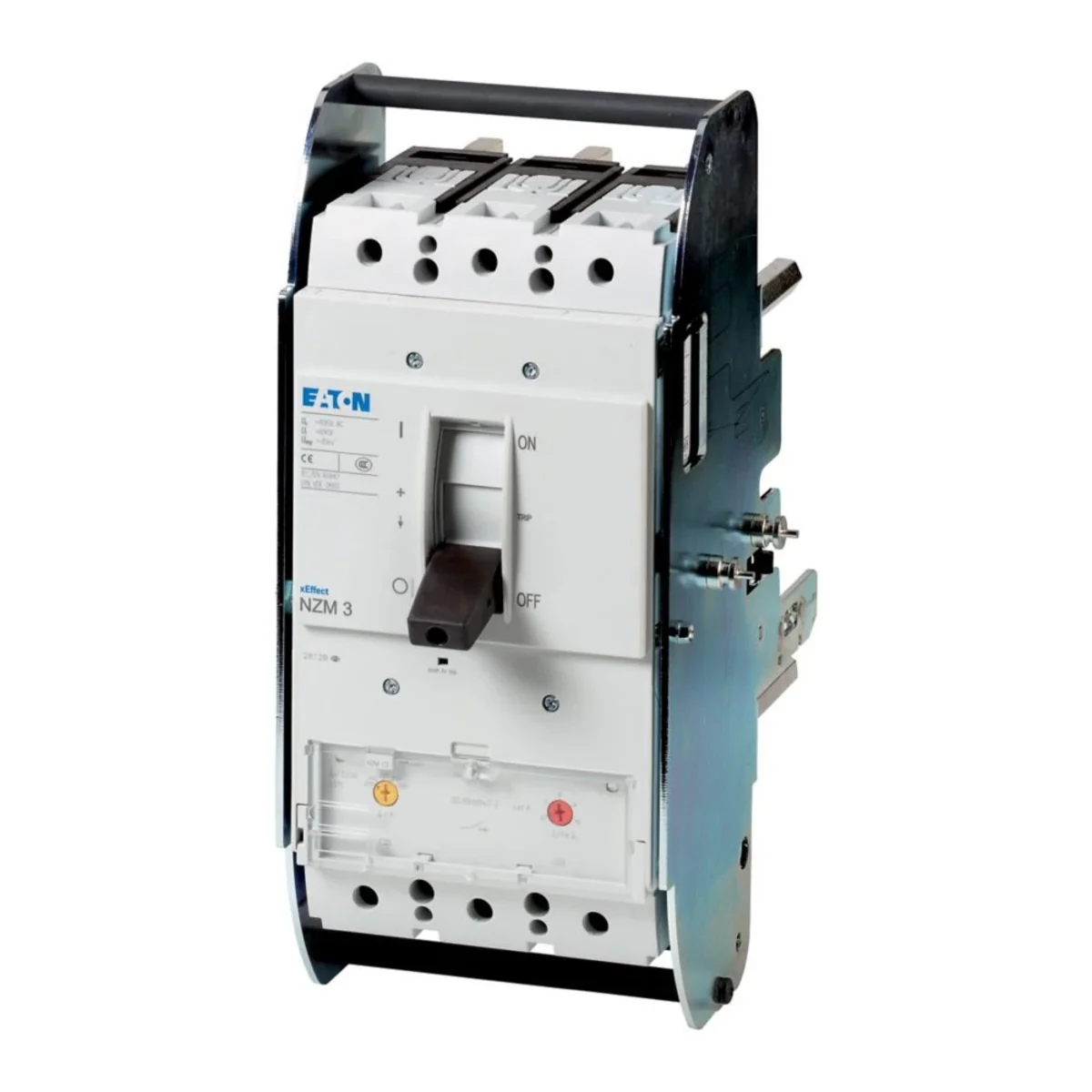

Circuit breaker, 3-pole, 400A, 150kA, installation and cable protection, plug-in 110862

local index:
ALM088MOEL
Catalog No:
110862
EAN code:
4015081103911
Manufacturer: EATON
Number of poles: 3
Installation: Eject technique
Rated current [A]: 400
Price:
2432,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The circuit breakers of the NZM..-A series are suitable for all applications in the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect installations and cables.

Technical data

  • Number of poles
    3
  • Rated current [A]
    400
  • Switching capacity [kA]
    150
  • Installation
    Eject technique
  • Series
    Protection of installations and cables
  • PKWIU
    25.11.23.0

Other technical data

  • Rated permanent current Iu
    400 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    150 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device slide-in technique (withdrawable)
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Number of poles
    3
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    320 ... 400 A
  • Adjustment range undelayed short-circuit release
    2400 ... 4000 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • With integrated under voltage release
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 16,800
Volume (m3) 0,017
Width (m) 0,185
Length (m) 0,260
Depth (m) 0,346
