Circuit breaker, 3-pole, 350A, 50kA, motor protection, plug-in 110847

Name: Circuit breaker, 3-pole, 350A, 50kA, motor protection, plug-in
Brand: EATON
SKU: ALM072MOEL
Price: 2483.89 PLN

local index:

ALM072MOEL

Catalog No:

110847

EAN code:

4015081103768

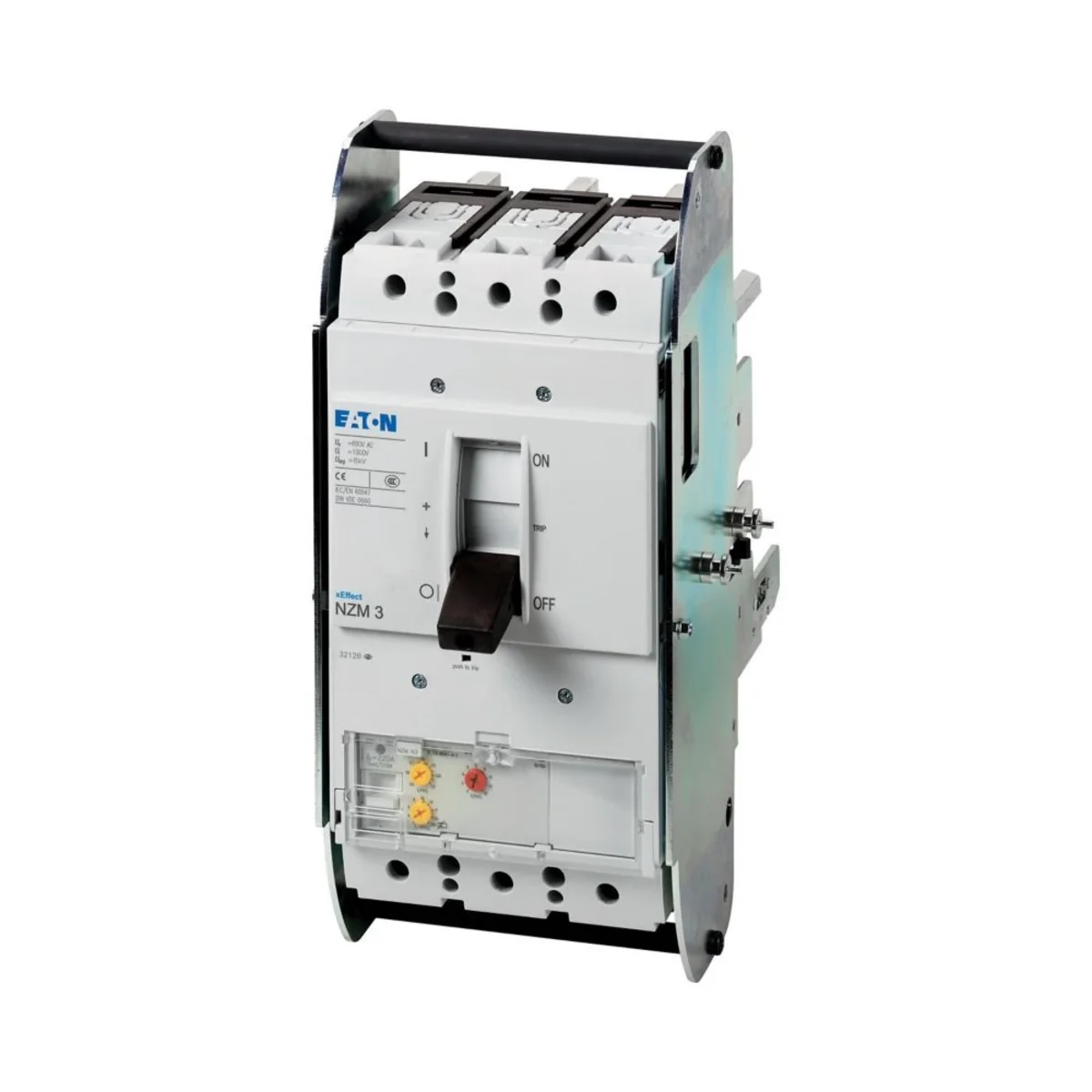

Circuit breaker, 3-pole, 350A, 50kA, motor protection, plug-in

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Installation: Eject technique

Rated current [A]: 350

See full description

Price:

2483,89 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

The circuit breakers of the NZM..-ME series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic trip unit to protect the motor with phase failure sensitivity. Guidance: IEC/EN 60947-4-1, IEC/EN 60947-2, rms and thermal memory measurement, adjustable time delay setting tr: 2-20s at 6xIr and infinity (without overload release)

Technical data

Number of poles

3
Rated current [A]

350
Switching capacity [kA]

50

Installation

Eject technique
Series

engine protection

Other technical data

Overload release current setting

175 ... 350 A
With thermal overload protection

Yes
Switch off technique

Electronic
Rated permanent current Iu

350 A
Rated operation power at AC-3, 400 V

200 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

185 mm

Adjustment range undelayed short-circuit release

350 ... 4900 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

110 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device slide-in technique (withdrawable)
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

35 kA
Height

346 mm
Depth

260 mm

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	17,914	18,128
Volume (m3)	0,017	0,017
Width (m)	0,185	0,185
Length (m)	0,260	0,260
Depth (m)	0,346	0,346
