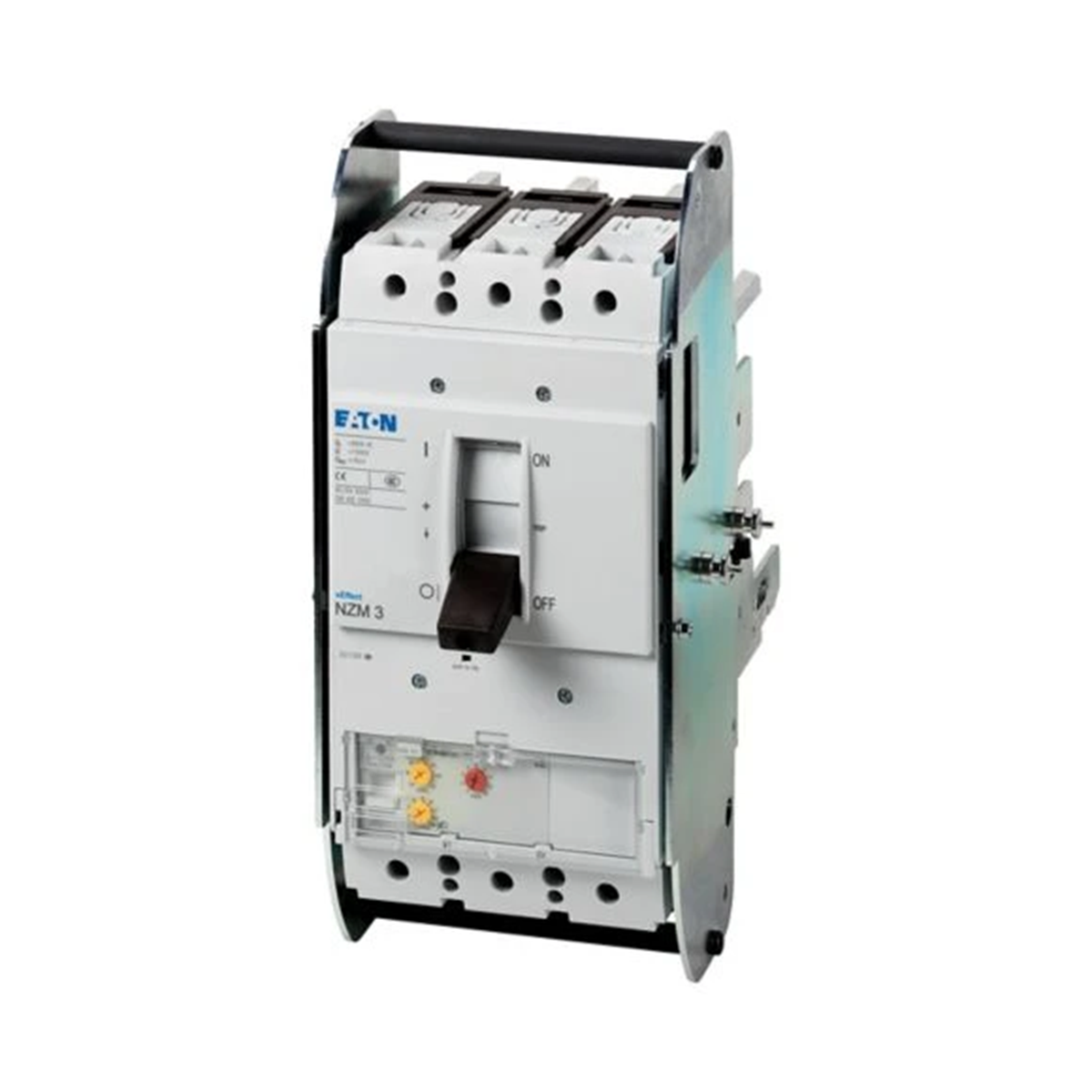

Circuit breaker, 3-pole, 350A, 150kA, motor protection, plug-in 110856

local index:
ALM082MOEL
Catalog No:
110856
EAN code:
4015081103850
Manufacturer: EATON
Number of poles: 3
Installation: Eject technique
Rated current [A]: 350
Price:
2803,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The circuit breakers of the NZM..-ME series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With electronic trip unit to protect the motor with phase failure sensitivity. Guidance: IEC/EN 60947-4-1, IEC/EN 60947-2, rms and thermal memory measurement, adjustable time delay setting tr: 2-20s at 6xIr and infinity (without overload release)

Technical data

  • Number of poles
    3
  • Rated current [A]
    350
  • Switching capacity [kA]
    150
  • Installation
    Eject technique
  • Series
    engine protection

Other technical data

  • Overload release current setting
    175 ... 350 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Electronic
  • Rated permanent current Iu
    350 A
  • Rated operation power at AC-3, 400 V
    200 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    185 mm
  • Adjustment range undelayed short-circuit release
    350 ... 4900 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    110 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device slide-in technique (withdrawable)
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    130 kA
  • Height
    346 mm
  • Depth
    260 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 18,218
Volume (m3) 0,017
Width (m) 0,185
Length (m) 0,260
Depth (m) 0,346
