Circuit breaker, 3-pole, 250A, 50kA, installation and cable protection, fixed installation 110888

Name: Circuit breaker, 3-pole, 250A, 50kA, installation and cable protection, fixed installation
Brand: EATON
SKU: ALM099MOEL
Price: 7736.63 PLN
Availability: BackOrder

Index local:

ALM099MOEL

Numéro de catalogue:

110888

Code EAN:

4015081104178

Circuit breaker, 3-pole, 250A, 50kA, installation and cable protection, fixed installation

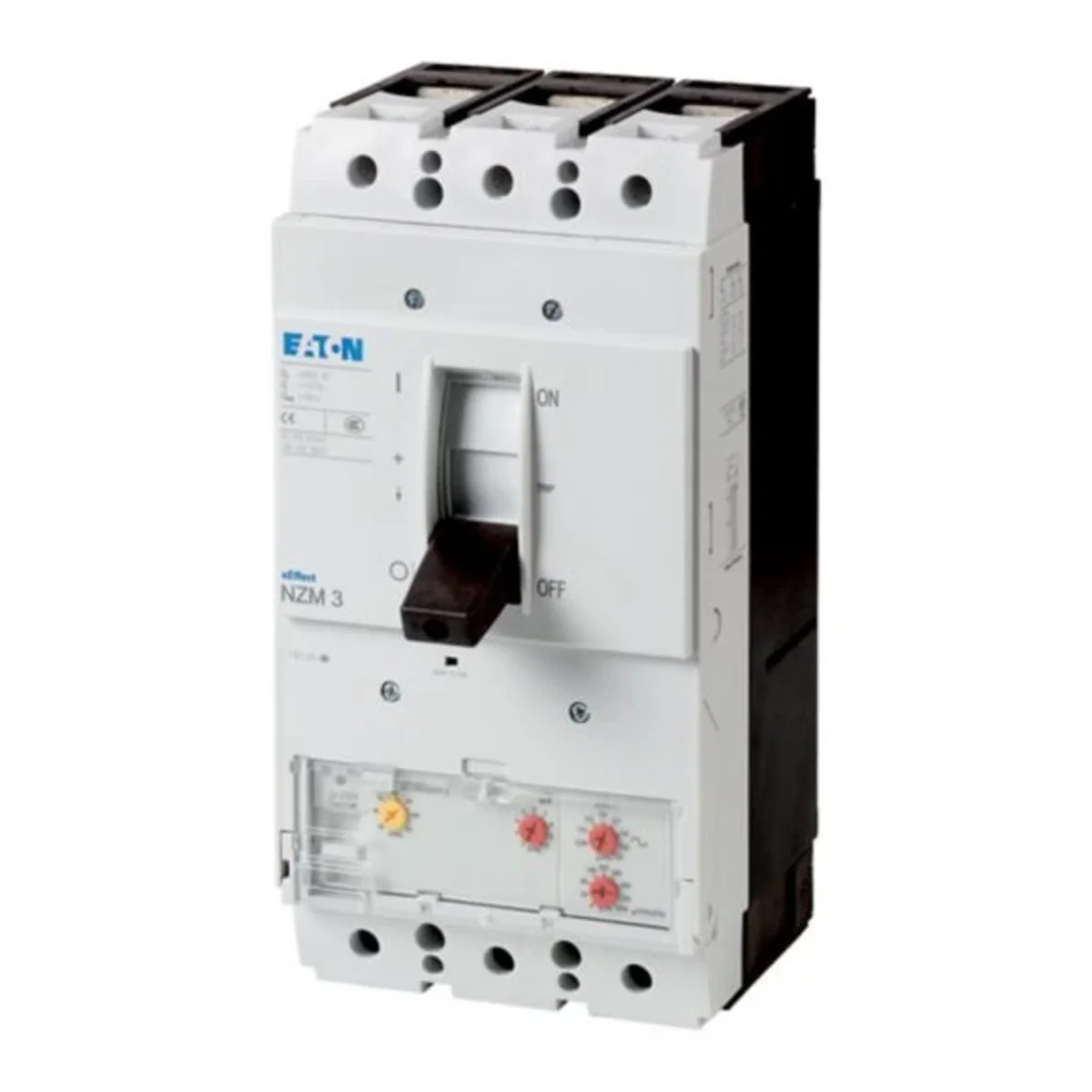

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Number of poles: 3

Installation: Constant

Rated current [A]: 250

Voir la description complète

Prix:

7 736,63 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Circuit breakers of the NZM..-AE series with only four compact sizes are suitable for all applications and are suitable for all applications in the IEC market. Assembly is always flexible with modular functional groups. With electronic release to protect installations and cables. Tips: Measuring rms value and thermal memory

Données techniques

Number of poles

3
Rated current [A]

250
Switching capacity [kA]

50

Installation

Constant
Series

Protection of installations and cables

Autres données techniques

Rated permanent current Iu

250 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

50 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

Yes
Device construction

Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

3
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

125 ... 250 A
Adjustment range undelayed short-circuit release

500 ... 2750 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia	Karton
Quantité	1 pcs.	1 pcs.
poids (kg)	6,936	7,150
Volume (m3)	0,006	0,006
Largeur (m)	0,142	0,140
Longueur (m)	0,168	0,166
Profondeur (m)	0,277	0,275
