Circuit breaker, 3-pole, 250A, 150kA, installation and cable protection, plug-in 110849

Name: Circuit breaker, 3-pole, 250A, 150kA, installation and cable protection, plug-in
Brand: EATON
SKU: ALM074MOEL
Price: 9254.80 PLN
Availability: BackOrder

Místní index:

ALM074MOEL

Katalogové číslo.:

110849

EAN kód:

4015081103782

Circuit breaker, 3-pole, 250A, 150kA, installation and cable protection, plug-in

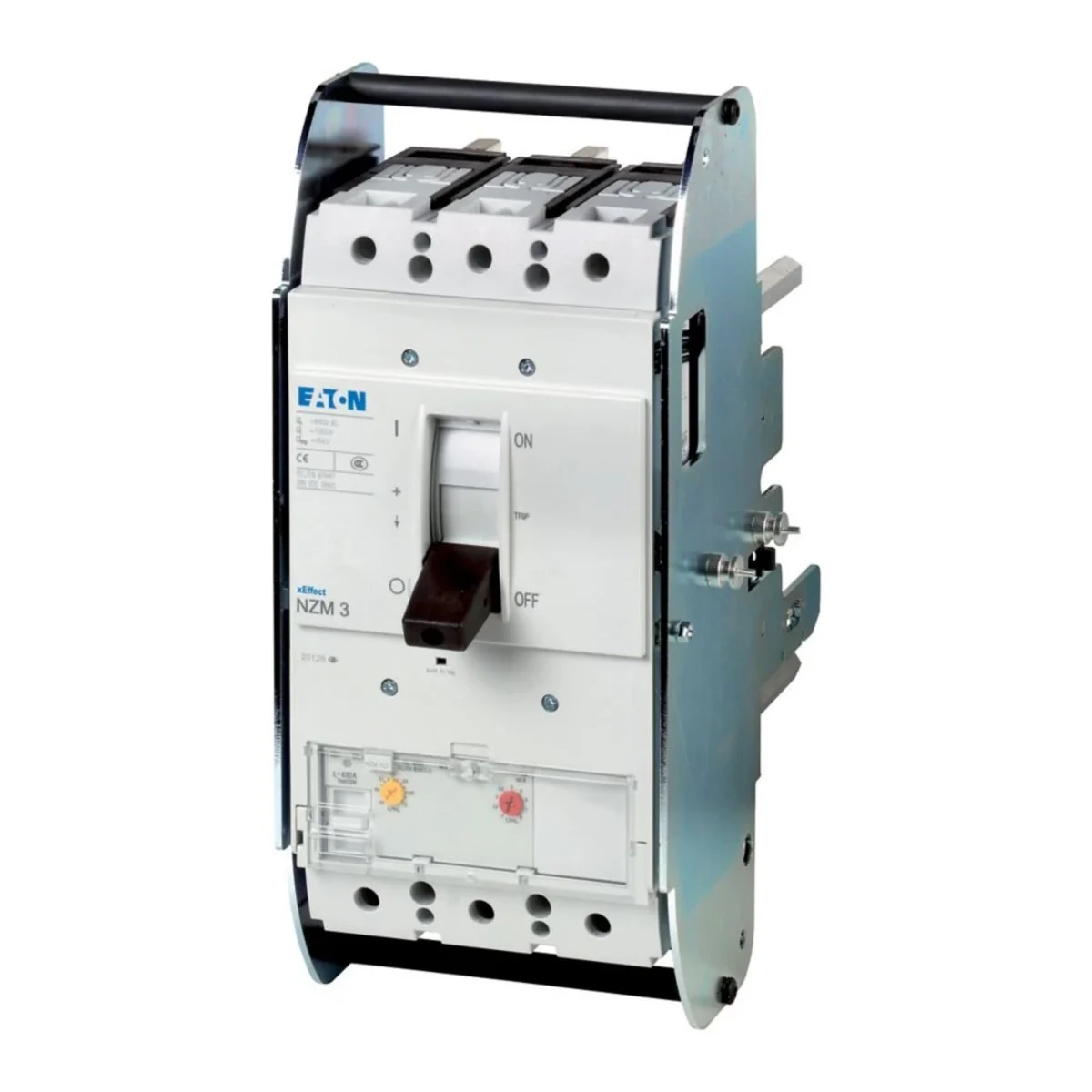

Kliknutím na obrázek jej zvětšíte

Výrobce: EATON

Number of poles: 3

Installation: Eject technique

Rated current [A]: 250

Zobrazit celý popis

Cena:

9 254,80 zł

gross / kusů.

(včetně DPH 23%)

do 4 týdnů

Na zakázku

Množství kusů.

(vícenásobné:

)

Přidat do žádosti o cenovou nabídku

Přidat do schránky

Vytisknout

Dotaz na výrobek

Popis produktu Technické údaje Podrobnosti o výrobci Velkoobjemová balení

Popis produktu

Circuit breakers of the NZM..-AE series with only four compact sizes are suitable for all applications and are suitable for all applications in the IEC market. Assembly is always flexible with modular functional groups. With electronic release to protect installations and cables. Tips: Measuring rms value and thermal memory

Technické údaje

Number of poles

3
Rated current [A]

250
Switching capacity [kA]

150

Installation

Eject technique
Series

Protection of installations and cables

Další technické údaje

Rated permanent current Iu

250 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

150 kA
Adjustment range short-term delayed short-circuit release

0 ... 0 A
Integrated earth fault protection

No
Device construction

Built-in device slide-in technique (withdrawable)
DIN rail (top hat rail) mounting optional

No
Number of auxiliary contacts as normally open contact

0
With switched-off indicator

No
Number of poles

3
Type of control element

Rocker lever
Motor drive integrated

No
Degree of protection (IP)

IP20

Rated voltage

690 ... 690 V
Overload release current setting

125 ... 250 A
Adjustment range undelayed short-circuit release

500 ... 2750 A
Type of electrical connection of main circuit

Screw connection
Suitable for DIN rail (top hat rail) mounting

No
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
With integrated under voltage release

No
Position of connection for main current circuit

Front side
Complete device with protection unit

Yes
Motor drive optional

Yes

Podrobnosti o výrobci

Výrobce

Eaton Electric Sp. z o.o.
Adresa

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Velkoobjemová balení

Typ obalu	Skrzynia	Karton
Množství	1 kusů.	1 kusů.
Hmotnost (kg)	17,895	18,108
Objem (m3)	0,017	0,017
Šířka (m)	0,187	0,185
Délka (m)	0,262	0,260
Hloubka (m)	0,348	0,346
