Circuit breaker, 3-pole, 200A, 50kA, short-circuit protection, plug-in insert 113255

Name: Circuit breaker, 3-pole, 200A, 50kA, short-circuit protection, plug-in insert
Brand: EATON
SKU: ALM156MOEL
Price: 1439.94 PLN

local index:

ALM156MOEL

Catalog No:

113255

EAN code:

4015081127900

Circuit breaker, 3-pole, 200A, 50kA, short-circuit protection, plug-in insert

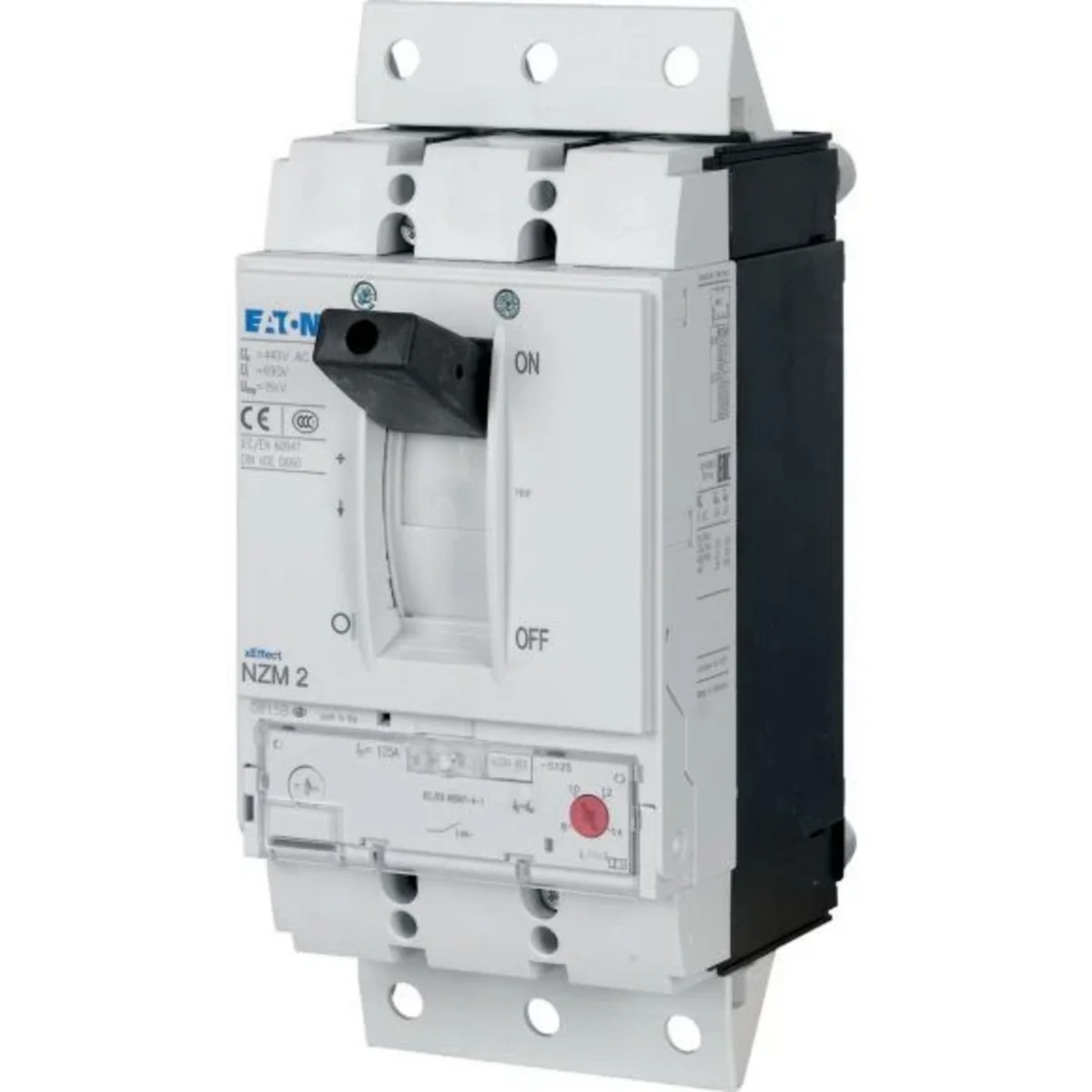

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Installation: Plug-in technology

Rated current [A]: 200

See full description

Price:

1439,94 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

The circuit breakers of the NZM..-S series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With magnetic short-circuit release in combination with motor protection relay with short-circuit release without overload release. Tips: Miniature circuit breakers meet all the requirements of the AC-3 utilization category.

Technical data

Number of poles

3
Rated current [A]

200
Switching capacity [kA]

50

Installation

Plug-in technology
Series

Short-circuit protection

Other technical data

Overload release current setting

0 ... 0 A
With thermal overload protection

No
Switch off technique

Magnetic
Rated permanent current Iu

200 A
Rated operation power at AC-3, 400 V

110 kW
Type of control element

Rocker lever
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

105 mm

Adjustment range undelayed short-circuit release

8 ... 44328 A
Phase failure sensitive

No
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

55 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device plug-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

35 kA
Height

245 mm
Depth

180 mm

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	2,772	2,772
Volume (m3)	0,005	0,005
Width (m)	0,105	0,105
Length (m)	0,180	0,180
Depth (m)	0,245	0,245
