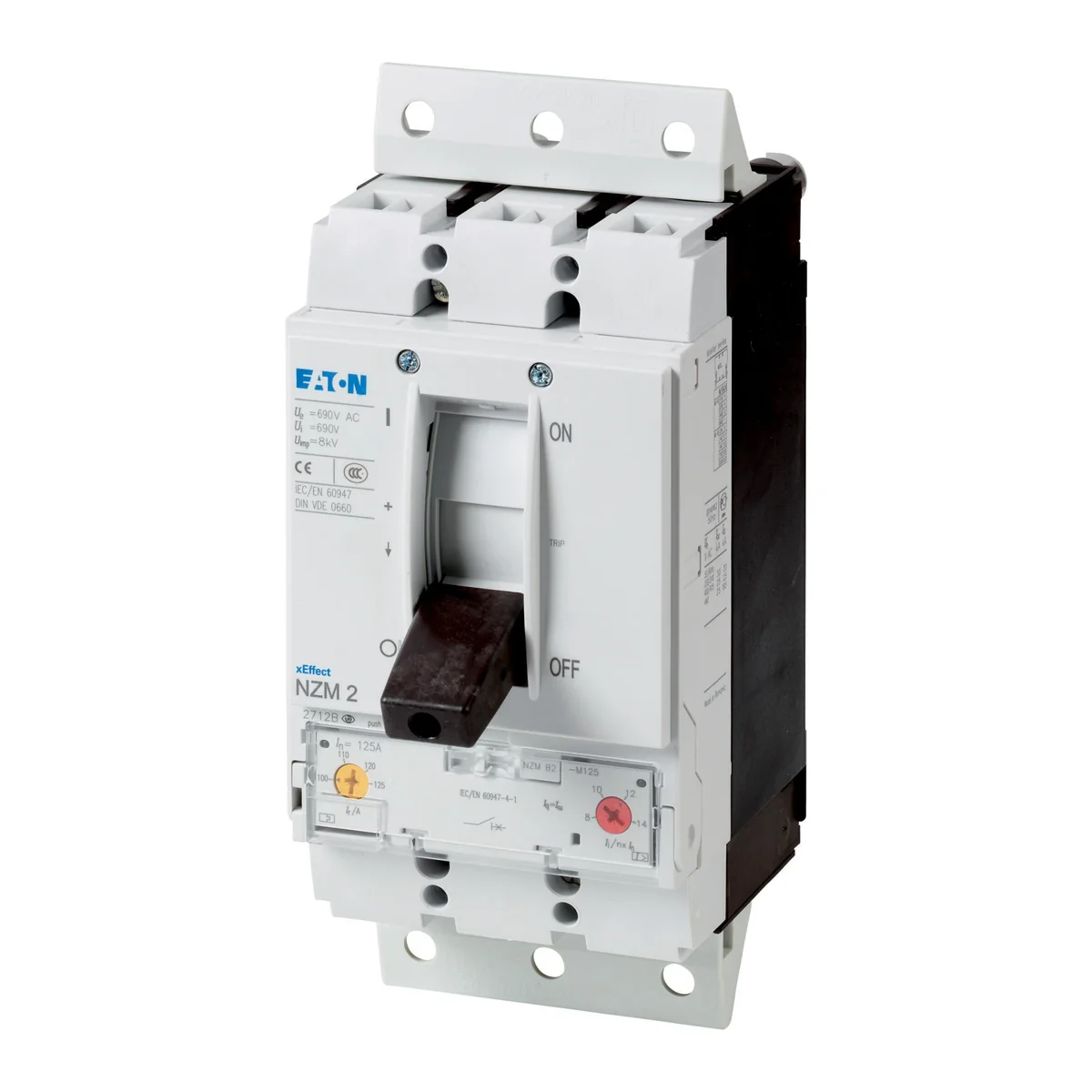

Circuit breaker, 3-pole, 160A, 36kA, plug-in insert 113224

local index:
ALM138MOEL
Catalog No:
113224
EAN code:
4015081127597
Manufacturer: EATON
Number of poles: 3
Installation: Plug-in technology
Rated current [A]: 160
Price:
930,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breakers of the NZM..-M series with only four compact sizes are suitable for all applications and are suitable for the IEC market. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect the motor. Tips: tripping class 10A., IEC/EN 60947-4-1, IEC/EN 60947-2 circuit breakers meet all requirements of the AC-3 utilization category.

Technical data

  • Number of poles
    3
  • Rated current [A]
    160
  • Switching capacity [kA]
    36
  • Installation
    Plug-in technology
  • Series
    engine protection

Other technical data

  • Overload release current setting
    125 ... 160 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    160 A
  • Rated operation power at AC-3, 400 V
    90 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    105 mm
  • Adjustment range undelayed short-circuit release
    1280 ... 2240 A
  • Phase failure sensitive
    No
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    45 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device plug-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    22.5 kA
  • Height
    245 mm
  • Depth
    180 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,785
Volume (m3) 0,005
Width (m) 0,105
Length (m) 0,180
Depth (m) 0,245
