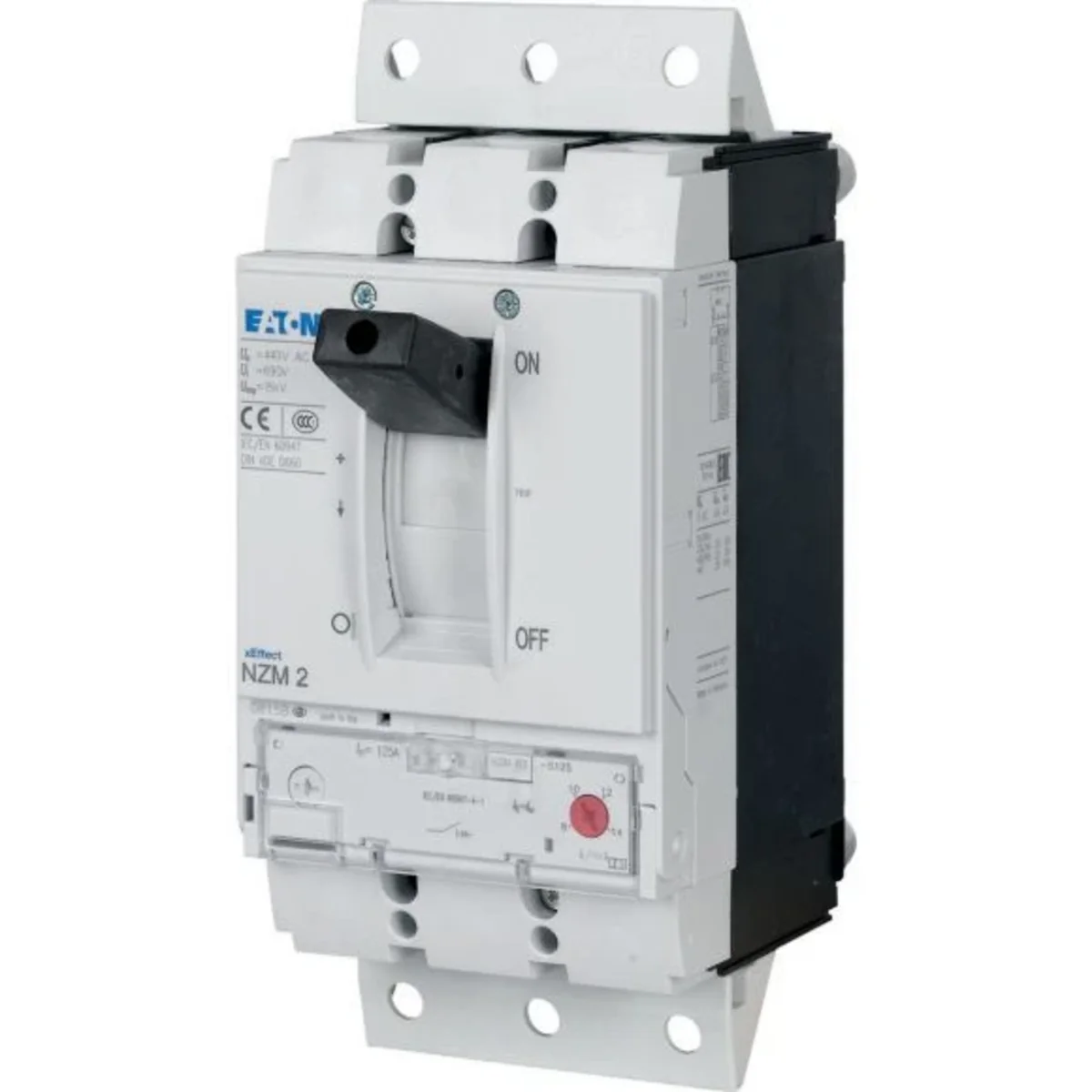

Circuit breaker, 3-pole, 160A, 25kA, short-circuit protection, plug-in insert 113200

local index:
ALM128MOEL
Catalog No:
113200
EAN code:
4015081127351
Manufacturer: EATON
Number of poles: 3
Installation: Plug-in technology
Rated current [A]: 160
Price:
804,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The circuit breakers of the NZM..-S series are suitable for all applications and the IEC market with just four compact sizes. Assembly is always flexible with modular functional groups. With magnetic short-circuit release in combination with motor protection relay with short-circuit release without overload release. Tips: Miniature circuit breakers meet all the requirements of the AC-3 utilization category.

Technical data

  • Number of poles
    3
  • Rated current [A]
    160
  • Switching capacity [kA]
    25
  • Installation
    Plug-in technology
  • Series
    Short-circuit protection

Other technical data

  • Overload release current setting
    0 ... 0 A
  • With thermal overload protection
    No
  • Switch off technique
    Magnetic
  • Rated permanent current Iu
    160 A
  • Rated operation power at AC-3, 400 V
    75 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    105 mm
  • Adjustment range undelayed short-circuit release
    8 ... 14 A
  • Phase failure sensitive
    No
  • Rated operating voltage
    440 ... 440 V
  • Rated operation power at AC-3, 230 V
    45 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device plug-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    18.5 kA
  • Height
    245 mm
  • Depth
    180 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,760
Volume (m3) 0,005
Width (m) 0,105
Length (m) 0,180
Depth (m) 0,245
