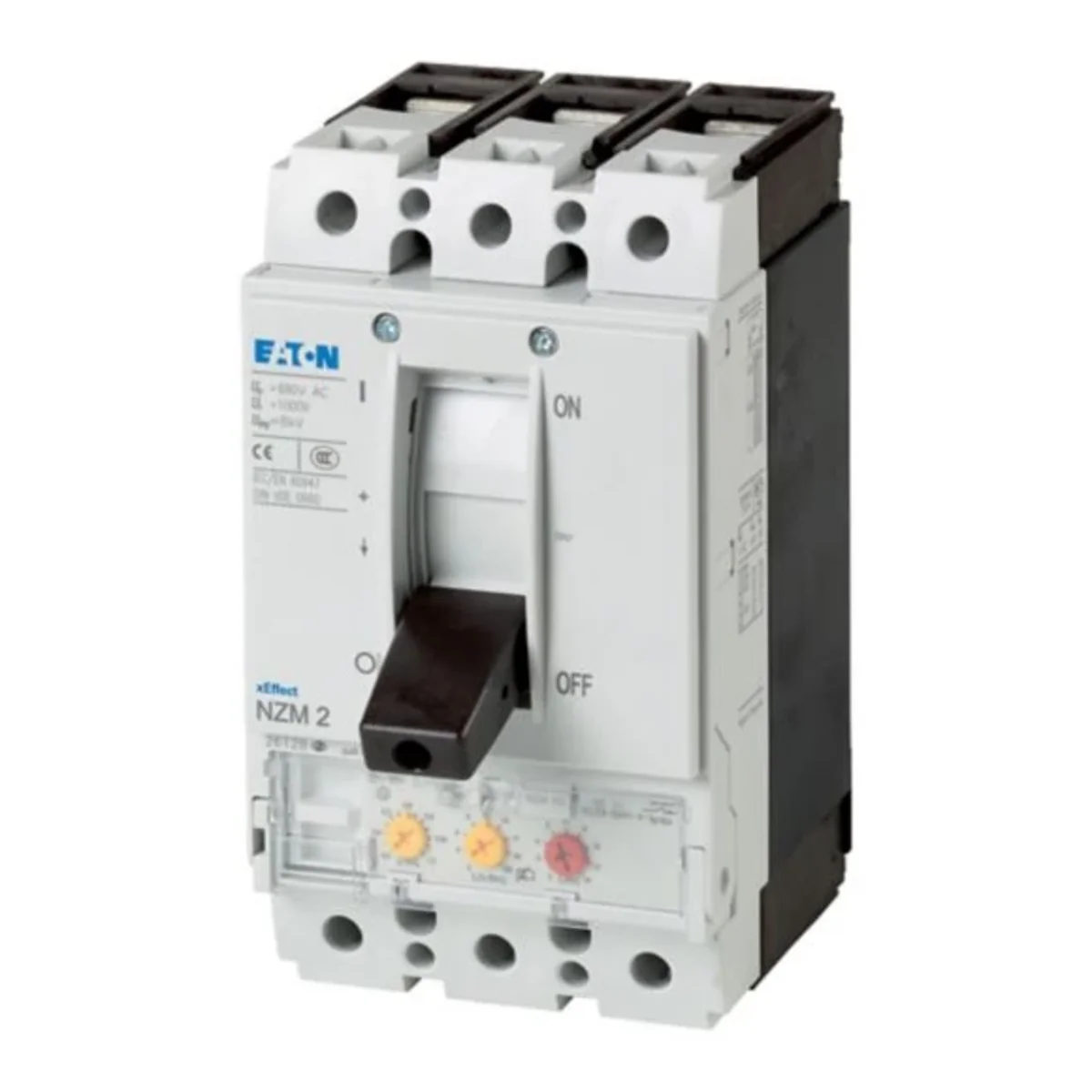

Circuit breaker 3-pole, 140A, NZMN2-ME140 265779
local index:
ALP120MOEL
Catalog No:
265779
EAN code:
4015082657796
Price:
997,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
3-pole power switch 140A
Technical data
-
Number of poles3
-
Overload release [A]70-140
-
Switching capacity [kA]50
-
Rated current [A]140
-
Short-circuit release [A]2014-02-14 00:00:00
Other technical data
-
Overload release current setting70 ... 140 A
-
With thermal overload protectionYes
-
Switch off techniqueElectronic
-
Rated permanent current Iu140 A
-
Rated operation power at AC-3, 400 V75 kW
-
Type of control elementRocker lever
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width105 mm
-
Adjustment range undelayed short-circuit release140 ... 1960 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V45 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC35 kA
-
Height184 mm
-
Depth149 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 2,451 | 2,553 |
| Volume (m3) | 0,003 | 0,003 |
| Width (m) | 0,105 | 0,105 |
| Length (m) | 0,149 | 0,149 |
| Depth (m) | 0,184 | 0,184 |
