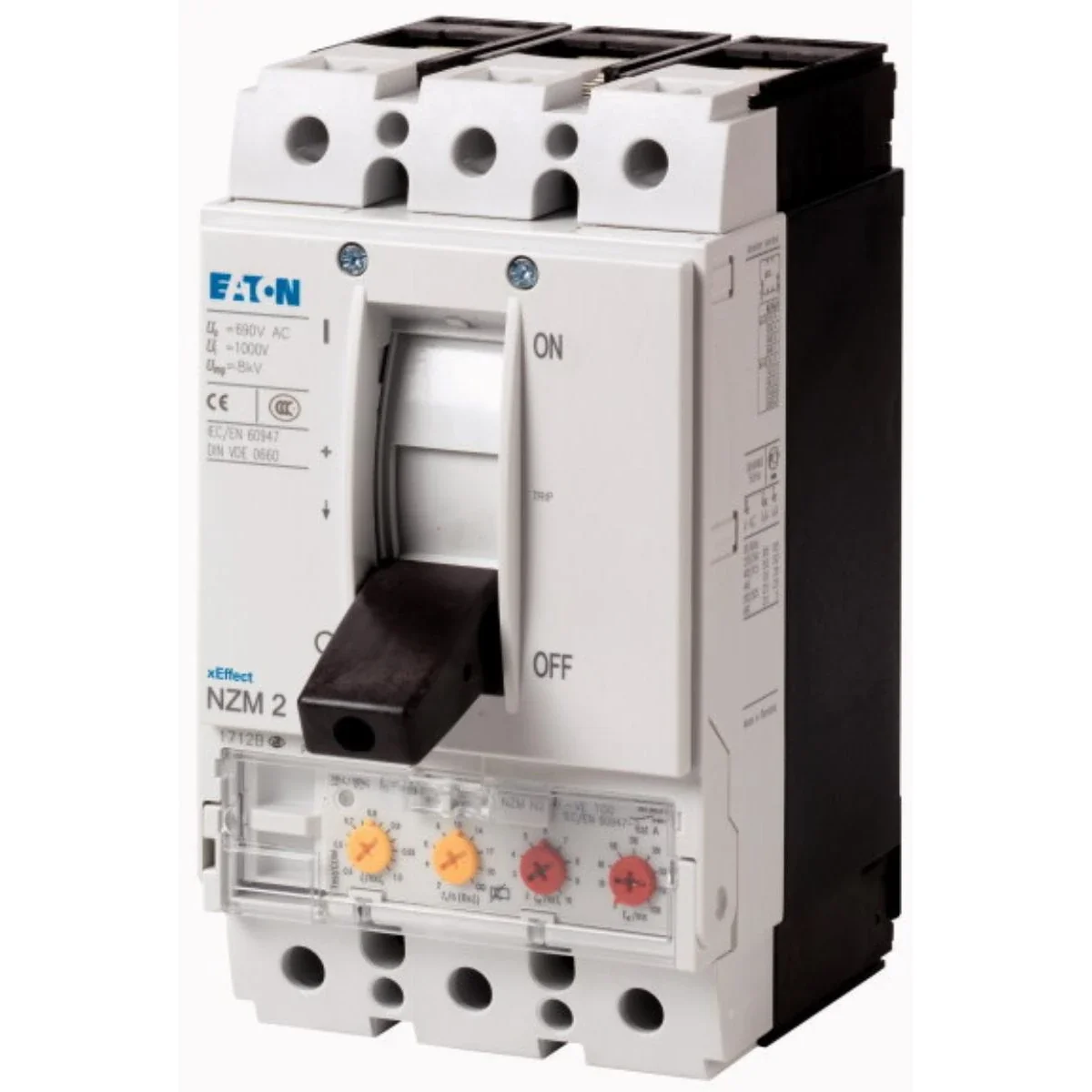

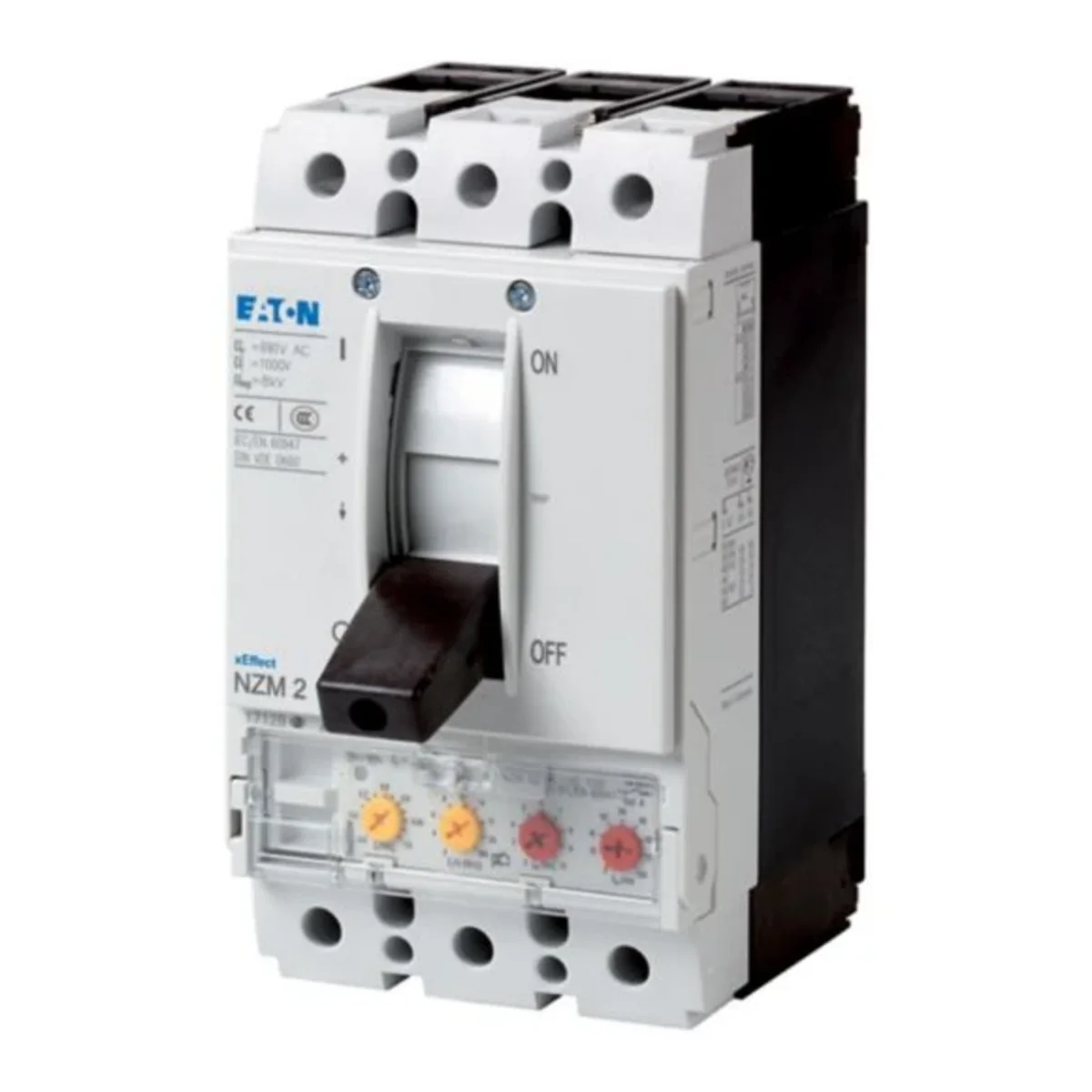

Circuit breaker 3-pole, 100A, NZMN2-VE100 259122

local index:
ALI206MOEL
Catalog No:
259122
EAN code:
4015082591229
Manufacturer: EATON
Instantaneous short-circuit release [A]: 1200
Number of poles: 3
Rated current [A]: 100
Price:
794,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Breaking capacity: 50 kA
Adjustable overload releases
Adjustable instantaneous short-circuit releases
In the electronic version of the VE release, adjustable delayed short-circuit releases
In the electronic versions of the VE and AE releases, communication and diagnostics are standard!
Full offer available in the "Industrial Equipment" catalog
Possibility of adding a shunt or undervoltage release
Delayed short-circuit release: 100-1000

Technical data

  • Instantaneous short-circuit release [A]
    1200
  • Rated current [A]
    100
  • Number of poles
    3
  • Overload release [A]
    50-100

Other technical data

  • Rated permanent current Iu
    100 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50 kA
  • Adjustment range short-term delayed short-circuit release
    100 ... 1000 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    Yes
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    50 ... 100 A
  • Adjustment range undelayed short-circuit release
    1200 ... 1200 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of poles
    3
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,539
Volume (m3) 0,003
Width (m) 0,105
Length (m) 0,149
Depth (m) 0,184
