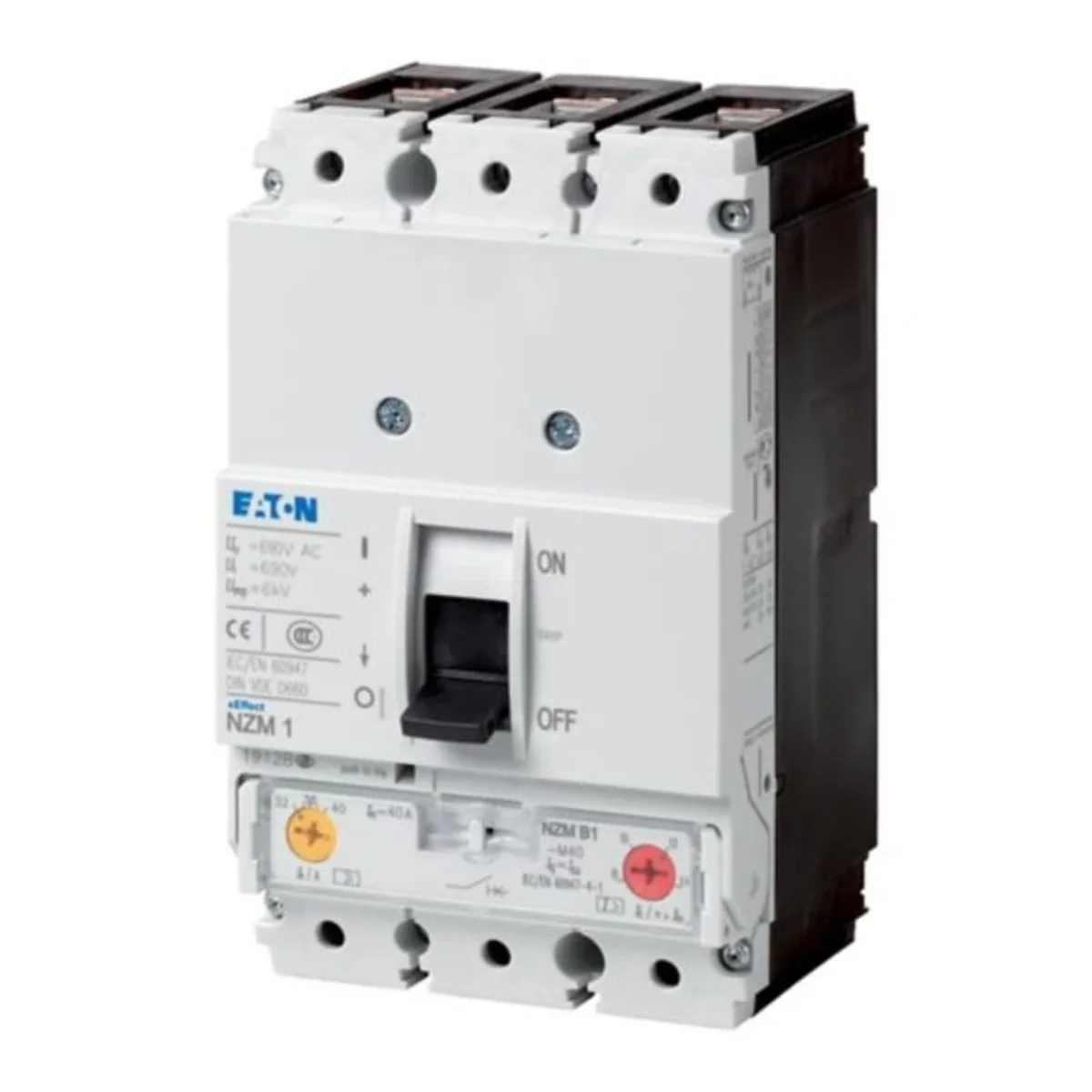

Circuit Breaker, 3 Pole, 100A, 100kA, Fixed Mount, Motor Protection 115454

local index:
ALI311MOEL
Catalog No:
115454
EAN code:
4015081151943
Manufacturer: EATON
Number of poles: 3
Installation: Constant
Rated current [A]: 100
Price:
541,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Circuit breakers of the NZM..-M series with only four compact sizes are suitable for all applications and are suitable for the IEC market. Assembly is always flexible with modular functional groups. With thermomagnetic release to protect the motor. Notes: with phase loss sensitivity, trip class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2 MCBs meet all requirements of utilization category AC-3.

Technical data

  • Number of poles
    3
  • Rated current [A]
    100
  • Switching capacity [kA]
    100
  • Installation
    Constant
  • Series
    engine protection

Other technical data

  • Overload release current setting
    80 ... 100 A
  • With thermal overload protection
    Yes
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    100 A
  • Rated operation power at AC-3, 400 V
    55 kW
  • Type of control element
    Rocker lever
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    90 mm
  • Adjustment range undelayed short-circuit release
    800 ... 1250 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    30 kW
  • Type of electrical connection of main circuit
    Other
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    35 kA
  • Height
    145 mm
  • Depth
    88 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,053
Volume (m3) 0,001
Width (m) 0,090
Length (m) 0,088
Depth (m) 0,145
