Automation
Circuit breakers, disconnectors
MCCBs

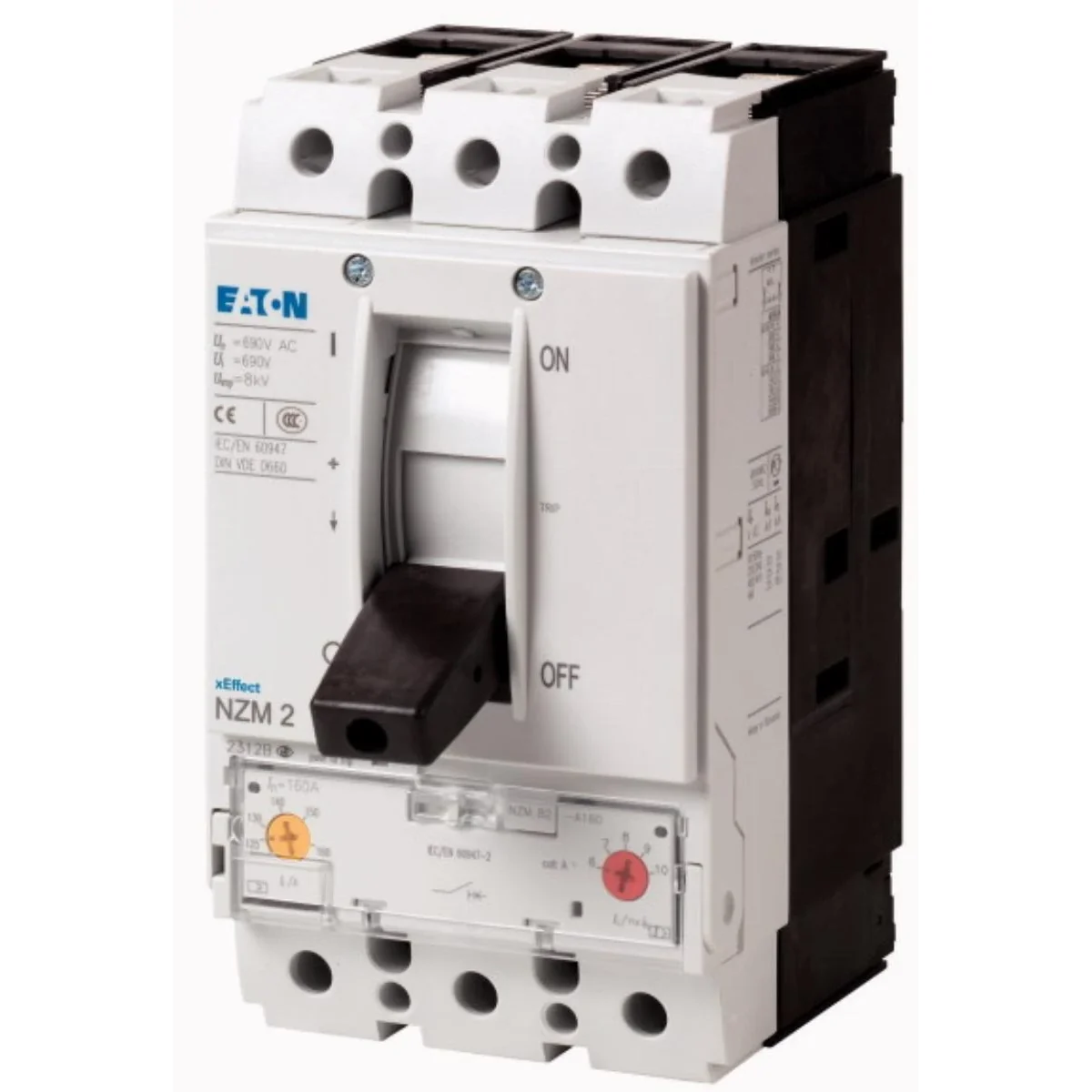

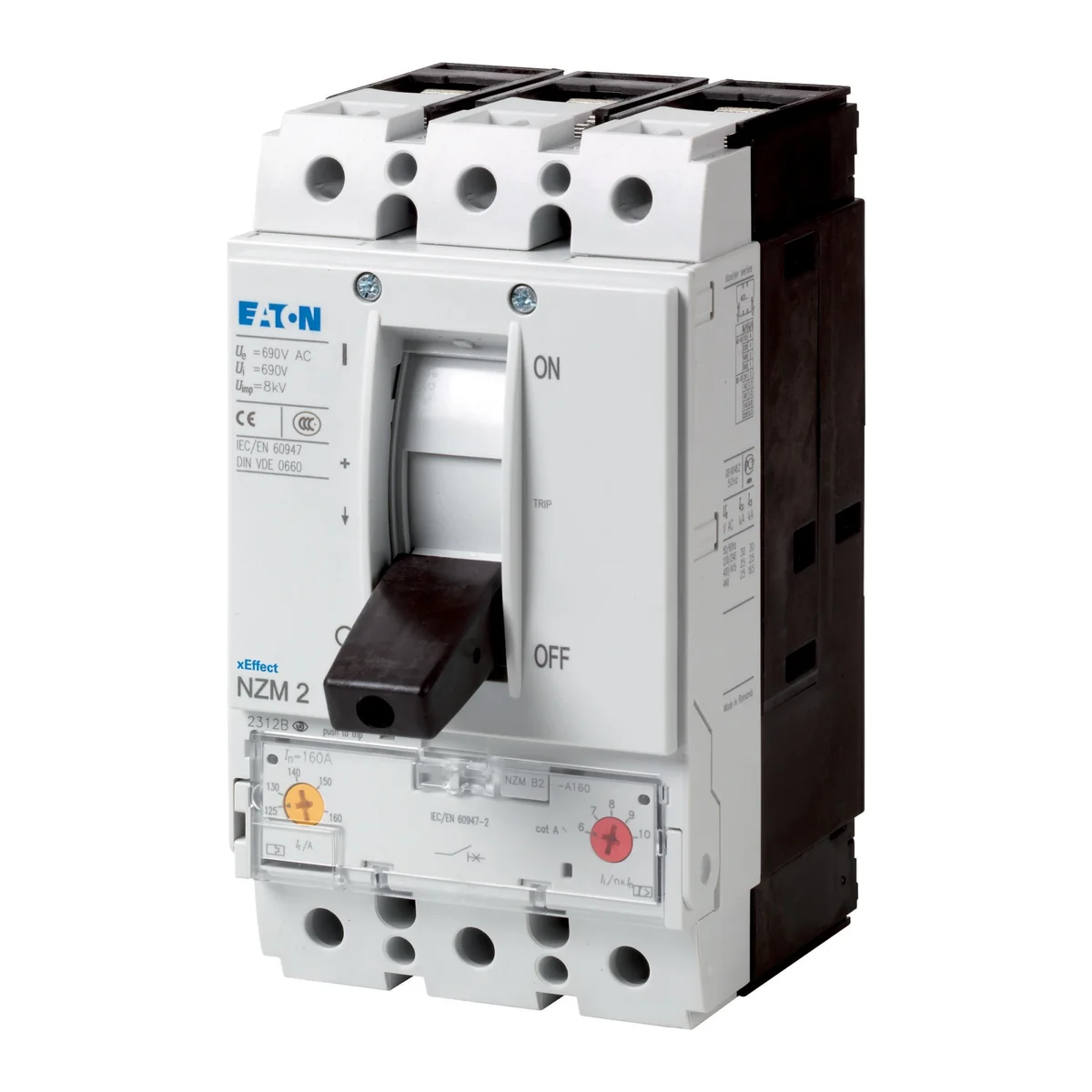

Circuit breaker, 125A, 3 pole, NZMN2-A125 259091
local index:
ALP110MOEL
Catalog No:
259091
EAN code:
4015082590918
Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
3
Rated current [A]:
125
See full description
Price:
718,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Circuit breaker, 125A, 3 pole, NZMN2-A125
Technical data
Number of poles
3
Rated current [A]
125
Other technical data
Rated permanent current Iu
125 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
50 kA
Adjustment range short-term delayed short-circuit release
0 ... 0 A
Integrated earth fault protection
No
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally open contact
0
With switched-off indicator
No
Position of connection for main current circuit
Front side
Complete device with protection unit
Yes
Motor drive optional
Yes
Rated voltage
690 ... 690 V
Overload release current setting
100 ... 125 A
Adjustment range undelayed short-circuit release
750 ... 1250 A
Type of electrical connection of main circuit
Screw connection
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Number of poles
3
Type of control element
Rocker lever
Motor drive integrated
No
Degree of protection (IP)
IP20
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
2,427
Volume (m3)
0,003
Width (m)
0,105
Length (m)
0,149
Depth (m)
0,184
