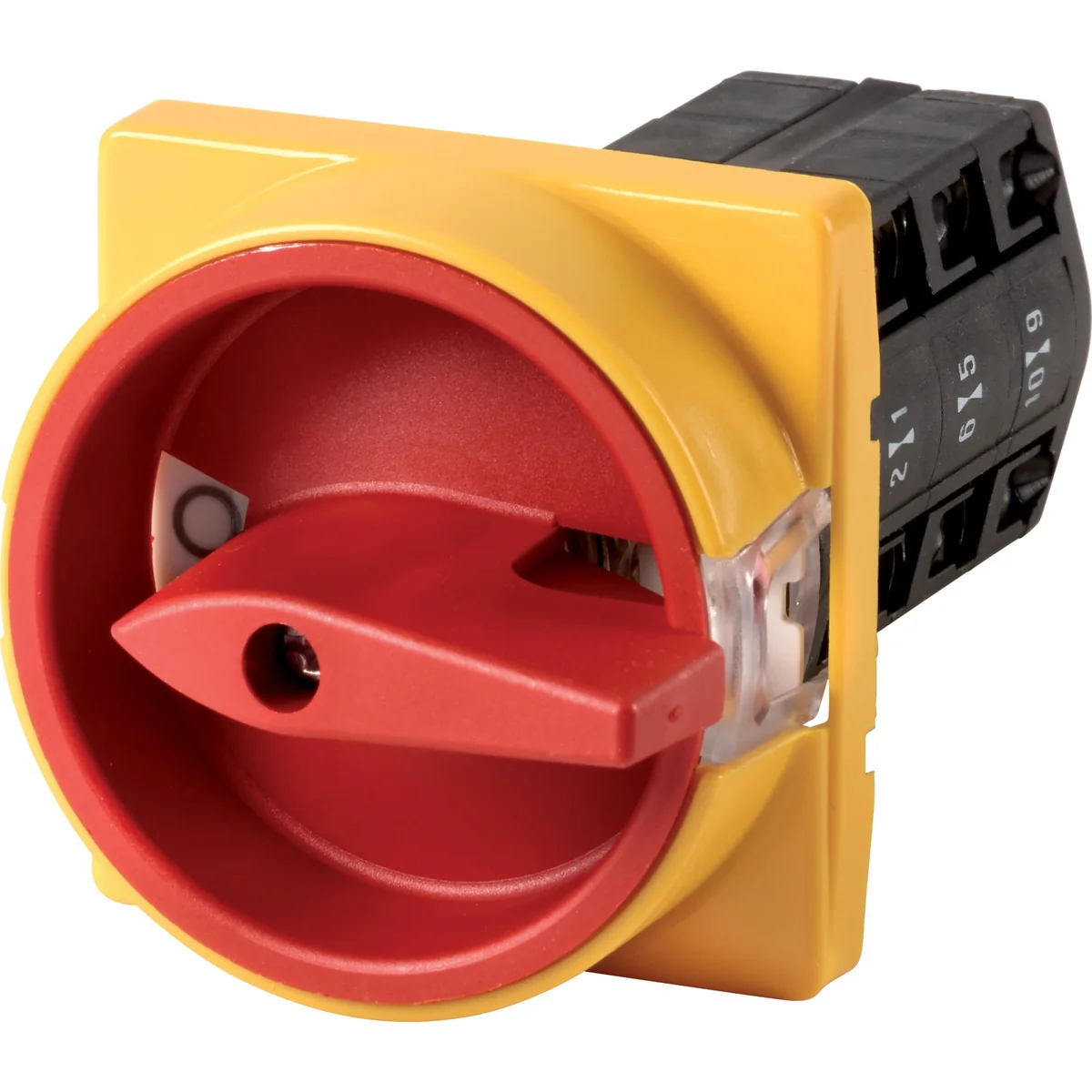

Cam switch, TM-3-8326/E/SVB 045498

local index:
ALK228MOEL
Catalog No:
045498
EAN code:
4015080454984
Manufacturer: EATON
Maximum power [kW]: 3
Main circuits: 8
Rated current [A]: 10
Price:
91,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Miniature cam switch I=10A P=3kW. With padlock closure. Lockable in position 0 to 250 V AC per contact

Technical data

  • Maximum power [kW]
    3
  • Rated current [A]
    10
  • Main circuits
    8

Other technical data

  • Version as main switch
    No
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    500 V
  • Rated permanent current Iu
    10 A
  • Rated operation power at AC-3, 400 V
    0 kW
  • Rated operation power at AC-23, 400 V
    3 kW
  • Conditioned rated short-circuit current Iq
    0 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    Yes
  • Suitable for distribution board installation
    No
  • Colour control element
    Red
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP65
  • Version as maintenance-/service switch
    No
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
  • Rated operating voltage
    500 ... 500 V
  • Rated permanent current at AC-21, 400 V
    0 A
  • Rated short-time withstand current lcw
    0 kA
  • Switching power at 400 V
    0 kW
  • Number of poles
    6
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    No
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Door coupling rotary drive
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    12

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,108
Volume (m3) 0,000
Width (m) 0,040
Length (m) 0,104
Depth (m) 0,040
