Cam switch In=32A P=13kW, T3-3-8212/E 068956

local index:
ALK017MOEL
Catalog No:
068956
EAN code:
4015080689560
Manufacturer: EATON
Level of security: IP65
Price:
86,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

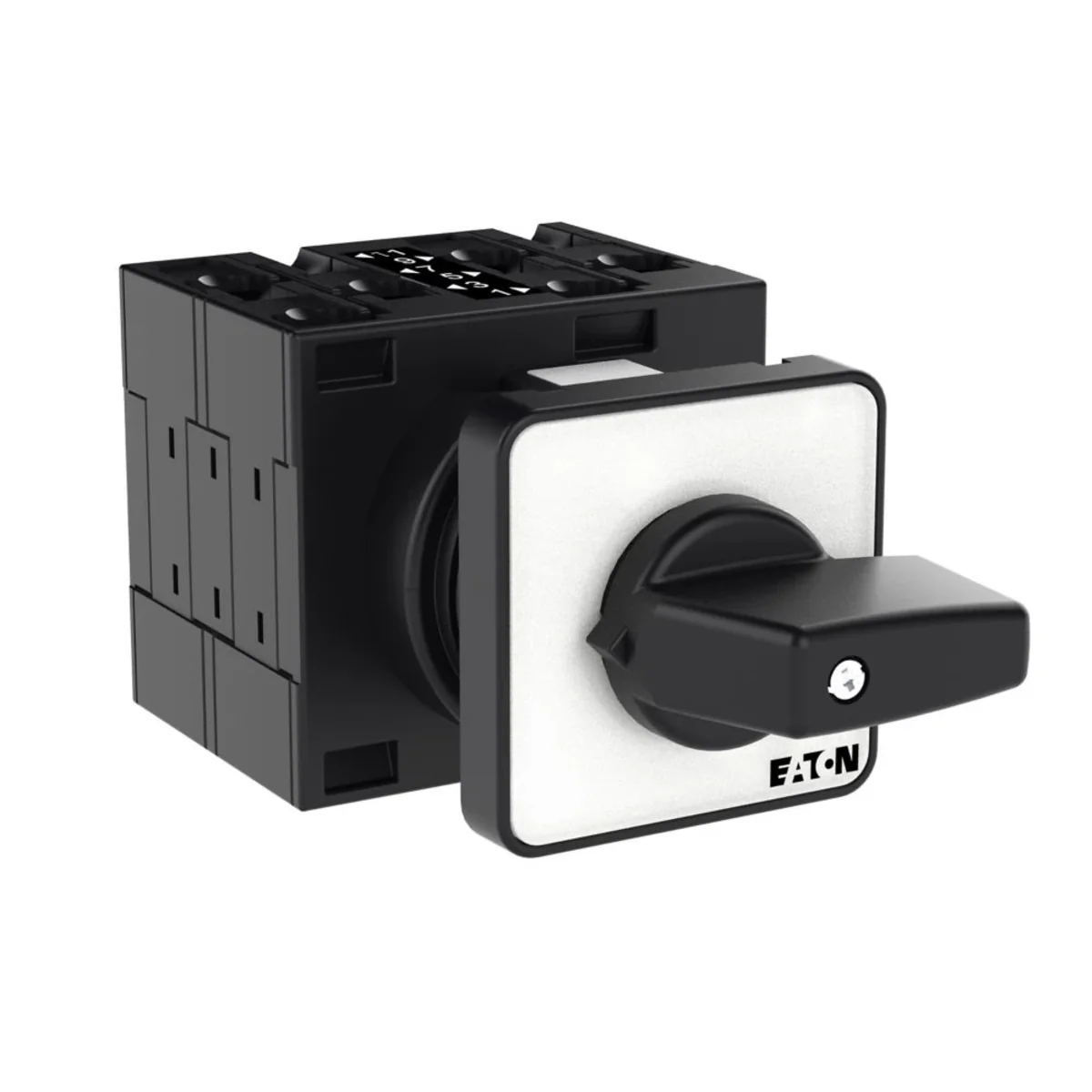

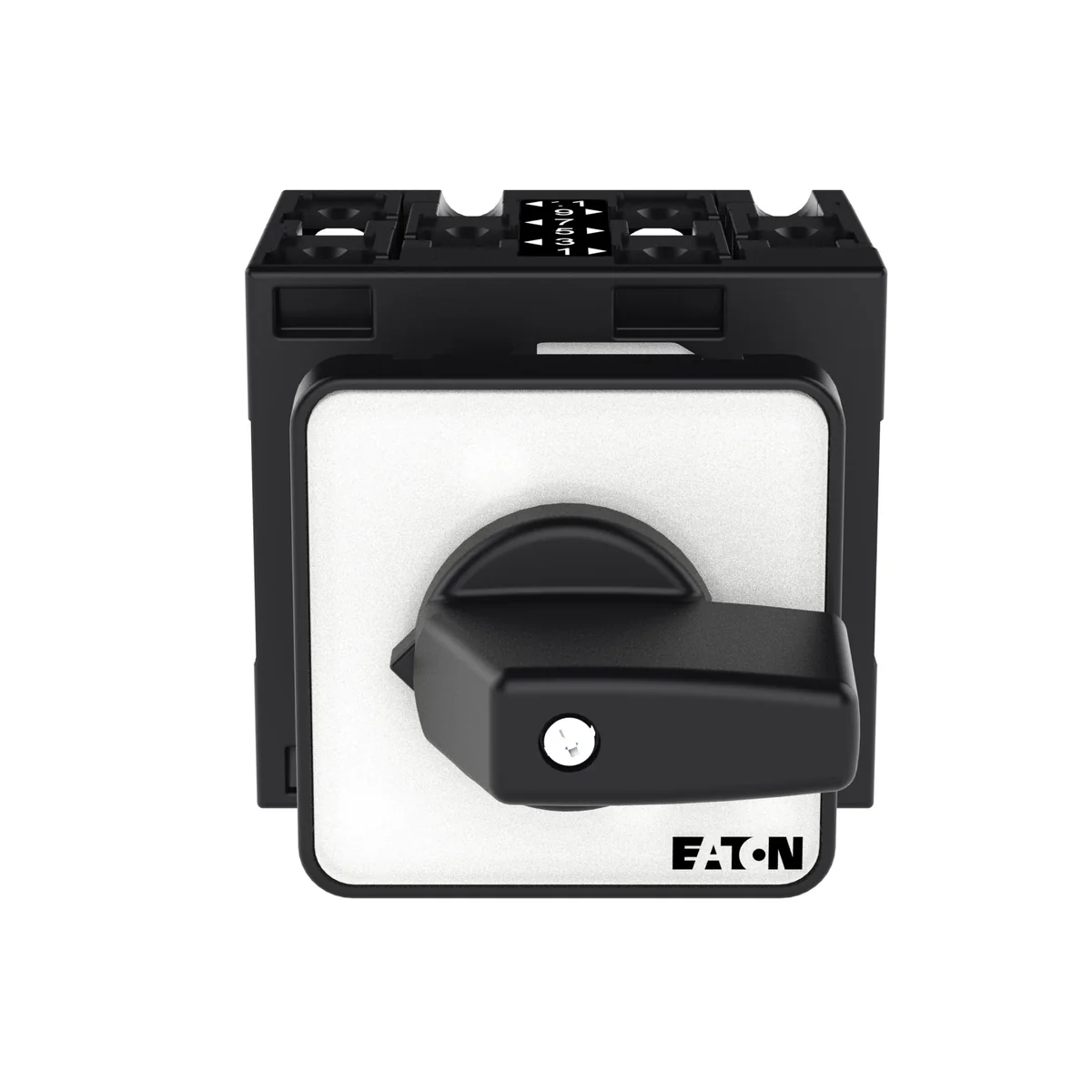

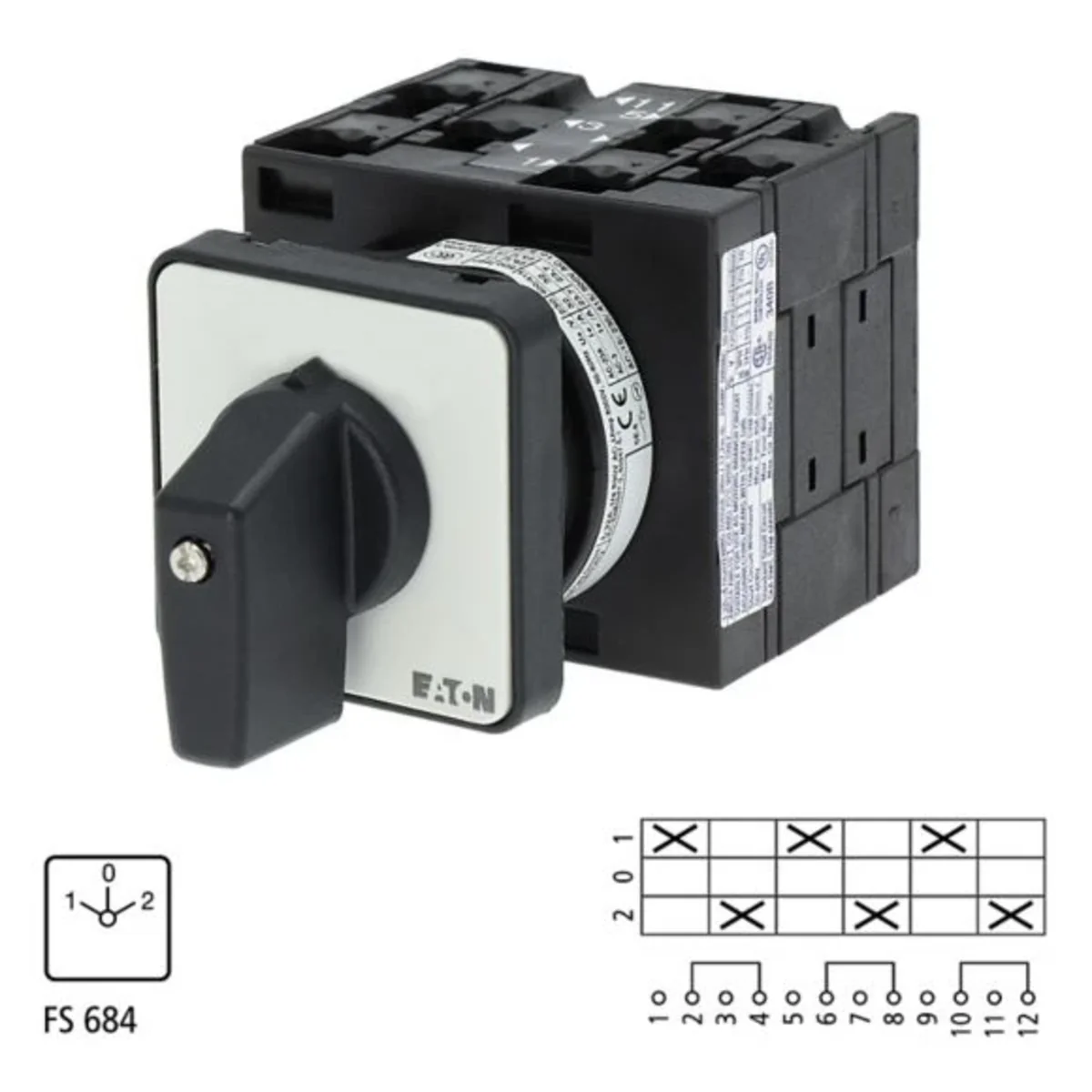

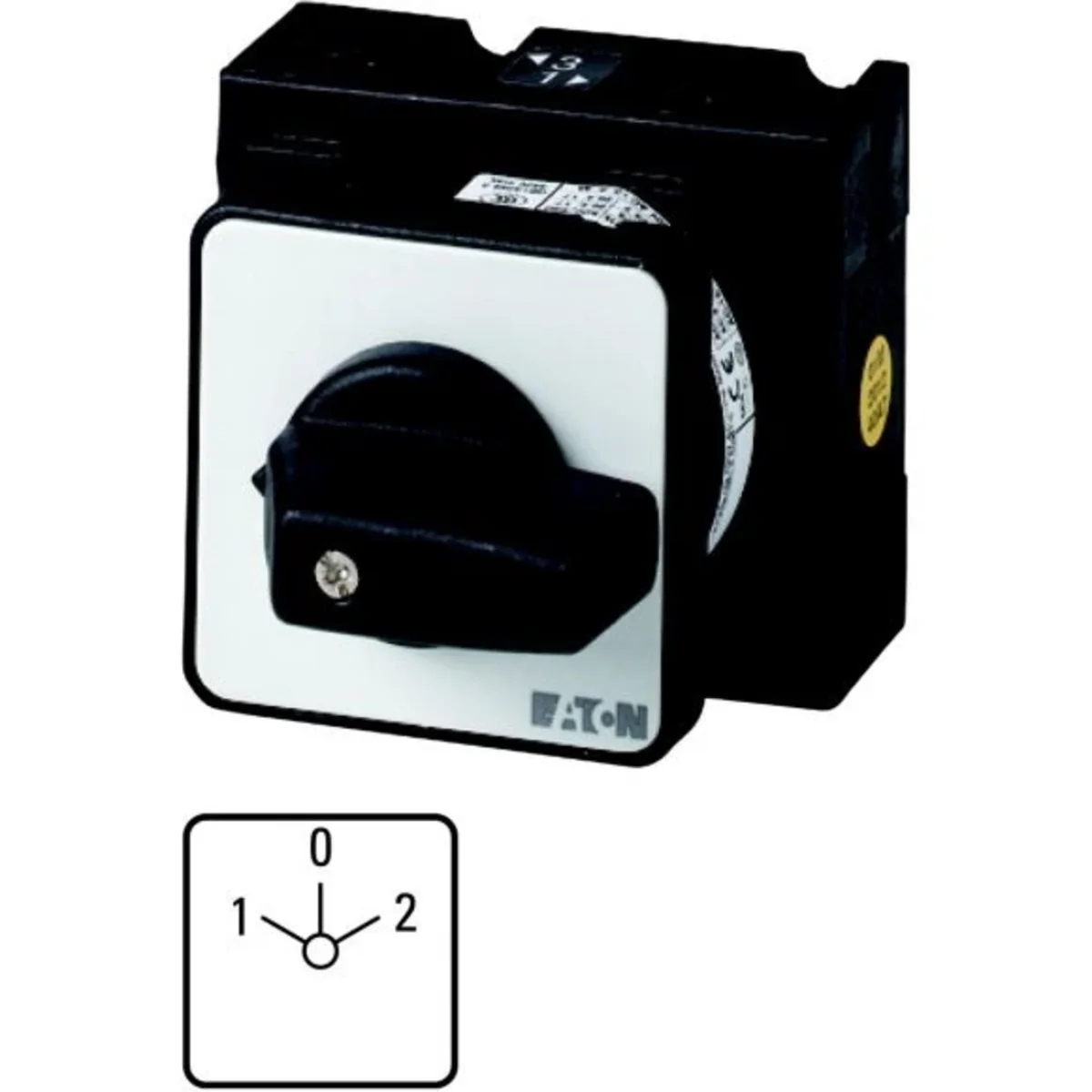

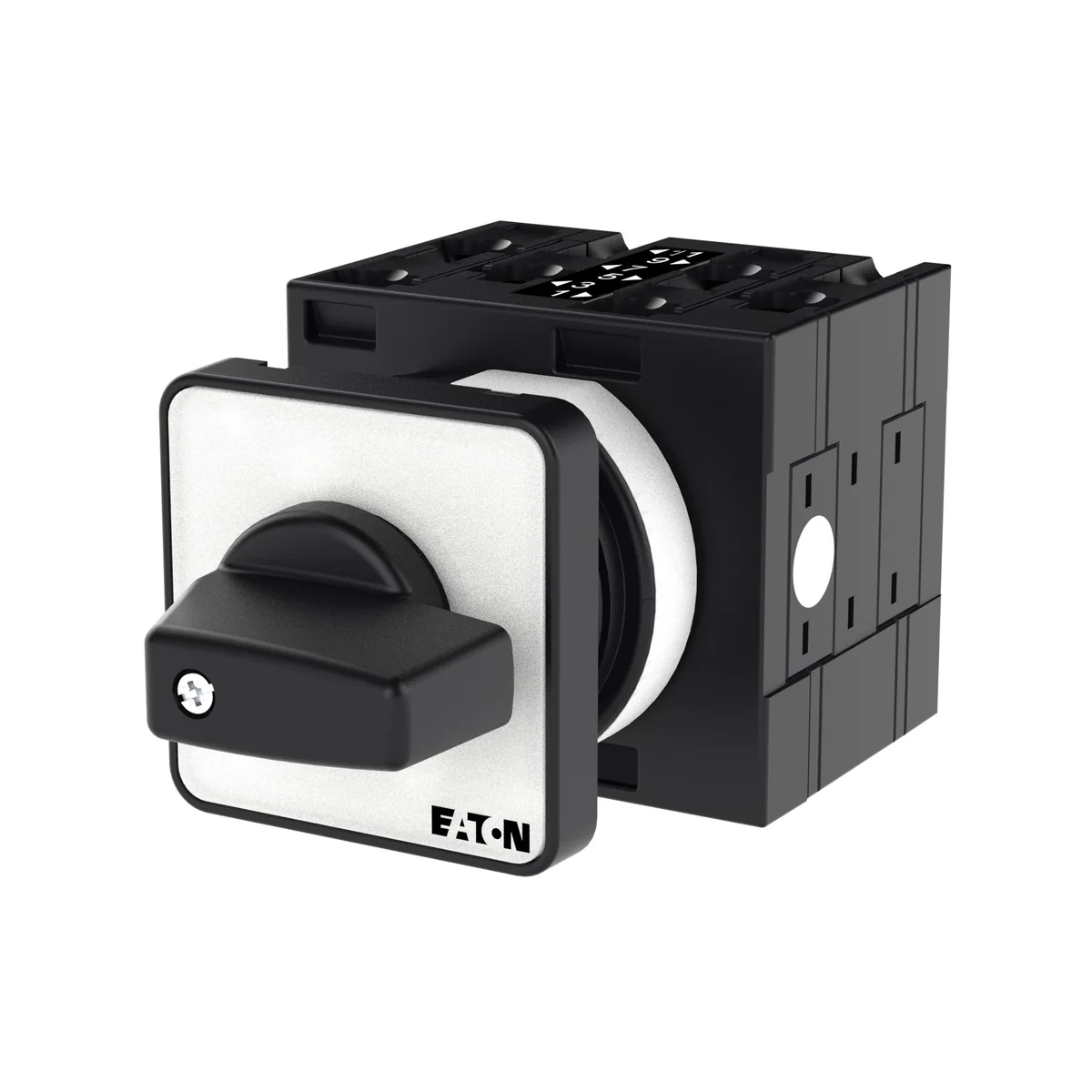

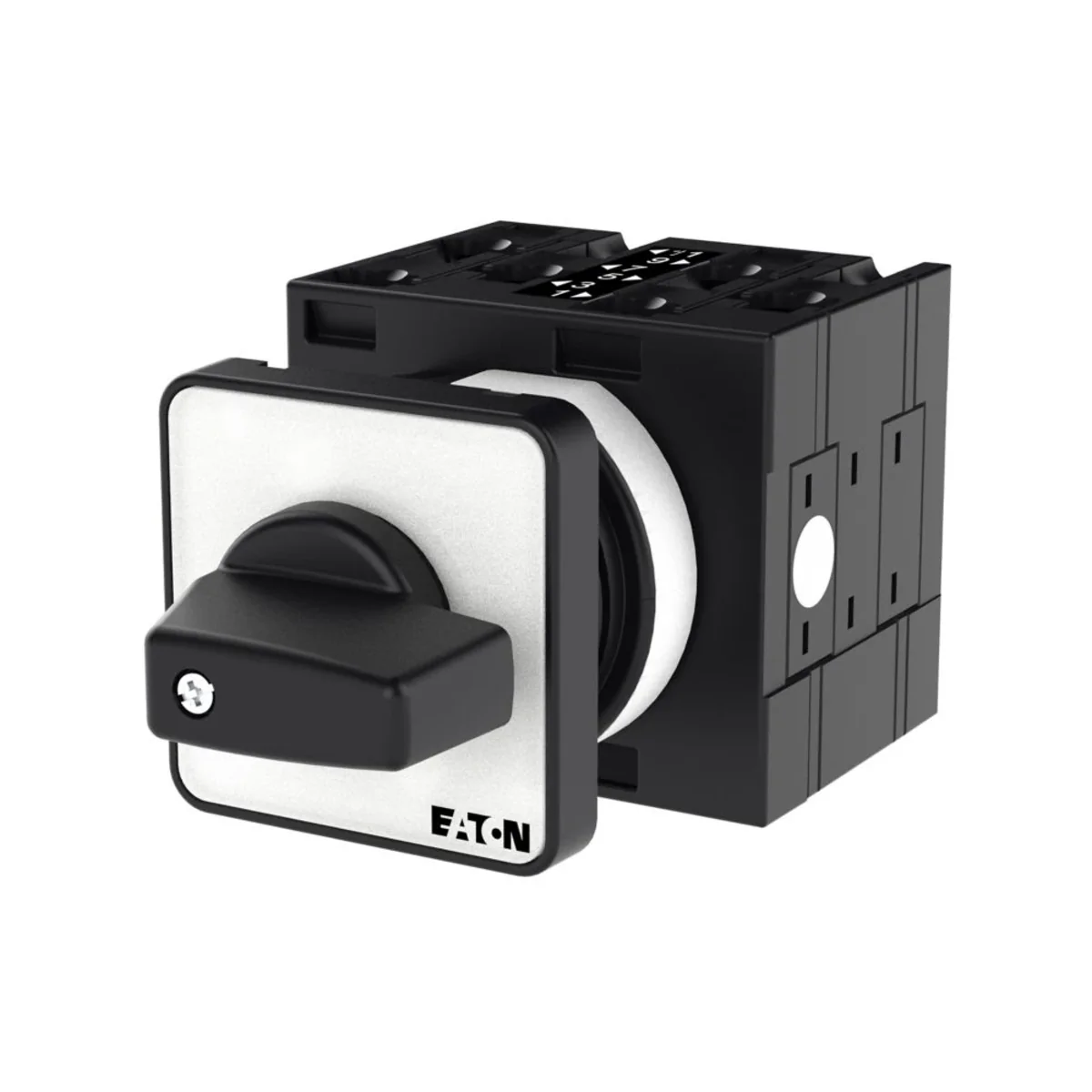

Cam switch In=32A P=13kW, T3-3-8212/E

Technical data

  • Level of security
    IP65

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    32 A
  • Rated operation power at AC-3, 400 V
    12 kW
  • Degree of protection (NEMA), front side
    12
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of control element
    Short thumb-grip
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    23.7 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    Yes
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection

Manufacturer details

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,210 0,241
Volume (m3) 0,000 0,001
Width (m) 0,061 0,075
Length (m) 0,102 0,180
Depth (m) 0,054 0,065
