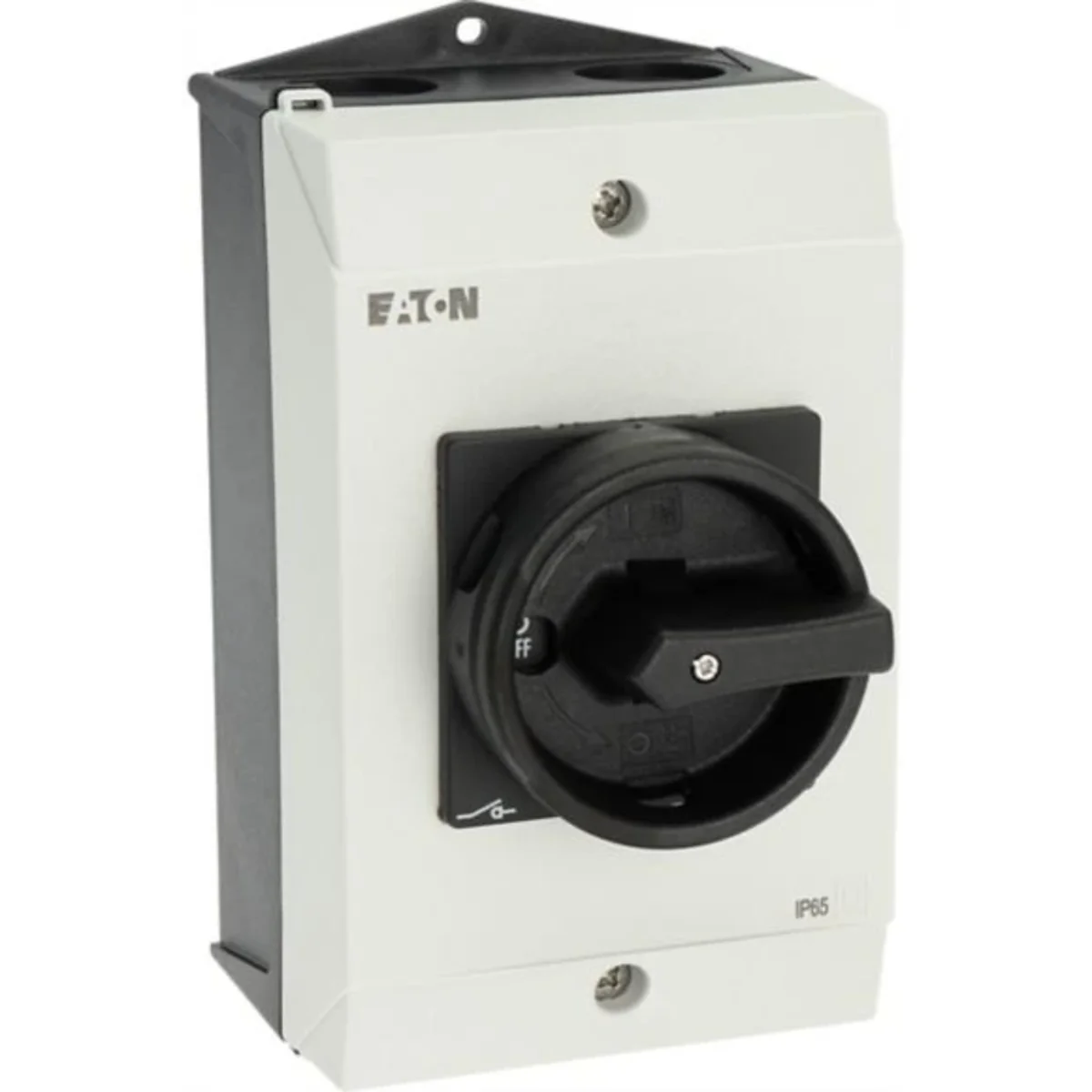

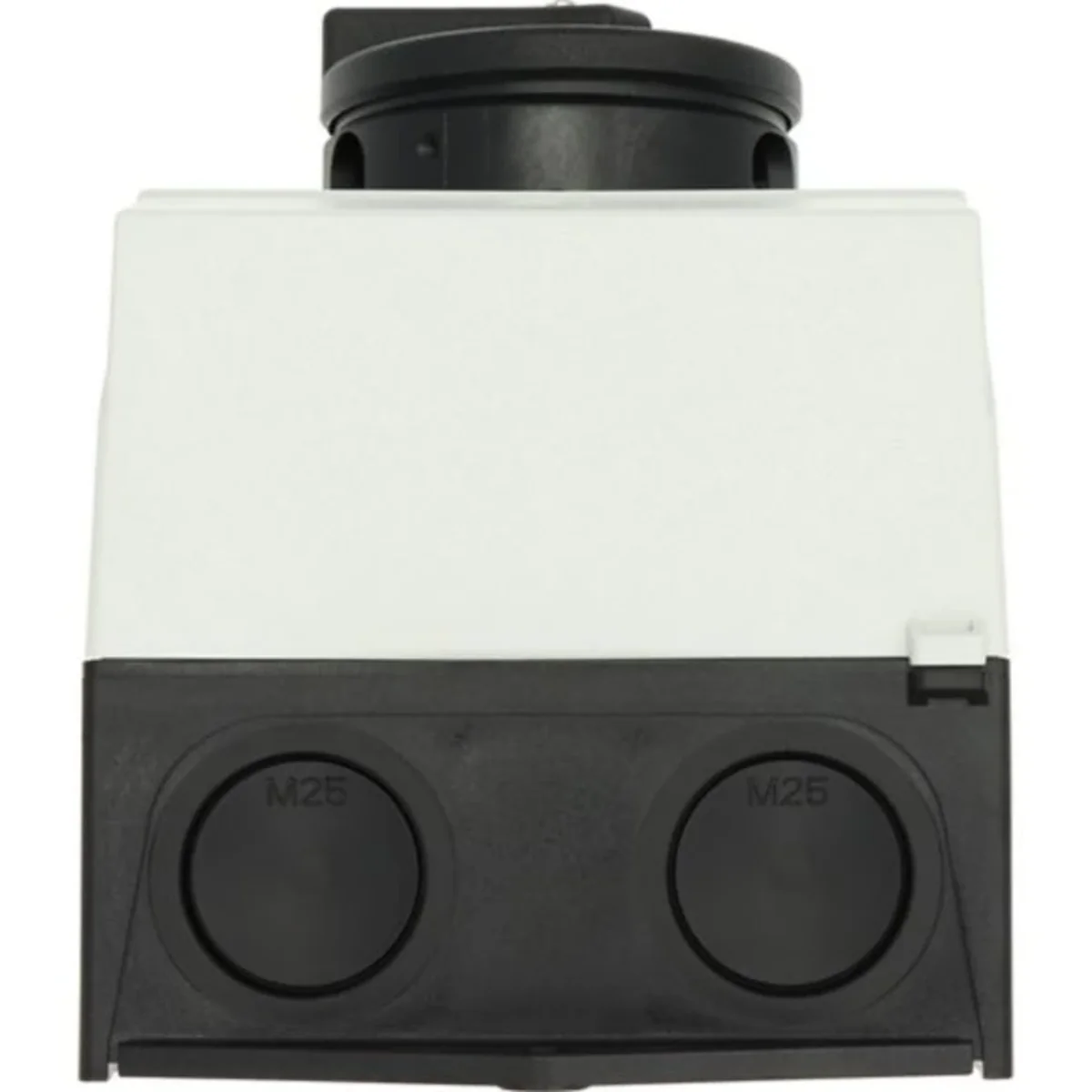

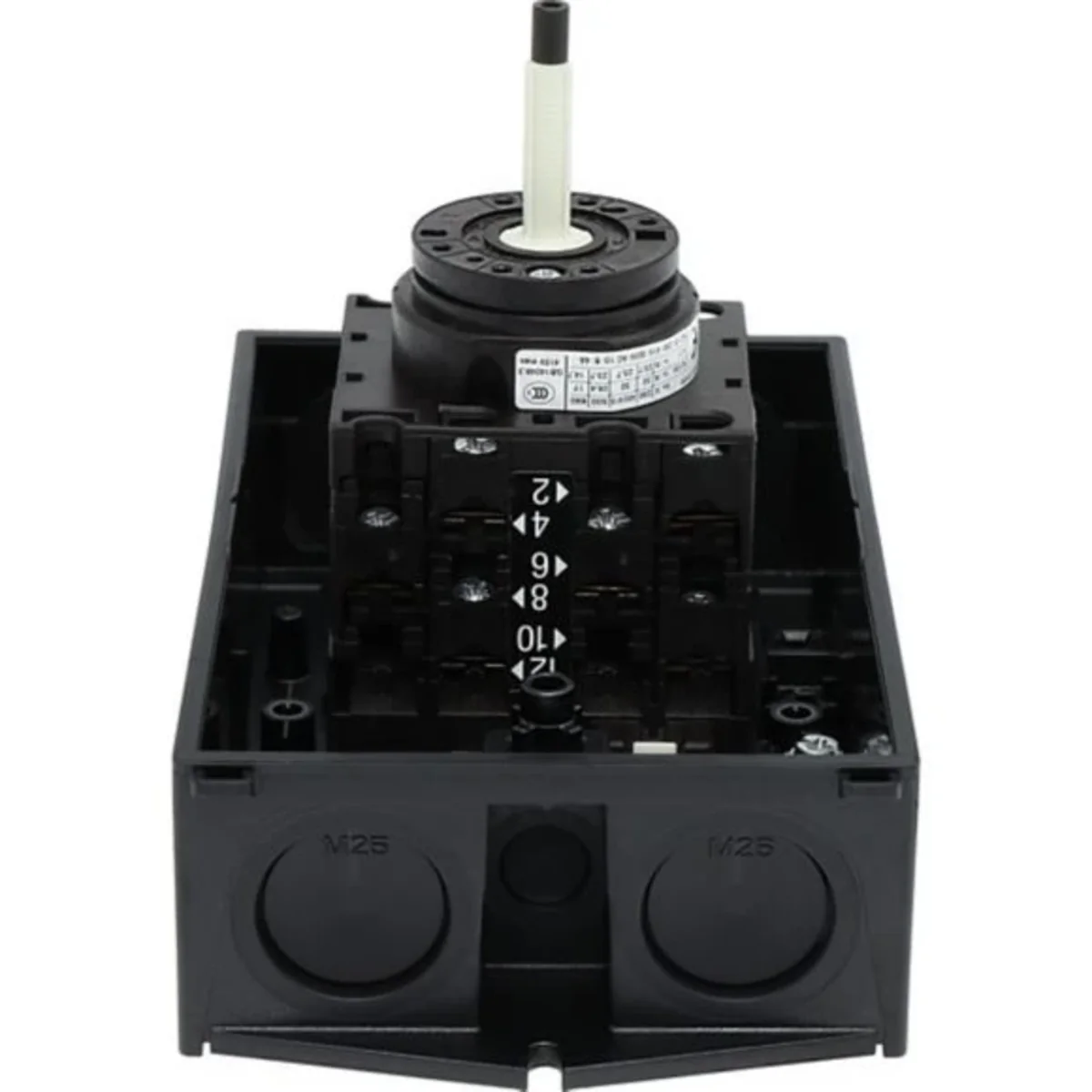

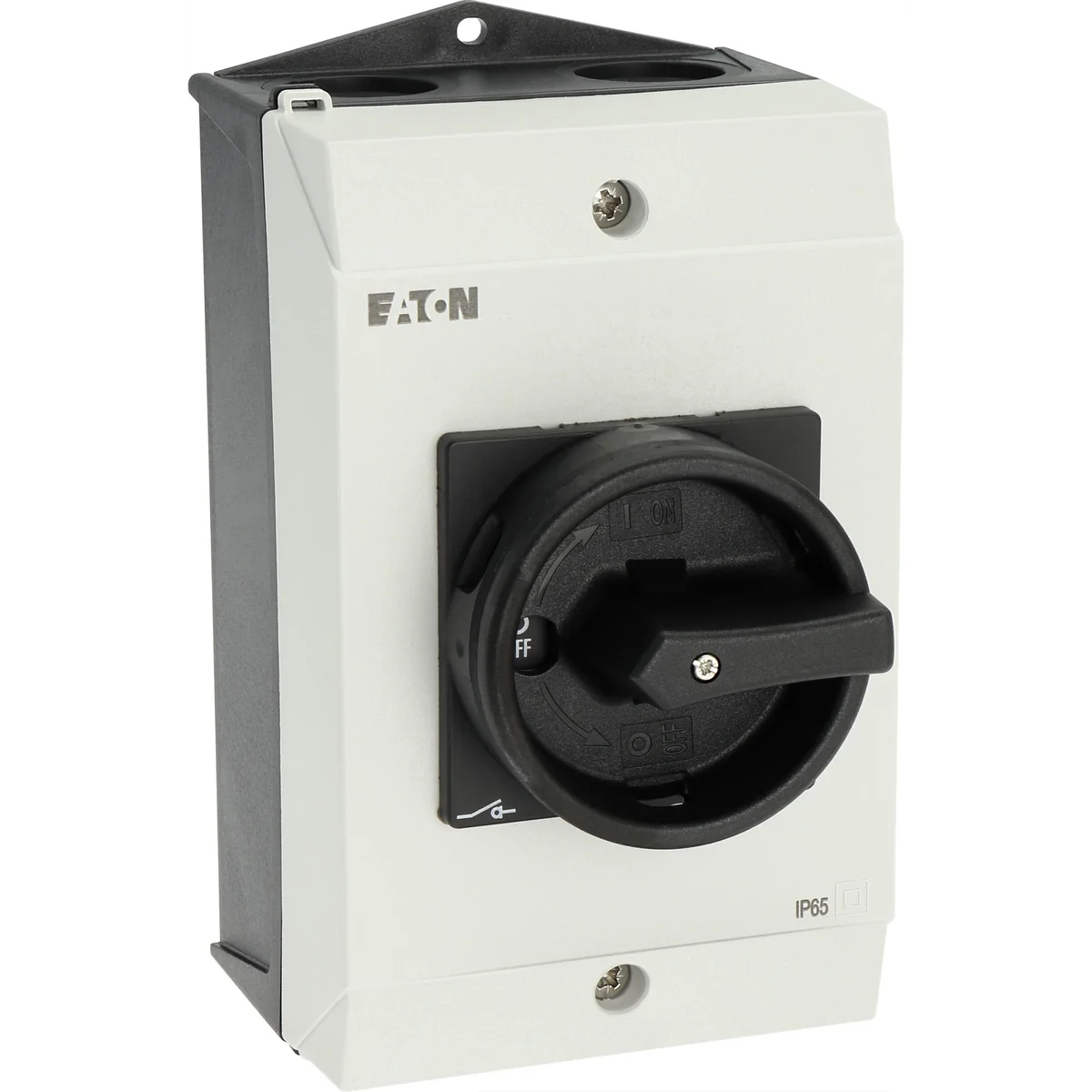

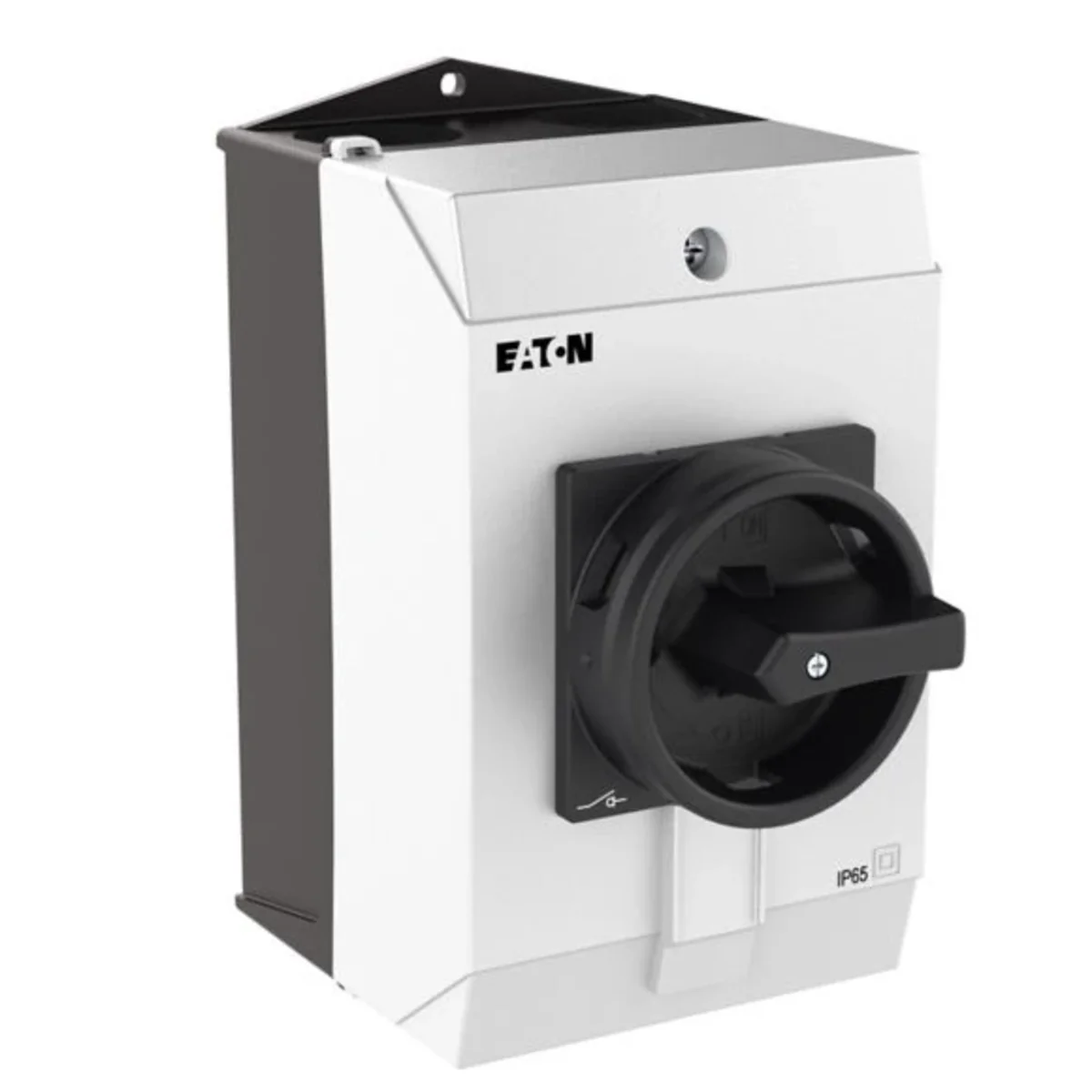

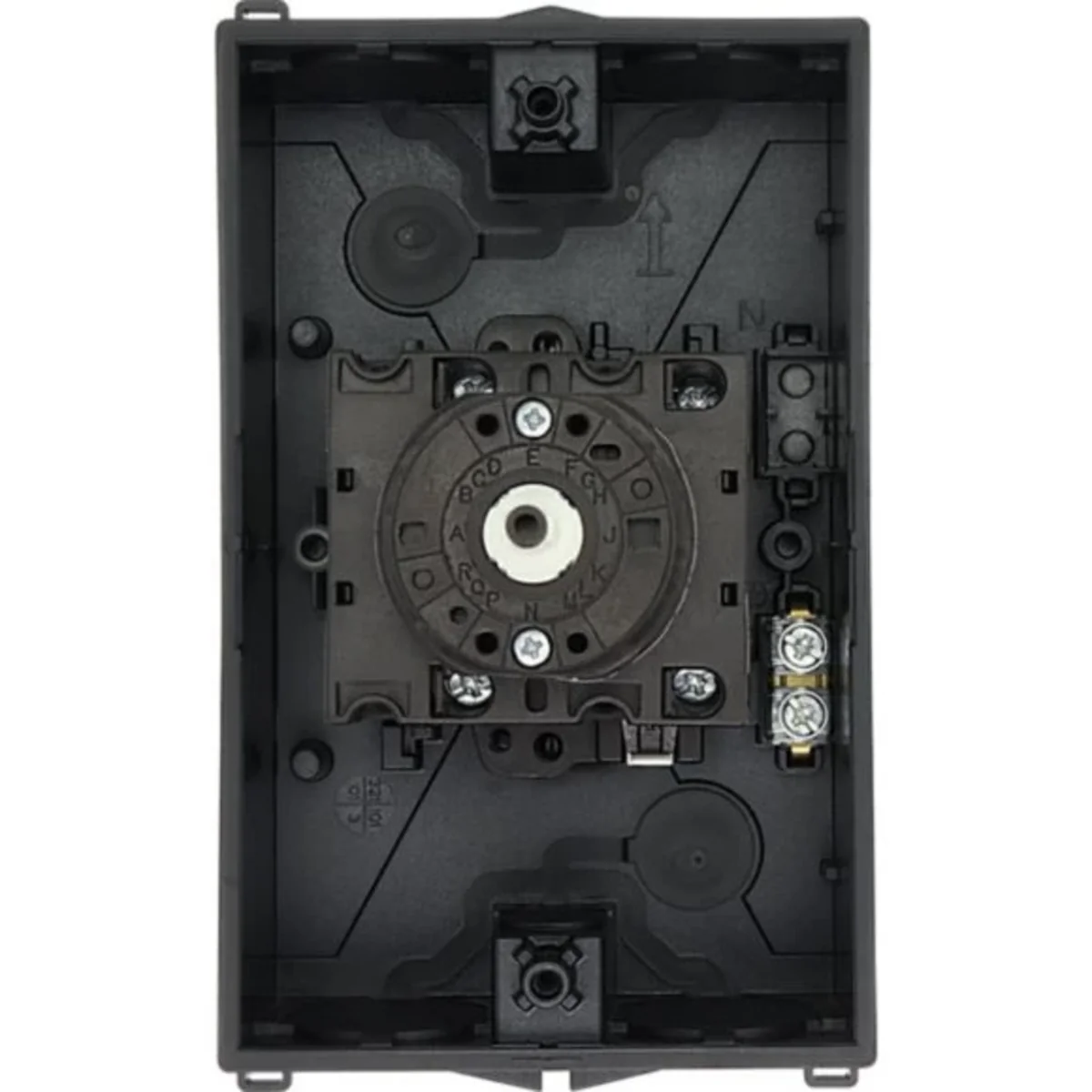

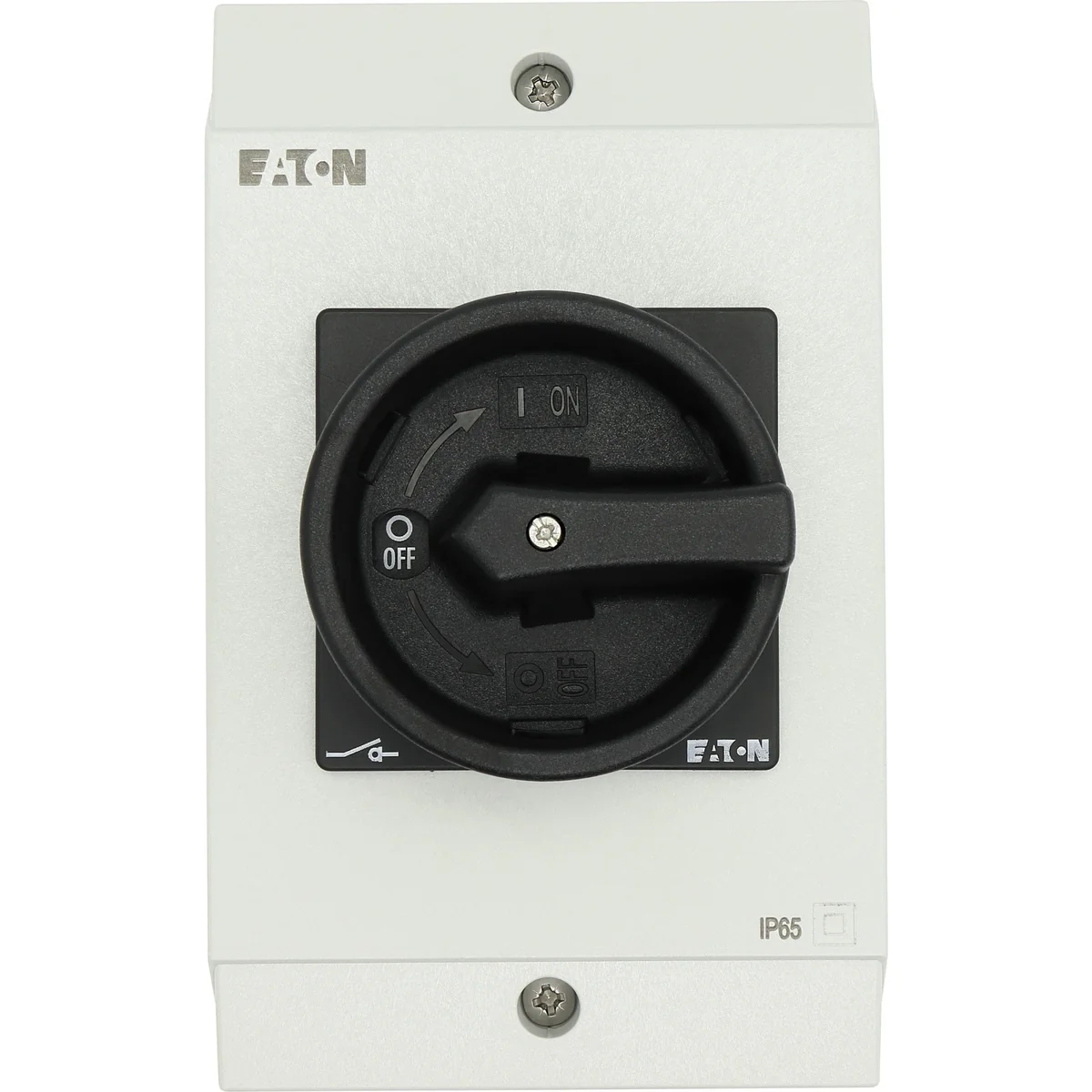

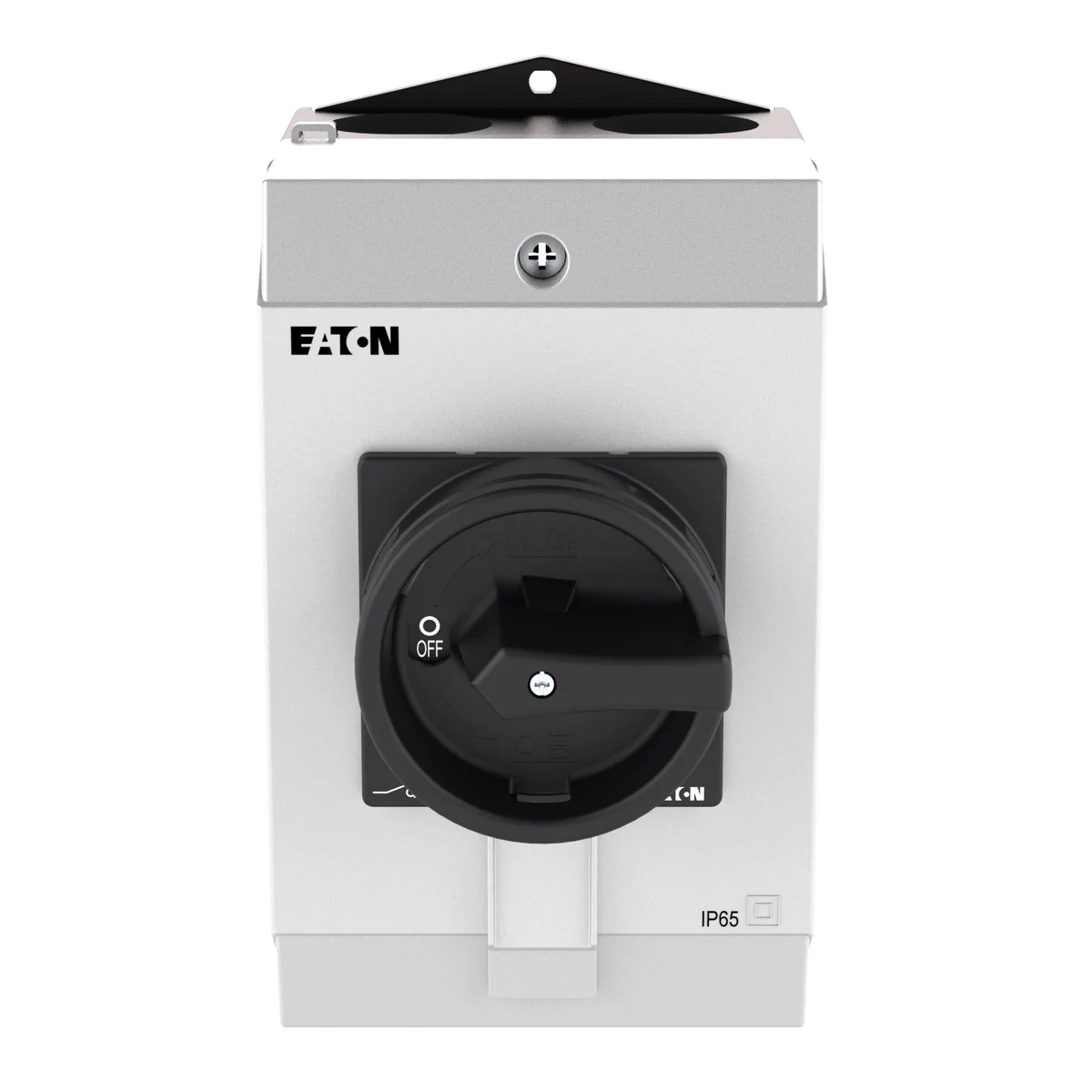

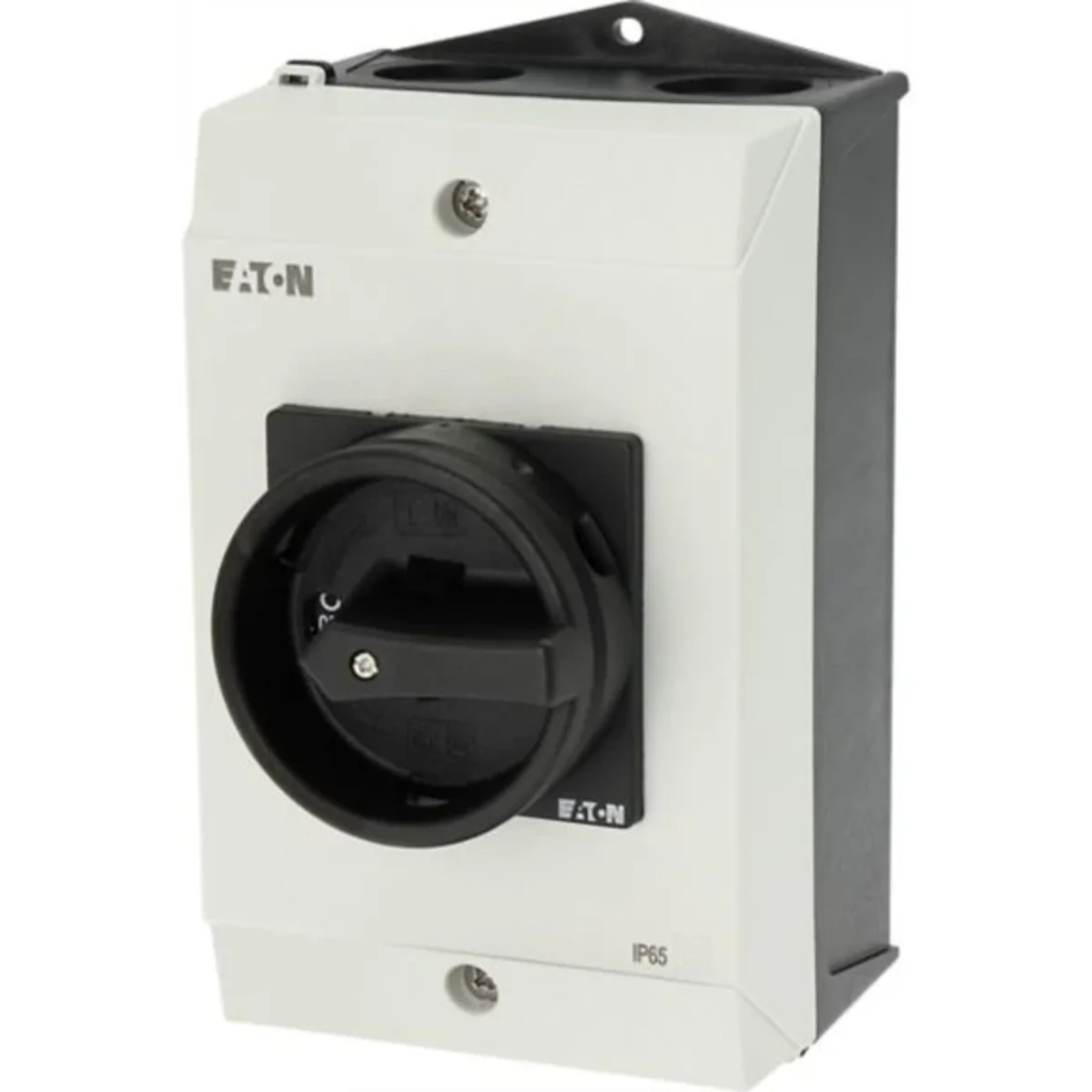

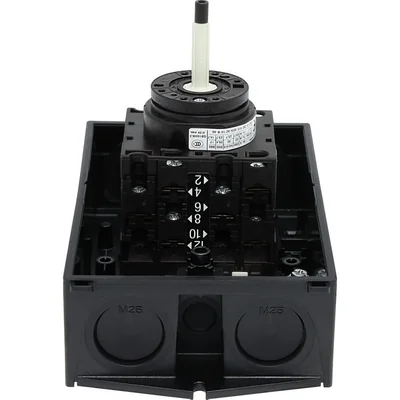

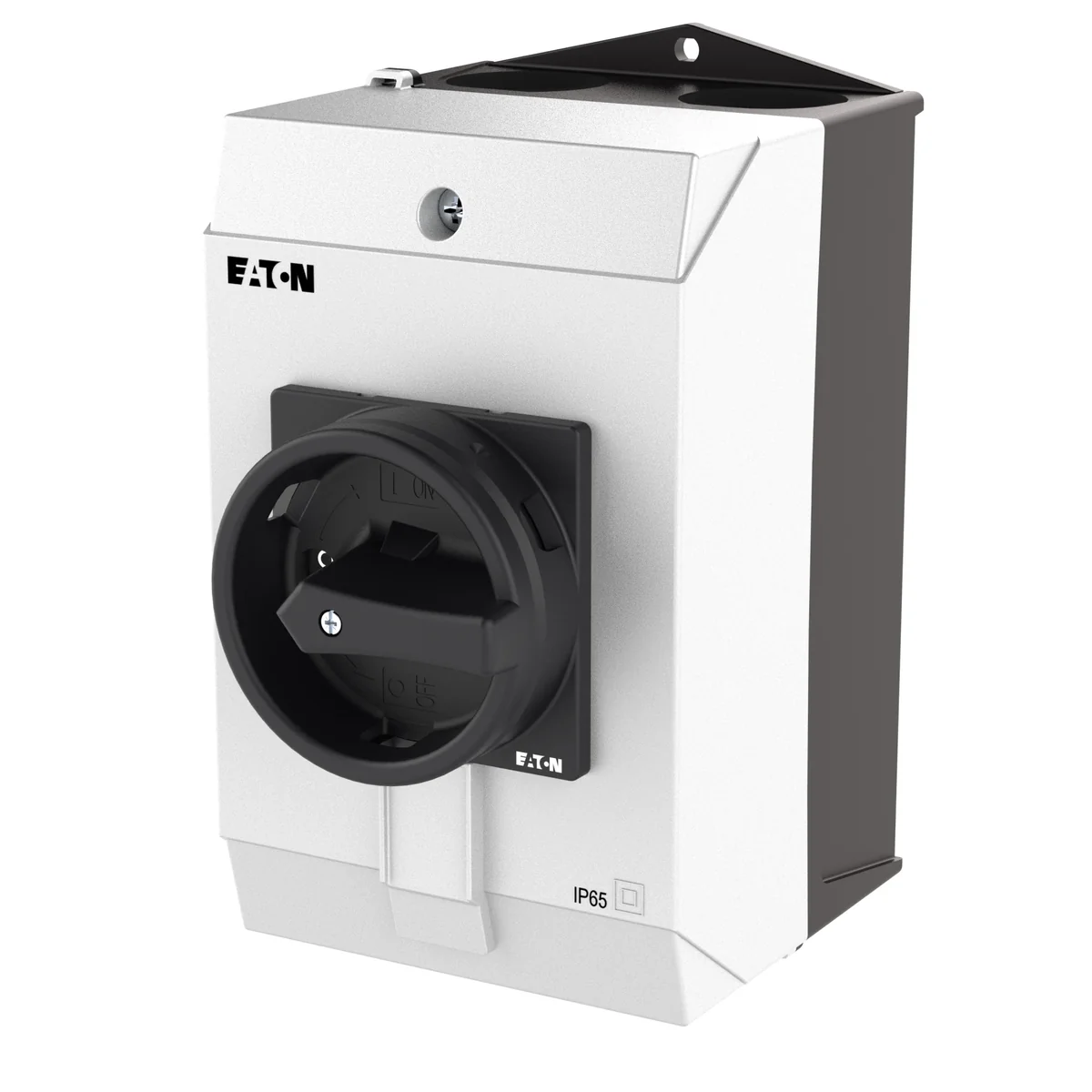

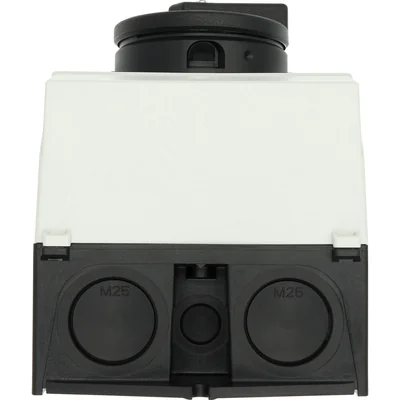

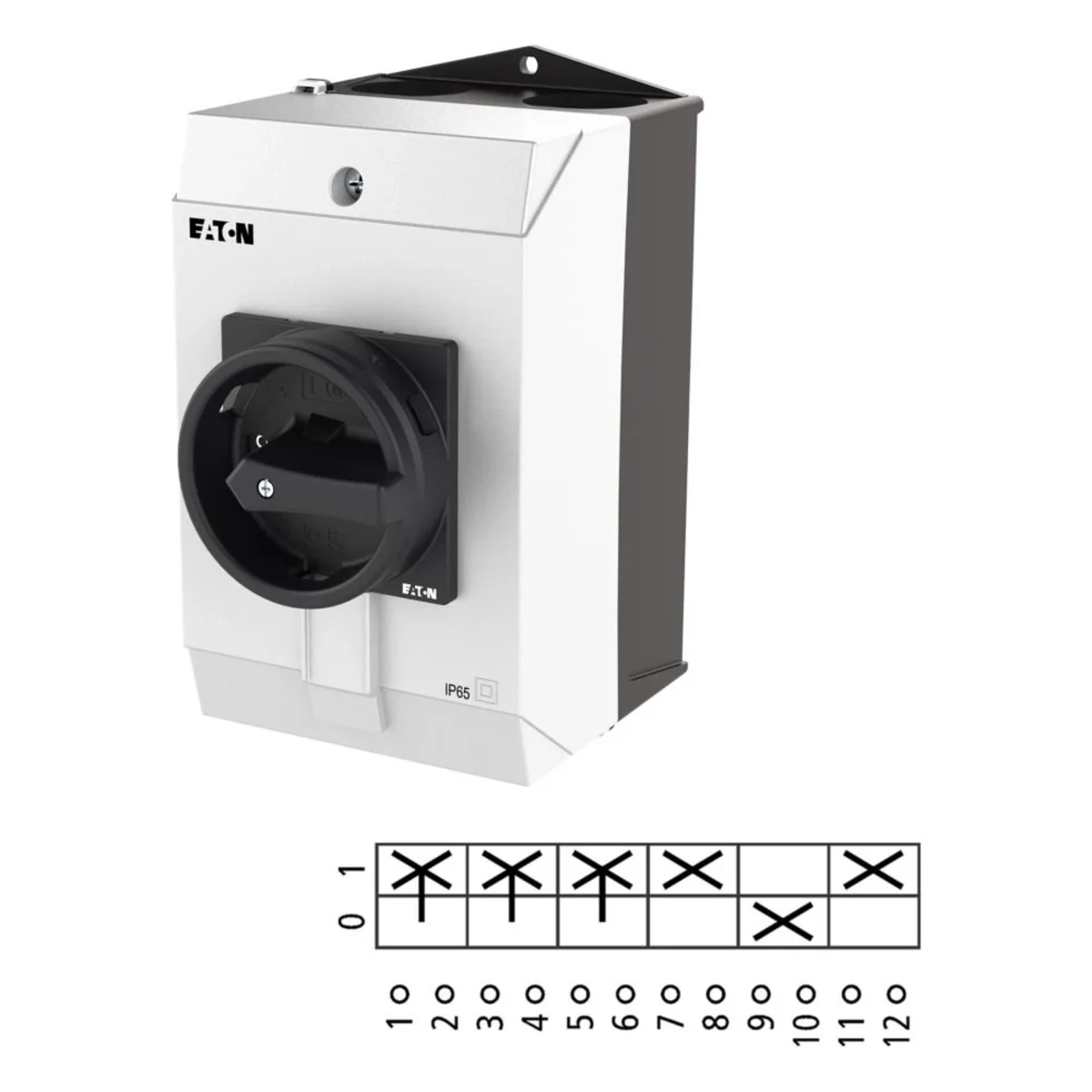

Cam switch In=32A P=13kW, T3-3-15683/I2/SVB-SW 207207
local index:
ALK230MOEL
Catalog No:
207207
EAN code:
4015082072070
Manufacturer:
EATON
Level of security: IP65
Price:
133,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cam switch In=32A P=13kW, T3-3-15683/I2/SVB-SW
Technical data
-
Level of securityIP65
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu32 A
-
Rated permanent current at AC-21, 400 V32 A
-
Rated short-time withstand current lcw0.65 kA
-
Switching power at 400 V15 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact2
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V32 A
-
Rated operation power at AC-3, 400 V11 kW
-
Rated operation power at AC-23, 400 V15 kW
-
Conditioned rated short-circuit current Iq1 kA
-
Number of auxiliary contacts as normally closed contact1
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionComplete device in housing
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationNo
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944

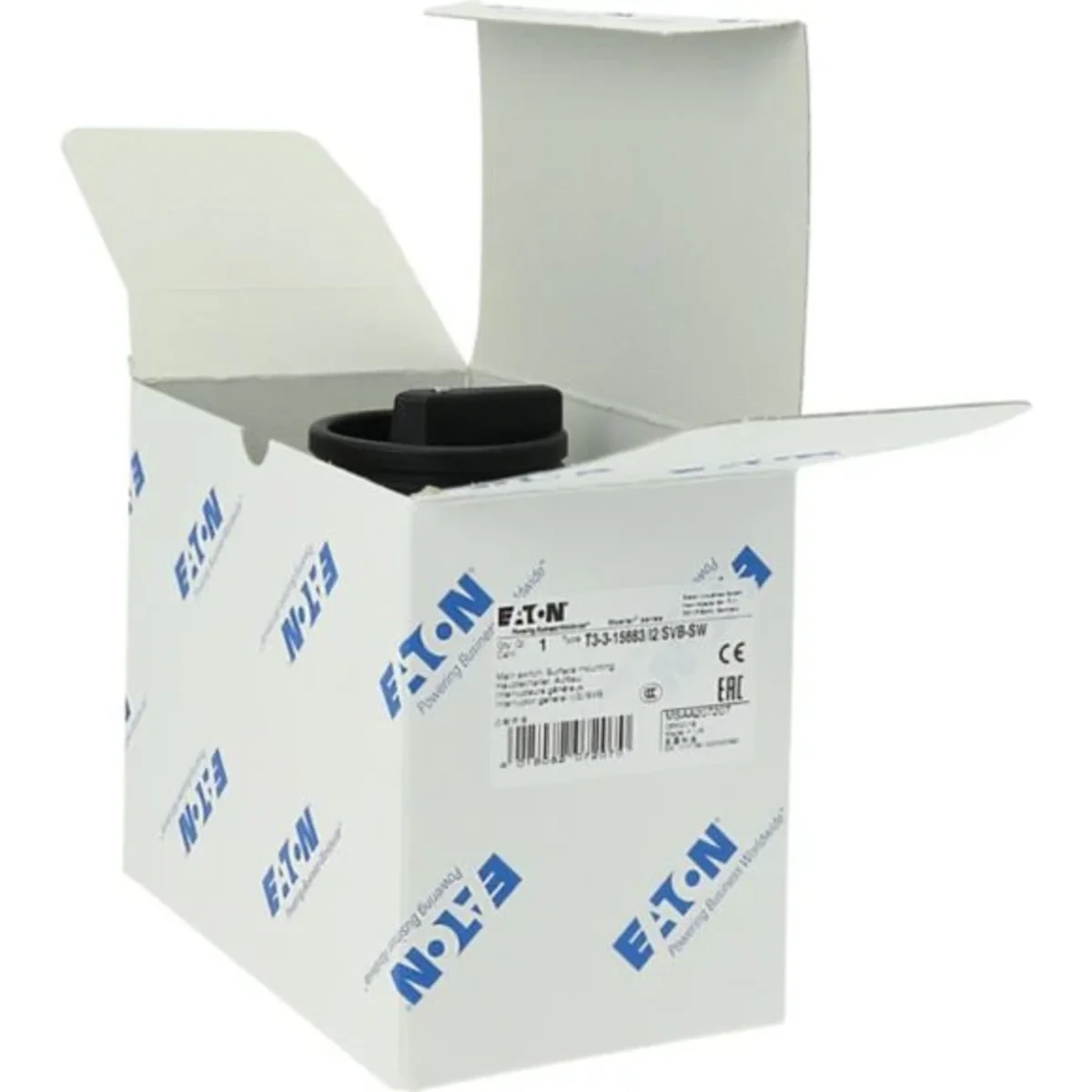

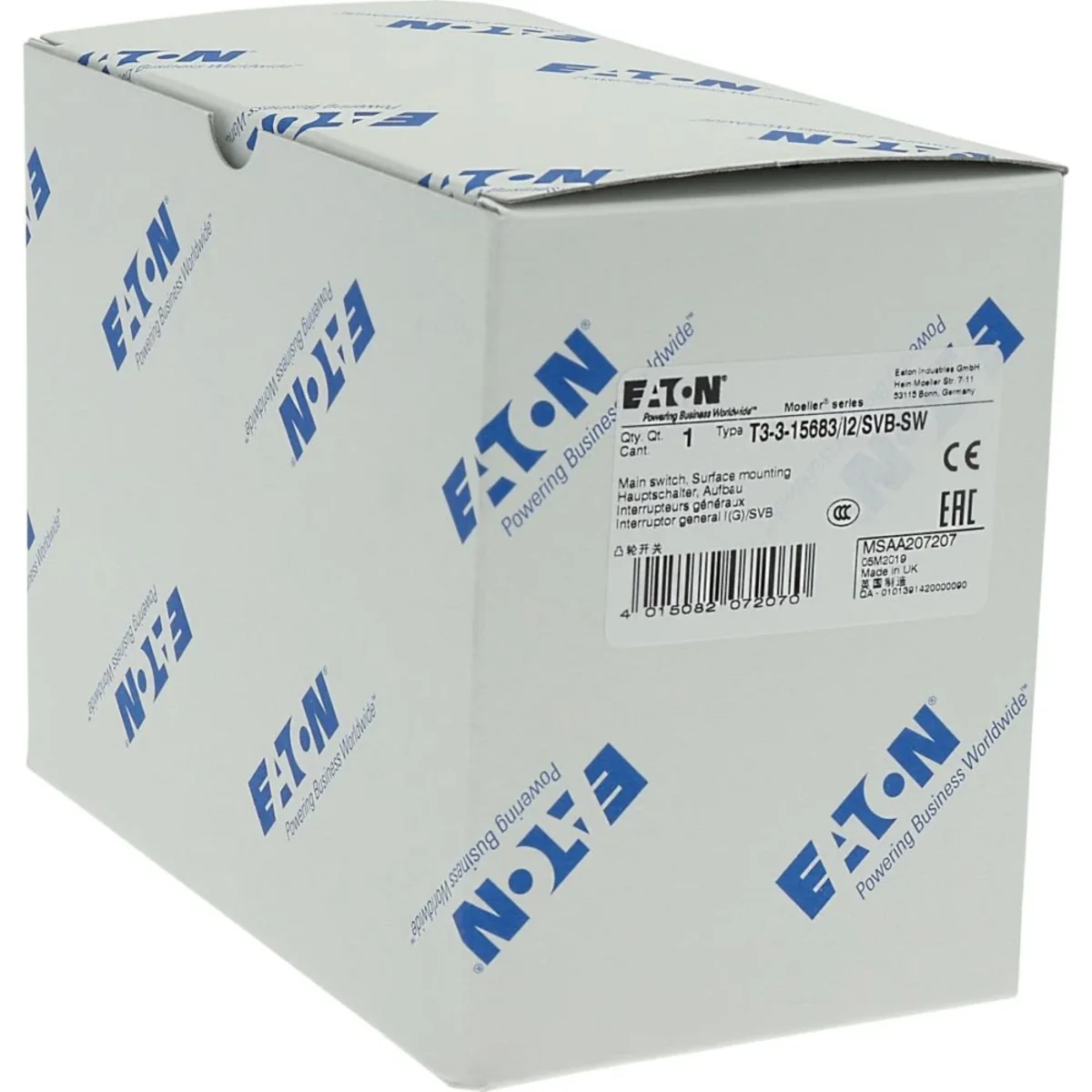

Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,585 | 0,616 |
| Volume (m3) | 0,002 | 0,002 |
| Width (m) | 0,100 | 0,105 |
| Length (m) | 0,181 | 0,180 |
| Depth (m) | 0,135 | 0,120 |
