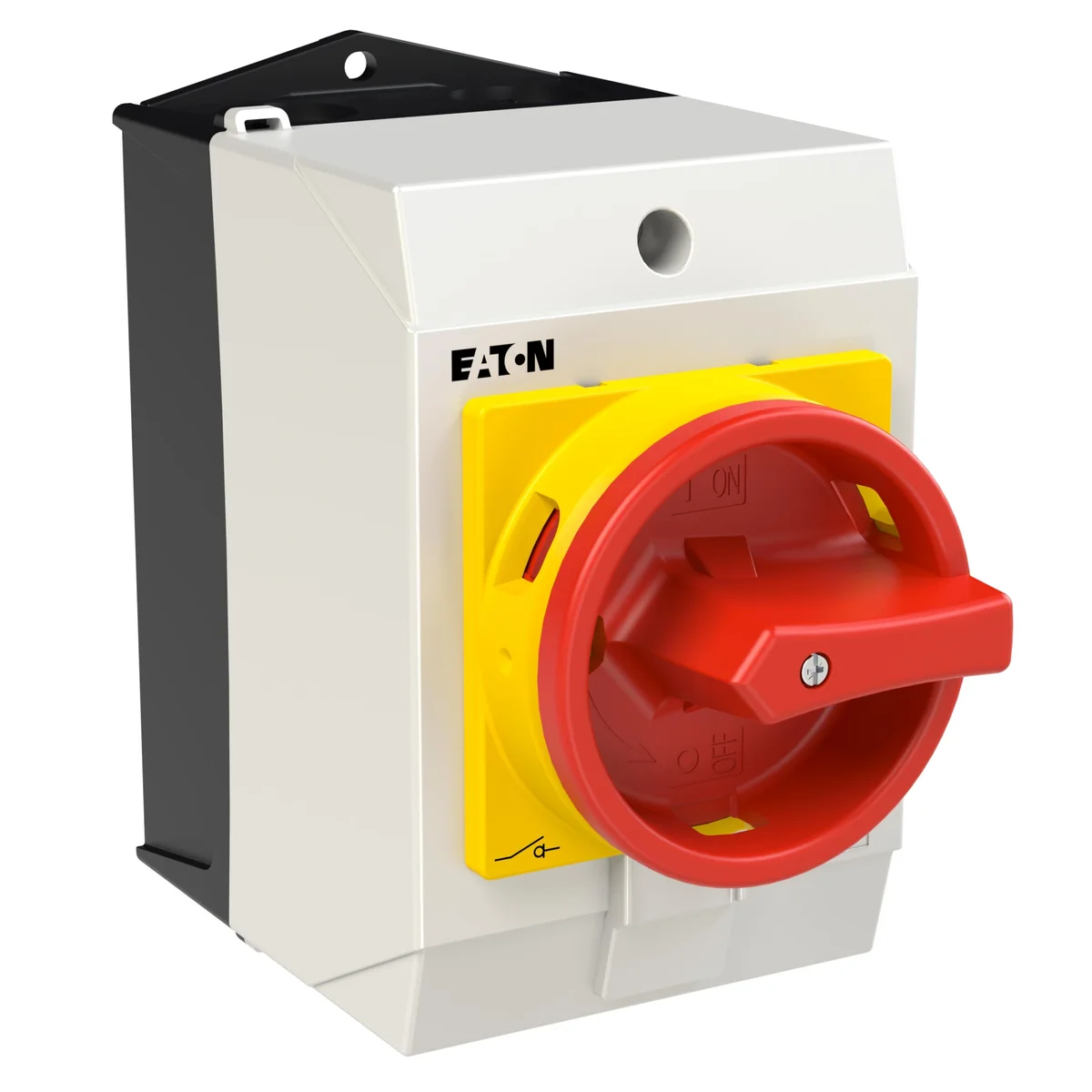

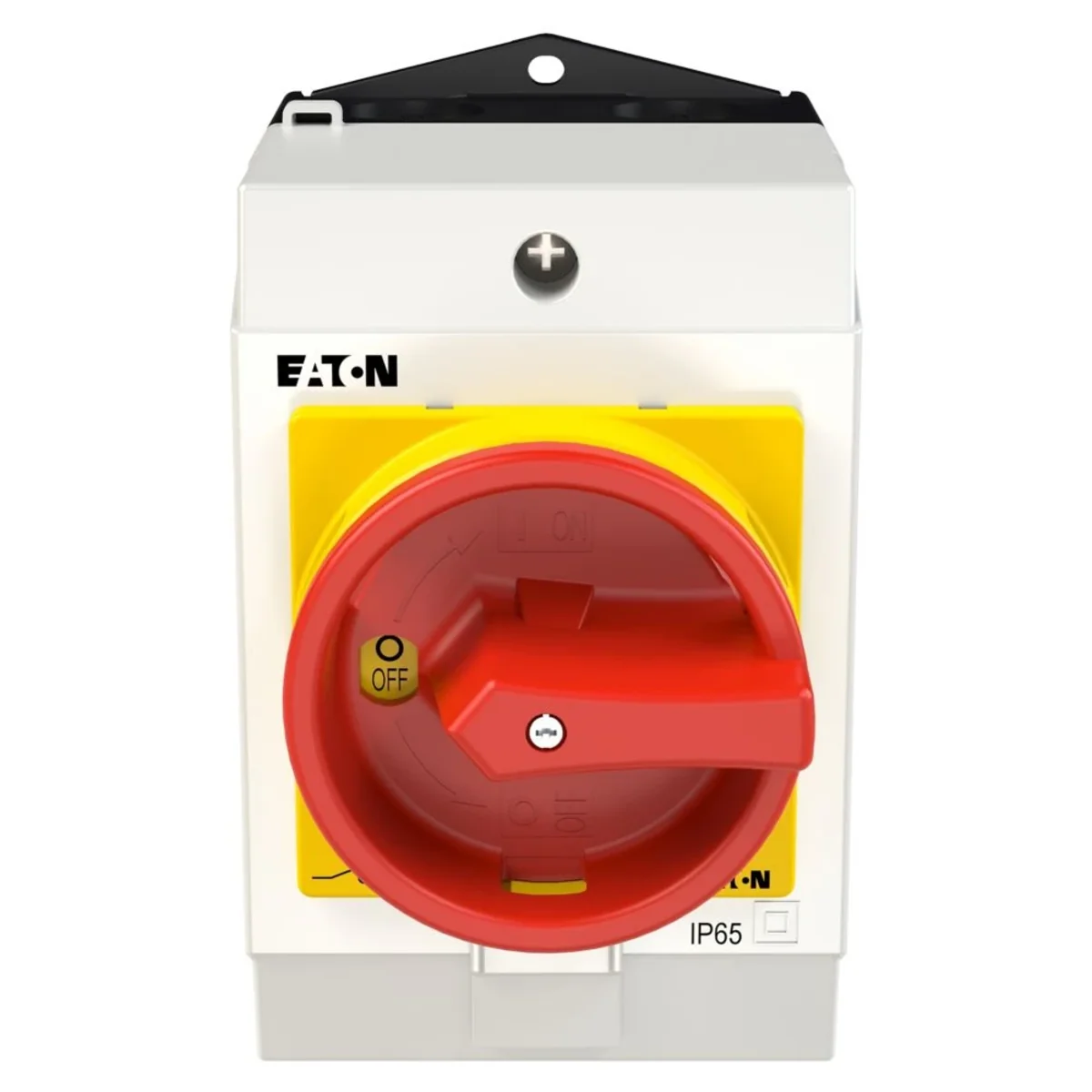

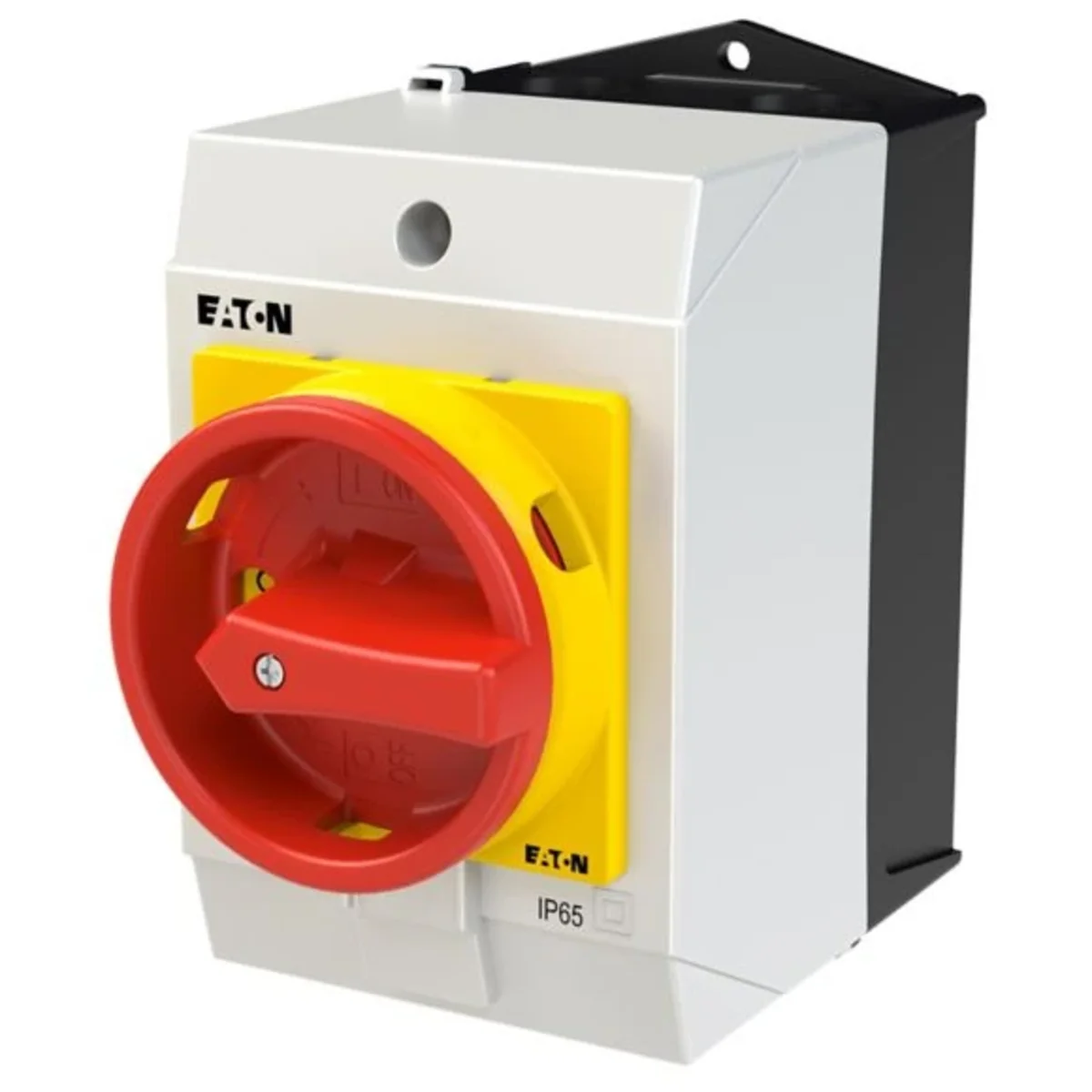

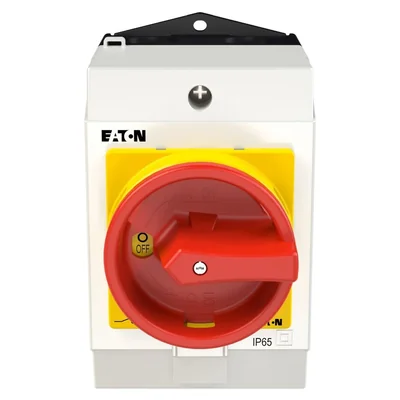

Cam switch In=20A P=6.5 kW, T0-4-8344/I1/SVB 207163
local index:
ALK022MOEL
Catalog No:
207163
EAN code:
4015082071639
Manufacturer:
EATON
Level of security: IP65
Price:
88,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cam switch In=20A P=6.5 kW, T0-4-8344/I1/SVB
Technical data
-
Level of securityIP65
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu20 A
-
Rated permanent current at AC-21, 400 V20 A
-
Rated short-time withstand current lcw0.32 kA
-
Switching power at 400 V5.5 kW
-
Number of poles8
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V13.3 A
-
Rated operation power at AC-3, 400 V5.5 kW
-
Rated operation power at AC-23, 400 V5.5 kW
-
Conditioned rated short-circuit current Iq6 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionComplete device in housing
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationNo
-
Colour control elementRed
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,389 | 0,420 |
| Volume (m3) | 0,001 | 0,001 |
| Width (m) | 0,080 | 0,085 |
| Length (m) | 0,137 | 0,140 |
| Depth (m) | 0,130 | 0,115 |
