Cam switch In=20A P=6.5 kW, T0-1-15511/EZ 022248

local index:
ALK008MOEL
Catalog No:
022248
EAN code:
4015080222484
Manufacturer: EATON
Level of security: IP65
Price:
30,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

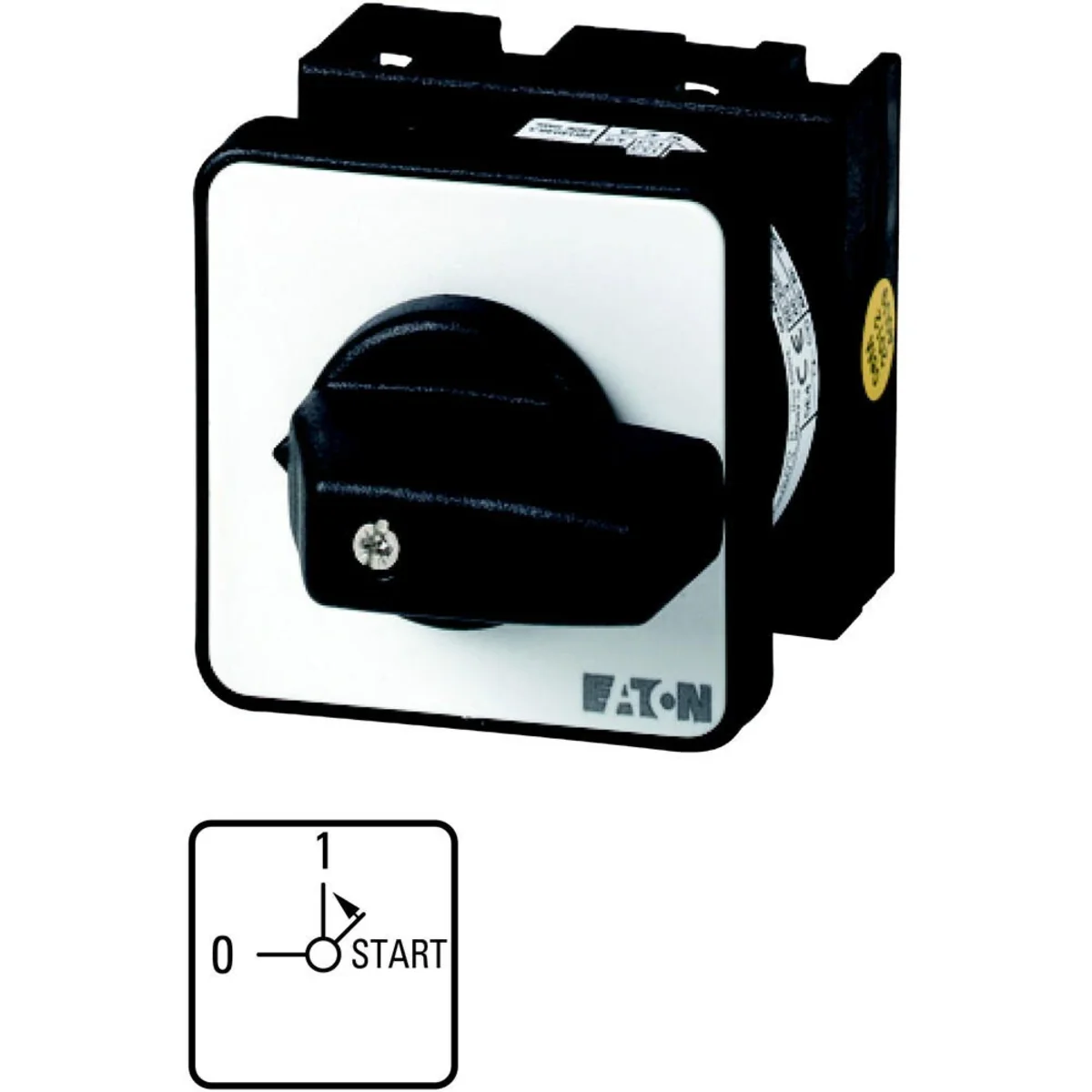

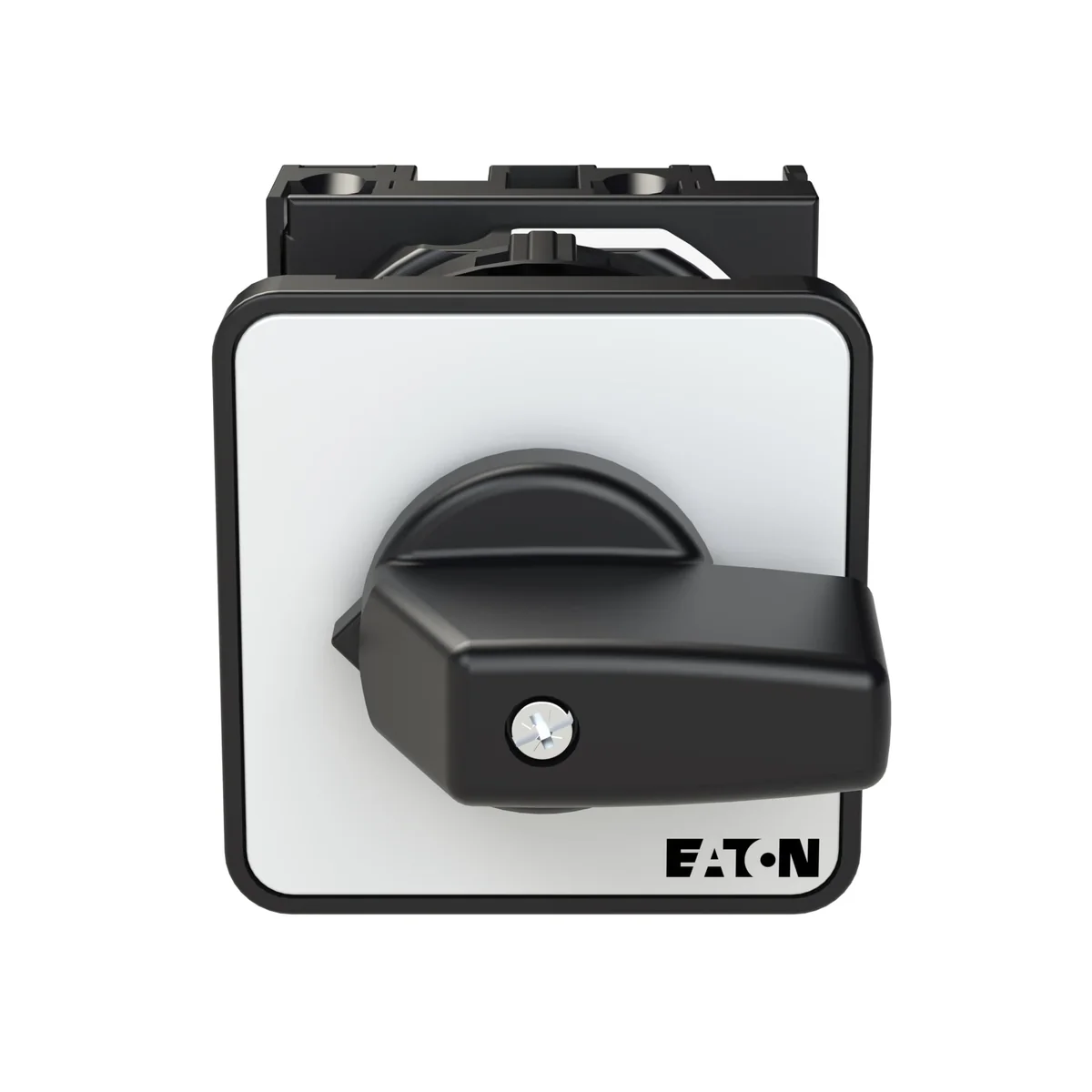

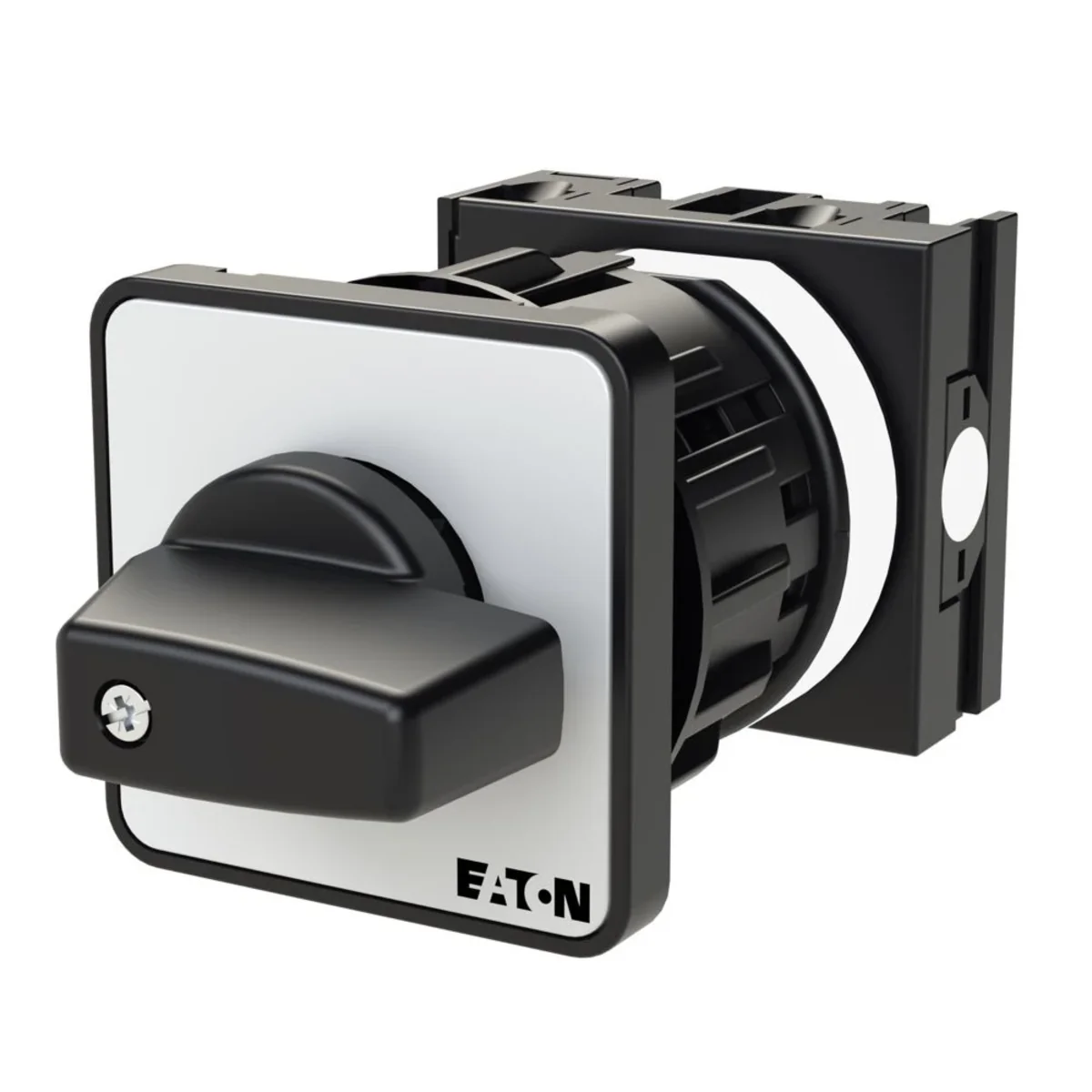

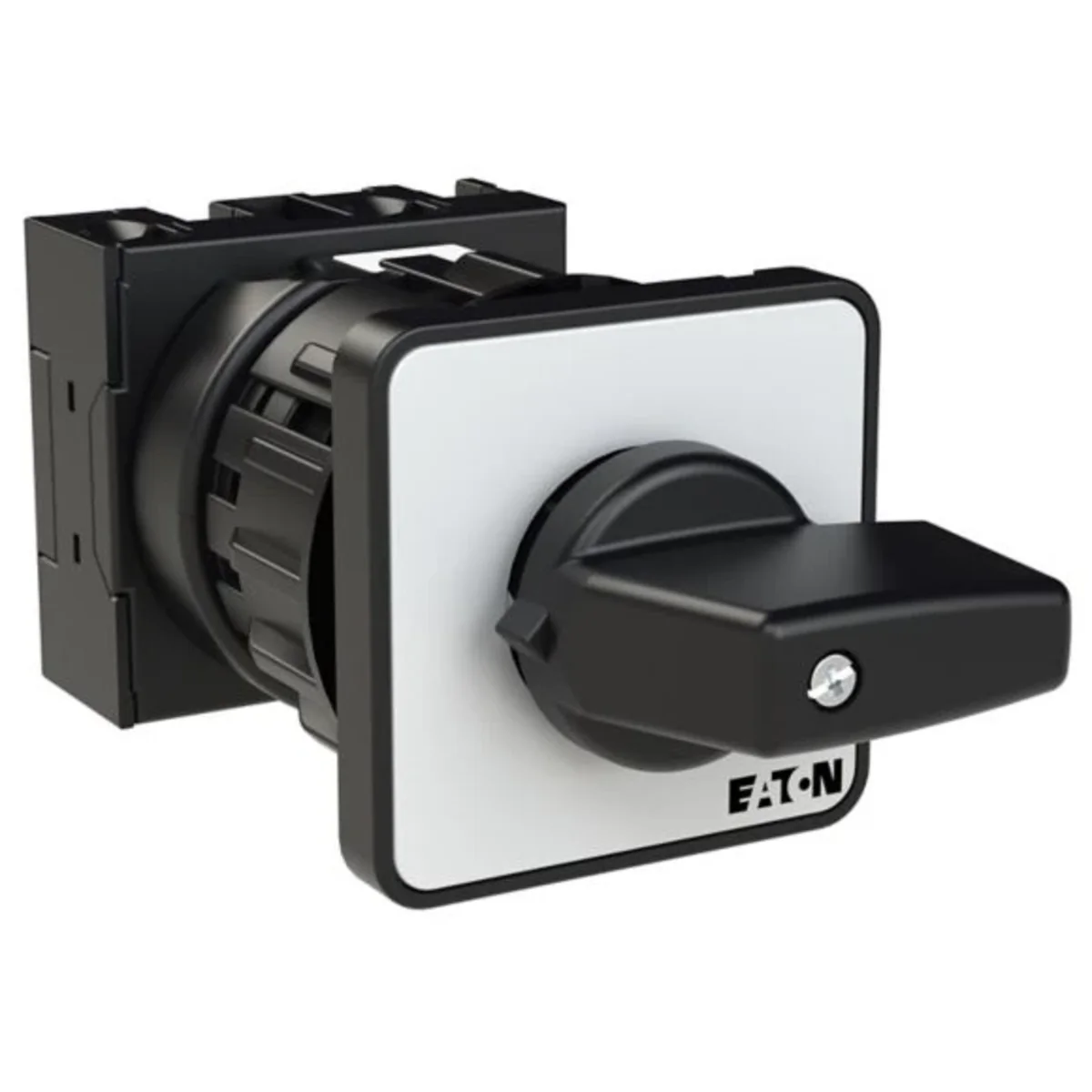

Cam switch In=20A P=6.5 kW, T0-1-15511/EZ

Technical data

  • Level of security
    IP65

Other technical data

  • Type of switch
    On/Off switch
  • Max. rated operation voltage Ue AC
    690 V
  • Number of switch positions
    2
  • With retraction in 0-position
    Yes
  • Width in number of modular spacings
    0
  • Suitable for front mounting
    Yes
  • Suitable for intermediate mounting
    No
  • Type of control element
    Toggle
  • Degree of protection (IP), front side
    IP65
  • Number of poles
    2
  • Rated permanent current Iu
    20 A
  • With zero (off) position
    Yes
  • Device construction
    Built-in device
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Front shield size
    48x48 mm
  • Degree of protection (NEMA), front side
    12

Manufacturer details

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,101 0,143
Volume (m3) 0,000 0,000
Width (m) 0,048 0,048
Length (m) 0,096 0,105
Depth (m) 0,048 0,048
