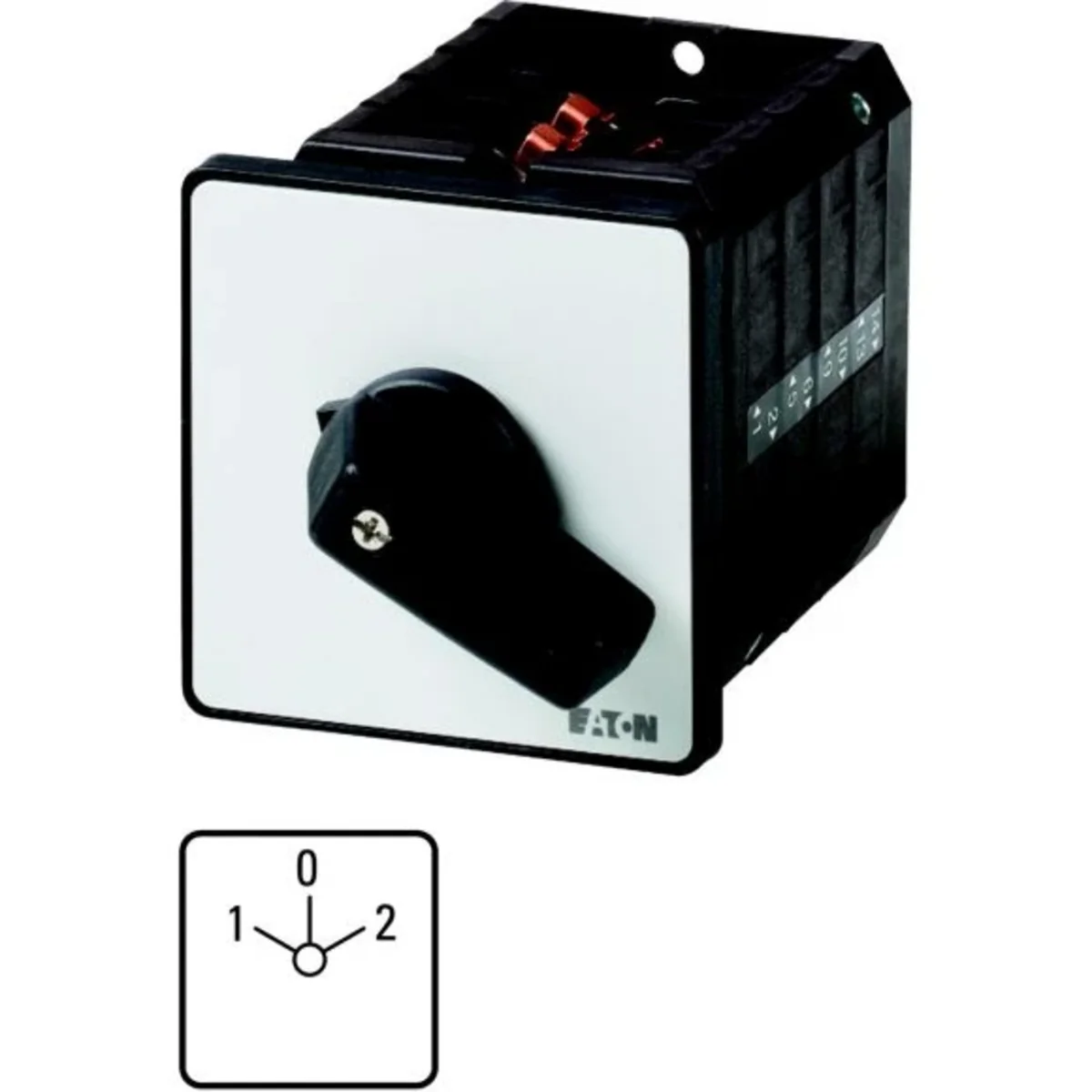

Cam switch, 63A, 22kW, T5B-3-8401/E 092296

local index:
ALK213MOEL
Catalog No:
092296
EAN code:
4015080922964
Manufacturer: EATON
Power [kW]: 22
Main circuits: 3z
Rated current [A]: 63
Price:
173,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cam switch In=63A P=22kW.

Technical data

  • Power [kW]
    22
  • Rated current [A]
    63
  • Main circuits
    3z

Other technical data

  • Model
    Reversing switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    63 A
  • Rated operation power at AC-3, 400 V
    22 kW
  • Degree of protection (NEMA), front side
    12
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of control element
    Short thumb-grip
  • Number of poles
    3
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    41 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    Yes
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection

Manufacturer details

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,590 0,729
Volume (m3) 0,001 0,002
Width (m) 0,088 0,120
Length (m) 0,124 0,150
Depth (m) 0,088 0,100
