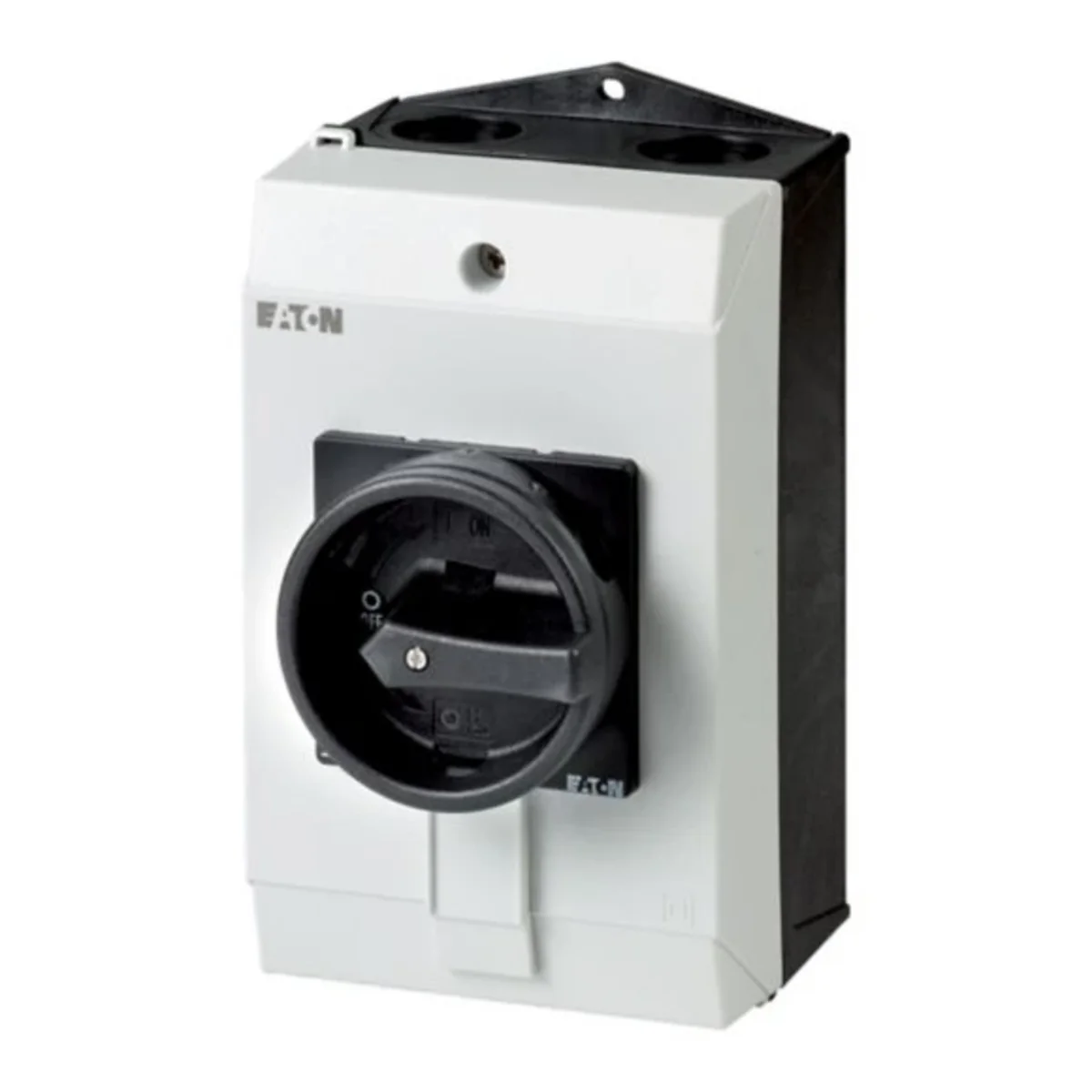

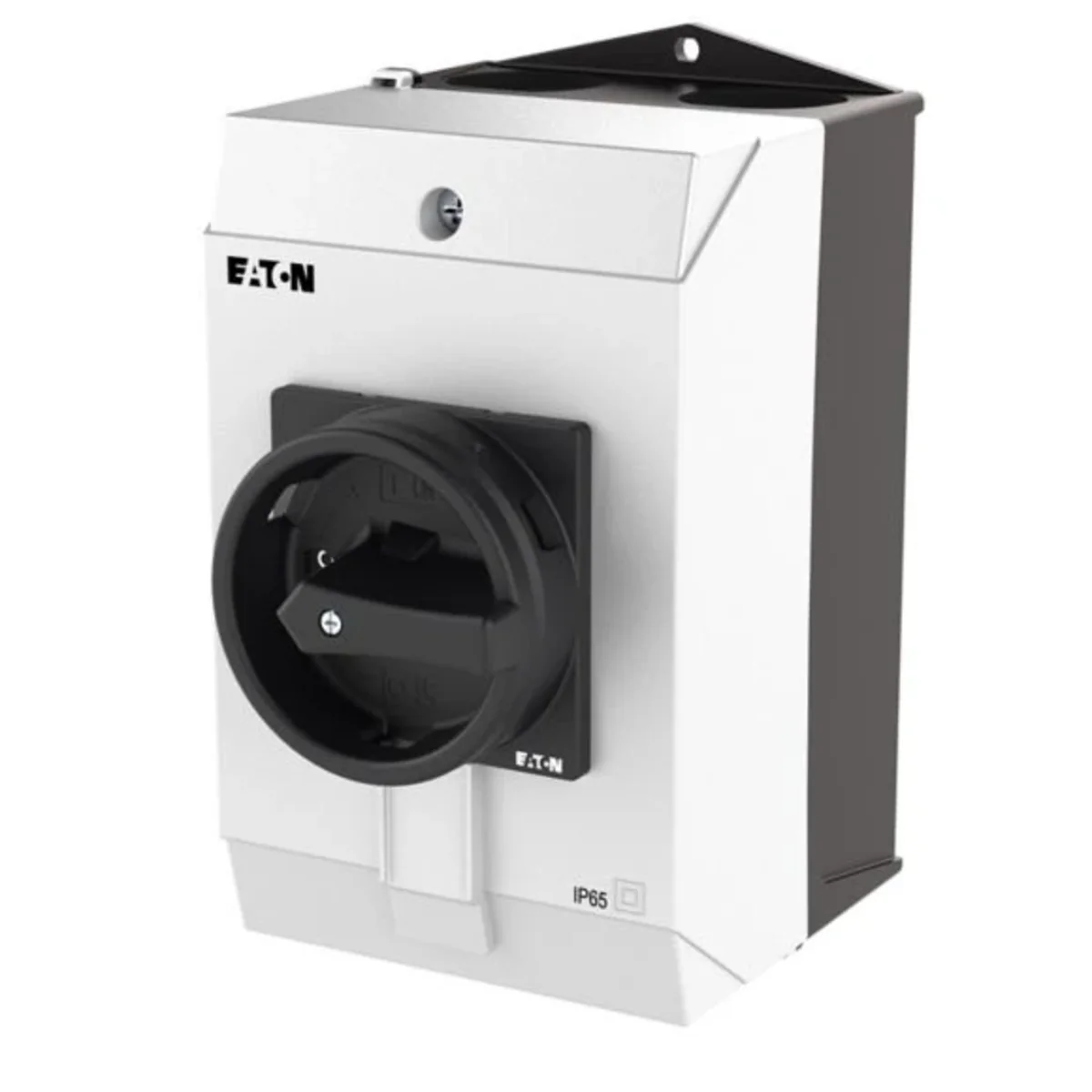

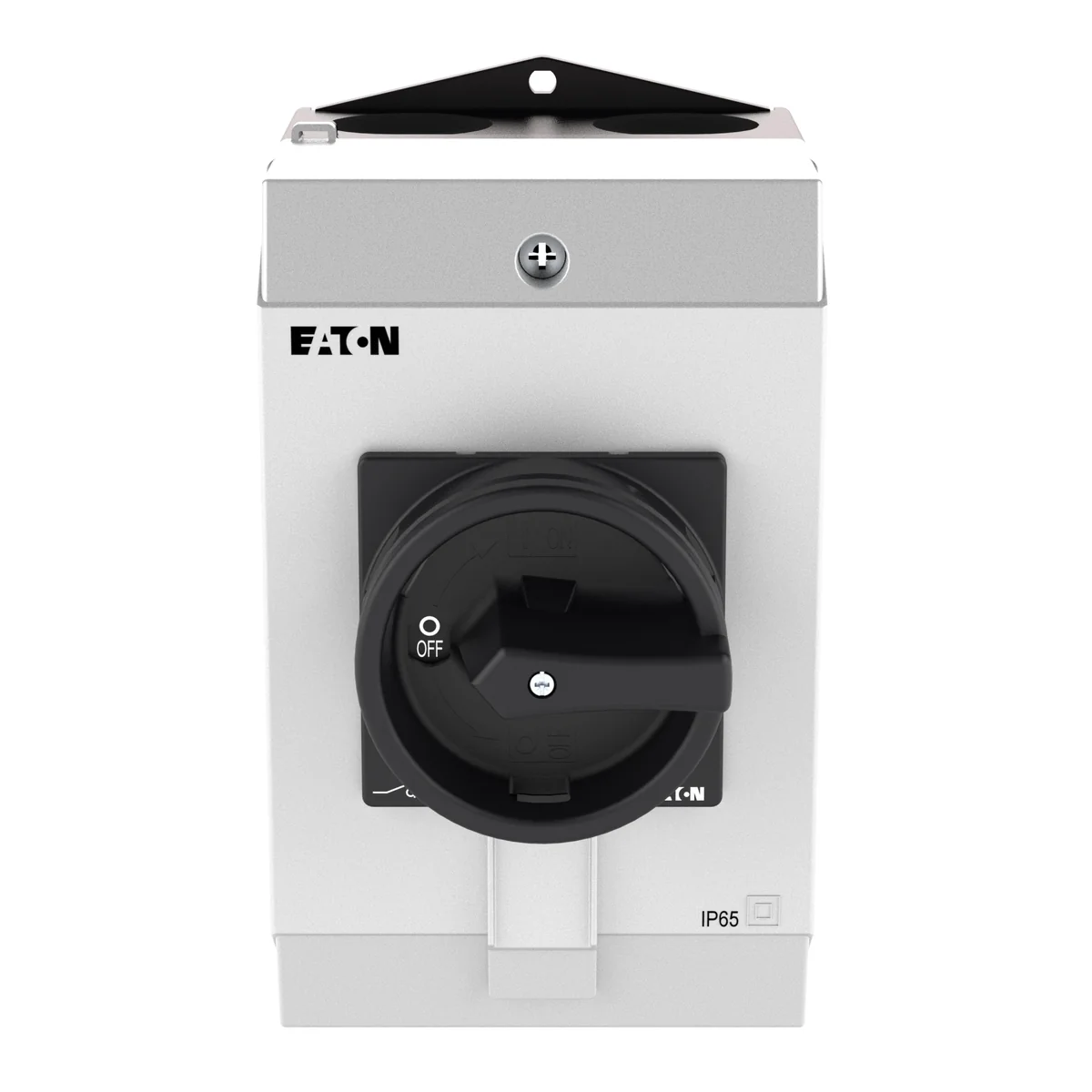

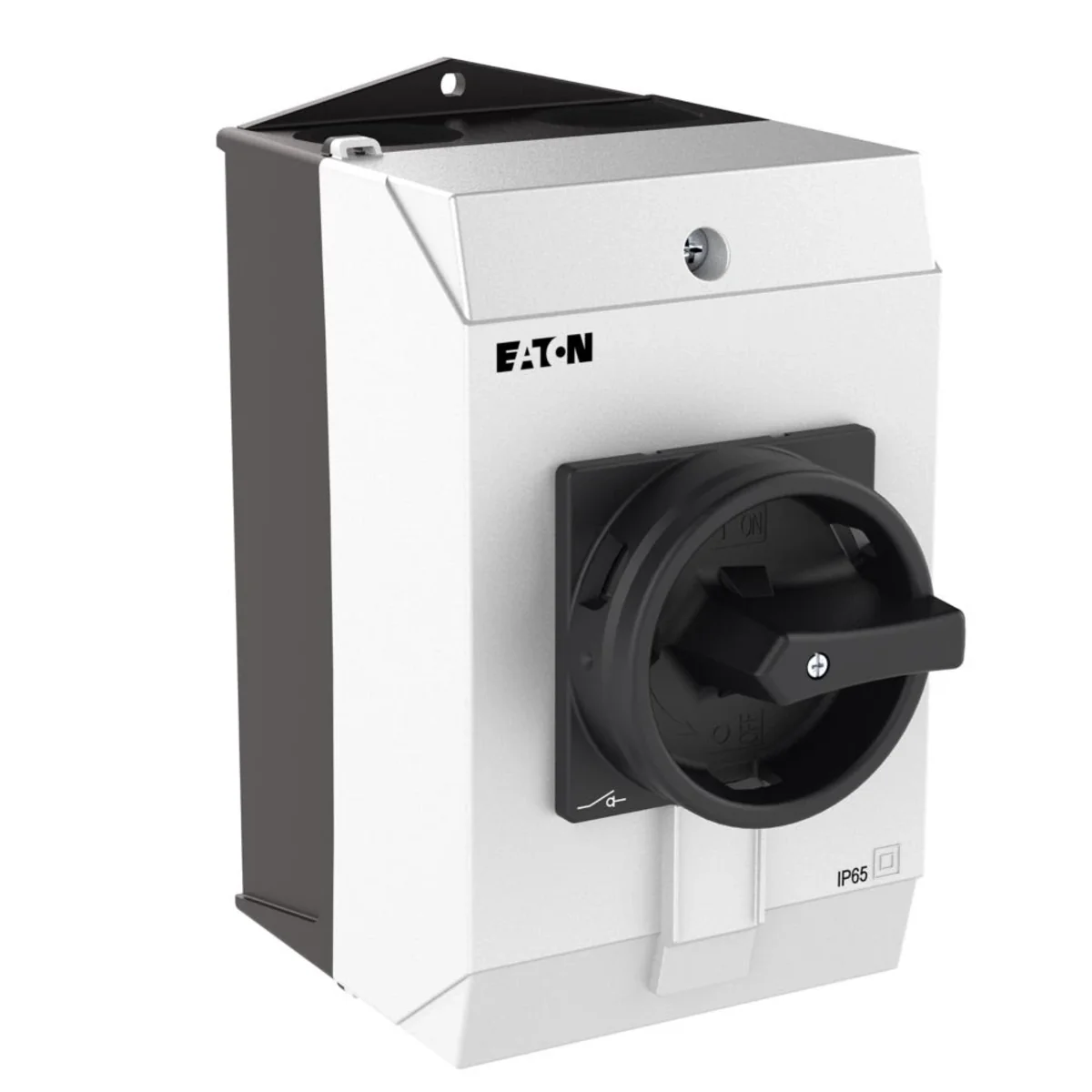

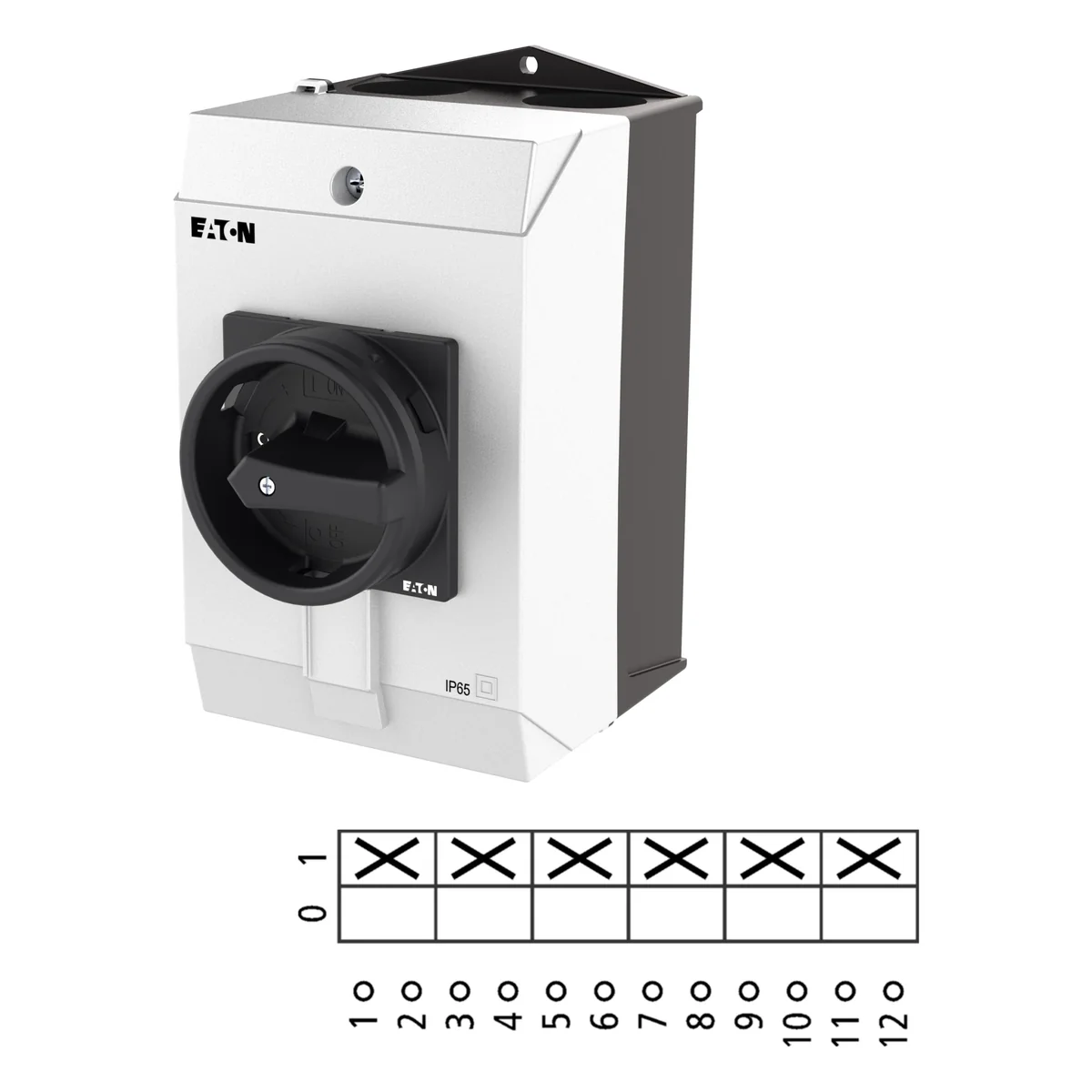

Cam switch, 32A, 13kW, T3-3-8342/I2/SVB-SW 207209
local index:
ALK217MOEL
Catalog No:
207209
EAN code:
4015082072094
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
13
Main circuits:
6Z
Rated current [A]:
32
See full description
Price:
122,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Cam switch In=32A P=13kW. With a black padlockable knob. Lockable in position 0
Technical data
Power [kW]
13
Rated current [A]
32
Main circuits
6Z
Other technical data
Version as main switch
Yes
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
32 A
Rated permanent current at AC-21, 400 V
32 A
Rated short-time withstand current lcw
0.65 kA
Switching power at 400 V
15 kW
Number of poles
6
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
Yes
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Door coupling rotary drive
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
12
Version as maintenance-/service switch
Yes
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
32 A
Rated operation power at AC-3, 400 V
11 kW
Rated operation power at AC-23, 400 V
15 kW
Conditioned rated short-circuit current Iq
1 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
No
Colour control element
Black
Interlockable
Yes
Degree of protection (IP), front side
IP65
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,616
Volume (m3)
0,002
Width (m)
0,105
Length (m)
0,180
Depth (m)
0,120
