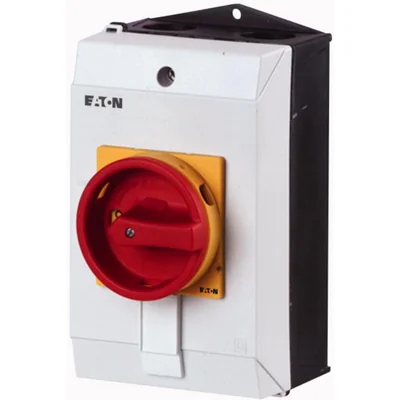

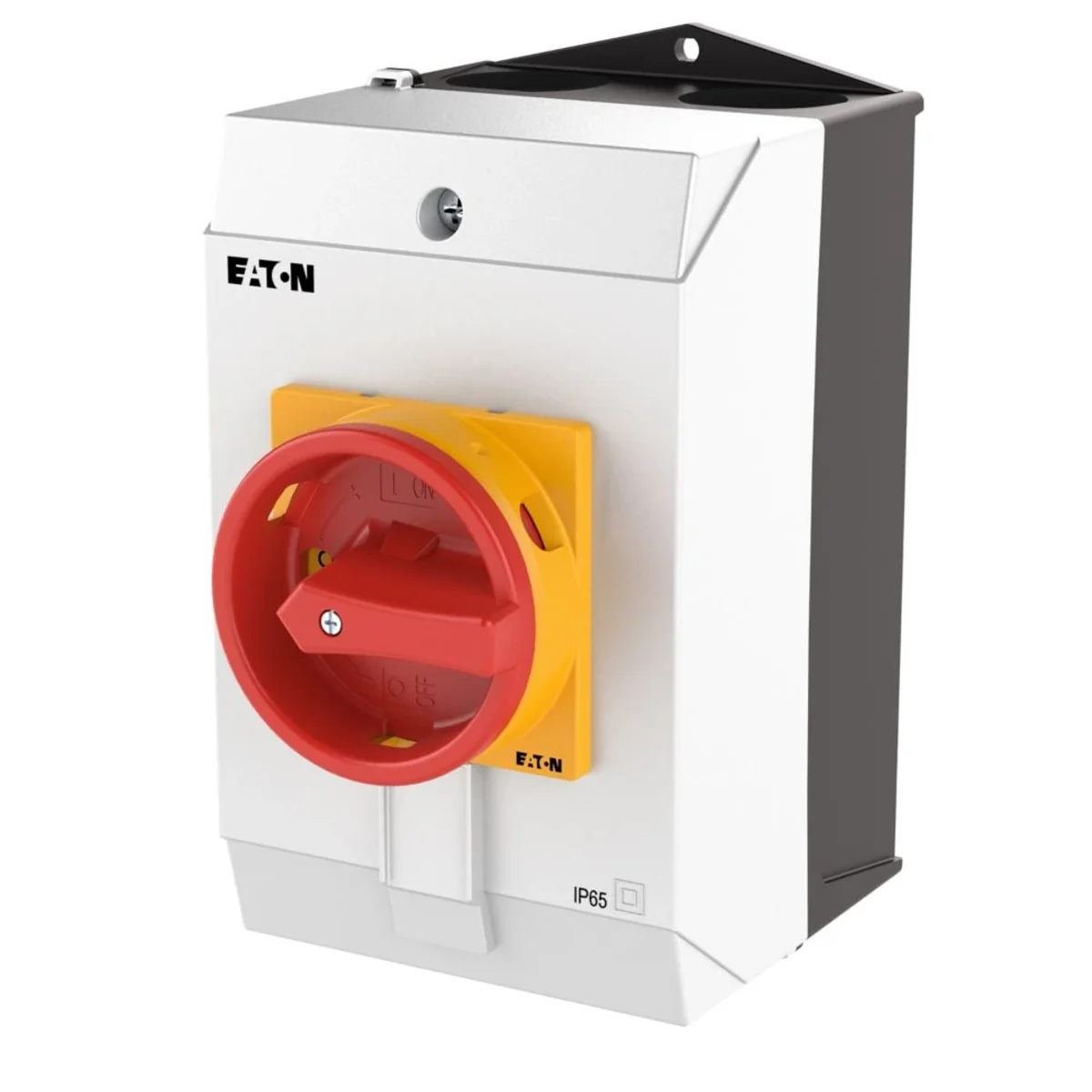

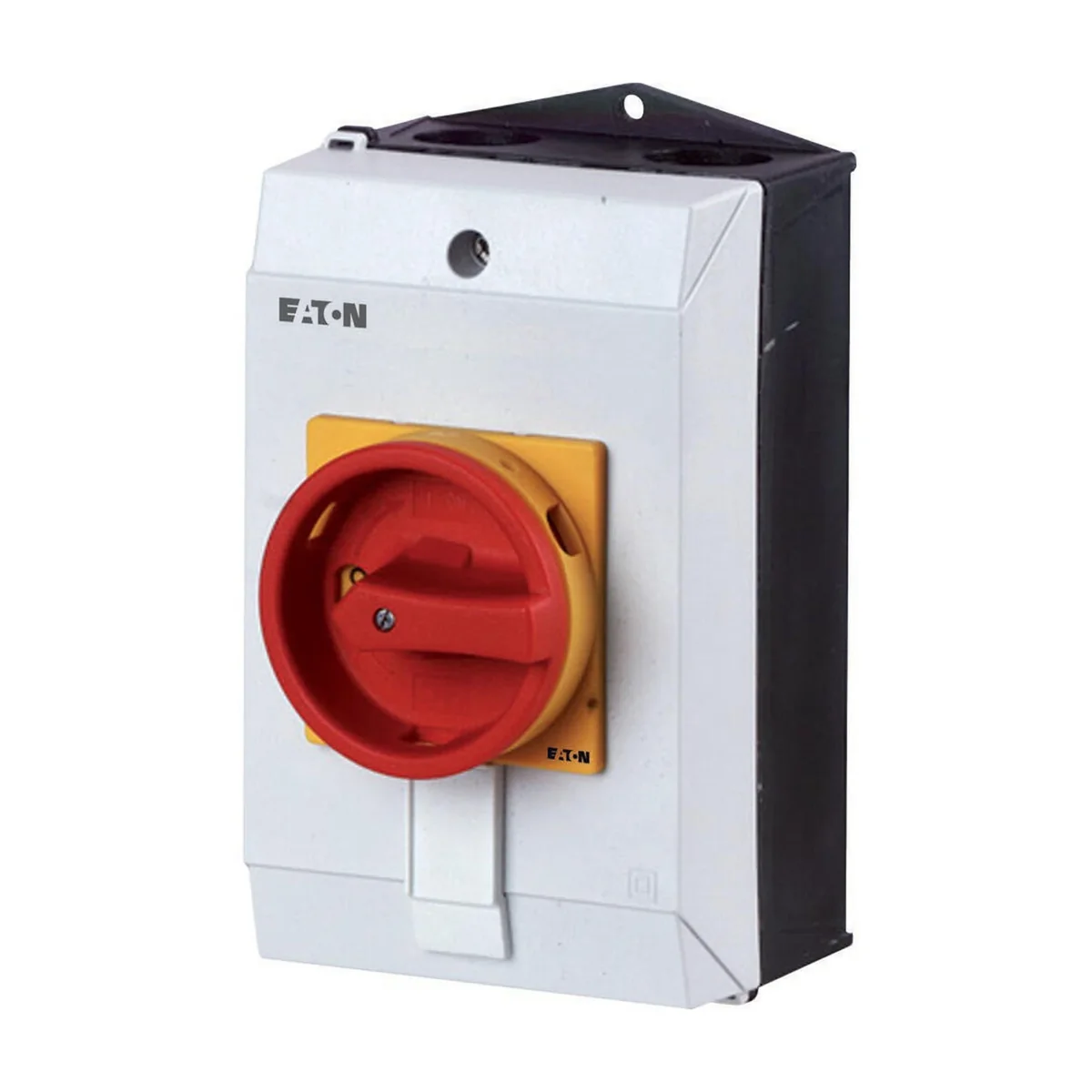

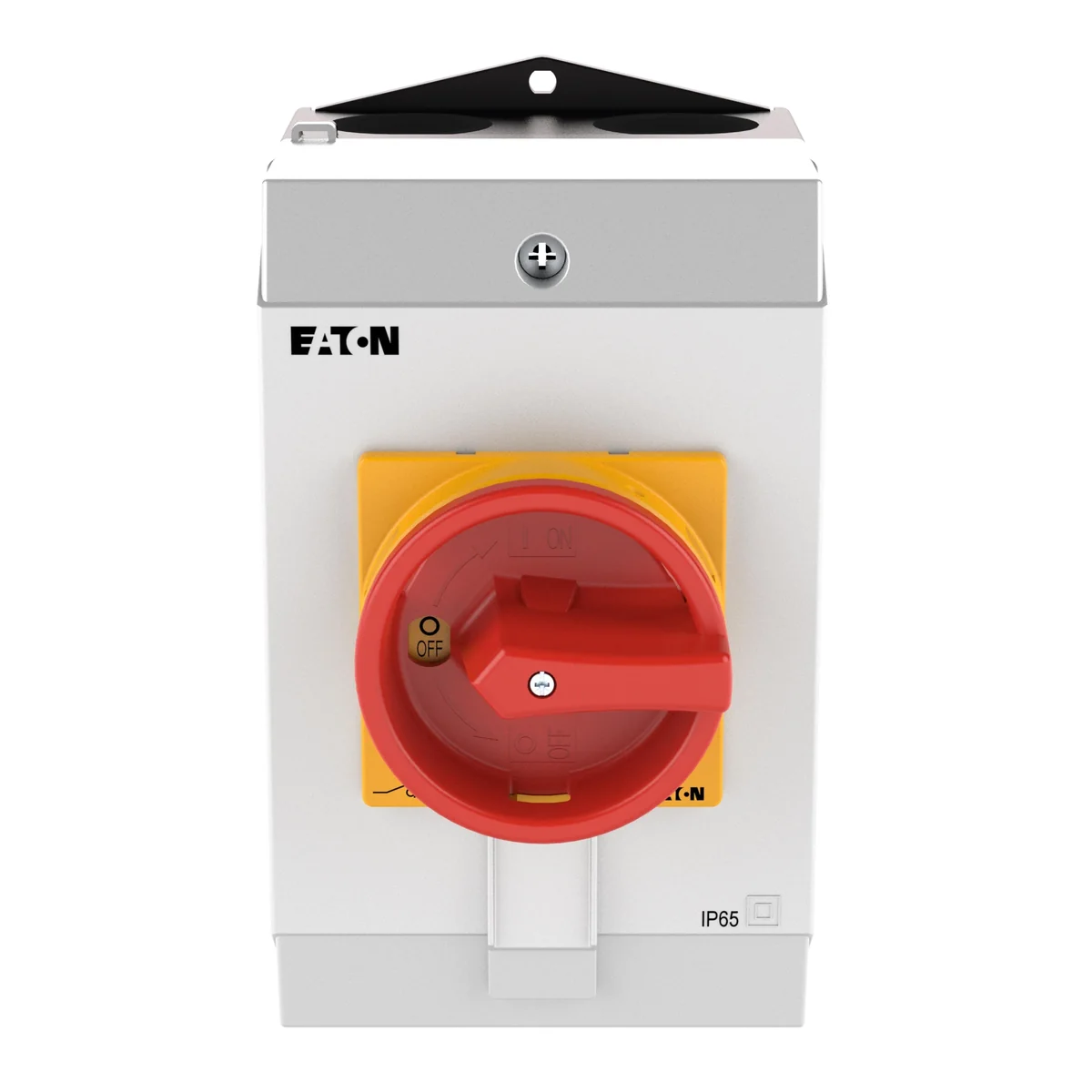

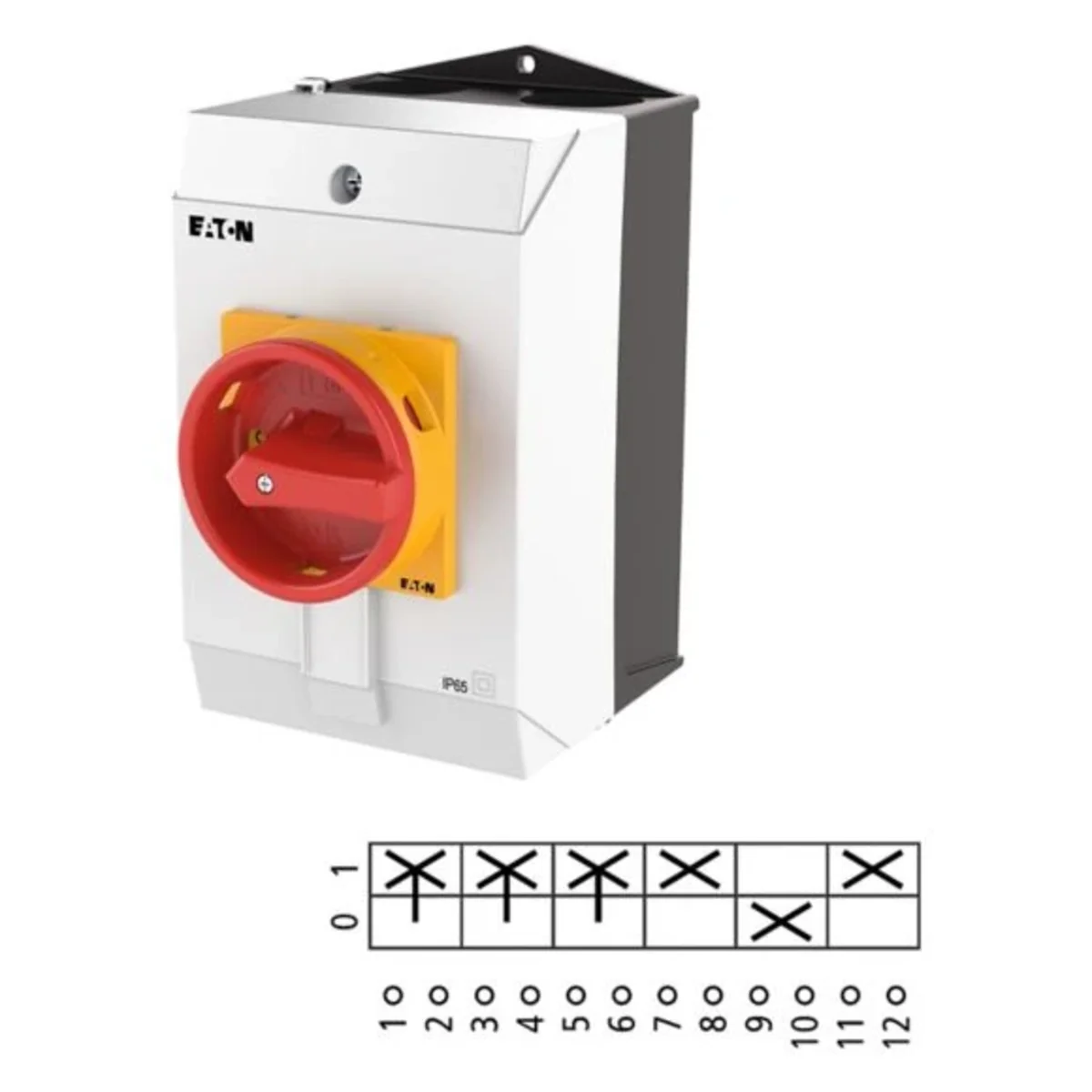

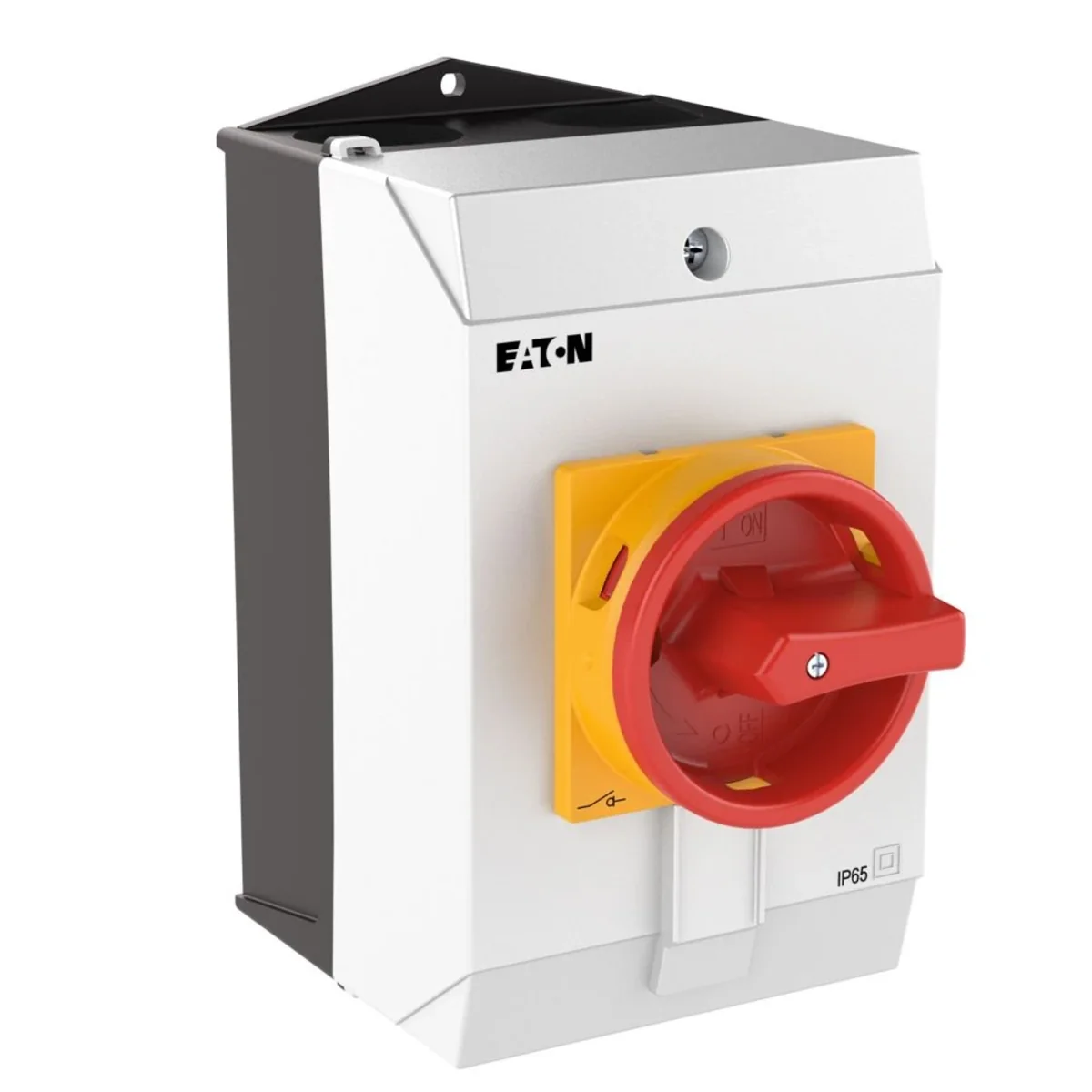

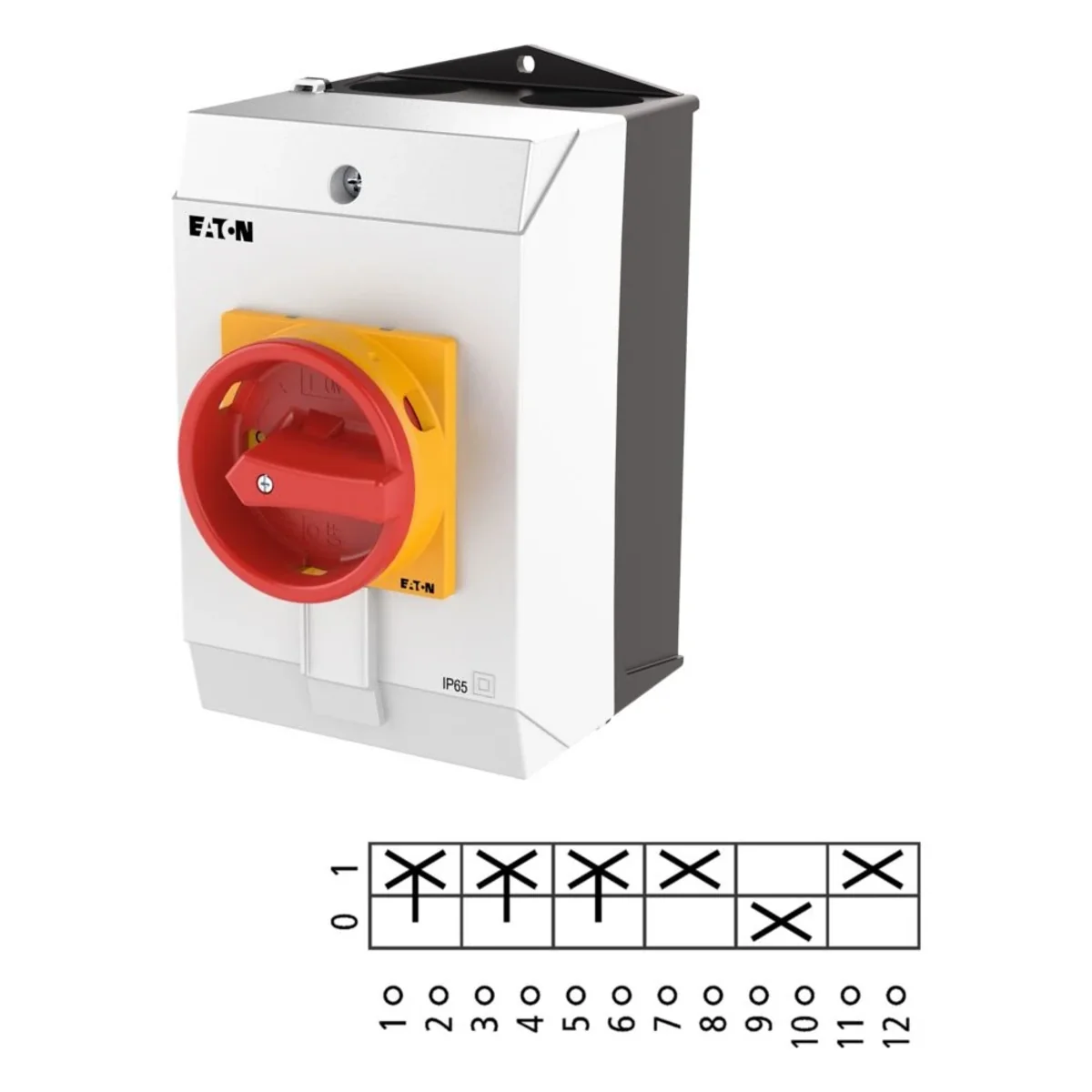

Cam switch, 32A, 13kW, T3-3-15683/I2/SVB 207206

local index:
ALK212MOEL
Catalog No:
207206
EAN code:
4015082072063
Manufacturer: EATON
Power [kW]: 13
Main circuits: 3z
Auxiliary circuits: 2Z 1R
Price:
128,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Cam switch In=32A P=13kW. With red/yellow padlockable knob according to IEC/EN 60204-1, VDE 0113 Part 1. Lockable in 0 position

Technical data

  • Power [kW]
    13
  • Auxiliary circuits
    2Z 1R
  • Main circuits
    3z
  • Rated current [A]
    32

Other technical data

  • Version as main switch
    yes
  • Version as safety switch
    no
  • Version as reversing switch
    no
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    32 A
  • Rated permanent current at AC-21, 400 V
    32 A
  • Rated short-time withstand current lcw
    0.65 kA
  • Switching power at 400 V
    15 kW
  • Number of poles
    3
  • Number of auxiliary contacts as normally open contact
    2
  • Motor drive optional
    no
  • Voltage release optional
    no
  • Suitable for floor mounting
    yes
  • Suitable for front mounting centre
    no
  • Suitable for intermediate mounting
    no
  • Type of control element
    Door coupling rotary drive
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    12
  • Version as maintenance-/service switch
    yes
  • Version as emergency stop installation
    yes
  • Number of switches
    1
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-23, 400 V
    32 A
  • Rated operation power at AC-3, 400 V
    11 kW
  • Rated operation power at AC-23, 400 V
    15 kW
  • Conditioned rated short-circuit current Iq
    1 kA
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    no
  • Device construction
    Complete device in housing
  • Suitable for front mounting 4-hole
    no
  • Suitable for distribution board installation
    no
  • Colour control element
    Red
  • Interlockable
    yes
  • Degree of protection (IP), front side
    IP65

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,616
Volume (m3) 0,002
Width (m) 0,105
Length (m) 0,180
Depth (m) 0,120
