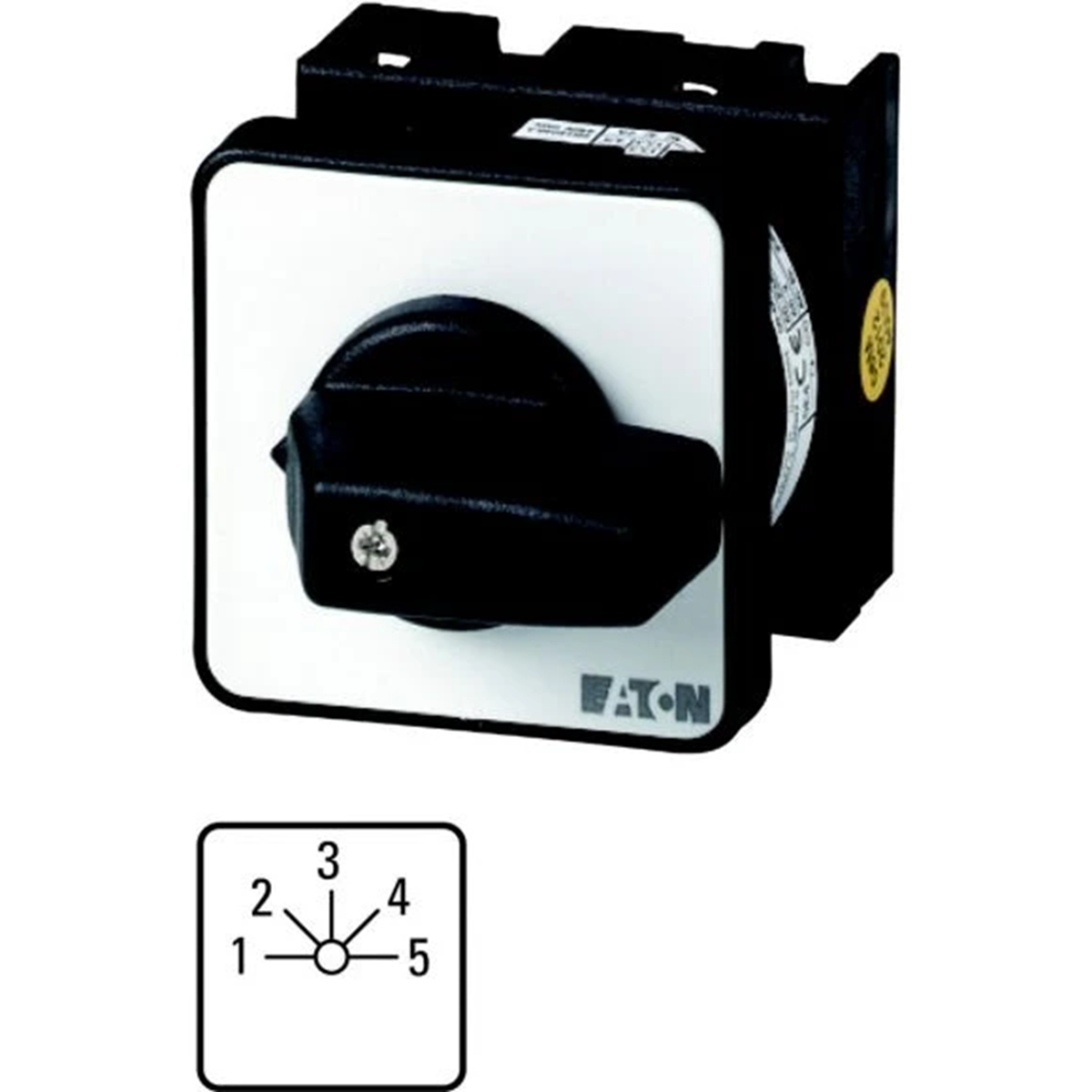

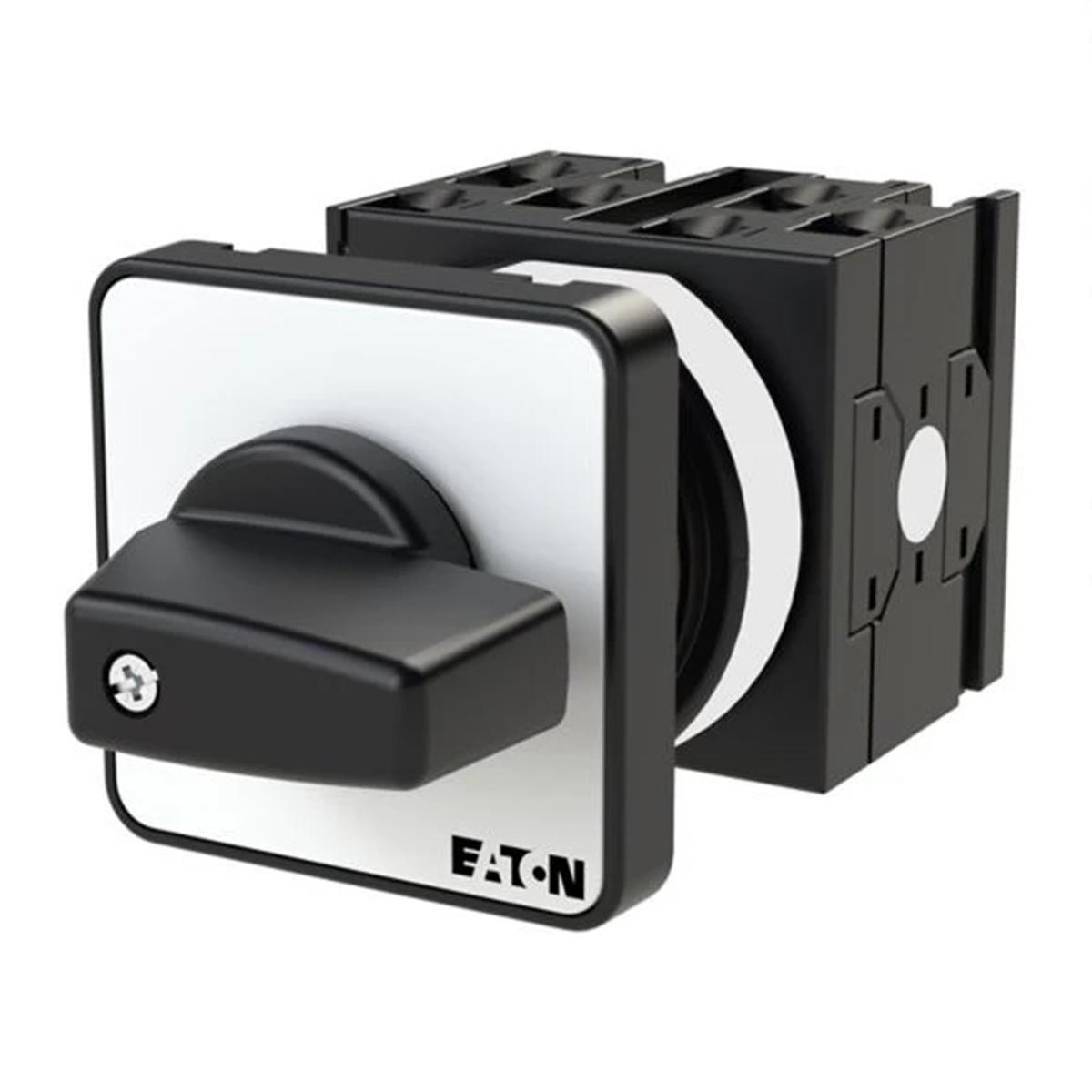

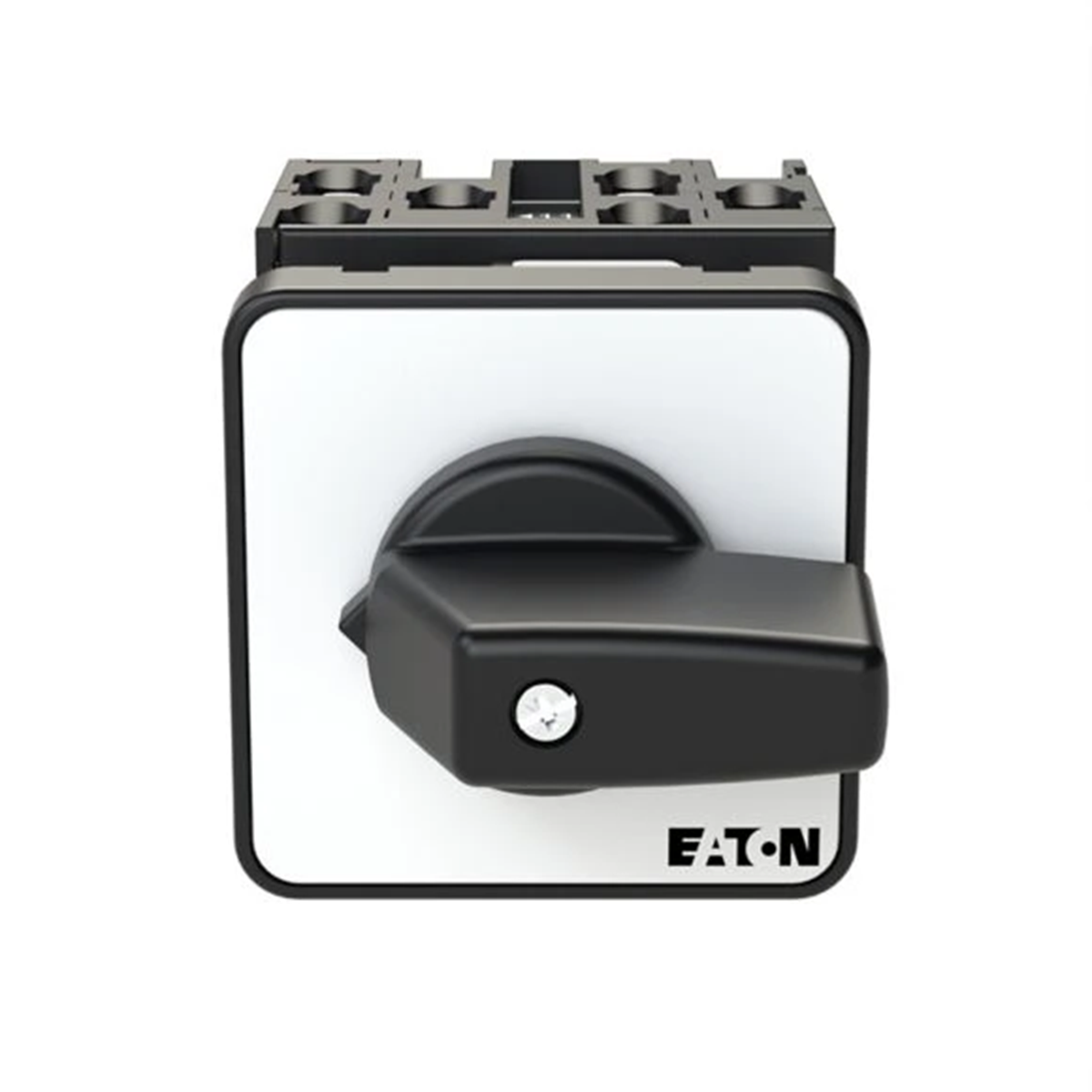

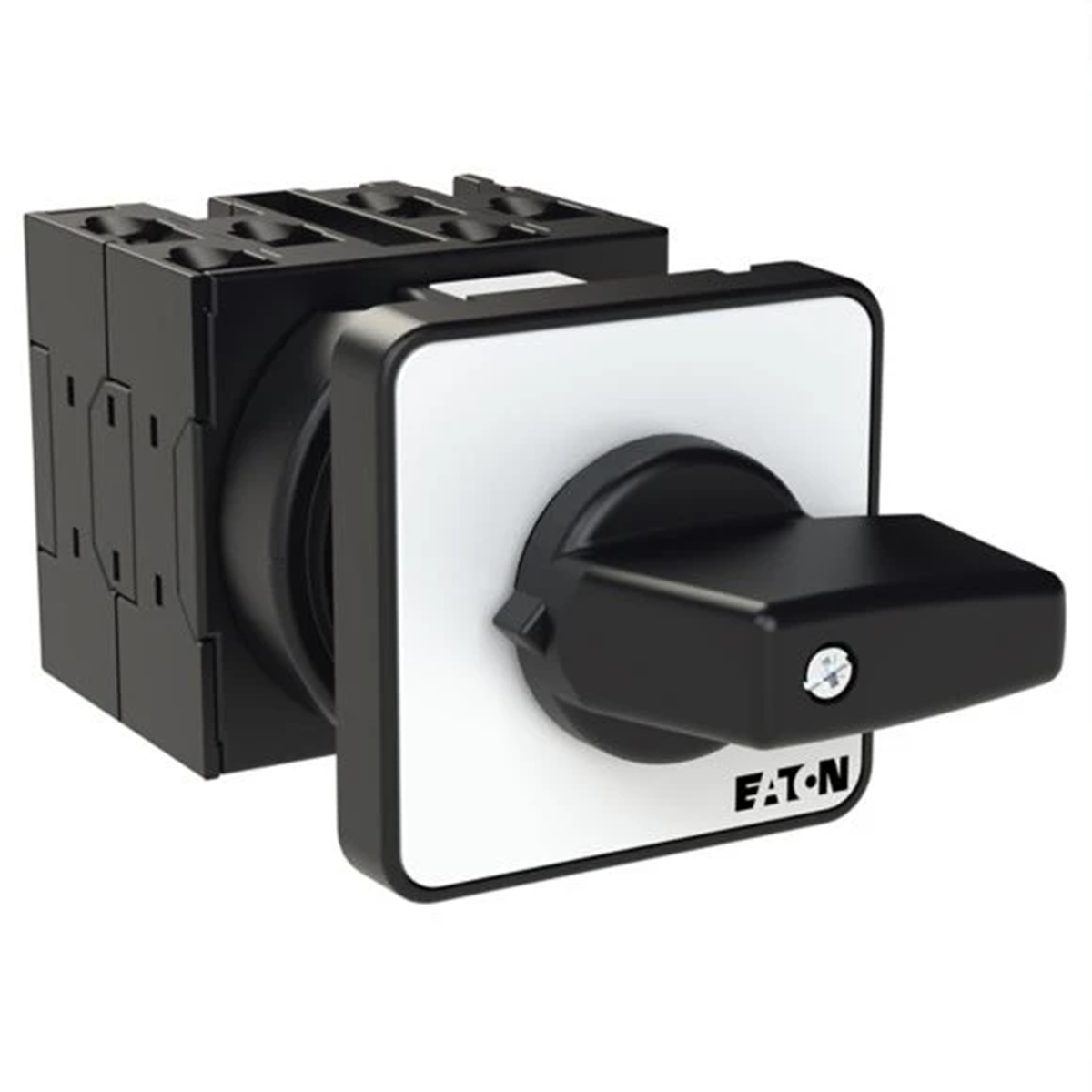

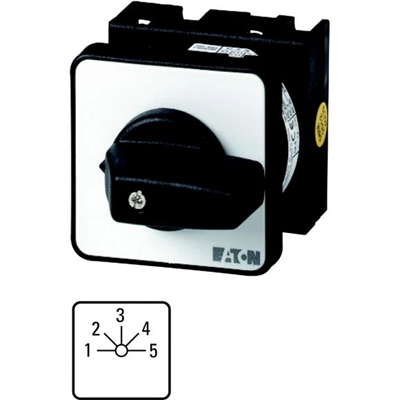

Cam switch, 20A, 6.5kW, T0-3-8232/E 026988

local index:
ALK065MOEL
Catalog No:
026988
EAN code:
4015080269885
Manufacturer: EATON
Power [kW]: 6.5
Main circuits: 1
Rated current [A]: 20
Price:
47,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cam switch In=20A P=6.5 kW. Without auxiliary circuits. With black knob and front plate

Technical data

  • Power [kW]
    6.5
  • Rated current [A]
    20
  • Main circuits
    1

Other technical data

  • Type of switch
    Level switch
  • Max. rated operation voltage Ue AC
    690 V
  • Number of switch positions
    5
  • With retraction in 0-position
    No
  • Width in number of modular spacings
    0
  • Suitable for front mounting
    Yes
  • Suitable for intermediate mounting
    No
  • Type of control element
    Toggle
  • Degree of protection (IP), front side
    IP65
  • Number of poles
    1
  • Rated permanent current Iu
    20 A
  • With zero (off) position
    No
  • Device construction
    Built-in device
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Front shield size
    48x48 mm
  • Degree of protection (NEMA), front side
    12

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,152
Volume (m3) 0,001
Width (m) 0,075
Length (m) 0,181
Depth (m) 0,065
