Cam switch, 20A, 6.5kW, T0-2-8215/E 022236

local index:
ALK036MOEL
Catalog No:
022236
EAN code:
4015080222361
Manufacturer: EATON
Power [kW]: 6.5
Main circuits: 2Z
Rated current [A]: 20
Price:
34,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

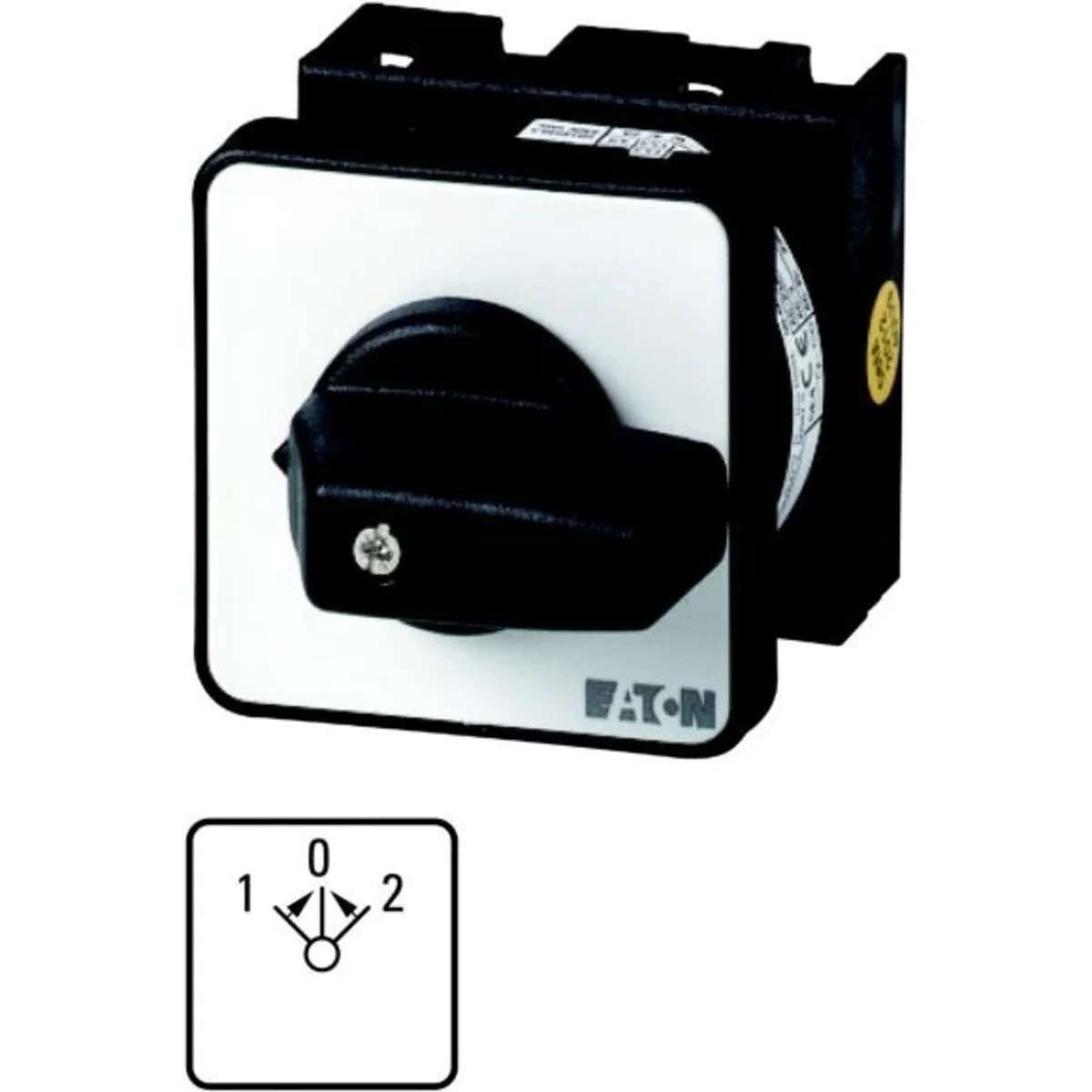

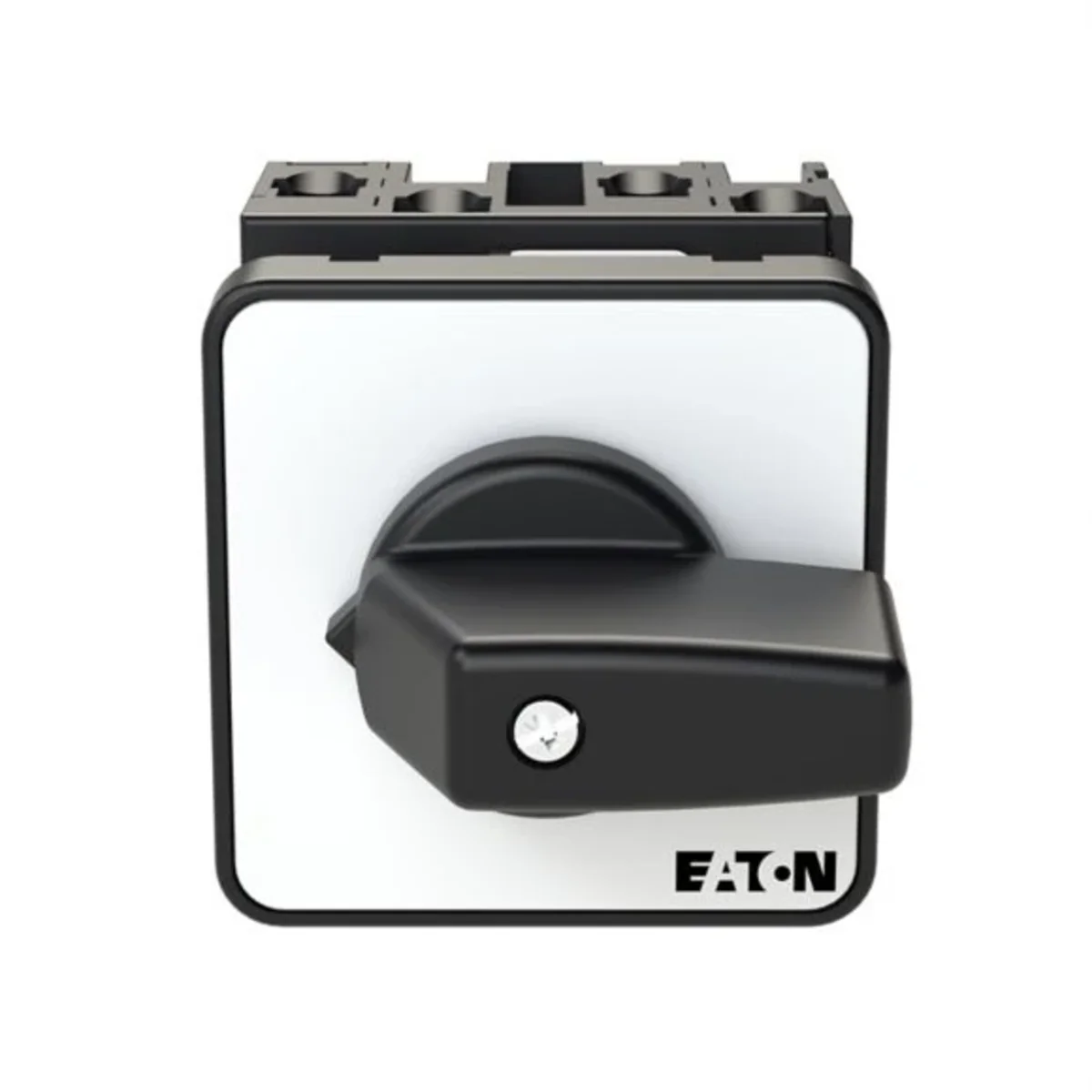

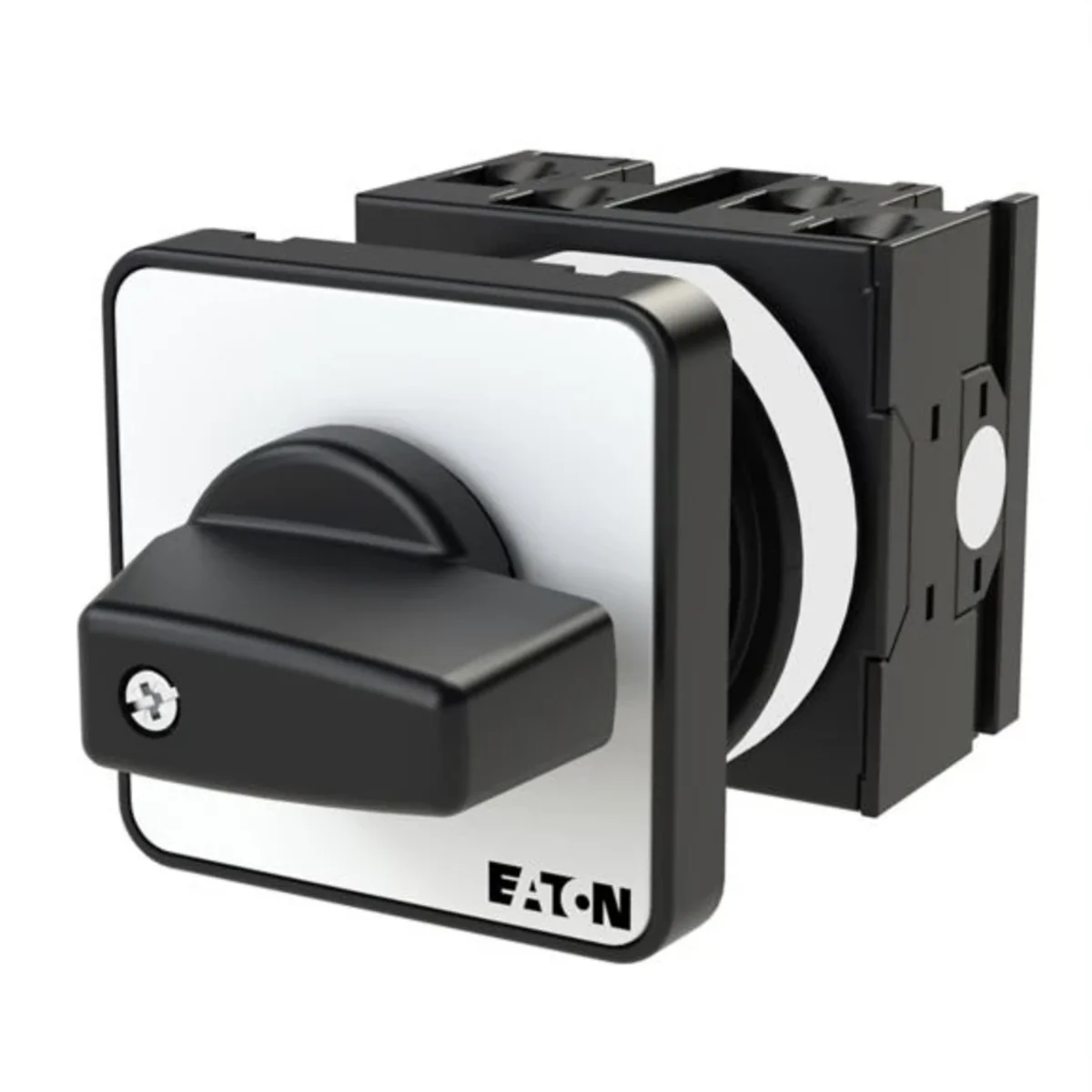

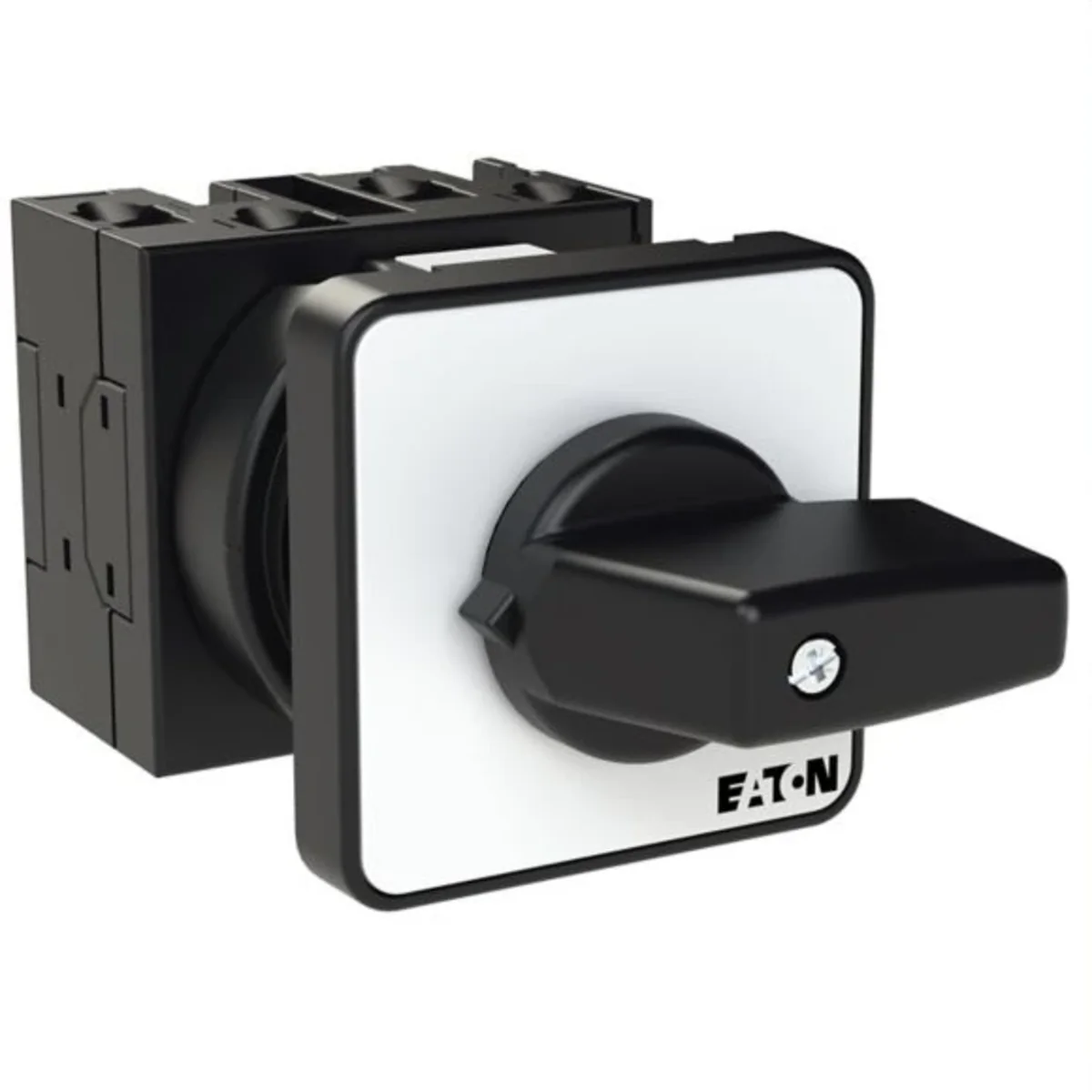

Cam switch In=20A P=6.5 kW. With black knob and face plate

Technical data

  • Power [kW]
    6.5
  • Rated current [A]
    20
  • Main circuits
    2Z

Other technical data

  • Model
    Reverser
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    20 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Degree of protection (NEMA), front side
    12
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    No
  • Complete device in housing
    No
  • Type of control element
    Short thumb-grip
  • Number of poles
    2
  • With retraction in 0-position
    Yes
  • Rated operation current Ie at AC-3, 400 V
    11.5 A
  • Degree of protection (IP), front side
    IP65
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    Yes
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,139
Volume (m3) 0,001
Width (m) 0,075
Length (m) 0,163
Depth (m) 0,065
